CLIVET CSRN-XHE2 Series User manual

M07Z40M15-02 20-09-16

CSRN-XHE2 FFA 12.2-24.4

Installation and

operating manual

High eciency “Roof top” all fresh air cooled heat pump

Dear Customer,

We congratulate you on choosing this product

For many years Clivet has been oering systems that provide maximum comfort, together with high

reliability, eciency, quality and safety.

The aim of the company is to oer advanced systems, that assure the best comfort, reduce energy

consumption and the installation and maintenance cost for the life cycle of the system.

The purpose of this manual is to provide you with information that is useful from reception of

the equipment, through installation, operational usage and nally disposal so that this advanced

system oers the beat solution.

Yours faithfully.

CLIVET Spa

The data contained in this manual is not binding and may be changed by the manufacturer without

prior notice.

Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia

M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 3

Index of contents

1 General description 4

2 Reception 6

3 Positioning 8

4 Water connections 10

5 Aeraulic connections 11

6 Electrical connections 12

7 Start-up 16

8 Control 21

9 Maintenance 33

10 Accessories 37

11 Decommissioning 44

12 Residual risks 45

13 Technical information 46

14 Dimensional drawings 49

4 CSRN-XHE2 FFA 12.2-24.4 M07Z40M15-02

1 General description

1.1 Manual

The manual provides correct unit installation, use and maintenance.

Pay particular attention to:

Warning, identies particularly important operations or information.

Prohibited operations that must not be carried out, that compromise the operating of the unit or may cause damage to persons or things.

• It is advisable to read it carefully so you will save time during operations.

• Follow the written indications so you will not cause damages to things and injuries people.

1.2 Preliminaries

Only qualied personnel can operate on the unit, as required by the regulation in force.

1.3 Risk situations

The unit has been designed and created to prevent injures to people.

During designing it is not possible to plane and operate on all risk situation.

Read carefully “Residual risk” section where all situation which may cause damages to things and injuries to people are reported.

Installation, starting, maintenance and repair required specic knowledge; if they are carried out by inexperienced personnel, they may cause

damages to things and injuries people.

1.4 Intended use

Use the unit only:

• civil air-conditioning

• keep to the limits foreseen in the technical schedule and in this manual

The manufacturer accepts no responsibility if the equipment is used for any purpose other than the intended use.

1.5 Installation

Outdoor installation

The positioning, hydraulic system, refrigerating, electrics and the ducting of the air must be determined by the system designer in accordance

with local regulations in force.

Follow local safety regulations.

Verify that the electrical line characteristics are in compliance with data quotes on the unit serial number label.

1.6 Maintenance

Plan periodic inspection and maintenance in order to avoid or reduce repairing costs.

Turn the unit o before any operation.

1.7 Modication

All unit modications will end the warranty coverage and the manufacturer responsibility.

1.8 Breakdown/Malfuction

Disable the unit immediately in case of breakdown or malfunction.

Contact a certied service agent.

Use original spares parts only.

Using the unit in case of breakdown or malfunction:

• voids the warranty

• it may compromise the safety of the unit

• may increase time and repair costs

M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 5

1.9 User training

The installer has to train the user on:

• Start-up/shutdown

• Set points change

• Standby mode

• Maintenance

• What to do / what not to do in case of breakdown

1.10 Data update

Continual product improvements may imply manual data changes.

Visit manufacturer web site for updated data.

1.11 Indications for the User

Keep this manual with the wiring diagram in an accessible place for the operator.

Note the unit data label so you can provide them to the assistance centre in case of intervention (see “Unit identication”section).

Provide a unit notebook that allows any interventions carried out on the unit to be noted and tracked making it easier to suitably note the

various interventions and aids the search for any breakdowns.

In case of breakdown or malfunction:

• Immediately deactivate the unit

• Contact a service centre authorized by the manufacturer

The installer must train the user, particularly on:

• Start-up/shutdown

• Set points change

• Standby mode

• Maintenance

• What to do / what not to do in case of breakdown

1.12 Unit indentication

The serial number label is positioned on the unit and allows to indentify all the unit features.

The matriculation plate must never be removed.

The matriculation plate shows the indications foreseen by the standards, in particular:

• unit type

• serial number (12 characters)

• year of manufacture

• wiring diagram number

• electrical data

• manufacturer logo and address

1.13 Serial number

It identies uniquely each unit.

Must be quoted when ordering spare parts.

1.14 Assistance request

Note data from the serial number label and write them in the chart on side, so you will nd them easily when needed.

Series

Size

Serial number

Year of manufacture

Electrical wiringdiagram

6 CSRN-XHE2 FFA 12.2-24.4 M07Z40M15-02

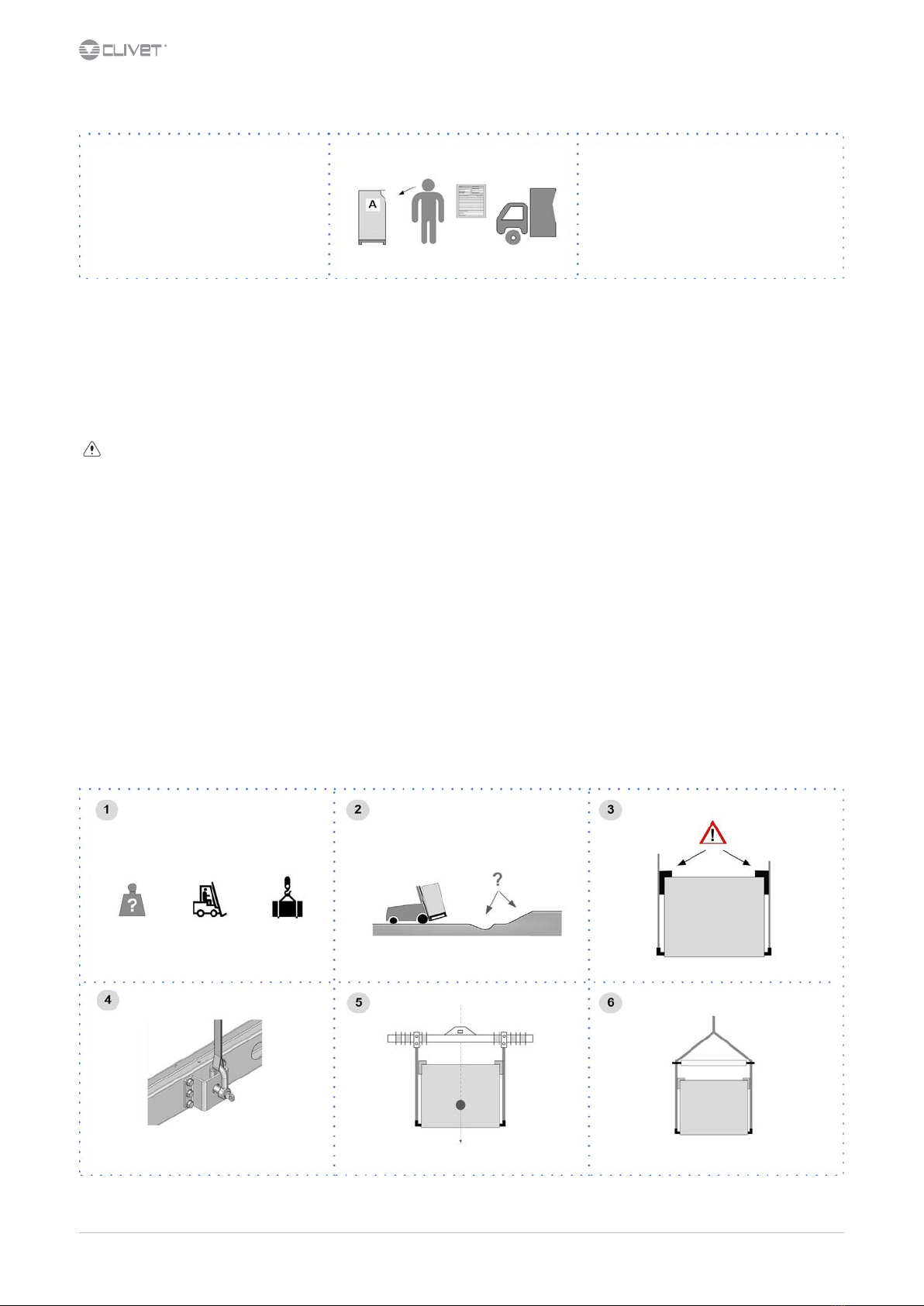

2 Reception

You have to check before accepting the delivery:

• That the unit hasn’t been damaged during transport

• That the materials delivered correspond with that indicated on the transport document comparing the data with the identication label

positioned on the packaging.

In case of damage or anomaly:

• Write down on the transport document the damage you found and quote this sentence: “Conditional acceptance clear evidence of

deciencies/damages during transport”

• Contact by fax and registered mail with advice of receipt to supplier and the carrier.

Any disputes must be made within 8 days from the date of the delivery. Complaints after this period are invalid.

2.1 Storage

Observe external packaging instructions.

2.2 Handling

1. Verify unit weight and handling equipment lifting capacity.

2. Identify critical points during handling (disconnected routes, ights, steps, doors).

3. Suitably protect the unit to prevent damage.

4. lifting brackets

5. Lifting with balance

6. Lifting with spacer bar

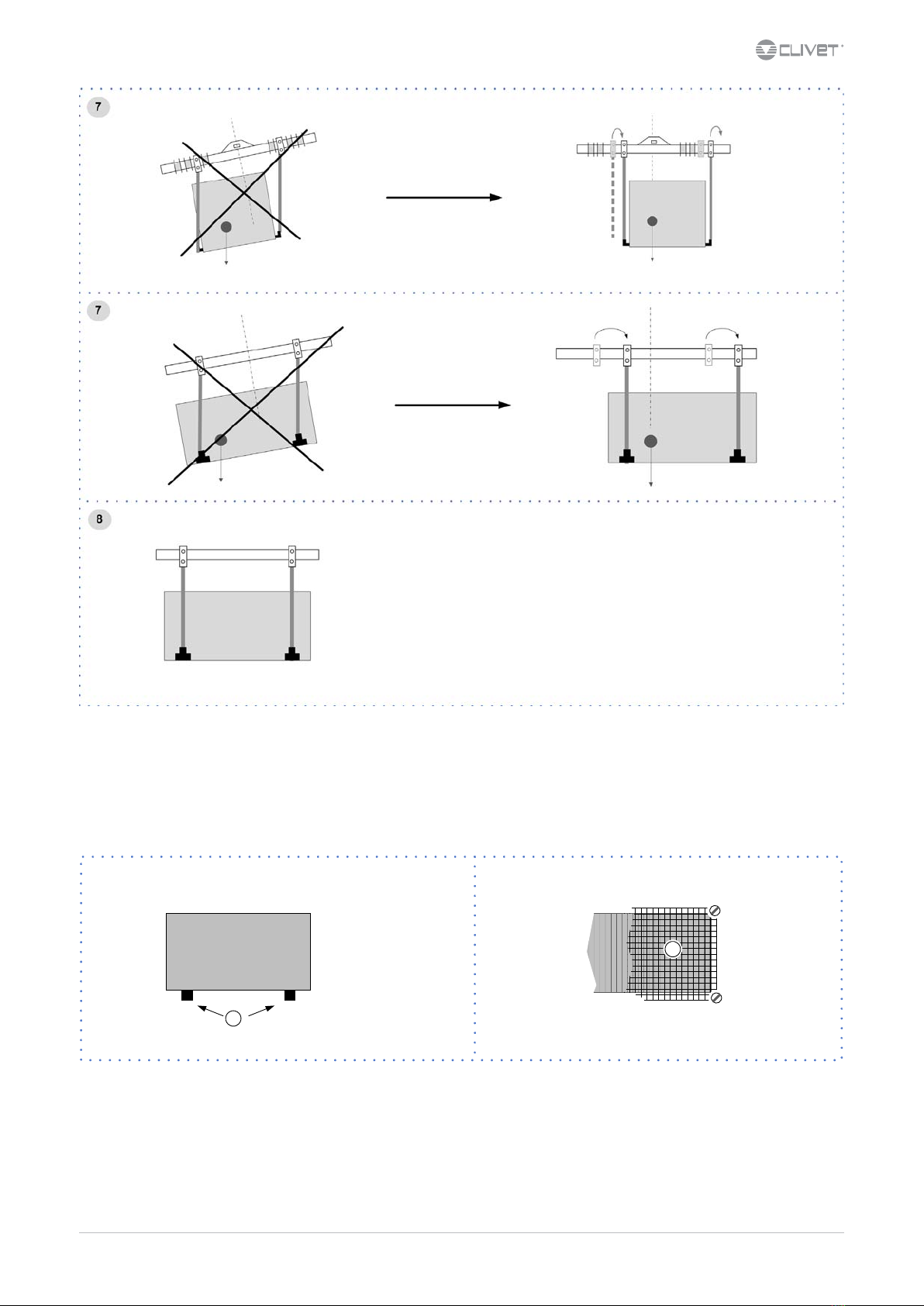

7. Align the barycenter to the lifting point

8. Use all the lifting brackets (see the dimensional section)

9. Gradually bring the lifting belts under tension, making sure they are positioned correctly.

10. Before starting the handling, make sure that the unit is stable.

M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 7

2.3 Packaging removing

Be careful not to damage the unit.

Keep packing material out of children’s reach it may be dangerous.

Recycle and dispose of the packaging material in conformity with local regulations.

A Supports for handling: remove after the handling.

B Remove the coil protective mesh before the start-up

8 CSRN-XHE2 FFA 12.2-24.4 M07Z40M15-02

3 Positioning

During positioning consider these elements:

• Technical spaces requested by the unit

• Electrical connections

• Water connections

• Spaces for air exhaust and intake

3.1 Functional spaces

Functional spaces are designed to:

• guarantee good unit operation

• carry out maintenance operations

• protect authorized operators and exposed people

Respect all functional spaces indicated in the DIMENSIONS section.

Double all functional spaces if two or more unit are aligned.

3.2 Saftey valve gas side

The installer is responsible for evaluating the opportunity of installing drain tubes, in conformity with the local regulations in force (EN 378).

3.3 Positioning

Units are designed to be installed:

• EXTERNAL

• in xed positions

Limit vibration transmission:

• use anti-vibration devices or neoprene strips on the unit support points

• install exible joints on the hydraulic connections

Choose the installation place according to the following criteria:

• Customer approval

• safe accessible position

• technical spaces requested by the unit

• spaces for the air intake/exhaust

• max. distance allowed by the electrical connections

• install the unit raised from the ground

• verify unit weight and bearing point capacity

• verify that all bearing points are aligned and leveled

• condensate water draining

• consider the maximum possible snow level

• Avoid installations in places subject to ooding

Protect the unit with suitable fence in order to avoid access to unauthorised personnel (children, vandals, etc.)

A correct circulation of the air is mandatory to guarantee the good unit operating.

Avoid therefore:

• obstacles to the airow

• diculty of exchange

• leaves or other foreign bodies that can obstruct the air coil

• winds that hinder or favour the airow

• heat or pollution sources close to the unit (chimneys, extractors etc..)

• stratication (cold air that stagnates at the bottom)

• recirculation (expelled air that is sucked in again)

• incorrect positioning, close to very high walls, attics or in angles that could give rise to stratication or recirculation phenomenons

Ignoring the previous indications could:

• reduce energy eciency

• alarm lockout due to HIGH PRESSURE (in summer) or LOW PRESSURE (in winter)

M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 9

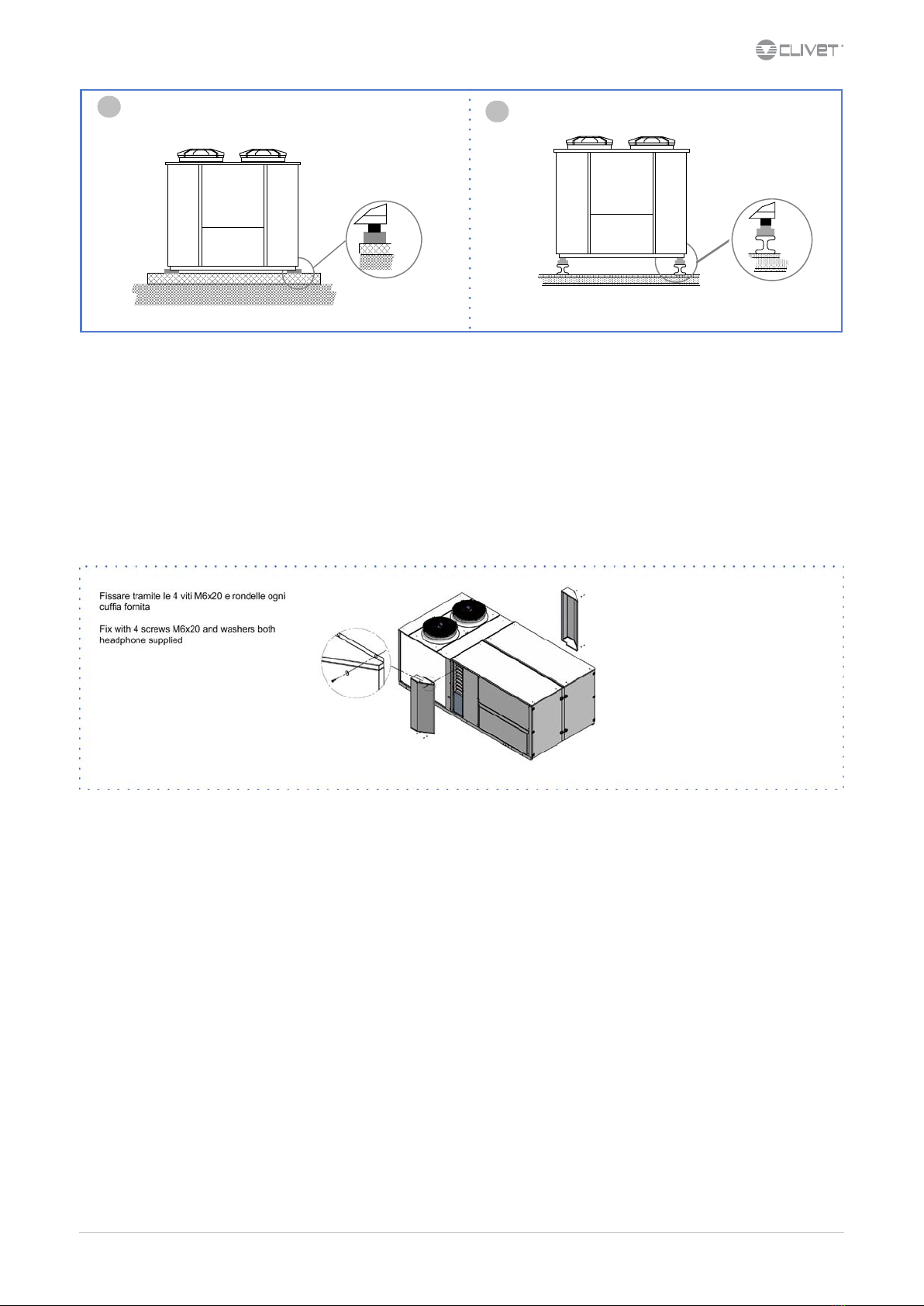

1 Positioning on concrete oor 5Positioning on steel structure

2 2 cm thick neoprene strips 6 antivibration mounts

3 concrete oor 7 steel structure

4 insulation 8 steel structure

3.4 Condensate water

When a heat pump is running it produces a considerable amount of water due to the defrosting cycles of the external coil.

The condensate must be disposed in order to avoid damages to people and things.

3.5 Conguration CCFFA

3.6 Gas heating module - Electronic lters

For details see:

10 Accessoriesp.37

10 CSRN-XHE2 FFA 12.2-24.4 M07Z40M15-02

4 Water connections

4.1 Condensate drain

The condensate must be disposed in order to avoid damages to people and things.

• Unit discharge tting: the connection must not transmit mechanical stresses and must be performed taking care not to damage the unit

discharge tting.

• Provide a siphon that, eliminating the negative pressure caused by the fan, prevents the air intake from the discharge duct.

• The ducting must have a min. slope of 3% to allow the runo.

• Anchor the ducting with an adequate number of supports.

• Insulate the duct and the siphon to avoid the condensate drippings.

• Connect the condensate discharge to a sewerage drainage network.

DO NOT use white water or drainage networks to avoid the aspiration of odours in the case of evaporation of water contained in the siphon.

Check at the end of the work, the regular condensate runo pouring some water in the tray.

For details see:

14 Dimensional drawingsp.47

4.2 Risk of freezing

If the unit or the relative water connections are subject to temperatures close to 0°C:

• mix water with glycol, or

• safeguard the pipes with heating cables placed under the insulation, or

• empty the system in cases of long non-use

4.3 Anti-freeze solution

The use of an anti-freeze solution results in an increase in pressure drop.

Make sure that the glycol type utilized is inhibited (not corrosive) and compatible with the water circuit components.

Do not use dierent glicol mixture (i.e. ethylene with propylene).

4.4 Humidier

For details see:

10 Accessoriesp.37

Other manuals for CSRN-XHE2 Series

This manual suits for next models

Table of contents

Other CLIVET Heat Pump manuals

CLIVET

CLIVET WSHN-EE 17 Guide

CLIVET

CLIVET WSAN-XEE Series User manual

CLIVET

CLIVET CN-XMi D80 Installation instructions

CLIVET

CLIVET WSAN-XPR Series Guide

CLIVET

CLIVET MSRN-XSC3 + CEV-XN User manual

CLIVET

CLIVET WSAR-MT Series Guide

CLIVET

CLIVET CRH-XHE2 49.4 User manual

CLIVET

CLIVET WiSAN-YSE1 10.1 User manual

CLIVET

CLIVET G3K0GB-1 User manual

CLIVET

CLIVET WSAN-XEM 50.4 User manual

CLIVET

CLIVET WSAT-YSI User manual

CLIVET

CLIVET WSAT-YES 18.2 User manual

CLIVET

CLIVET WSAN-EE 17 Guide

CLIVET

CLIVET WSAN-XSC 352 Guide

CLIVET

CLIVET WSHN-XEE2 10.2 User manual

CLIVET

CLIVET WBAN Series Quick start guide

CLIVET

CLIVET WSAN-XEE Series Guide

CLIVET

CLIVET WSAN-XIN MF 18.2 User manual

CLIVET

CLIVET WiSAN-YEE1 45.4 User manual

CLIVET

CLIVET CKN-XHE2i 10.1 User manual

CLIVET

CLIVET AQUA SWAN 190 User manual

CLIVET

CLIVET Ceiling & Floor-SM2 IF2 53M Series Reference manual

CLIVET

CLIVET WSAN-XIN Series User manual

CLIVET

CLIVET CSNX-XHE2 12.2-44.4 User manual

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Panasonic

Panasonic WH-SDF03E3E5 Design handbook

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

Carrier

Carrier WSHP Open v3 Integration guide

TGM

TGM CTV14CN018A Technical manual

Carrier

Carrier 38MGQ Series installation instructions

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Carrier

Carrier 48EZN installation instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet
