Clevertronics L10 Argonaut PLUS User manual

1948892

V1.3

28 February 2022

UK Instruction Sheet Template –V1.1 –Updated: 20/11/2020

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA

Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG

Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI arefitted with DALI modules (nodes) that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Lamp and Status LED Flash for 30 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI

connections are marked as Da Da.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The Li-ion battery in the Exit & Emergency Unit has been selected to give

excellent long life performance in a controlled IEC 60598-2-22 testing environment. Excessive battery

cycling will reduce through-life performance and may lead to premature battery failure. Battery warranty

claims, as a result of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Argonaut PLUS Weatherproof Emergency LED Batten

Installation & Maintenance Instruction Leaflet

Australia (Head Office)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

UK OFFICE

Website: www.clevertronics.co.uk

362 Stockley Close

West Drayton UB7 9BL

Phone: 01895 430 255

NOTE: Standard product codes with this symbol are

enabled with Clevertest Plus capability. Please refer to the

operation guide supplied with the product for details.

Models:

ARGOPLUS-1200-xx-L10POD-zz

Options:

Testing:

Microwave Sensor (HI/LO)

xx = SEN

Manual Test

zz = Blank

DALI Driver

xx = DD

DALI Registered

zz = DALI

Zoneworks

zz = ZW

Zoneworks HIVE

zz = HVG

Spare Parts:

8002752

PCA:LED Strip ARGOPLUS-1200,8P16S,3000K/5700K

1330092

LED Driver - 40w Stallion, SP, 650mA, with feet

1330093

LED Driver - 40w Stallion, MS-HL, 650mA

(SEN version only)

1330151

LED Driver - TCI DC MAXI JOLLY SVM 65 DALI SLIM

(DD version only)

1530050

BATTERY:L10 3.3V 2.5AH 70mm lead, no Brkt

UKM01370180001

Lifelight Pro, Control Only, 415mA, L10, CTP, OWC

Important:

It is illegal for anyone, exceptfor a licensed electrician to install ormaintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant British Standards.

Note:

This luminaire (with reinforced insulation between control/LEDterminal and ACsupply) contains non-user

replaceable light source and battery - to be replaced (if required, refer installation instructions for battery

replacement) by Clevertronics service personnel/agents or a registered electrician.

1948892

V1.3

28 February 2022

UK Instruction Sheet Template –V1.1 –Updated: 20/11/2020

Installation:

The product can be mounted/suspended from any solid surface. Follow the below installation steps:

•Determine the installation and power entry method.

•Undo the Diffuser Clips, remove the Diffuser and Gear Tray. Position the batten base in the desired

location and Mark out the fixing points on the mounting surface.

•If the cable entry is to be via the rear of the body –Drill out a suitable entry-hole in the rear of the

batten body (must be suitably sealed after cable entry using a sealant). If the cable entry is via the

end of the batten - Install the provided cable gland, or bring in conduit, to the base as required for

the intended power access.

Note: Only round cables are to be used with the cable gland for an IP65 seal. Keep cable entry

straight and tension free. Ensure all seals are tight.

min. wire diameter 7mm, max. 12mm.

•For surface mounting -, there are 3 extrusions/posts at each end of the base. Drill out the desired

number of fixing points at each end. Fixings must only be through the extrusions/mounting

posts.

oPosition the fitting to the mounting surface and mark the mounting holes.

oCable/Gland entry to be down if mounting vertically.

oDrill the mounting holes.

oFix the base to the surface with appropriate fixings.

oSeal any penetrations/fixing points with appropriate sealant.

•For Surface Mount Clip mounting, measure/mark spacing (see Dimensions image), install

stainless steel clips to surface (use appropriate fixings), then snap batten into clips.

•For Suspension Mounting, measure/mark spacing (see Dimensions image), install suspension

device, E.G chain, and connect chain to batten base.

•Wire mains power cable, 240V 50Hz, to terminals marked Lsw (Switched Active), Lem

(Emergency/Unswitched Active), N & (and DALI Cables to terminals Da Da as applicable).

•Set Colour Switch to the desired colour (3000K / 4000K / 5700K, 4000K set as default).

•Attach Gear Tray to lanyards.

•Re-Install the Diffuser, close all the Diffuser Clips and secure with screws.

•The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer

than 330mm is not expected.

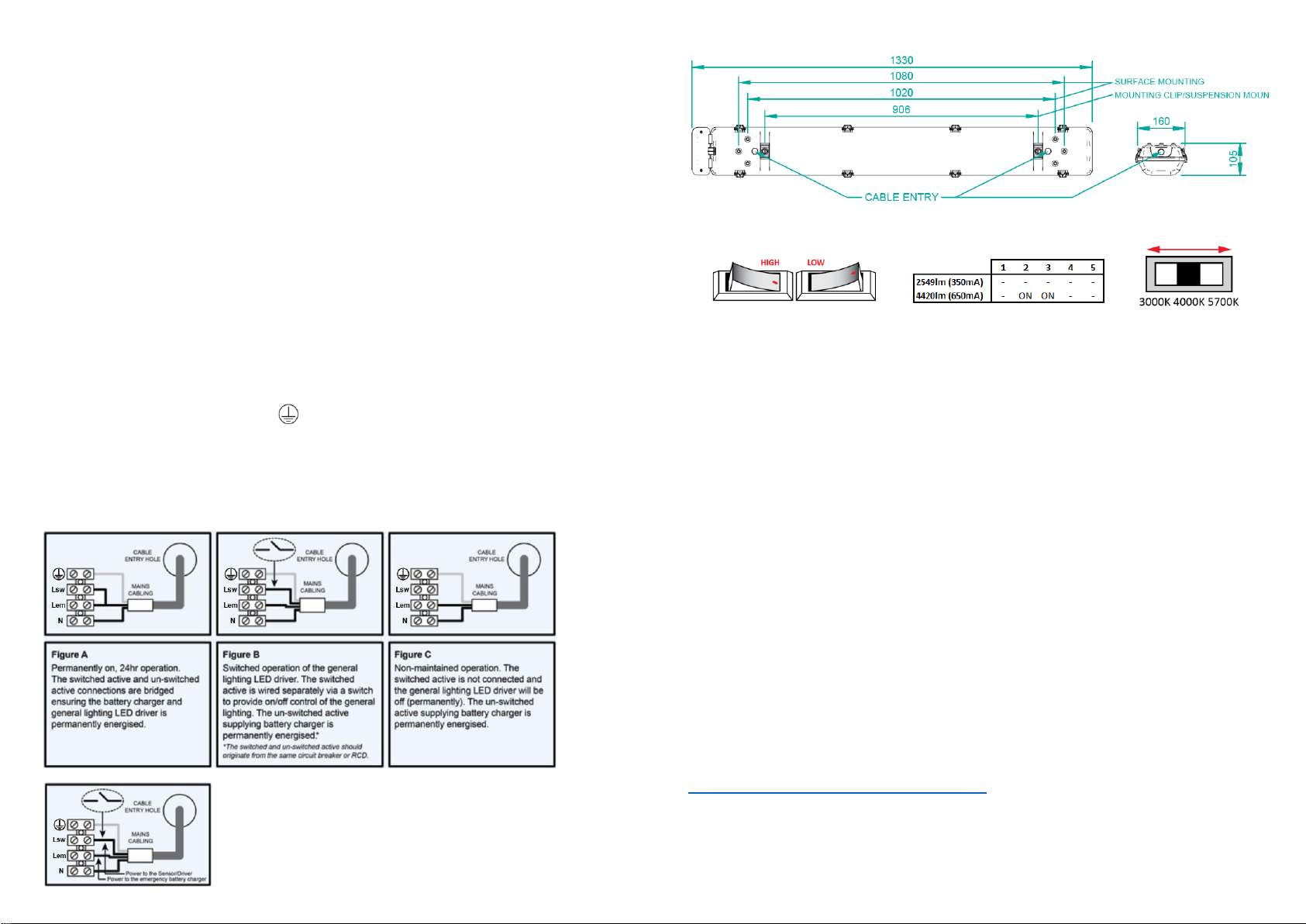

Wiring:

Sensor Version:

Dimensions:

Driver Setting:.

Colour Setting:

For non -SEN/-DD products

For -DD products

Recommended currents are 350mA & 650mA for this product. Using settings outside of the recommended will void

warranty.

Testing Procedure:

Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24

hours. Conduct the following tests:

•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the

unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

https://clevertronics.co.uk/product-warranty-statement/
