CLEOPATRA Cleo Steam Brain User manual
EN
Cleo Steam Brain
Installation manual
Item no: 90179999
EN2018/09 R01
2
Cleopatra B.V.
Oostzijde 295
1508 EN Zaandam
Netherlands
www.cleopatra.nl
www.cleopatra-wellness.com
Info@cleopatra.nl
Copyright
All information in this technical document, together with the drawings and technical specifications made
available by Cleopatra B.V., remain the property of Cleopatra B.V. and may not be copied without
permission. Cleopatra B.V. reserves the right to make changes in the interest of further developments.
Up to date on: 01- 01-2019
3
Table of contents
Installation manual
1 Introduction and safety .................................................................................................................. 4
2 Warnings ............................................................................................................................... 5
3 Required tools and materials ..........................................................................................................6
4 Overview steam generator............................................................................................................. 7
5 Steam generator dimensions........................................................................................................... 8
6 Installation in the technical area...................................................................................................... 9
7 Mounting on the wall.....................................................................................................................9
8 Water connection and waste water ............................................................................................... 11
9 Electrical connection.................................................................................................................... 12
9.1 Next steps: electrical connections ...................................................................................... 13
10 Steam pipe ............................................................................................................................. 14
11 Overview of sensors.................................................................................................................... 15
12 Overview operation .................................................................................................................... 15
13 Overview of steam inlet ............................................................................................................... 16
14 Placing components in the cabin................................................................................................... 16
14.1 Explanation recess holes................................................................................................... 17
14.2 Explanation laying cables................................................................................................. 18
15 Finishing ............................................................................................................................. 19
15.1 Placing sensors................................................................................................................ 20
15.2 Placing steam outlet .........................................................................................................22
15.3 Installation of control........................................................................................................ 23
16 Removing the control ...................................................................................................................25
17 Overview of electrical connections................................................................................................ 26
17.1 Connecting electronics Brain............................................................................................. 26
17.1.a Connecting electronics Brain - option white light .................................................... 28
17.2 Connecting Multimedia Module......................................................................................... 30
17.3 Connection LED spots module ........................................................................................... 32
17.4 Connection LED rails module ............................................................................................ 34
18 Electrical connections .................................................................................................................. 36
19 Declaration of conformity.............................................................................................................39
4
These instructions are intented for the installer. Read these instructions carefully to get to know the product, the
parts and the installation method. The Cleo Steam Brain must be installed by qualified and well-trained personnel.
The Cleo Steam Brain complies with the applicable standards and regulations and does not pose any direct
danger for the user if the Cleo Steam Brain is installed according to the manufacturer’s instructions and is used in
accordance with this manual. The electronic and mechanical parts must be carefully maintained so that the Cleo
Steam Brain remains fully operational. For this reason, the instructions must be followed closely.
All information and instructions in this manual have been compiled in accordance to the applicable standards and
regulations, the current technique and our years of experience and findings. National and local regulations must
be followed.
Check the product for possible transport damage. After the installation, a claim for (surface) damage will not be
accepted by Cleopatra.
Every right to warranty expires if adjustments have been made to the original product or parts. This manual must
be kept close to the product for quick access if needed.
Use screws and plugs to mount the Cleo Steam Brain on the wall. Walls that support the Cleo Steam Brain must
be strong enough to carry the weight; otherwise they need to be strengthened. The supplied plugs and screws are
intended for use on concrete or solid stone walls. If the walls are made of a different material than concrete or
solid stones, use material that is suitable for that specific wall. (not included in delivery).
Cleopatra accepts no liability for damage caused by:
- Failure to follow the manual.
- Wrong use.
- Installation by unqualified personnel.
- Unauthorized changes to the product.
- Technical changes.
- The use of non-original spare parts.
Correct use:
- The Cleo Steam Brain may only be used indoors.
- Use in another way is not permitted and is for the user’s own risk.
- Do not use the Cleo Steam Brain when it is not in perfect condition.
- Do not use this product in an environment where it is exposed to corrosion.
1 Introduction and safety
Important instruction or description Pay attention: General danger
5
2 Warnings
Without permission and without instructions, the use of a steam cabin is
forbidden for the following persons:
- Children.
- Adults with disabilities.
- Persons who have not been instructed about what a steam cabin is
meant for.
- Persons who are intoxicated.
Bringing electrical devices in the cabin is forbidden!
Warning hot surfaces.
The steam inlet, the surrounding area and the steam itself are very hot. Do not touch them
because of danger of injuries.
Warning for slipping.
The floor of the cabin can be slippery.
Read the user manual carefully before using the steam cabin!
Maximum time to stay in the cabin: 15 min
Humidity in the cabin: max. 100%
Maximum temperature in the cabin: 45-48 ˚C
6
3 Required tools and materials
3: Screwdriver (cross)
2: Drill set
6: Kit gun1: Drill
4: Spirit level
8: Pencil
5: Square
7: Tapeline
9: Multitool
2 3
14
6 75 8
9
7

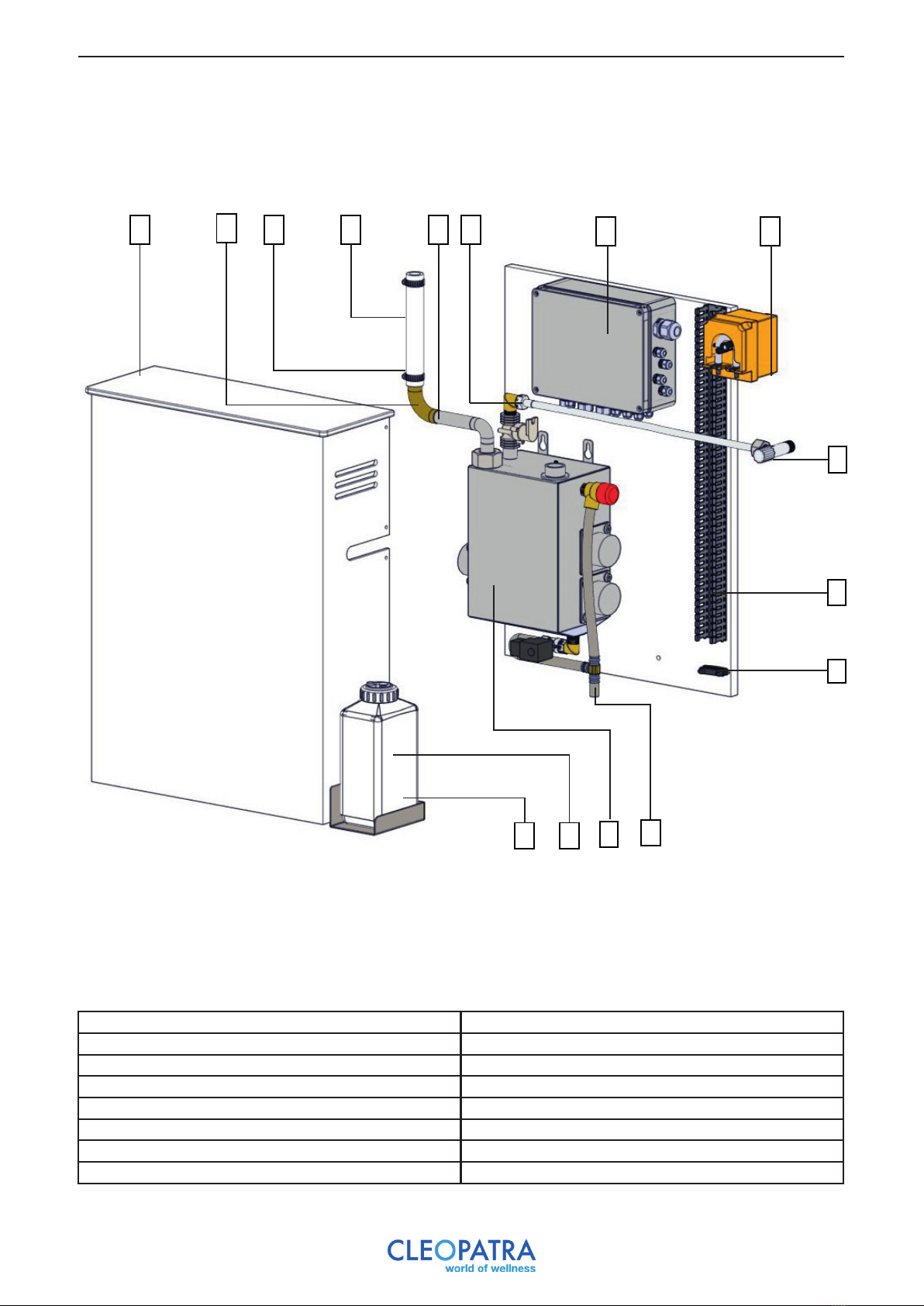

4 Overview steam generator
A: Casing
E: Steam outlet
F: Water pipe
I: Water pipe tap
G: Control box
H: Fragrance pump*
J: Cable tray
K: Cable clamp
L: Drain (DO NOT DEFORM)
*Only applicable with the optional fragrance dispenser
AG
CF
I
J
H
K
O N M
M: Steam generator
N: Fragrance reservoir*
O: Fragrance reservoir holder*
L
D
B
B: Steam outlet knee fitting
C: Hose clamp
D: Flexible hose
E
8
5 Steam generator dimensions
Power
(kW)
A
(mm)
B
(mm)
C
(mm)
D*
(mm)
Weight
(kg)
3532 710 190 90 +/-17 kg
4.5 532 710 190 90 +/-17 kg
6532 710 190 90 +/-17 kg
9532 710 190 90 +/-17 kg
A
B
C
D
*Only applicable with the optional fragrance dispenser
Steam outlet
(Ø)
22
22
22
28
9
6 Installation in the technical area
1
Use the minimum distances as shown in the drawing.
7 Mounting on the wall
12
3 4
200 mm
200 mm
100 mm
XX: Space for water drainage and siphon
10
56
7
89
m8
8mm
