Claudgen HE6351 Manual

40 000049 Iss 02

Consort Equipment Products Ltd

Registered Office: Thornton Industrial Estate

Milford Haven, Pembrokeshire, SA73 2RT

Tel: 01646 692172 Fax: 01646 695195

BS EN ISO 9001 Registered Company No FM12671

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR

Twin-Zone Radiant Heater

Catalogue Number HE6351 1.5 kW

PLEASE RETAIN THIS LEAFLET FOR FUTURE MAINTENANCE

IMPORTANT

1. The two elements are rated at 120 volts and connected in series to give 1.5 kW at 240 V AC.

2. The silica sheath of the heating elements should not be touched by hand, otherwise permanent marks (devitrification) will

occur during heating. Should the element position need to be changed (to alter the beam width), handle only by the

ceramic bushes at the ends, and observe the cleaning instructions afterwards.

ELEMENT POSITION

The Twin-Zone heater is designed to provide alternatively widespread warmth (broad beam) or a more concentrated beam of

heat over a localised area (narrow Beam), and the selection of either is made by adjusting the position of the element. This is

determined by ensuring that the ceramic blocks supporting the silica tubing are mounted into the heater body in the correct

position. Long end of ceramic blocks downwards will give narrow beam and short end downwards will give broad beam.

ASSEMBLY (as Fig. 1)

The heater is supplied with the elements fitted in the

broad beam position and connected ready for

installation.

To change the beam width to the narrow setting

Remove the terminal box covers.

Remove the reflector from the body of the heater.

Disconnect the element tails from the terminal

blocks.

Holding the elements by the ceramic bushes, lift the

element out of the retaining slots in the body.

Rotate the ceramic blocks into the narrow beam

position (long end downward, as Fig. 2) and

replace.

The heater can now be reassembled in the reverse

order.

ENSURE THAT THE CERAMIC BLOCKS ARE ALL

INSERTED INTO THE BODY IN THE SAME

OFFSET POSITION. LONG END DOWNWARDS

FOR NARROW BEAM.

WIRING DIAGRAM (Fig. 3)

The wiring diagram is shown in Fig 3 and indicates

the manner in which the two 120 volt elements are

connected in series for 240 volt operation.

The heater is suitable for connection to 230/250

volt, single-phase supply and should be wired to

heat resisting cable suitable for a continuous

ambient temperature of 750C, in accordance with

IEE Regulations for the Equipment of Buildings.

40 000049 Iss 02

SUSPENSION

Mounting brackets for suspension purposes are supplied

with each heater. See diagrams below for alternative

methods. Provision is made for mounting by 20 mm

conduit.

HORIZONTAL (See Fig. 4)

ANGLED

Fig. 5 illustrates a pair of heaters, which should be adjusted

to the narrow beam position, suspended from the ceiling.

Two heaters can be mounted at 45 degrees to the vertical,

thus giving wider radiation from a single point and saving

extra wiring.

WALL MOUNTING

The heater can be wall mounted, using the brackets shown

in Fig. 6.

A safety guard, Catalogue No HE6352, is available if

required for particular applications.

SPECIAL NOTE

Heaters must always be mounted with elements in the

horizontal plane.

MINIMUM HEIGHTS AND CLEARANCES

Plane of

Heater Fixing

Minimum

Clearance of

Heater from

Ceiling

Minimum

Mounting Height

from Floor

HORIZONTAL 457 mm 2.5 M

ANGLED OR

WALL MOUNTED 457 mm 2.3 M

CAUTION

Where radiant heaters are used in the presence of any

combustible materials, ensure that such materials cannot

be overheated by radiation. These heaters are not flame

proof and should not be used in the presence of paint

solvents or petrol fumes.

MAINTENANCE

Cleaning: Remove the reflector for occasional cleaning

with a damp cloth to maintain maximum reflectivity, and

wipe the element tubes carefully with a clean cloth

moistened with methylated spirits. If the reflector is very

dirty clean with metal polish.

ELEMENT REPLACEMENT

A complete set of replacement elements is available for the

heater. Each set consists of 2 x 120 volt 750 watt element

spirals assembled into the silica tubes complete with

ceramic bushes.

When installing replacement elements the cleaning

instructions given above should be observed.

Details of the replacement elements are:

HE6375 1.5 kW 2 x 120 volt 750 watt

Silica sheathed elements

In the interest of progress the Company reserve the right to vary

specifications from time to time without notice. The material listed is

offered subject to the Company’s General Conditions of Sale, a copy of

which may be obtained on request.

Other Claudgen Heater manuals

Claudgen

Claudgen CH06CSiRX User manual

Claudgen

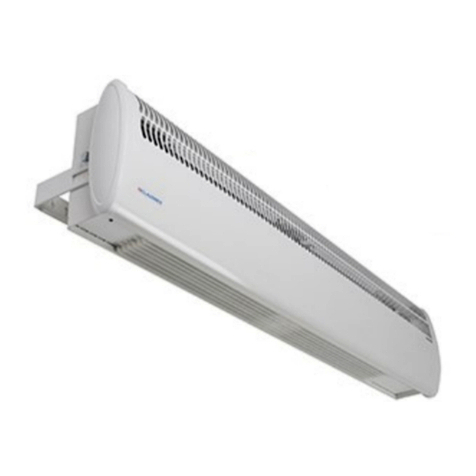

Claudgen HE8320 Manual

Claudgen

Claudgen HE7010 Manual

Claudgen

Claudgen HE7245 User manual

Claudgen

Claudgen CA1309S Manual

Claudgen

Claudgen RAC4500 Manual

Claudgen

Claudgen HE7230 User manual

Claudgen

Claudgen HE8326-33 Manual

Claudgen

Claudgen CH06CS Manual

Claudgen

Claudgen ScreenZone CA1514S10 User manual

Claudgen

Claudgen HE7010W-30 Manual

Claudgen

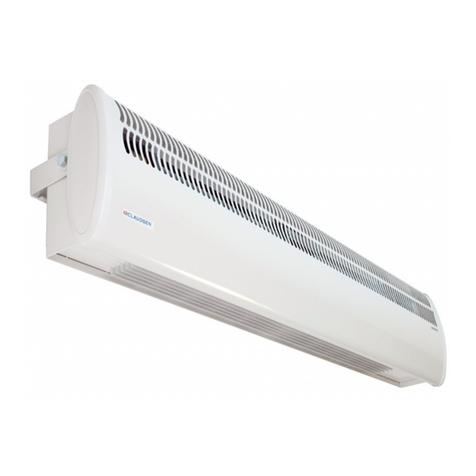

Claudgen HE7433 Original operating instructions

Claudgen

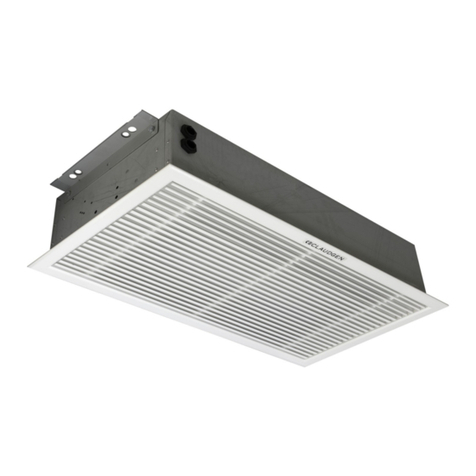

Claudgen ScreenZone RAC0603 User manual

Claudgen

Claudgen CA1309S Original operating instructions

Claudgen

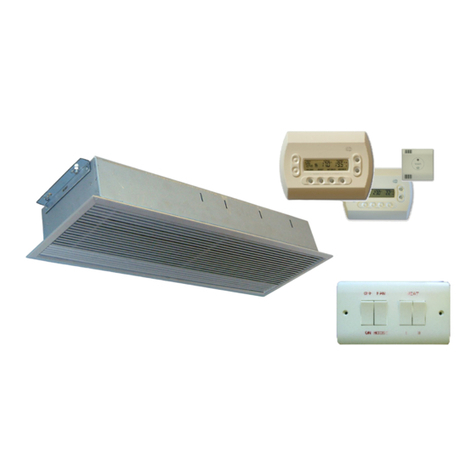

Claudgen SCREENZONE RAC1306 User manual
