Clarke CTIDG2 Instruction Manual

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC12/23

DIGITAL TYRE INFLATOR

MODEL NO: CTIDG2

PART NO: 5060290

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Tyre Inflator. The CTIDG2 can be used for

inflating car, motorcycle and bicycle tyres. The tyre inflator is not waterproof

and should not be used in any wet applications.

Before attempting to use the product it is essential that you read this manual

thoroughly and carefully follow all instructions given. In doing so you will ensure

the safety of yourself and that of others around you and you can also look

forward to the product giving you long and satisfactory service

After removing the tyre inflator from its packaging, check that it has not been

damaged in transit. Report any damage immediately to the CLARKE dealer

where the item was purchased.

PRODUCT SPECIFICATIONS

Model CTIDG2

Hose length 500mm

Max supply pressure 200psi

Max inflation pressure 174 psi

Max flow rate 500L/min @188psi

Accuracy +/- 2psi @ 25-75psi

Ingress protection IP44

Units of measurement psi, kPa, bar

Working temperature 10 to 50oC

Dimensions (L x W x H) 890 x 85x 45 mm

Weight 0.85 kg

Inlet size 1/4 “ BSP

Auto-Off 9 seconds

Battery Type 2 x AAA (included)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

GENERAL SAFETY WARNINGS

PERSONAL SAFETY

1. ALWAYS thoroughly familiarise yourself with this product and its operation

and always read the instructions in this manual before using the product.

2. ALWAYS stay alert, watch what you are doing and use common sense

when operating the tyre inflator. DO NOT use while you are tired or under

the influence of medication, drugs or alcohol. A moment of inattention

can result in personal injury.

WORKING CONDITIONS

1. DO NOT use the tyre inflator in a damp or wet environment.

2. DO NOT cover the tyre inflator.

3. ALWAYS use the tyre inflator in spaces with good all-round air ventilation

and that the air intake air is dry and dust free.

4. Keep the work area clean and well lit. Floors should always be kept clear.

Cluttered or dark areas invite accidents.

5. NEVER over-reach. Keep your proper footing and balance at all times to

enable better control of the tyre inflator in unexpected situations.

6. ALWAYS use in a safe area away from traffic and other hazards.

GENERAL PRODUCT USE AND CARE

1. NEVER attempt to modify the fittings or attachments in any way. Doing so

will invalidate the guarantee and could result in personal injury.

2. ALWAYS take care to maintain tyres to vehicle manufacturer’s

recommended pressures.

3. ALWAYS store the tyre inflator at moderate temperature and out of reach

of children.

4. NEVER use this product if it appears defective or is operating abnormally: If

the tyre inflator operates unusually or makes strange noises, switch off

immediately. Arrange repairs by your CLARKE dealer.

5. NEVER attempt any repairs yourself. If you have a technical problem

contact your local CLARKE dealer.

WARNING: WHEN USING BATTERY POWERED TOOLS, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF

FIRE OR PERSONAL INJURY. PLEASE READ ALL THE SAFETY AND

OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. NEVER throw the product away with household waste or allow it to fall into

a fire.

AIRLINE SAFETY PRECAUTIONS

1. Compressed air can be dangerous. Ensure that you are thoroughly familiar

with all precautions relating to the use of compressors and a compressed

air supply.

2. NEVER direct a jet of compressed air at people or animals.

3. ALWAYS ensure that the equipment/tool being used has a safe working

pressure exceeding the output pressure of the compressor that it is

connected to.

4. NEVER exceed the operating pressure stated in the specification.

5. ALWAYS ensure that the air supply is turned off and vent all compressed air

from the air hose and the equipment attached to it before disconnecting

air hoses or other equipment from your compressor.

6. Ensure all fixed air connections are properly sealed using ptfe tape or pipe

sealant.

7. Check the airline pressure gauge periodically for accuracy and replace if

damaged or inaccurate.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation

to comply with current WEEE regulations.

This means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws

governing Waste Electrical and Electronic Equipment (WEEE) at a recognised

disposal facility.

This product contains valuable raw materials. Metal products should be taken

to your local civic amenity site for recycling of metal products.

The batteries fall under the Waste Batteries and Accumulators Regulations

2009 and should be disposed of in a controlled manner.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

PREPARATION

FITTING THE BATTERIES

The inflator requires 2 x AAA batteries. If the voltage of the batteries falls below

2.6 volts, the battery icon will flash continuously until it shuts down. If the

voltage of the batteries falls below 2.5 volts the LOW “LO” battery icon

appears while the power is on and then shuts down automatically. The

batteries must be changed if the battery icon flashes.

1. Unscrew the battery cap.

2. Slide the batteries into the tyre

inflator with the positive end

facing outwards.

3. Replace the battery cap carefully

and DO NOT over tighten.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CONNECTING THE AIRLINE

1. Attach the airline hose to the tyre inflator and fully tighten. Use PTFE tape if

needed. Turn on the air supply and check that the airline pressure does not

exceed 13.8 bar (200 psi).

2. Ensure all fixed air connections are properly sealed using PTFE tape or pipe

sealant.

AIRLINE ACCESSORIES AND EQUIPMENT

An extensive range of airline equipment is available from your CLARKE dealer

including hoses, retractable hose reels, filter/regulators, in-line regulators,

pressure gauges and safety goggles.

THE DISPLAY PANEL

Press and hold the button on the front

of the unit to activate.

Once activated, press and hold the

button for 2 seconds to change the

unit of measurement to either psi, kPa

or bar.

The display panel will illuminate and

display as shown.

The display should time out and

switch off after 9 seconds.

CAUTION: THIS PRODUCT MAY HAVE A LOWER WORKING PRESSURE

THAN SOME COMPRESSORS WILL SUPPLY, THEREFORE, AN AIRLINE

REGULATOR SHOULD BE INSTALLED.

CAUTION: AIRLINE LUBRICATORS SHOULD NOT BE USED WITH THIS ITEM.

CAUTION: ALWAYS USE DRY FILTERED COMPRESSED AIR & AVOID UNDUE

EXPOSURE TO MOISTURE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

OPERATION

Under or over inflated tyres are dangerous. Consult the vehicle owners

handbook before using this tyre inflator. Never exceed the maximum pressure

of the tyre.

1. Remove the dust cap from the tyre valve and check that the tyre valve is

clean before connecting.

2. Push the connector fully home onto the tyre valve. If the valve leaks, the

connector may need repositioning. Correct position is confirmed by a

steady reading on the gauge.

3. When connected correctly, the display will show the current pressure in the

tyre. If this is the correct tyre pressure as stated in your vehicle handbook,

remove the valve connector.

4. Check the tyre pressure on the display.

5. Depress the trigger to inflate the tyre. Re-check the tyre pressure. Note that

when the trigger is depressed, the gauge will show the airline pressure, not

the tyre pressure.

6. To deflate the tyre, partially depress the trigger and check the pressure

again.

7. When the tyre pressure is correct, remove the connector. Replace the dust

cap on the tyre valve.

IMPORTANT: The air pressure gauge on this product is for guidance only. It is

important that you check the pressure with an approved, calibrated

gauge.

8. DO NOT use damaged or leaking hoses. Occasionally clean the product

and lubricate the trigger parts if required.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMMON INFLATION PRESSURES

CARE & MAINTENANCE

Keep the tyre inflator free of dirt and dust as far as possible. Wipe with a clean

cloth or blow it down with compressed air at low pressure. DO NOT use

cleaning agents or solvents as these may be aggressive to the plastic parts.

Ensure that no water can get into the interior of the tyre inflator.

Your tyre inflator has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the item to your local CLARKE dealer.

Store the tyre inflator in a dry location.

USEFUL ACCESSORIES

Various airline components are available from your CLARKE dealer including:

Airline hoses (available in 10Mtr/15mtr lengths)

Recoil hose (available in 7.6 and 15 mtr lengths)

Hose reels

Airline fittings such as filters, regulators, connectors

See also the extensive range of CLARKE compressors and air tools.

PSI KPA BAR

Car 35 - 50 240 - 350 2.4 - 3.5

Motorcycle 26 - 40 180 - 275 1.8 - 2.75

Bicycle 35 - 100 240 - 690 2.4 - 6.9

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

COMPONENT PARTS

No Description No Description

1Rubbersleeve 8Trigger

2 Battery cover 9 Trigger valve assembly

3 Valve housing 10 Main body

4 Transparent cover 11 Air hose assembly

5 Button 12 Battery housing

6 Circuit board support 13 Battery (AAA)

7 Printed circuit board 14 Air nozzle

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

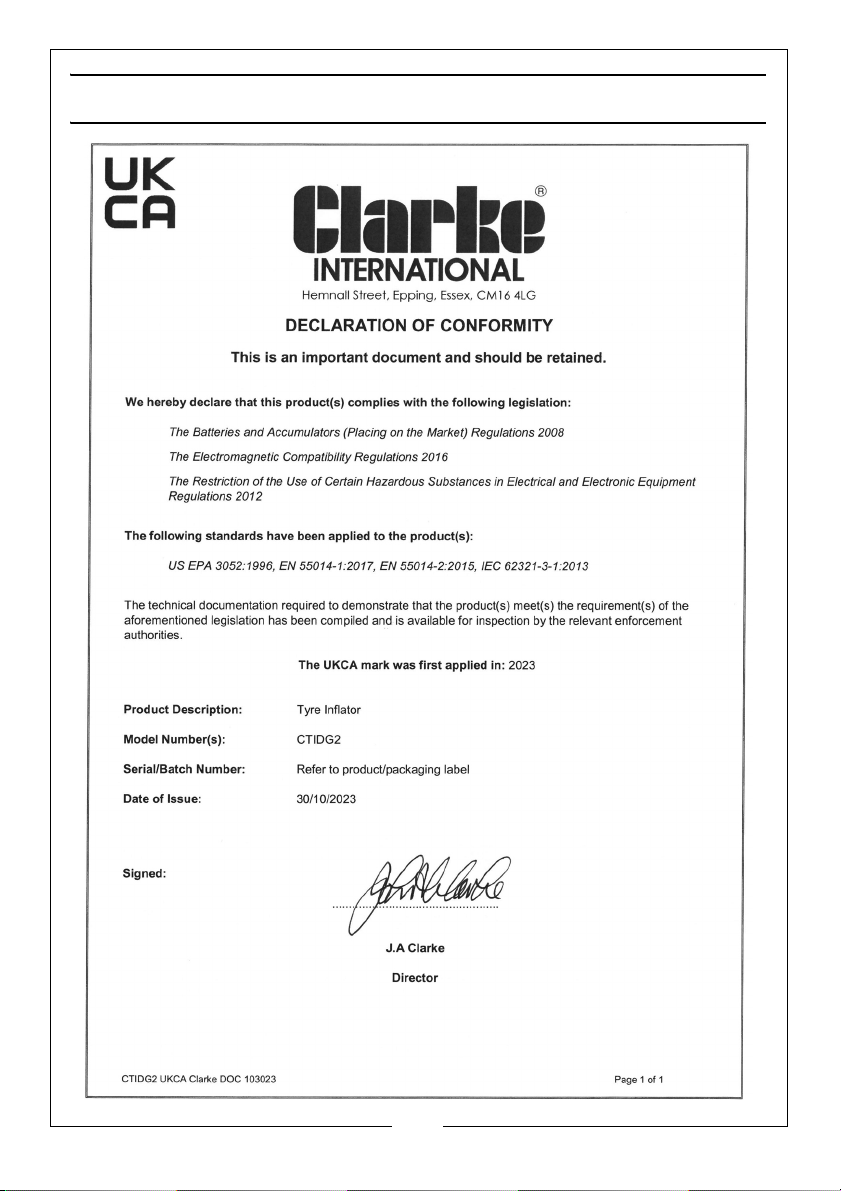

DECLARATION OF CONFORMITY - UK
