Clarke CAT27B Installation and operation manual

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0713

AIR DRILL

MODEL NO: CAT27B & CAT94

PART NO: 3110406 & 3110850

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Air Drill.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

this product. Please pay particular attention to all sections of these instructions

that display warning symbols and notices.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

5. Keep the air supply hose away from heat, oil and sharp edges.

6. Do not fit the tool to any stand or clamping device that may damage it.

USE

1. Stay alert and use common sense - do not operate the drill when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the drill - Eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the drill.

4. Do not overreach - Keep proper footing and balance at all times.

5. Never use any type of bottled gas as a source of power for the drill.

6. Do not connect the air supply hose with your finger on the trigger of the

drill.

7. Do not exceed the maximum pressure for the drill 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

9. Do not use the tool for any other purpose than that described in this

manual.

10. Do not carry out any alterations or modifications to the tool.

11. Always disconnect from the air supply when:

• Performing any maintenance

• The tool is not in use.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The drill will be left unattended.

• Moving to another work area.

• Passing the drill to another person.

12. Never use the tool if it is defective or operating abnormally.

13. The drill should be serviced at regular intervals by qualified service

personnel.

14. Avoid damaging the drill for example by applying excessive force of any

kind.

15. ALWAYS maintain the tool with care. Keep it clean for the best and safest

performance.

16. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

17. DO NOT force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

18. Do not remove any labels. Damaged labels should be replaced.

19. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

TRANSPORTATION

1. Never carry the drill by the air supply hose.

2. Never carry the drill with your finger on the trigger.

STORAGE

1. When not in use the drill must be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

2. Avoid storing the drill in environments where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

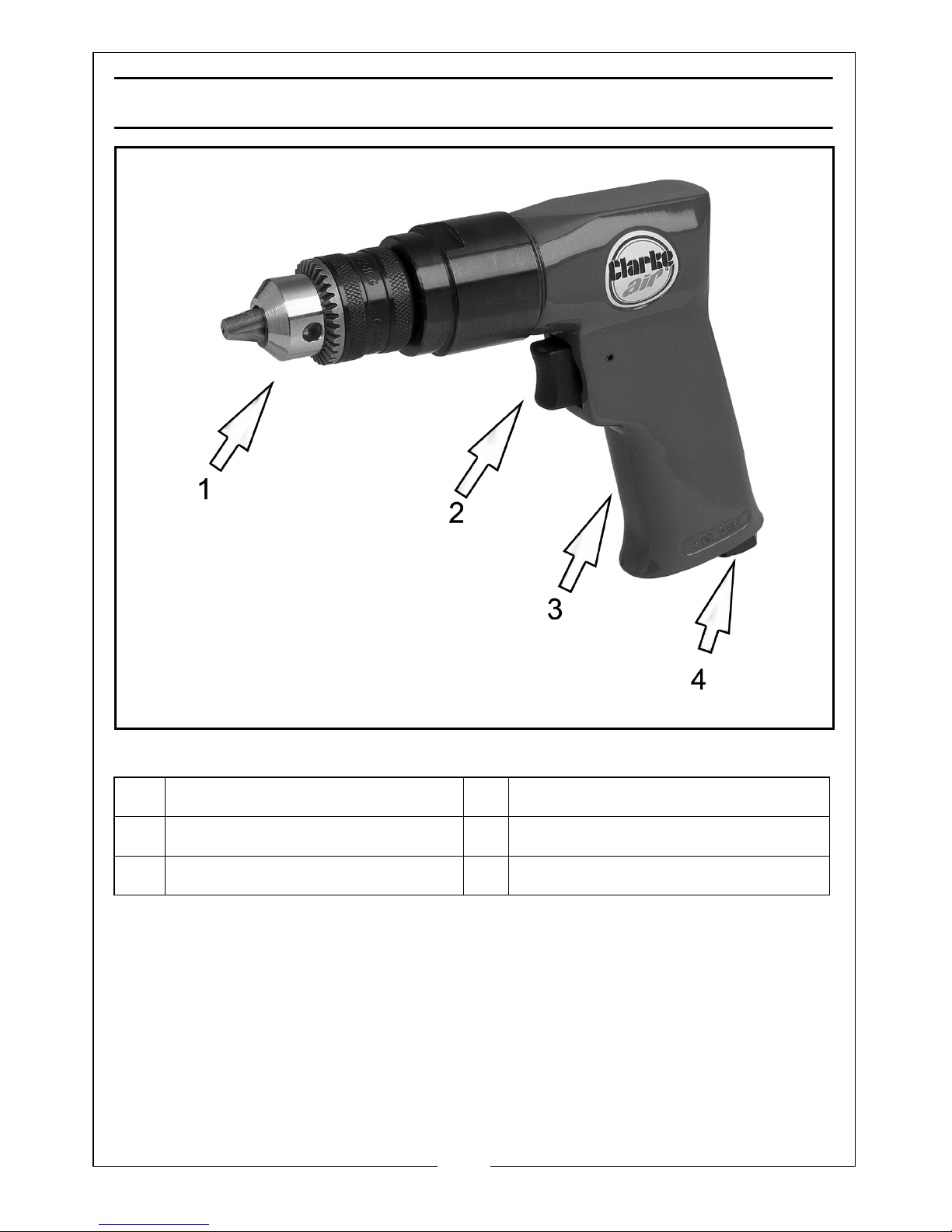

OVERVIEW

The CAT27B and CAT94 differ only by virtue of the CAT94 having a polished

metal casing as opposed to a painted finaish.

NO DESCRIPTION NO DESCRIPTION

1 Chuck 3 Handle

2 Trigger 4 1/4” BSP (Female Air Inlet)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE COMPRESSED AIR SUPPLY

AIR SUPPLY REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the impact wrench must comply with the

appropriate European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the impact wrench. ensure any moisture is

drained from the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required,(over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must must be rated at least 150% of the maximum

operating pressure of the tool.

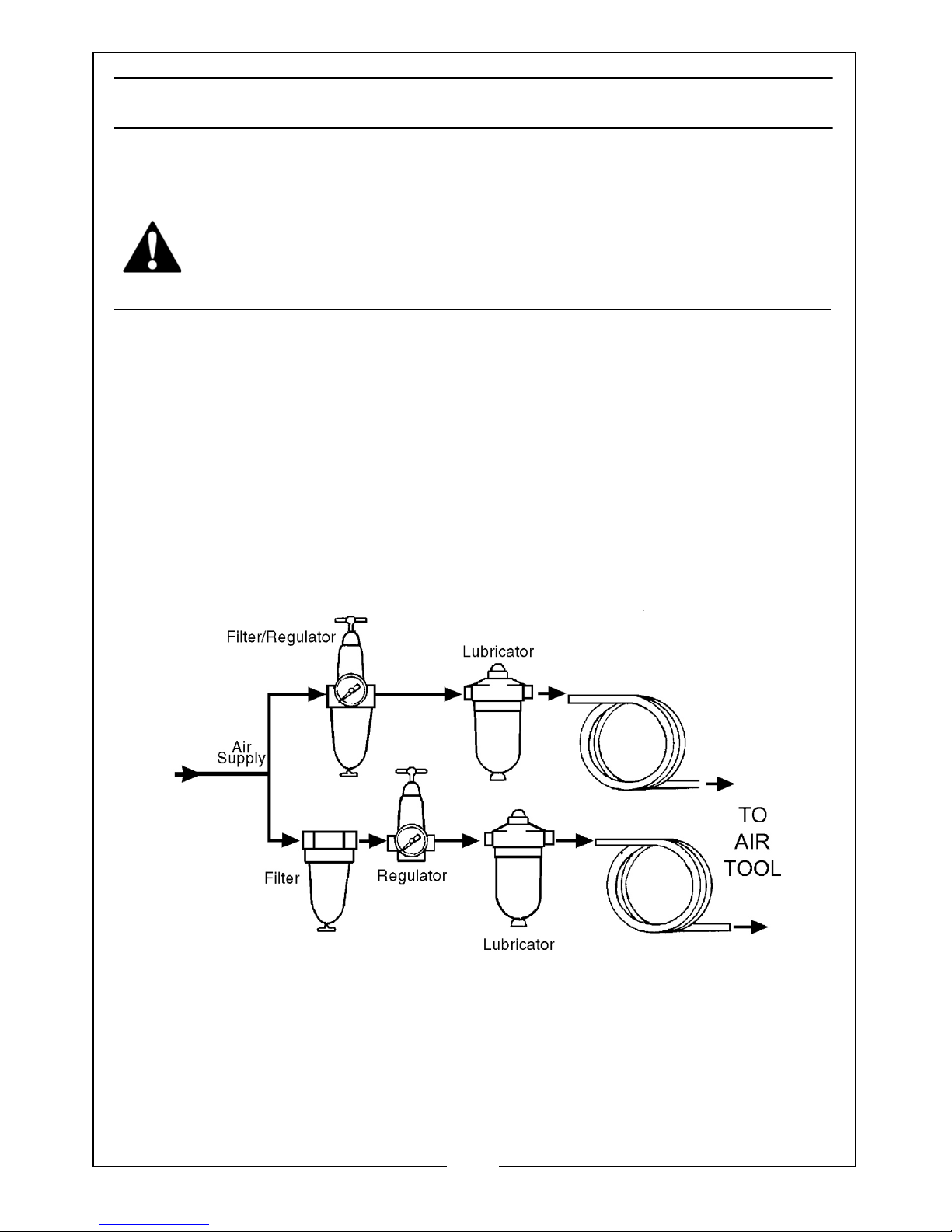

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used,it will keep the tool in good condition, but should be

regularly checked and topped up with oil. SAE 10 oil should be used,

and the lubricator adjusted to approx 2 drops per minute.

• The minimum hose diameter should be 5/16”(8mm) ID and fittings

should have the same internal dimensions.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. If required, connect an in-line mini

oiler to the tool.

• A mini oiler helps to prolong the

life of the air tool. Remove the

oil fill screw from the side of the

mini oiler and fill with Air-line Oil

available from your CLARKE

dealer. Replace the screw

before using the tool.

2. If a mini-oiler is not being used, run

a few drops of oil through the tool before use. It can be entered through

the inlet strainer or via the hose at the nearest connection to the air supply.

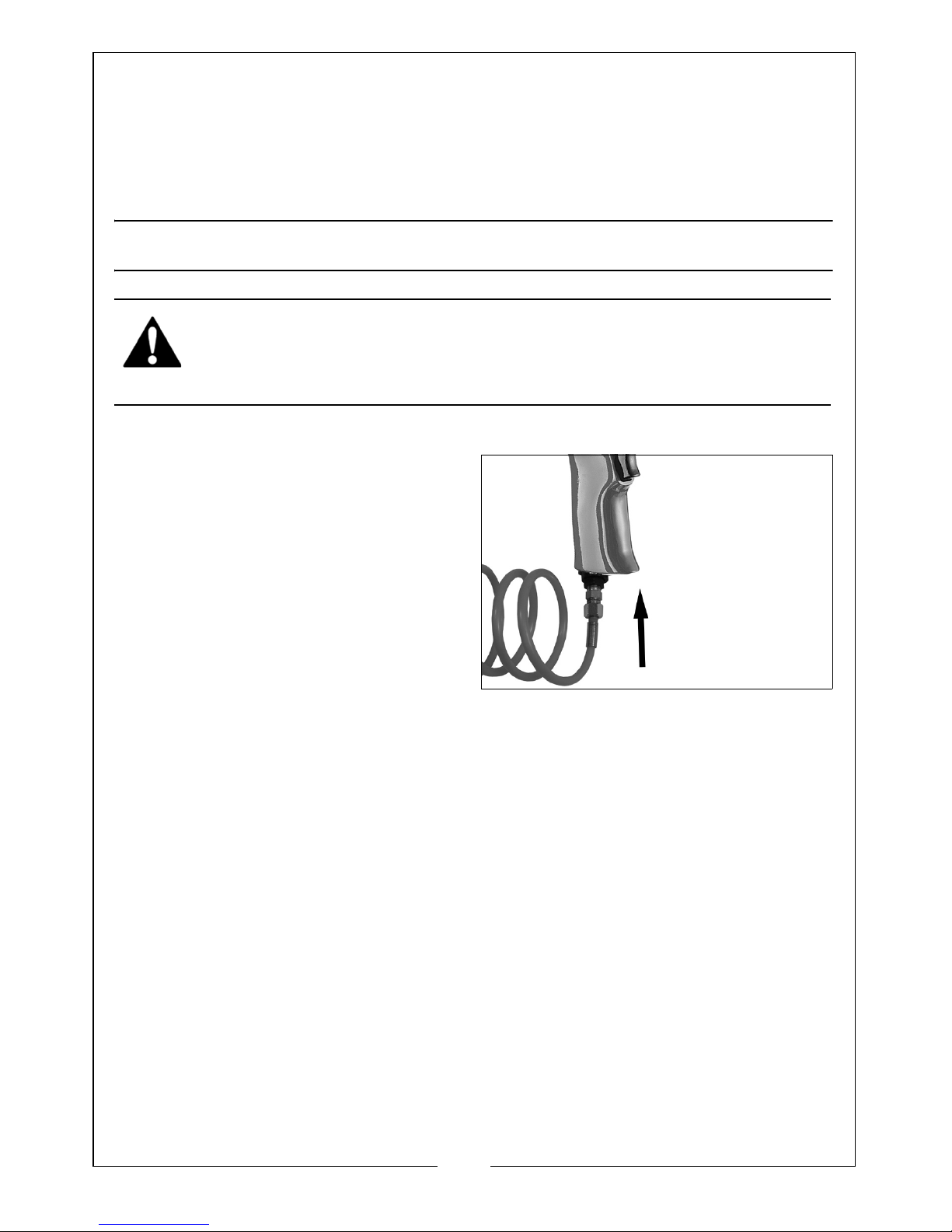

3. Connect a suitable hose as shown.

4. Connect the other end of the hose to the compressor.

5. Turn on the air supply and check for air leaks. Rectify any found before

proceeding

6. Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer.)

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

OPERATING THE AIR DRILL

1. Squeeze the trigger to start the drill.

2. Wait until the drill is running at its maximum speed before applying it

carefully to the workpiece.

3. Release the trigger to stop.

4. Always ensure the drill has stopped before putting it down.

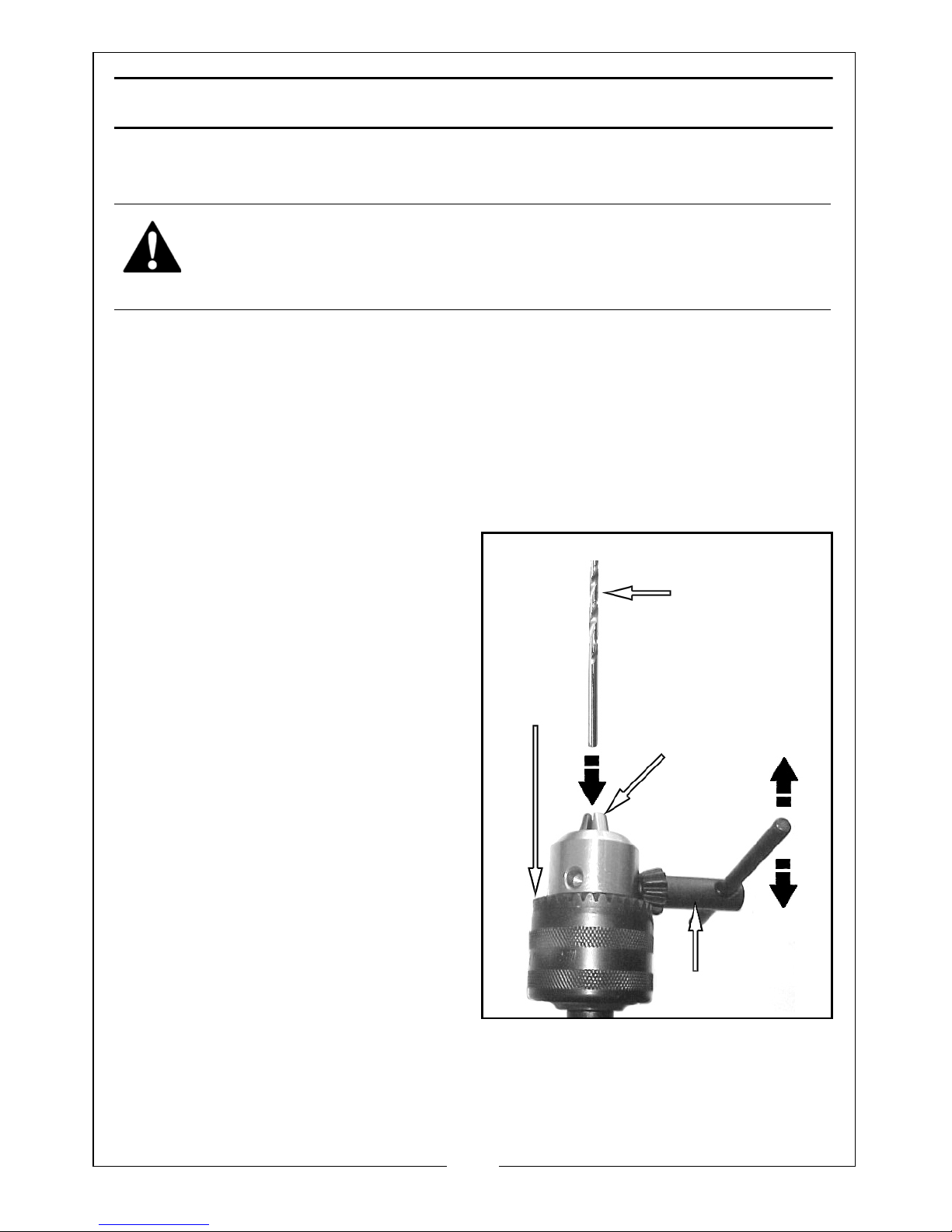

INSERTING/REMOVING THE DRILL BIT

1. Open the chuck jaws by inserting

the chuck key in one of the holes

in the chuck and turning it as

shown.

2. Make sure that the head of the

chuck key is located on the barrel

of the chuck.

3. Turn the chuck key until the chuck

jaws are open sufficiently to take

the drill bit.

4. Place the drill bit in the jaws of the

chuck as far as it will go.

5. Close the chuck jaws and tighten

to grip the drill bit by turning the

chuck key as shown.

6. Make sure that the chuck jaws are

fully closed and that the drill bit is

held firmly.

7. Your air drill is now ready for use.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

WARNING: MAKE SURE THAT THE CHUCK KEY HAS BEEN REMOVED

BEFORE USING THE DRILL.

Drill bit

Chuck jaws Close

Open

Chuck

key

jaws

Barrel

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

1. Refer to the compressor instruction manual for the procedure to shut down

and release the compressed air.

2. Once the pressure has been released, disconnect the air supply hose from

the air drill.

Store the tool safely in its box in a dry, secure environment.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

DAILY

• Before use, drain water from the air tank, air line and compressor.

• Pour a few drops of CLARKE airline oil, into the air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If

an inline mini oiler is not used, this procedure should be repeated

after every two to three hours of use.

WEEKLY

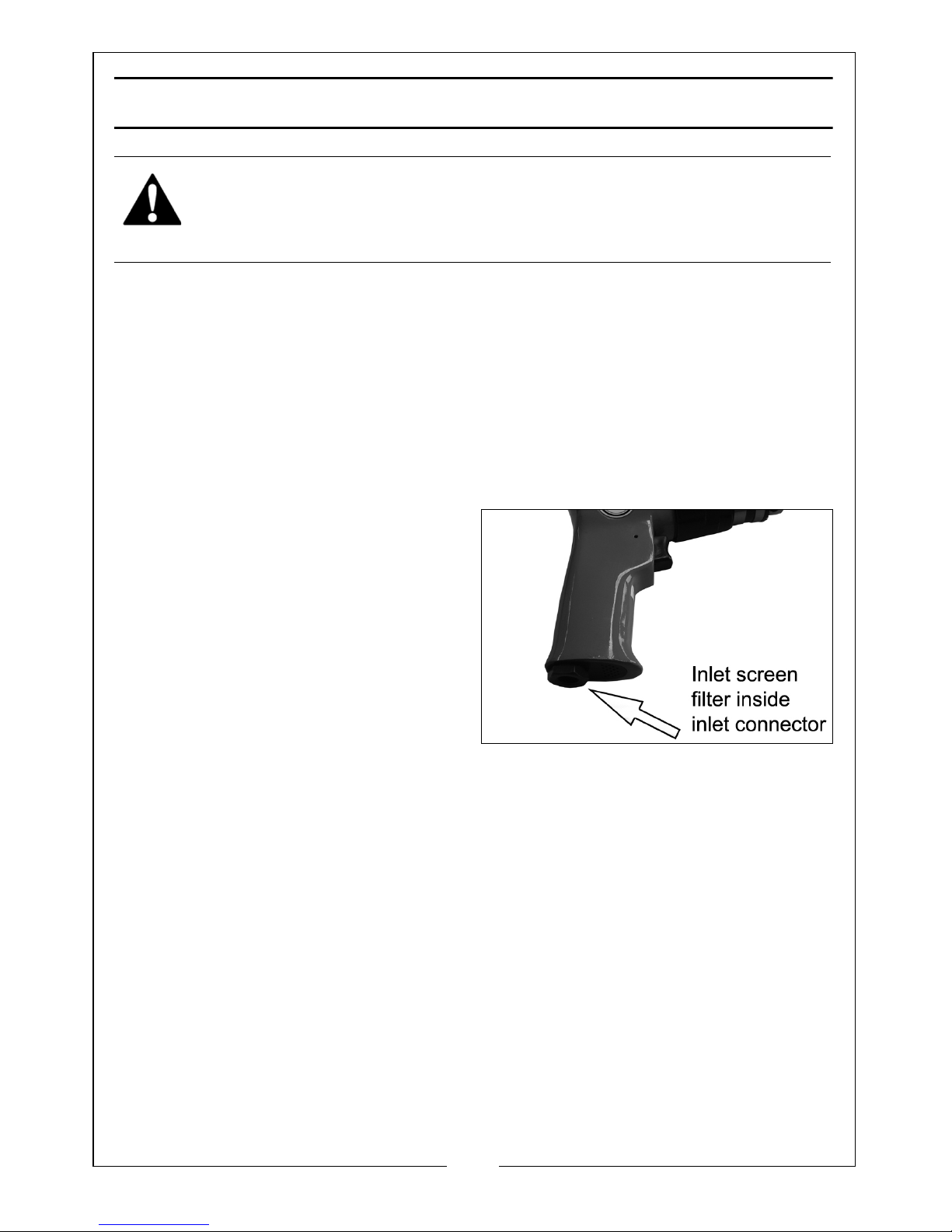

• Check the air inlet screen filter

for blockage and clean if

necessary.

CLEANING

1. Keep the body of the tool clean

and free from debris.

2. Grit or gum deposits in the tool

may also reduce efficiency. This

condition can be corrected by

cleaning the air strainer and flushing out the tool with gum solvent oil, or

failing this, the tool should be disassembled, thoroughly cleaned, dried and

reassembled.

3. After extensive use, remove the inlet screen filter and flush out the

mechanism with gum solvent oil or an equal mixture of SAE No10 oil and

paraffin. Allow to dry before use.

4. Clean the air inlet filter screen inside the hose adaptor.

5. If the tool runs erratically or becomes inefficient, and the air supply is of

good quality, it may be necessary to dismantle the air motor and replace

worn or damaged parts. You may prefer to take the tool to your CLARKE

dealer if internal maintenance is required.

Your Clarke air tool has been designed to give long and trouble free service.

If, however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

WARNING: MAKE SURE THAT THE IMPACT WRENCH IS DISCONNECTED

FROM THE AIR SUPPLY BEFORE STARTING ANY CLEANING, OR

MAINTENANCE PROCEDURES.

This manual suits for next models

Table of contents

Other Clarke Drill manuals

Clarke

Clarke CDS2 Manual

Clarke

Clarke CONTRACTOR CON400RHD Instruction Manual

Clarke

Clarke CAT137 Installation and operation manual

Clarke

Clarke CRD1250 User manual

Clarke

Clarke SCD28 User manual

Clarke

Clarke Metalworker CMD10 Manual

Clarke

Clarke CONTRACTOR CON1200RD Instruction Manual

Clarke

Clarke CON18LI Instruction Manual

Clarke

Clarke CONRHD720 Instruction Manual

Clarke

Clarke Contractor CON1500RDV Instruction Manual

Clarke

Clarke CHD900 Instruction Manual

Clarke

Clarke CCD30LIC Instruction Manual

Clarke

Clarke CONTRACTOR CHD1050 User manual

Clarke

Clarke CAT87 Installation and operation manual

Clarke

Clarke CRD1250 Instruction Manual

Clarke

Clarke CONTRACTOR CON720RHD Instruction Manual

Clarke

Clarke CAT123 Instruction Manual

Clarke

Clarke CMD300 Instruction Manual

Clarke

Clarke CHD500 Installation and operation manual

Clarke

Clarke Air CAT214 Installation and operation manual

Clarke

Clarke X-pro CAT158 Installation and operation manual

Clarke

Clarke air CAT137 Installation and operation manual

Clarke

Clarke CBM1-B Installation and operation manual

Clarke

Clarke CHT599 User manual

Popular Drill manuals by other brands

Makita

Makita BDF456 instruction manual

Black & Decker

Black & Decker LDX220 instruction manual

Hitachi

Hitachi DH 40MA Handling instructions

Challenge

Challenge JO Instructions and parts manual

Makita

Makita LXFD01 instruction manual

Festool

Festool T18+3 instructions

Milwaukee

Milwaukee M12 FPDX-202X Original instructions

EINHELL

EINHELL TE-RH 32 E operating instructions

Makita

Makita DHP484 instruction manual

Makita

Makita FD05 instruction manual

Bosch

Bosch PSB 530 RA operating instructions

Maximum

Maximum 054-1359-4 instruction manual

Makita

Makita HP332D instruction manual

Raider

Raider RDP-HD31H user manual

Bort

Bort BPM-1400x2 manual

Black & Decker

Black & Decker 7266 owner's manual

KENT USA

KENT USA TRD1230 Operation manual

Bosch

Bosch GSB 19-2 RE Original instructions
