Clarke CSS1 Instruction Manual

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0610

CORDLESS COMPRESSOR WITH

SPOTLIGHT + JUMP START

MODEL NO: CSS1

PART NO: 6240055

CSS1 - Spotlight compressor (08-0540-2).book Page 1 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CSS1 - Spotlight compressor (08-0540-2).book Page 2 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All

tools, accessories and packaging should be sorted, taken to a

recycling centre and disposed of according to the laws governing

Waste Electrical and Electronic Equipment.

CSS1 - Spotlight compressor (08-0540-2).book Page 3 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

1. ALWAYS ensure when in use that there is air circulating around the unit.

2. Although the unit is water resistant and may be used outdoors, DO NOT

leave it exposed to the elements. Avoid direct sunlight, direct heat, rain/

moisture etc.

3. The unit is designed for use with 12V systems.

4. Do not operate the unit if the case is damaged. Consult your Clarke

dealer or a qualified person for inspection and repair.

5. To prevent battery overheating and consequent damage, do not

exceed 6 seconds duration when jump starting.

6. The unit is NOT designed to be used as a replacement for a vehicle

battery.

7. NEVER allow the battery to become completely discharged.

8. NEVER jump start the engine whilst the unit is being charged.

9. NEVER attempt any repairs yourself. If you have a problem with the unit

contact your local CLARKE dealer.

10. Always keep body and clothing dry. Never work in damp area without

adequate insulation against electric shock.

11. Always store the unit out of reach of children.

12. Always wear safety glasses when working with lead acid batteries.

13. If splashed by battery acid, immediately flush the area of the splash with

clean water. If a burning sensation is felt or any blistering occurs, seek

medical help.

14. If battery acid comes into contact with the eyes, flush the eyes with clean

water continuously and seek medical help.

WARNING: ALL LEAD ACID BATTERIES GENERATE HYDROGEN GAS

DURING NORMAL OPERATION. THIS PROCESS INCREASES DURING A

PERIOD OF RAPID DISCHARGE, SUCH AS WHEN USING FOR

JUMPSTARTING.

WARNING: HYDROGEN GAS AND BATTERY ACID (SULPHURIC ACID) CAN

BE EXPLOSIVE, CORROSIVE TO SKIN, EYES AND HAIR, DAMAGING TO

CLOTHING AND METALS, FLAMMABLE, POISONOUS TO BREATHE.

CSS1 - Spotlight compressor (08-0540-2).book Page 4 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY SYMBOLS

Class II appliance

Always read instructions before use

Electrical Hazard due to exposed live terminals

Chemical Hazard from battery acid

USB Port

Live centre pin

Suitable for indoor use only (refers to mains adaptor only)

Subject to Waste Electrical & Electronic Directive

CSS1 - Spotlight compressor (08-0540-2).book Page 5 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Control Switches 5 Pressure Gauge

2 DC 12V Socket 6 Spotlight

3 LED Lights 7 USB Charger

4 Air Hose Storage 8 Charging Jack Socket

CSS1 - Spotlight compressor (08-0540-2).book Page 6 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CHARGING

TO ENSURE MAXIMUM LIFE FROM THE BATTERY.

• Charge this unit before using it for the first time.

• Recharge after every use if possible, and thereafter, once every

three months. Always avoid leaving the unit in a state of discharge.

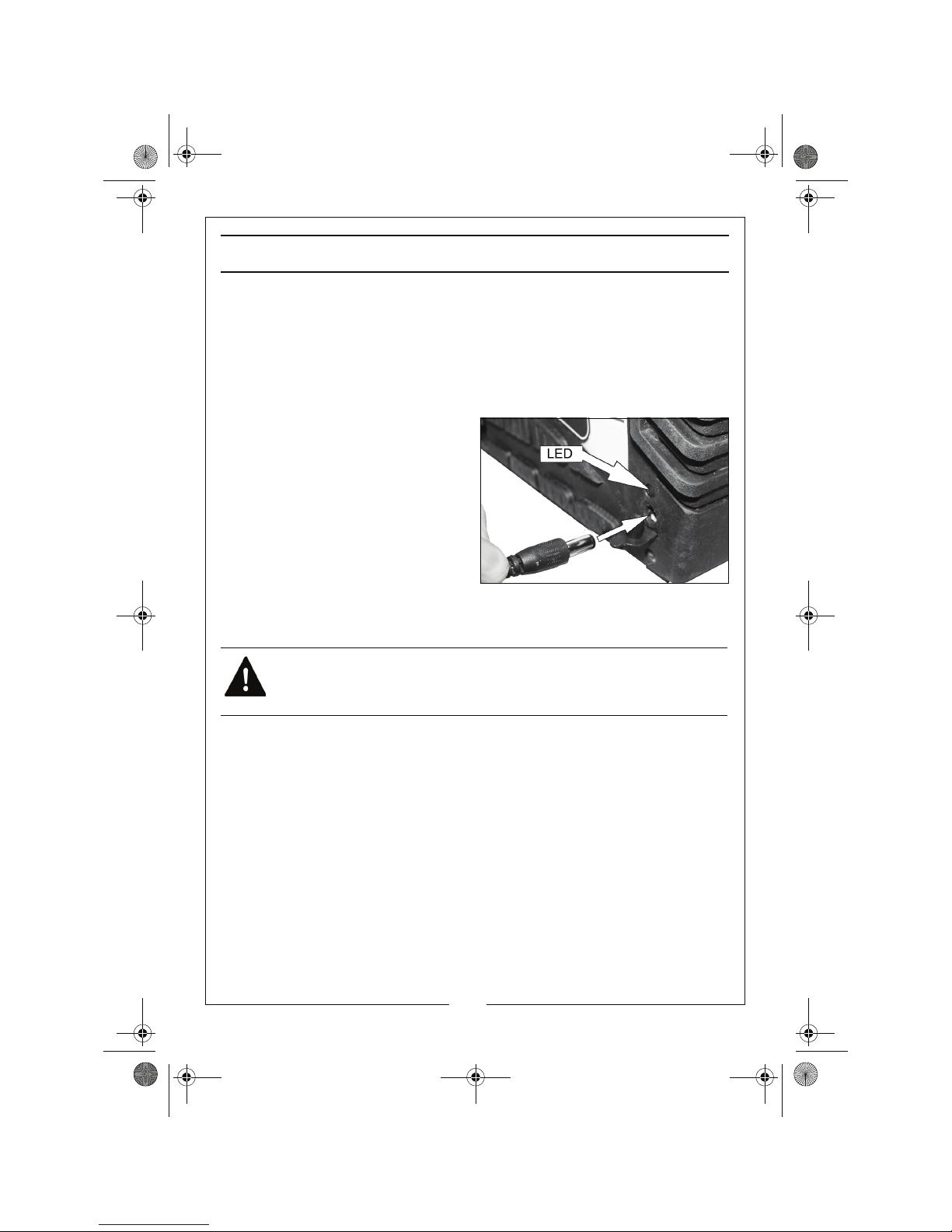

CHARGING USING THE MAINS ADAPTOR

1. Insert the charger lead into the

charging jack socket.

2. Connect the mains adaptor to the

mains outlet.

• The red LED will illuminate to

when the unit is charging.

CHARGING TIME

• First charge - 28 Hours

• Subsequent charges - 24-26 hours

CHARGING USING THE 12 VOLT CAR CIGARETTE SOCKET

1. Plug one end of the DC charging cable into the units charging socket

2. Insert the other end into the running vehicle’s cigarette lighter socket.

• The red LED will illuminate when the unit is charging.

CHARGING TIME

• 8-10 Hours

WARNING: BEFORE USING THE DC POWER SOURCE FROM THE CAR

CIGARETTE SOCKET CHECK THAT ITS FUSE RATING IS RATED AT 15A OR

HIGHER.

CSS1 - Spotlight compressor (08-0540-2).book Page 7 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE CSS1 VIA THE CAR CIGARETTE SOCKET

1. With the vehicle running, Connect the end of the 12V male-to-male car

power cord which does not had a LED light on it to the DC 12V socket on

your CSS1.

2. Put the other end (which has a LED on it) into the vehicle's lighter socket.

3. Select the required function using the switches as normal.

OPERATION

USING THE AIR COMPRESSOR

The outlet hose is stored inside the compartment behind the spotlight.

1. Swing the light housing up as

shown. and extend the air hose

fully before use.

2. Switch the air compressor ON by

pressing the COMP switch.

• The air pressure will be

indicated on the pressure

gauge.

3. Switch OFF the compressor before

disconnecting the air hose and coiling it back in to the compartment.

USING THE SPOTLIGHT

1. Press the light switch on the top of

the unit.

2. You can adjust the angle of the

light as shown.

USING THE LED LIGHTS

1. Press the LED switch on top of the

unit.

• The 3 LEDs on the side will light up.

WARNING: THE PRESSURE GAUGE IS ONLY TO BE USED AS A REFERENCE.

ALWAYS CARRY OUT A FINAL CHECK OF THE TYRE PRESSURE WITH A

GAUGE CONFORMING TO BS EN 12645

CSS1 - Spotlight compressor (08-0540-2).book Page 8 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE USB CHARGER

1. Insert the USB cable into the USB socket on the side of the unit.

2. Press the USB switch on the top of the unit.

• This will supply a maximum 5V at 500mA

USING THE EMERGENCY CAR STARTER

1. Turn off all lights and all other accessories (radio, etc) in the vehicle.

• You may keep one small vehicle light or dial turned on to aid in

determining if the battery is charging.

• Make sure the vehicle's l 2V Socket is clean and free of debris.

2. Connect the end of the 12V male-to-male car power cord which does not

had a LED light on it to the DC 12V socket on your CSS1.

3. Put the other end (which has a LED on it) into the vehicle's lighter socket.

4. Set both switches to the central (off) position.

• The Indicator Light on the 12V male-to-male car power cord will

illuminate, and the light or dial left on in the vehicle should brighten.

• If the light or dial does not brighten, turn the ignition key ONLY as far

as the accessory position (see vehicle owner's manual) In some

vehicles, this is necessary for the 12V socket to operate.

5. If the light or dial still does not brighten, turn off the light or dial and allow

this unit to remain connected to the vehicle for at least 35 minutes.

6. Disconnect the CSS1 and attempt to start the vehicle.

WARNING: FAILURE TO FOLLOW THE INSTRUCTIONS BELOW AND THE

SAFETY INSTRUCTIONS ON PAGE 4, MAY RESULT IN PERSONAL INJURY,

DAMAGE TO THE VEHICLE, OR THE POSSIBILITY OF AN EXPLOSION.

WARNING: BEFORE ATTEMPTING TO START VEHICLE, THIS UNIT MUST BE

REMOVED FROM THE VEHICLE'S 12V SOCKET.

CAUTION: DO NOT ATTEMPT TO START THE ENGINE MORE THAT TWICE, IF

THE VEHICLE DOES NOT START BY THE SECOND ATTEMPT, CALL A SERVICE

CENTER OR TOW TRUCK.

CSS1 - Spotlight compressor (08-0540-2).book Page 9 Thursday, June 17, 2010 10:26 AM

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

CLEANING

• Wipe the body of the unit clean using a soft damp cloth.

• Do not use harsh abrasives to clean this product.

SERVICE AND REPAIR

• All servicing and repair must be carried out by qualified service

technicians.

STORAGE

• When not in use, store in a safe dry place.

SPECIFICATIONS

Please note that the details and specifications contained herein, are correct at

the time of going to print. CLARKE International reserve the right to change

specifications at any time without prior notice.

Model Number CSS1

Battery Capacity 2 x 6V, 6AH / 20HR

AC Charger Lead Length 1800 mm

DC Charger Lead Length 1900 mm

USB Output 5V @ 500mA

Air Compressor (Max Pressure / Displacement) 260 PSI / 0.4 cfm

Spotlight Bulb Type 12V H3 15W

Dimensions (L X W X H) 260 x 125 x 170 mm

Weight 3 kg
