Installing a Network Module

•Installing a Network Module in the Switch, on page 1

•Removing a Network Module, on page 4

•Finding the Network Module Serial Number, on page 4

•Installing and Removing Pluggable Transceiver Modules, on page 5

Installing a Network Module in the Switch

Safety Warnings

This section includes the installation cautions and warnings. Translations of the safety warnings are available

in the Regulatory Compliance and Safety Information for Cisco Catalyst 9200 Series Switches .

Read this section before you install a network module.

Proper ESD protection is required whenever you handle equipment. Installation and maintenance personnel

should be properly grounded by grounding straps to eliminate the risk of ESD damage to the equipment.

Equipment is subject to ESD damage whenever you remove it.

Caution

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement

1030

Warning

Do not reach into a vacant slot or chassis while you install or remove a module. Exposed circuitry could

constitute an energy hazard. Statement 206

Warning

Equipment That You Need

• Ratcheting torque screwdriver with a number-2 Phillips head that exerts up to 15 pound-force inches

(lbf-in.) of pressure

Installing a Network Module

• Panduit crimping tool with optional controlled-cycle mechanism (model CT-720, CT-920, CT-920CH,

CT-930, or CT-940CH)

• Wire-stripping tools

• 12-gauge copper ground wire (insulated or not) for the single-hole ground connection

• Single-hole ground lug and screw (included in the switch accessory kit)

• Four leads of 14-gauge copper wire

Installing a Network Module

The switch can operate without a network module, but a blank module (with no ports or SFP slots) is available

and should be installed when uplink ports are not required.

Note

The switch generates logs when you insert or remove a network module with SFP/SFP+ slots.

Note

Use only supported network modules and Cisco pluggable transceivers. Each module has an internal serial

EEPROM that is encoded with security information.

The network module is hot-swappable. If you remove a module, replace it with another network module or

a blank module.

The switch complies with EMC, safety, and thermal specifications when a network module is present. If no

uplink ports are required, install a blank network module.

Note

Before you begin

When installing network modules, observe these precautions:

• Do not remove the blank module from the slot unless you are installing a network module. A module

must be in the uplink slot at all times.

• Do not remove the dust plugs from the pluggable transceivers or the rubber caps from the fiber-optic

cable until you connect the cable. The plugs and caps protect the module ports and cables from

contamination and ambient light.

•Removing and installing a network module can shorten its useful life. Do not remove and insert a network

module more often than is necessary.

•To prevent ESD damage, follow your normal board and component handling procedures when connecting

cables to the switch and other devices.

Installing a Network Module

Procedure

Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.

Step 2 Remove the module from the protective packaging.

Step 3 Remove the blank module from the switch and save it. To remove the blank module, loosen the captive screw

on the module using a screwdriver until it completely disengages from the chassis.

Verify the correct orientation of your module before installing it. Incorrect installation can damage

the module.

Caution

Do not install the network module with connected cables or installed pluggable transceivers. Always

remove any cables and transceiver modules before you install the network module.

Caution

A module interface might become error-disabled when a network module with connected fiber-optic

cables is installed or removed. If an interface is error-disabled, you can reenable the interface by

using the shutdown and no shutdown interface configuration commands.

Caution

Step 4 Position the module face up to install it in the module slot. Slide the module into the slot until the screw makes

contact with the chassis. Fasten the captive screws to secure the network module in place.

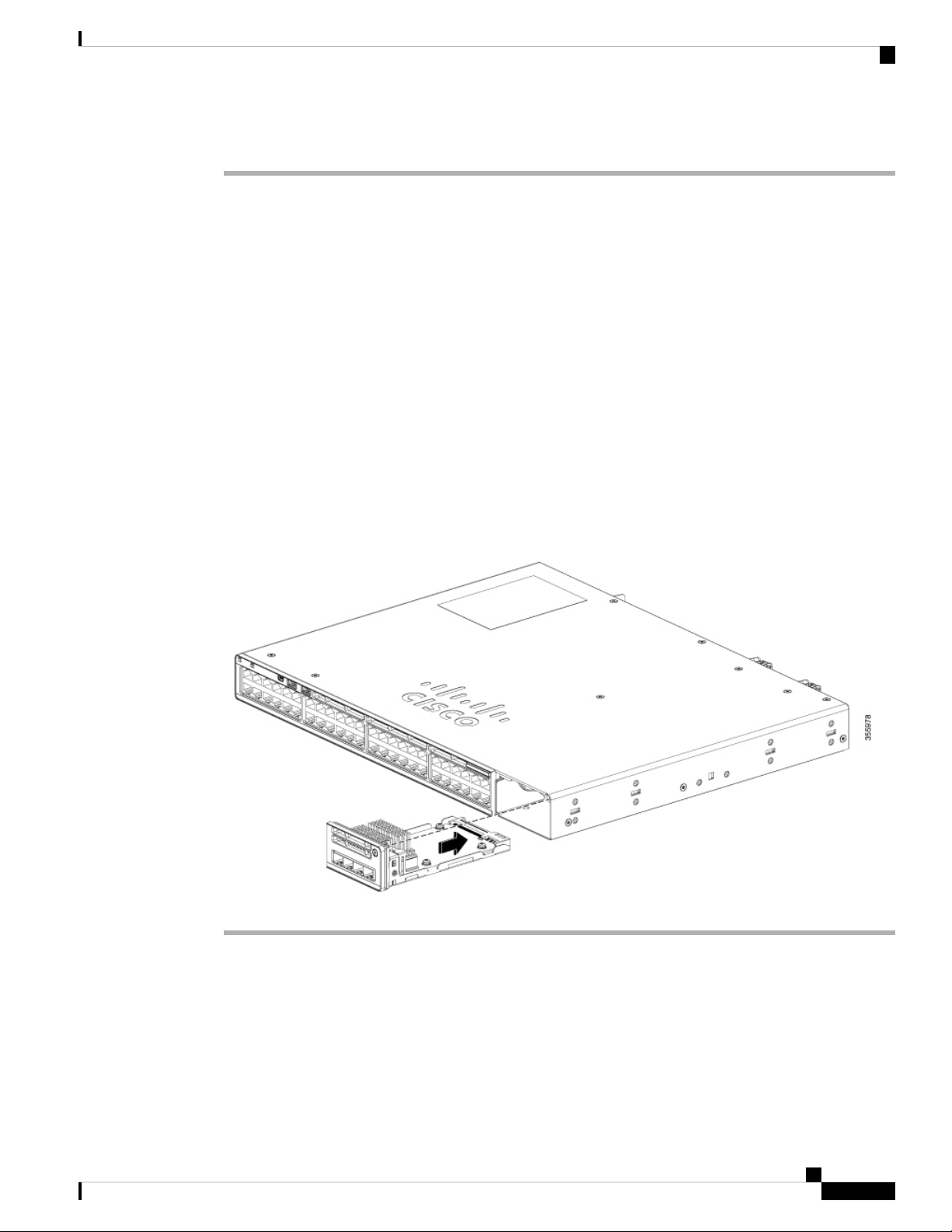

Figure 1: Installing the Network Module in the Switch

Installing a Network Module

Removing a Network Module

The switch complies with EMC, safety, and thermal specifications when a network module is present. If no

uplink ports are required, install a blank network module.

Note

Procedure

Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface

Do not remove the network module with connected cables or installed pluggable transceiver modules.

Always remove any cables and modules before you remove the network module.

Caution

A module interface might become error-disabled when a network module with connected fiber-optic

cables is installed or removed. If an interface is error-disabled, you can reenable the interface by

using the shutdown and no shutdown interface configuration commands.

Caution

Step 2 Disconnect the cables from the pluggable transceiver module.

Step 3 Remove the pluggable transceiver module from the network module.

Step 4 Loosen the captive screws that hold the network module in place until it completely disengages from the

chassis.

Step 5 Carefully slide the network module out of the slot.

Step 6 Install a replacement network module or a blank module in the slot.

Step 7 Place the module that you removed in an antistatic bag or other protective environment.

Finding the Network Module Serial Number

If you contact Cisco Technical Assistance regarding a network module, you need to know its serial number.

Installing a Network Module

Removing a Network Module

Figure 2: Network Module Serial Number Location

Installing and Removing Pluggable Transceiver Modules

Installing a Cisco Pluggable Transceiver Module

Before you begin

See the switch release notes on Cisco.com for the list of supported a Cisco pluggable transceiver modules

(SFP, SFP, SFP28 and QSFP+ modules). Use only supported modules on the switch. For the latest information

about the supported modules, refer to the Cisco Transceiver Modules Compatibility Information.

For information about installing, removing, cabling, and troubleshooting transceiver modules, see the module

documentation that shipped with your device.

Class 1 laser product. Statement 1008

Warning

• Do not remove the dust plugs from the transceiver modules or the rubber caps from the fiber-optic cable

until you are ready to connect the cable. The plugs and caps protect the module ports and cables from

contamination and ambient light.

• Removing and installing a transceiver module can shorten its useful life. Do not remove and insert any

module more often than necessary.

Installing a Network Module

Installing and Removing Pluggable Transceiver Modules

•To prevent ESD damage, follow your normal board and component handling procedures when connecting

cables to the switch and other devices.

•When you insert several transceiver modules in multiple switch ports, wait for 5 seconds between inserting

each transceiver module. This will prevent the ports from going into error disabled mode. Similarly,

when you remove a transceiver module from a port, wait for 5 seconds before reinserting it.

Procedure

Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.

Step 2 Find the send (TX) and receive (RX) markings that identify the top of the transceiver module.

On some transceiver modules, the send and receive (TX and RX) markings might be shown by arrows that

show the direction of the connection.

Step 3 If the transceiver module has a bale-clasp latch, move it to the open, unlocked position.

Step 4 Align the module in front of the slot opening, and push until you feel the connector snap into place.

Figure 3: Installing a tTransceiver Module into the Network Module

Step 5 If the module has a bale-clasp latch, close it to lock the transceiver module in place.

Step 6 Remove the transceiver module dust plugs and save.

Step 7 Connect the transceiver module cables.

Installing a Network Module

Installing a Cisco Pluggable Transceiver Module

Figure 4: Installing a Transceiver Module in the Uplink Module Slot

Removing a Cisco Pluggable Transceiver Module

Procedure

Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.

Step 2 Disconnect the cable from the transceiver module. For reattachment, note which cable connector plug is send

(TX) and which is receive (RX).

Step 3 Insert a dust plug into the optical ports of the transceiver module to keep the optical interfaces clean.

Step 4 If the module has a bale-clasp latch, pull the bale out and down to eject the module. If you cannot use your

finger to open the latch, use a small, flat-blade screwdriver or other long, narrow instrument to open it.

Step 5 Grasp the transceiver module and carefully remove it from the slot.

Step 6 Place the transceiver module in an antistatic bag or other protective environment.

Installing a Network Module

Removing a Cisco Pluggable Transceiver Module

Installing a Network Module

Removing a Cisco Pluggable Transceiver Module
