Cisco EX60 User manual

Cisco TelePresence System EX60

installation guide

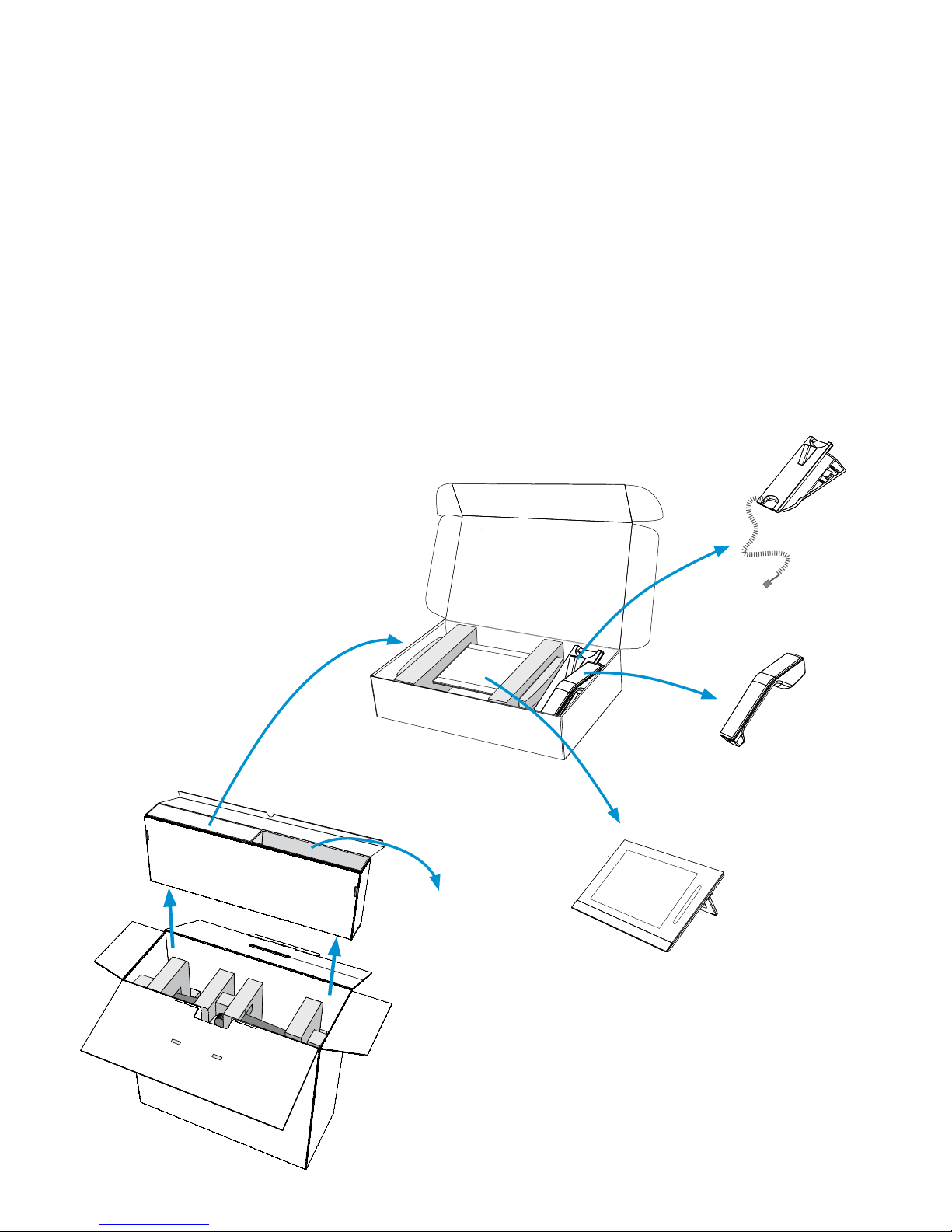

Lift the rectangular box out of the

package.

In the box you will find the cables,

and another box with the touch

screen and handset.

Unpack the touch screen with the

handset and handset base.

Handset

base

Touch

screen

1Unpacking the touch screen and cables

Cables

EX60 is delivered with:

• EX60 unit

• Touch screen with cable

• Handset base with cable

• Handset

• AC adapter and power cable

• DVI-D to DVI-I cable

(recommended for optimal PC

image quality)

• VGA to DVI-I cable

• Stereo audio cable 3.5mm

• Ethernet cable

• Screwdriver

• Cleaning cloth

User documentation

User guides and compliance and safety information for this product

are available at the Cisco web site: http://www.cisco.com/go/ex-docs

2Unpacking the EX60 unit

Lay the package flat on the floor.

Pull the EX60, surrounded by foam

protection, out of the package.

Carefully loosen the foam protection.

Lift the EX60 and place it on a firm surface.

Weight: 7 kg / 15lb

EX60

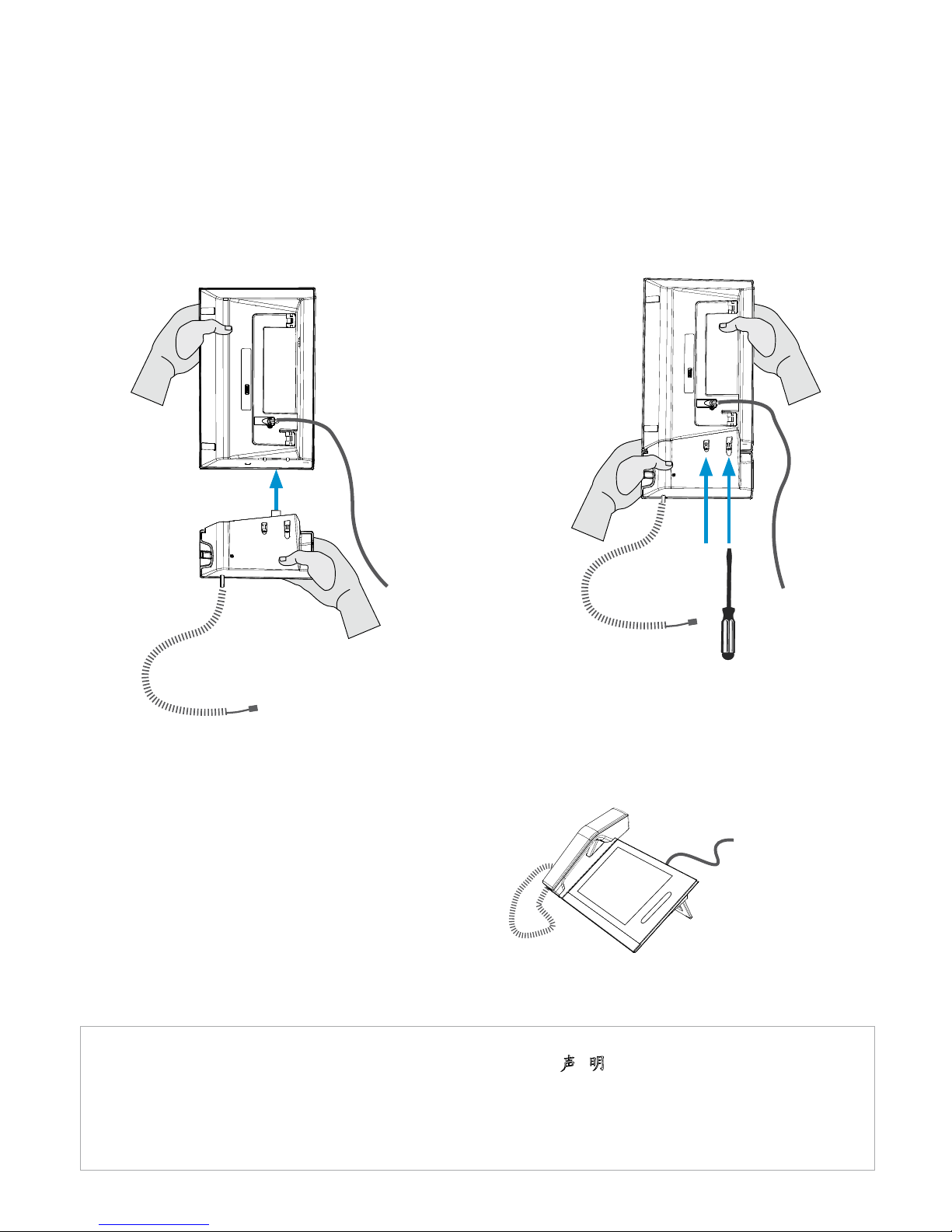

BFasten the two units together. The screws

are pre–mounted in the handset base.

Use the screwdriver and fasten the screws at the

handset base from the underneath.

AHold the touch screen and the handset

base in an upright position.

Move the two units together. Make sure the

connector on the handset base slides into the

corresponding hole on the touch screen.

CConnect the cable between the handset and the

handset base; then place the handset on the base.

3Optional: Mounting the handset

Tool: Screwdriver

EMC Class A declaration

This is a class A product. In

a domestic environment this

product may cause radio

interference in which case the

user may be required to take

adequate measures.

声明

此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种

情况下，可能需要用户对其干扰采取切实可行的措施。

WARNING: This is a class A product. In a domestic environment

this product may cause radio interference in which case the user

may be required to take adequate measures.

Touch

screen

Handset

base

4System overview and basic setup

Kensington

lock

USB

Micro-

phone

Remove the cover

to get access to the

connectors at the

rear side.

Local area

network (LAN)

Touch screen

Power supply

(use the supplied

AC adapter)

Optional PC

video input

Optional PC

audio input

For maintenance only

(requires purpose-built

cable)

Optional LAN

connection

for PC

Headset

Connect the touch screen,

LAN and power as illustrated.

To connect a PC, see more

details in step 5.

You may connect an

external microphone and

a headset to your system

(not provided).

Audio and video input from PC

Connect the audio and video cables from the PC.

We recomemend using the DVI-D to DVI-I video

cable for optimal PC image quality.

The cables are in the rectangular box, see

illustration in step 1.

Optional LAN connection for PC

If you have a single LAN wall outlet only, you

may connect your PC to the second RJ45

socket of the EX60 (labelled with a PC symbol).

Your PC and the EX60 will then share the LAN

connection.

5Connecting a PC

Optional LAN

connection

for PC, RJ45

PC video input,

DVI-I cable

PC audio input,

Stereo cable

3.5 mm mini jack

Power button

• Tap the power button once to switch

on/off the monitor.

• Press gently and hold the power button

to shut down the system.

Camera

• Turn to open/close the

privacy cover.

• Tilt downwards to use

as document camera.

Camera LED

Power LED

6Starting the system

Please read the user documentation,

which is available on the Cisco web

site, for further information about how

to set up and use your system.
