INSTALLATION INSTRUCTIONS

Chief Manufacturing, a products division of

Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918

8809-000020 Rev A

©2008 Milestone AV Technologies, a

Duchossois Group Company

11/08

VCM

VIDEO CEILING MOUNT

Prior to assembly, unpack carton completely and verify contents.

If you are missing any components, please contact Customer Service at 1-800/582-6480

The Deluxe Video Ceiling Mounts are designed to provide fast, simple and secure ceiling installation of video

projectors. Special roll, pitch and horizontal adjustments simplify projection positioning for image alignment.

The ceiling mount also has positive registration lock so the projector may be removed without losing projector

mount registration.

BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY

IMPROPER INSTALLATION CAN RESULT IN SERIOUS

PERSONAL INJURY! MAKE SURE THAT THE CEILING

STRUCTURAL MEMBERS CAN SUPPORT A REDUNDANT

WEIGHT FACTOR FIVE TIMES THE TOTAL WEIGHT OF THE

EQUIPMENT. IF THE CEILING CANNOT SUPPORT THIS

WEIGHT, REINFORCE THE CEILING BEFORE INSTALLING THE

MOUNT.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT

IS 250 POUNDS (113.4 KG).

INSTALLING THE CEILING MOUNT REQUIRES THE PRESENCE OF TWO

PERSONS FAMILIAR WITH MECHANICAL INSTALLATIONS. A THIRD

ASSISTANT IS RECOMMENDED.

1. Secure the VCM housing to your method of support and tighten firmly so the VCM is housing is

parallel to the screen.

2. Attach the HB-Hanging Bracket according to the instructions accompanying your HB-Hanging

Bracket. The model of your projector determines which HB-Hanging Bracket is included with your

VCM.

3. Using two people lift the projector and install it to the studs extending from the mounting

plate (see Figure 1, item 1). Be sure the HB-Hanging Bracket (2) is seated in the slots.

4. Using a wrench, tighten four 5/16” flange nuts securing slide bracket (6).

WARNING!

5. Tighten securely using the 5/16-18 flange nuts (3).

Align projector as follows:

MOUNTING HARDWARE IS TO BE LOOSENED ONLY TO

ALLOW FOR NECESSARY MOVEMENT. OVER-LOOSENING OR

REMOVAL OF MOUNTING HARDWARE MAY RESULT IN

SERIOUS DAMAGE TO EQUIPMENT OR PERSONAL INJURY.

Vertical Elevation (pitch): Adjust by loosening the three bolts (5) located on the mounting plate (1).

Loosen both sides, tilt projector to desired direction, and securely tighten

three bolts.

Horizontal Tilt (roll): Adjust by loosening the three bolts (5) located on the mounting plate (1)

and turning the adjustment bolt (4). Adjustment may be performed on

both sides of the unit and securely tighten three bolts.

Positive Registration Lock: Tighten the pitch bolts loosen four flange nuts (3) securing the projector

and remove the projector, with the HB-Hanging Bracket attached, from

the VCM.

Horizontal Adjustments: Loosen, but do not remove, the nuts holding the top slide bracket (6).

Adjust unit up to 1 ½” in any direction and tighten the nuts holding the top

slide bracket.

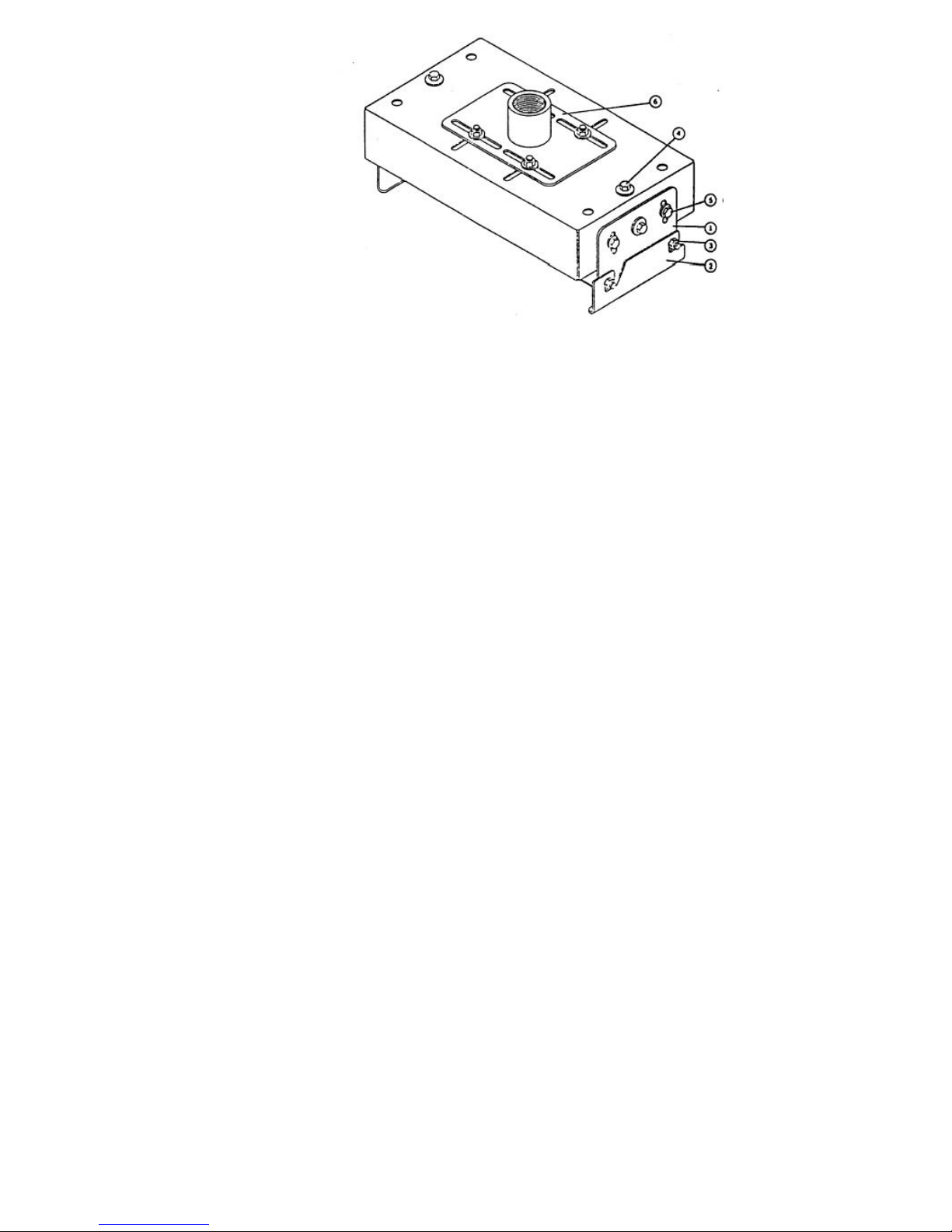

Figure 1

WARNING!
