CHIEF Single Stud Wall Arm CTA-025 User manual

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8809-000027 (Rev. A)

1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 11/04

CTA-025

Single Stud Wall Arm

BEFORE YOU BEGIN

• CAUTION: To prevent damage to your equipment, which could affect or void the Factory warranty,

thoroughly study all instructions and illustrations before you begin to install the CTA-025. Pay particular

attention to the Warnings and Cautions in this document.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.

The CTA-025 Single Stud Wall Arm can be used to

wall mount RPA, UPC or LCDA series ceiling

mounts.

The CTA-025 also provides a mounting solution for

TV/Monitor mounts. The CTA-025 has a maximum

weight capacity of 150 lbs (68.0 kg).

The wall arm on the CTA-025 is 25.0” in length from

the wall mount.

CTA-025 Single Stud Wall Arm

Installation Instructions CTA-025

CTA-025 – SPECIFICATIONS

Table 1. CTA-025 Specifications

Model

L-Length

(fixed)

Max

Support

Weight

Wall Mount

Description

CTA-025* 25.0”

150 lbs

(68.0 kg)

Wood Stud

Installation

NOTES

1. *Metal stud mounting is not recommended.

2. For concrete or brick installations, use CMA-380.

(L) Length

Installation Instructions CTA-025

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow the

instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow

the corresponding instructions.

WARNING Improper installation can result in serious personal injury! Make sure that the mounting surface

can support a redundant weight factor five times the total weight of the equipment: if not,

reinforce the mounting surface structural members before installing the mount.

WARNING Be aware of the potential for personal injury or damage to the equipment if it is not adequately

mounted.

WARNING The installer is responsible for verifying that the mounting surface to which the CTA-025 is

anchored will safely support the combined load of all attached components or other equipment.

WARNING The combined weight of the TV/monitor and all attached components and equipment placed on a

Chief Wall Arm must not exceed the maximum support weight specified in Table 1 (see page 2).

WARNING Watch for pinch points. Do not put your fingers between movable parts.

CAUTION Check the unit for shipping damage before you begin the installation.

CONTENTS

CTA-025 – SPECIFICATIONS........................................2

CONTENTS......................................................................3

INSPECT THE UNIT BEFORE INSTALLING ..............3

PARTS ..............................................................................4

TOOLS REQUIRED FOR INSTALLATION..................5

INSTRUCTIONS..............................................................5

Installing Wall Arm.......................................................5

Attaching Front Cover...................................................6

Connecting NPT Pipe or Nipple to Wall Arm...............6

INSPECT THE UNIT BEFORE

INSTALLING

Unpack the carton. Carefully inspect the parts for

shipping damage. Verify contents listed in Table 2.

If you are missing any of the listed parts, contact

Customer Service at: 1-800/582-6480.300.

Table 2. Shipping Contents

ITEM DESCRIPTION QTY

10 Wall Arm 1

20 Front Cover 1

30 5/16 X 2.5” Lag Bolt 2

40 5/16 Flat Washer 2

50 M4 X 8mm Phillips Head Cap Screw 4

60 M6 X 6mm Set Screw 1

70 M3 Allen Key 1

Installation Instructions CTA-025

PARTS

Figure 1. CTA-025 Parts

Installation Instructions CTA-025

TOOLS REQUIRED FOR

INSTALLATION

The tools required for installation are as follows:

• Electric drill and bit set

• Stud sensor (mechanical or electronic)

• ½” box-end wrench or ratchet with ½” socket

• 13mm box-end wrench or ratchet with 13mm socket

• Level

NOTE: Other tools may be required depending on

your method of installation.

INSTRUCTIONS

Step 1

Installing Wall Arm

1. Locate the wall arm (10), two lag bolts (30) and two

flat washers (40). See Figure 2.

WARNING

It is the installer’s responsibility to verify that the

structure to which the mount is anchored will safely

support five times the combined load of all attached

components and equipment.

2. Determine a suitable mounting location. Keep in

mind that you will be mounting the wall arm (10) to

a wood stud, on center.

3. Using a stud sensor, locate the wood stud where you

will mount the wall arm (10).

4. Holding the wall arm (10) against the wall, use a

pencil, awl, or small nail to mark the mounting holes

where two pilot holes will be drilled into the center

of the wood stud. Make sure that the mounting holes

are centered.

5. Using a 15/64” drill bit, drill two pilot holes for

anchoring the wall arm (10).

6. Using two 5/16” lag bolts (30) and two 5/16” flat

washers (40), install the wall arm (10) on the wall.

Figure 2. Install Wall Arm

Wall Stud

(

)

(

)

(

)

Installation Instructions CTA-025

STEP 2

Attaching Front Cover

1. Locate front cover (20) and four M4 x 8mm Phillips

head cap screws (50).

NOTES

• The front cover may be partially removed and

reinstalled to conceal power/audio/video cables

after the TV/Mount is installed.

• You may remove one or both knockouts on

cover to assist routing to wall through cover.

2. Install the front cover (20) using four M4 8mm

Phillips head cap screws (50). See Figure 3.

STEP 3

Connecting NPT Pipe or Nipple to Wall Arm

1. Locate M6 x 6mm set screw (60) and 1-1/2” NPT

pipe or nipple (supplied with TV Mount or

purchased separately).

2. Connect the 1-1/2” NPT pipe or nipple (supplied

with TV Mount or purchased separately) to the wall

arm (10). See Figure 4.

3. Using the M3 Allen key (70), install the M6 x 6mm

set screw (60). Tighten the set screw.

WARNING

Make sure to tighten the M6 x 6mm set screw (60) to

prevent equipment damage or personal injury.

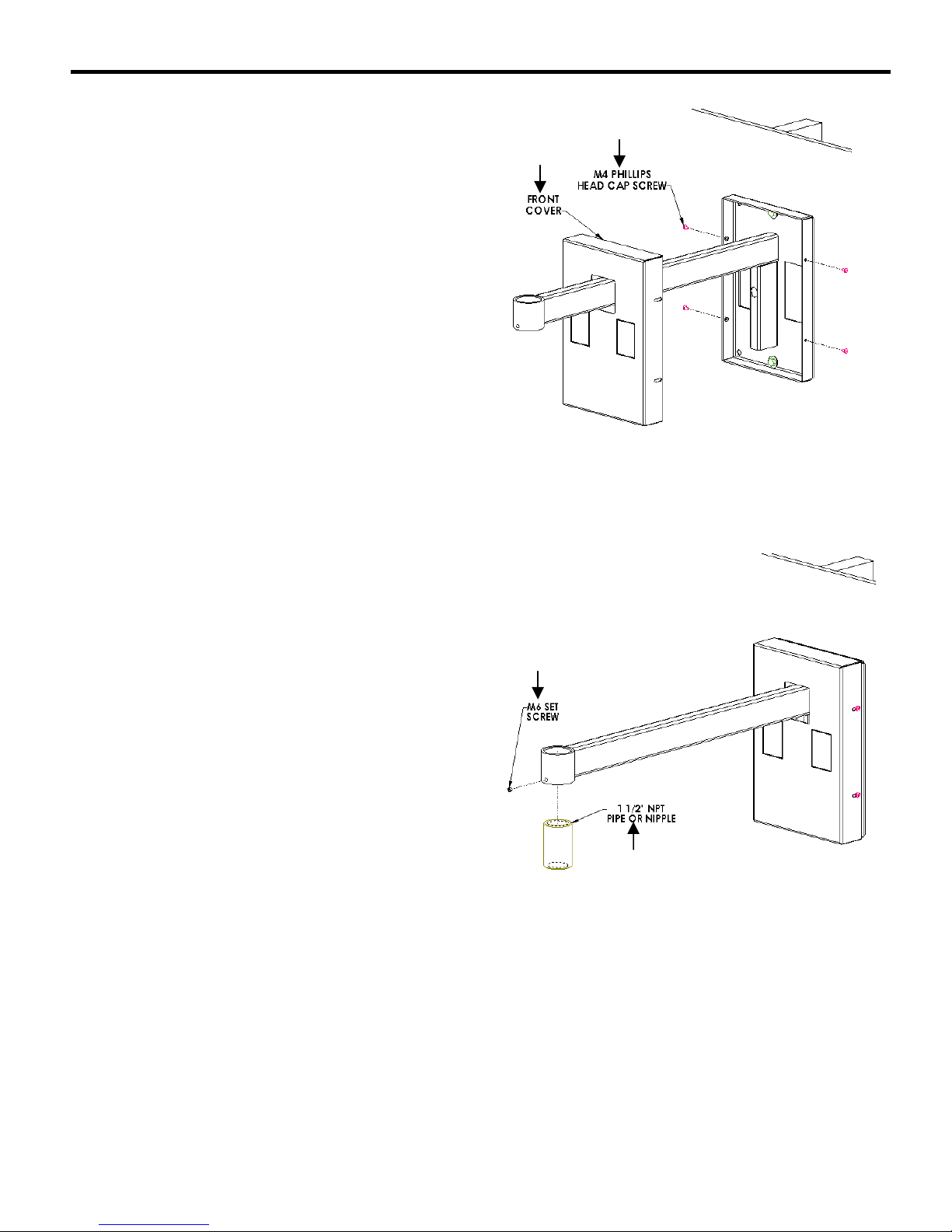

Figure 3. Attach Front Cover

Figure 4. Connect NPT Pipe or Nipple to Wall Arm

(

)

(

)

(

)

(Supplied with TV Mount

or purchased separately)
