PAC717

PAC717 Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all literature and accessories mounted on the PAC717 does

not exceed 25 lbs (11.34 kg).

DIMENSIONS

7.06 DISTANCE

FROM CART/STAND

179.3

70°

12.39 INSIDE

314.7

2.90

73.7

12.50

Installation Instructions PAC717

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

PAC717 Installation Instructions

TOOLS REQUIRED FOR INSTALLATION

PARTS

1/2" (12.7mm)

A(1) B(1)

C(2)

D(1) E(4)

3/8"

[Literature tray] [Shelf column mount]

[5/16-18 knob]

[Shelf bracket]

Installation Instructions PAC717

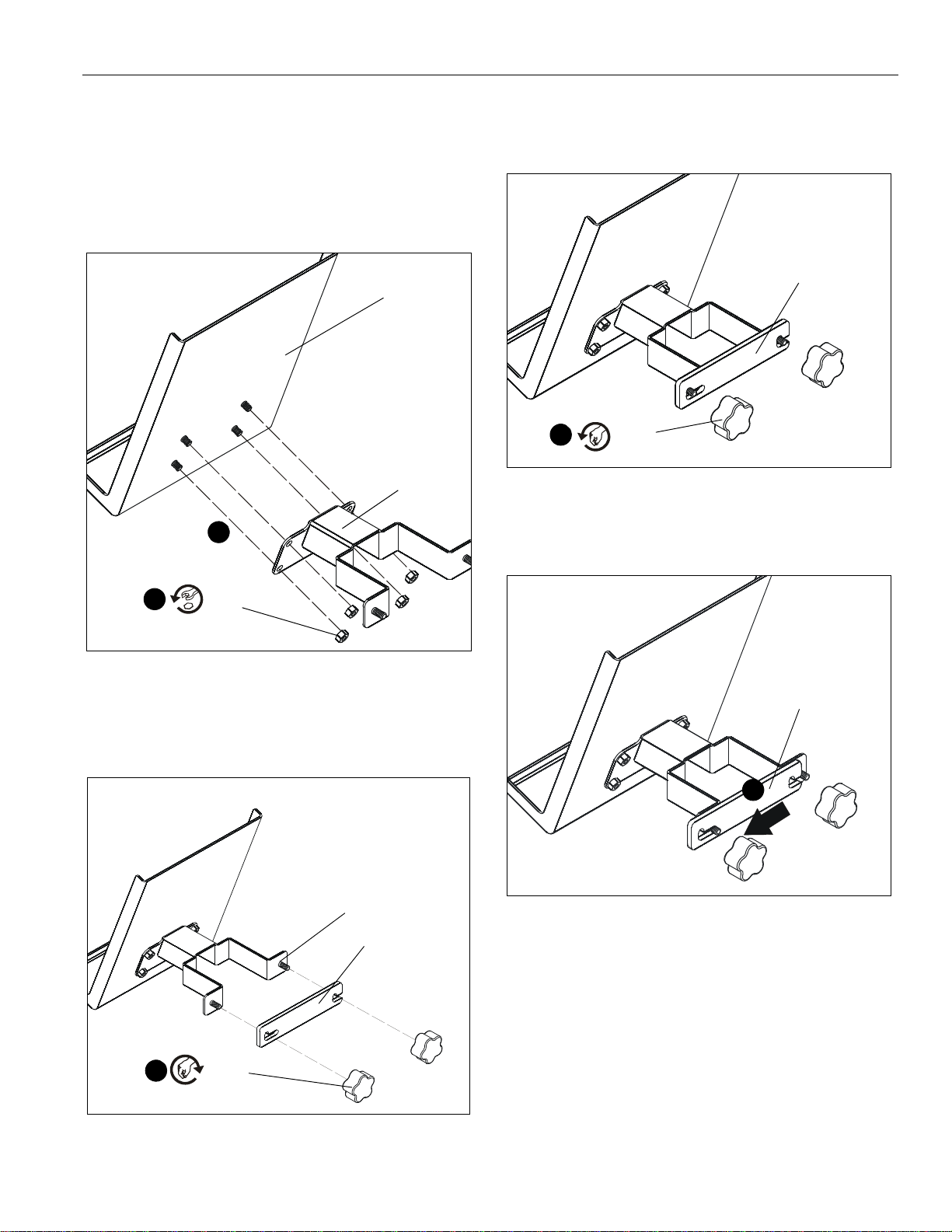

Assembly And Installation

Assemble Literature Tray

1. Placeshelfcolumnmount(B)overboltsonbackofliterature

tray (A). (See Figure 1)

2. Installfour3/8"hex nuts (E) to boltsonback of literaturetray

(A) to secure shelf column mount (B) to tray. (See Figure 1)

Figure 1

3. Placeshelf bracket (D)overboltsonflanges of shelfcolumn

mount (B). (See Figure 2)

4. Thread two 5/16-18" knobs (C) onto bolts until shelf bracket

is secured to shelf column mount. (See Figure 2)

Figure 2

Attach Literature Tray to Cart/Stand

1. Loosen back bracket (D) by turning both knobs

counterclockwise. Do NOT remove knobs. (See Figure 3)

Figure 3

2. Slide bracket to the left until it disengages from the right

stud. (See Figure 4)

Figure 4

3. Let the bracket drop down and hang from the shelf’s left

stud. (See Figure 5)

(E) x 4

(A)

(B)

(D)

Knobs shown

removed for

viewing purposes

only

(D)

Knobs shown

removed for

viewing purposes

only

(D)

PAC717 Installation Instructions

Figure 5

4. Position shelf column mount (B) around lower extrusion of

cart/stand at desired mounting height. (See Figure 6)

5. Raise shelf bracket and hook over shelf’s right stud. (See

Figure 6)

6. Turnbothknobs clockwiseto tighten the shelf inplace. (See

Figure 6)

Figure 6

Adjustments

Height Adjustment

1. Loosen back bracket (D) by turning both knobs

counterclockwise. Do NOT remove knobs. (See Figure 7)

2. Slide bracket to the left until it disengages from the right

stud. (See Figure 7)

Figure 7

3. Let the bracket drop down and hang from the shelf’s left

stud. (See Figure 8)

4. Adjust literature tray to desired height. (See Figure 8)

Figure 8

5. Raise shelf bracket and hook over shelf’s right stud. (See

Figure 9)

6. Turnboth knobs clockwiseto tighten the shelfin place.(See

Figure 9)

Knobs shown

removed for

viewing purposes

only

(D)

Knobs shown

removed for

viewing purposes

only

Installation Instructions PAC717

Figure 9

PAC717 Installation Instructions

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P800.582.6480 / 952.894.6280

F877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P+31 (0)40 2668620

F+31 (0)40 2668615

Asia Pacific A Room 24F, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA.

P+86-755-8996 9226

F+86-755-8996 9217

Chief Manufacturing, a products division

of Milestone AV Technologies

8807-002002 REV 01

Duchossois Group Company

www.chiefmfg.com

05/09
