Char-Griller DC50 User manual

OWNER’S MANUAL

Gas & Charcoal Grill

Gas Grill Features

•

40,800 BTU

•

Stainless Steel Tube Burners

•

12,000 BTU Side Burner

•

Cast Brass Side Burner

•

Electronic Igniters

WARNING:

Improper installation, adjustment, alteration,

service or maintenance could cause injury

or property damage Read the installation,

operation and maintenance instructions

thoroughly before assembling or servicing

this equipment.

Failure to follow these instructions could

result in fire or explosion that could cause

property damage, personal injury or death.

DANGER:

DO NOT use gas grill for indoor cooking or

heating. TOXIC fumes can accumulate and

cause asphyxiation. Do not use in or on

boats or recreational vehicles.

PROP 65 WARNING

Chemicals known to the state of California

to cause cancer, birth defects or other

reproductive harm are created by the

combustion of propane.

SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. IF YOU ARE ASSEMBLING

THIS UNIT FOR SOMEONE ELSE, GIVE THIS

MANUAL TO HIM OR HER TO SAVE FOR

FUTURE REFERENCE.

A propane gas cylinder is required for

operation. This gas grill is not intended

for commercial use.

MODEL#DC50

Charcoal Grill Features

•

Start charcoal with gas burner

•

Adjustable Height Charcoal

Grate

•

Side Fire Box Optional for Texas

Style Smoking

Features

•

Porcelain Coated Cast Iron

•

Stainless Steel Thermometers

•

Chrome Plated Warming Racks

LOW

DANGER

If you smell gas:

Shut off gas to the appliance.

Extinguish any open flame.

Open Lid.

If odor continues, keep away from the appliance

and immediately call your gas supplier or your fire

department.

WARNING

•

Do not store or use gasoline or other flammable

liquids or vapors in the vicinity of this or any

other appliance.

•

An LP cylinder not connected for use shall not

be stored in the vicinity of this or any other

appliance.

page 2

Table of Contents

Important Safety Information.………………………..page 4 - 5

Illustrated Parts List……………………………..…..page 6 – 8

Tools Required, Assembly Tips and Hardware List..…..page 9

Assembly Instructions……………………………....page 10 – 18

Operating Grill

Connecting Gas Cylinder……………………….page 19

Checking for Leaks……………………………...page 19

Lighting Grill…...…………………………………page 20

Cleaning and Care………………………………page 21

Gas Grill Troubleshooting……………………………page 22 - 23

Grill Preparation………………………………………page 24

Recipes……………………………………………..….page 25 - 27

Accessories…………………………………………….page 28 - 29

page 3

page 4

Ｍodel # ＤＣ５０Owner’s Manual

WARNING

FOR YOUR SAFETY

•

DO NOT store or use gasoline or any other flammable vapors and liquids within 25 feet

(8m) of this or any other appliance.

•

When cooking with oil/grease, do not allow the oil/grease to exceed 350

F (177

C). Do not

store of use extra cooking oil in the vicinity of this or any other appliance.

•

An LP Cylinder not connected for use should be stored a minimum of 10 feet (3m) away

from this or any other appliance. Never fill the cylinder beyond 80 percent full. If the above

information not followed exactly, a fire causing death or serious injury may occur.

•

If you smell gas:

- Shut Off gas to the grill. -

Extinguish any open flame.

- Open Lid. - If odor continues, immediately call your gas

supplier or fire department.

For Your Safety

Stop! Call us first! Do Not return product to store. This grill has been made to high quality

standards. If you have any questions not addressed in this manual or if you need parts

please call our customer service department at 0031 (0) 114 671493 or mail to

[email protected] .Monday-Friday 8am-5pm .

NOTE: The use and installation of this product must conform to local codes. In absence of local

codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane

Installation Code CSA B149.1, or Propane Storage and Handling Code, B149.2, or the

Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA Z240 RV Series,

Recreational Vehicle Code, as applicable.

Minimum distance from sides and back of unit to walls or railings is 36 inches (914mm).

Do not use under overhead construction. This appliance not intended for commercial us

Do not locate this outdoor cooking appliance under overhead unprotected combustible

surface.

For Outdoor Use Only, If Store Indoors, Detach and Leave Cylinder Outdoors.

IMPORTANT NOTICE: read all instructions prior to assembly and use.

Read and understand all warnings and precautions prior to operating your grill.

CAUTION

•

This grill is for use with propane gas only (propane gas cylinder not included).

•

Never attempt to attach this grill to the self-contained propane system of a camper trailer,

motor home or house.

•

Never use charcoal or lighter fluid with the gas grill.

•

Do not use gasoline, kerosene or alcohol for lighting. The LP-gas supply cylinder must be

constructed and marked in accordance with the specifications for propane gas cylinders of

the U.S. Department of Transportation (DOT) CFR 49 or the National Standard of Canada,

CAN/CSA B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and

Commission, as applicable. This grill is not intended to be used in or installed on recreation

vehicles and/or boats..

•

Do not attempt to move the grill while it is lit.

•

Do not use the grill unless it is completely assembled and all parts are securely fastened and

tightened.

page 5

7. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible

materials, gasoline and other flammable vapors and liquids.

8. Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns,

unless you are wearing protective gear (BBQ mittens, pot holders, etc.)

9. Do not alter this grill in any manner.

10. Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or

leaks, the hose must be replaced prior to operating the appliance. The replacement hose

assembly will be that which is specified by the manufacturer.

•

Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

•

Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to

increase, which may open the relief valve and allow gas to escape.

•

Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the

grill before each use.

WARNING

•

This grill is for outside use only, and should not be used in a building, garage or any other

enclosed area.

•

The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to

properly assemble or safely operate the grill.

•

Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn

you severely.

•

Always place your grill on a hard, level surface far away from combustibles. An asphalt or

blacktop surface may not be acceptable for this purpose.

•

Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.

•

Do not place this grill on any type of tabletop surface.

•

Do not use the grill in high winds.

DANGER

Liquid propane (LP) gas is flammable and hazardous if handled improperly. Know its characteristics

before using any propane product.

•

Propane Characteristics: Flammable, explosive under pressure, heavier than air and settles in

pools and low areas.

•

In its natural state, propane has no odor. For your safety, an odorant has been added.

•

Contact with propane can cause freeze burns to skin.

•

This grill is shipped from the factory for propane gas use only.

•

Never use a propane cylinder with a damaged body, valve, collar or footing.

•

Dented or rusted propane cylinders may be hazardous and should be checked by your

propane gas supplier.

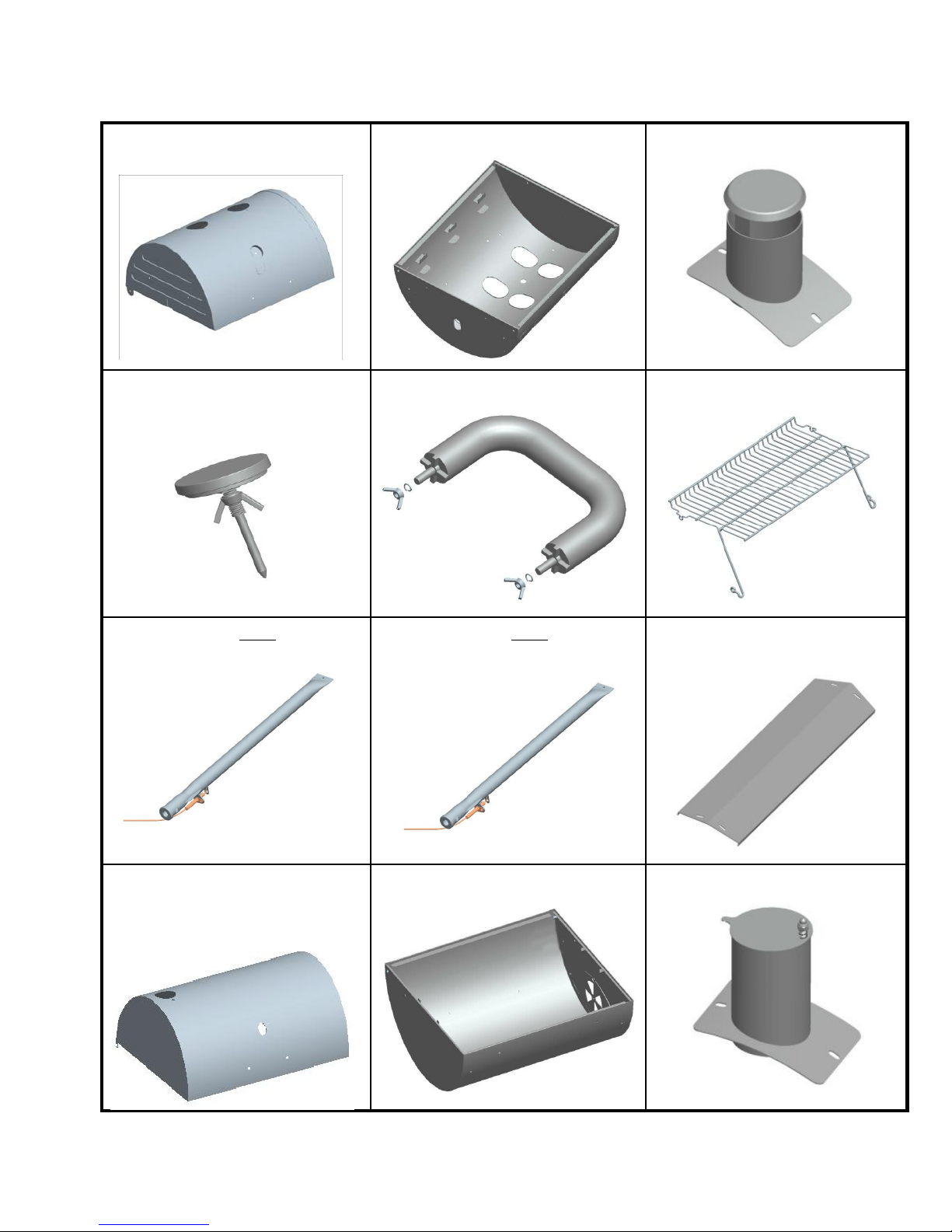

12.CHARCOAL CHIMNEY...1PC

11. CHARCOAL BODY….1PC

10. CHARCOAL HOOD…1PC

9. FLAME SHIELD…..3PCS8. BURNER

(with longer wire)…

1PC

7. BURNER

(with shorter wire)..

2PCS

6.WARMING.RACK…..2PCS5. HOOD HANDLE……..2 SETS

4. THERMOMETER……2 PCS

3. GAS CHIMNEY……..2PCS

2. GAS GRILL BODY……...1PC

1. GAS GRILL HOOD…....1PC

ILLUSTRATED PARTS LIST:

page 6

page 7

24. LEFT LEG..…….…..2PCS23. LEG CROSS BAR….2PCS22. CATCH PAN……..…..1PC

21. GREASE TRAY……2PCS20. ‘S’ HOOK……..…….3PCS19. SIDE BURNER / CONTROL

PANEL / HOSE & VALVE….1SET

18. POT STAND.…………1PC17.CONDIMENT BASKET….1PC16.SIDE HANDLE………...1PC

15. SIDE DAMPER…....1PC14. FIRE GRATE/ASH PAN.....1PC

13.FIRE GRATE HANGER..2PCS

page 8

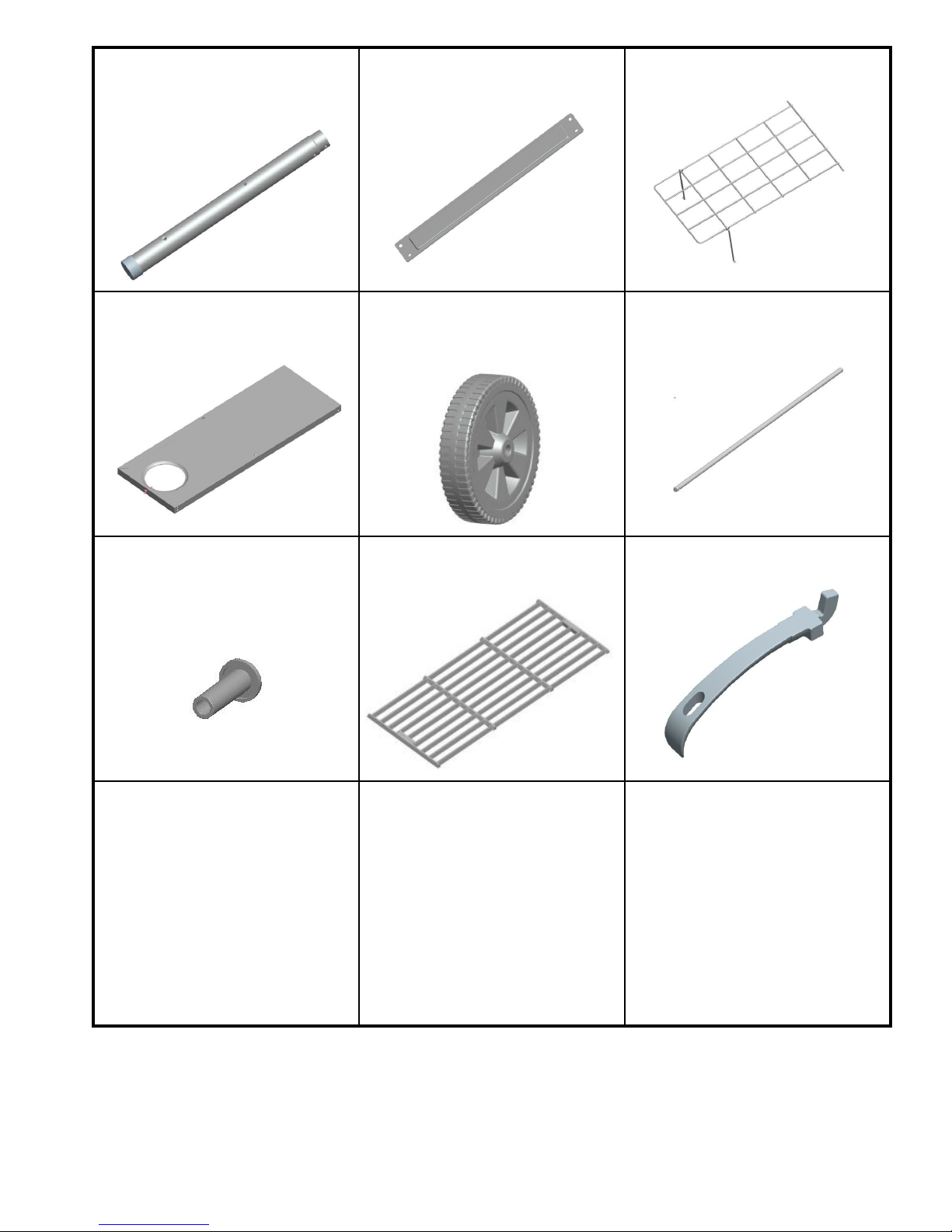

33. GRATE HOOK….....1PC32. COOKING GRATE...6PCS31. AXEL CAP………....2PCS

Go to next page for

the Hardware List

and Assembly

Tips.

30. AXEL………………….1PC

29. WHEEL……………..2PCS

28. BASE…………………1PC

27. BOTTOM SHELF……1PC26. LEG BRACE….…….2PCS

25. RIGHT LEG……..…2PCS

page 9

HAIR COTTER PIN….3 PCS

CENTER HINGE PIN…1 PC

¼” LOCK WASHER…35 PCS

HINGE PINS………..2 PCS

¼-20 HEX NUT……..19 PCS

¼” FLAT WASHER…10 PCS

SCREW……………….3 PCS

¼-20x1/2” BOLT….... 43 PCS

¼-20x 1 ½” BOLT……8 PCS

Assembly: Requires 2 people. Get another person to help.

Tools Needed: Pliers, Phillips Head Screwdriver and a 7/16” Nut Driver.

NOTE: Do Not tighten any bolts unless instructed to do so. Tightening too soon may prohibit

parts from fitting together. All Hex Nuts should be on the inside of the grill unless stated

otherwise. Unpack all contents in a well cleared and padded area.

Estimated Assembly Time: 45 minutes

STOP! Do Not Return to Store. If you are missing parts or need assistance please email us at

info@patioworld.nl or call 0031 (0)114 671493. Do not attempt assembly if you are missing

parts.

HARDWARE:

page 10

Step 1

Attach the LEFT LEGS & RIGHT LEGS to the BASE using four (4) ½” BOLTS and four (4) ¼”

LOCK WASHERS as shown. When you install the LEFT LEG & RIGHT LEG, please make sure

that the holes at the top of the LEGS are facing out.

Assembly Instructions

Step 2

Attach the LEG CROSSBAR to the frame as shown making sure that the holes on the

CROSSBAR are facing inward. See below.

Step 3

Attach BOTTOM SHELF to the LEGS (as shown below).

Lock

Washer

covers

decorative

part of

AXLE
