1. Do not store or use gasoline or other

flammable liquids or vapors in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not

be stored in the vicinity of this or any other

appliance.

WARNING

CAUTION

For residential use only. Do not use for commercial

cooking.

DANGER

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING

WARNING: Indicates an potentially hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION: Indicates a potentially hazardous situation or

unsafe practice which, if not avoided, may result in minor

or moderate injury.

TABLE OF CONTENTS

Safety Symbols

The symbols and boxes shown below explain what each heading

means. Read and follow all of the messages found throughout

the manual.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

THIS GRILL IS FOR OUTDOOR USE ONLY.

CAUTION:

Read and follow all safety statements, assembly

instructions, and use and care directions before attempting

to assemble and cook.

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

WARNING:

Failure to follow all manufacturer’s instructions could result

in serious personal injury and/or property damage.

CAUTION:

Some parts may contain sharp edges – especially as noted

in the manual! Wear protective gloves if necessary.

For Your Safety....................................2-3

Use and Care .....................................4-9

Limited Warranty....................................14

Parts List..........................................15

Parts Diagram......................................16

Assembly.......................................17-26

Troubleshooting..................................27-29

Registration Card...................................31

Grilling Guide....................................10-13

WARNING

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using

this product contain chemicals known to the State of

California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead

and lead compounds, known to the State of

California to cause cancer, birth defects or other

reproductive harm.

Wash your hands after handling this product.

Installation Safety Precautions

•Use grill, as purchased, only with LP (propane) gas and the

regulator/valve assembly supplied. A conversion kit must be

purchased for use with natural gas.

•Grill installation must conform with local codes, or in their

absence of local codes, with either the National Fuel Gas

Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane

Installation Code, CSA B149.1, or Propane Storage and

Handling Code, B149.2, or the Standard for Recreational

Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series,

Recreational Vehicle Code, as applicable.

• All electrical accessories (such as rotisserie) must be

electrically grounded in accordance with local codes, or

National Electrical Code, ANSI / NFPA 70 or Canadian

Electrical Code, CSA C22.1. Keep any electrical cords and/or

fuel supply hoses away from any hot surfaces.

• This grill is safety certified for use in the United States and/or

Canada only. Do not modify for use in any other location.

Modification will result in a safety hazard.

WARNING

Do not attempt to repair or alter the

hose/valve/regulator for any “assumed” defect. Any

modification to this assembly will void your warranty

and create the risk of a gas leak and fire. Use only

authorized replacement parts supplied by

manufacturer.

CAUTION

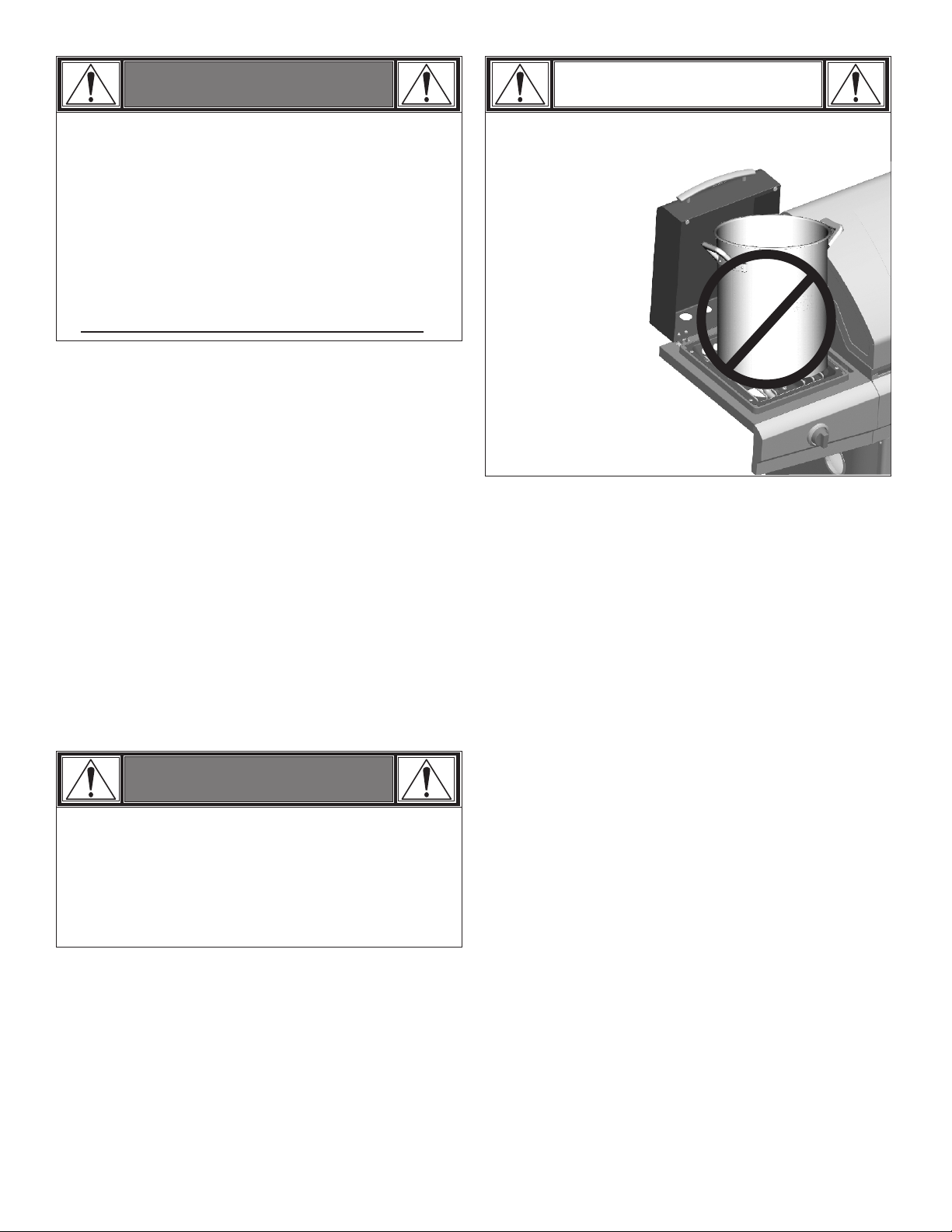

Using pots larger than 6 quarts in capacity could

exceed weight limit of the

side burner shelf,

resulting in failure

of grill cart

components.

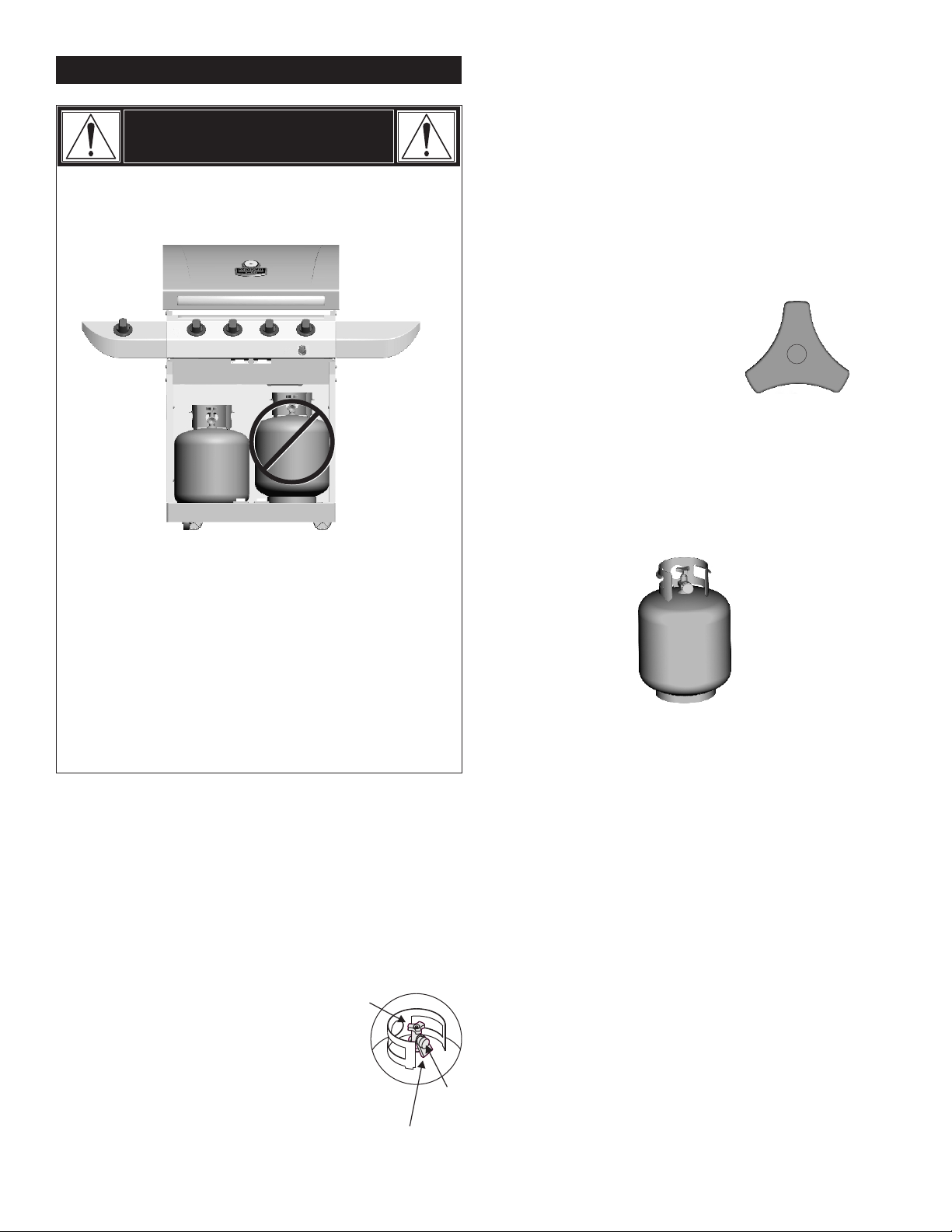

• NEVER store a spare LP cylinder under or near

the appliance or in an enclosed area.

• Never fill a cylinder beyond 80% full.

• An over filled or improperly stored cylinder is a

hazard due to possible gas release from the

safety relief valve. This could cause an intense

fire with risk of property damage, serious injury or

death.

• If you see, smell or hear gas escaping,

immediately get away from the LP

cylinder/appliance and call your fire department.

DANGER

USE AND CARE

LP Cylinder Removal, Transport and Storage

•Turn OFF all control knobs and LP cylinder valve. Turn coupling

nut counterclockwise by hand only - do not use tools to

disconnect. Loosen cylinder screw beneath bottom shelf, then

lift LP cylinder up and out of cart. Install safety cap onto LP

cylinder valve. Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious

personal injury and/or property damage.

•A disconnected LP cylinder in

storage or being transported

must have a safety cap installed (as shown).

Do not store an LP cylinder in enclosed spaces

such as a carport, garage, porch, covered

patio or other building. Never leave an LP cylinder

inside a vehicle which may become overheated

by the sun.

•Do not store an LP cylinder in an area where children play.

OPD Hand Wheel

LP (Liquefied Petroleum Gas)

•LP gas is nontoxic, odorless and colorless when produced. For

Your Safety, LP gas has been given an odor (similar to rotten

cabbage) so that it can be smelled.

•LP gas is highly flammable and may ignite unexpectedly when

mixed with air.

LP Cylinder Filling

•Use only licensed and experienced dealers.

•LP dealer must purge new cylinder before filling.

•Dealer should NEVER fill LP cylinder more than 80% of LP

cylinder volume. Volume of propane in cylinder will vary by

temperature.

•A frosty regulator indicates gas overfill. Immediately close LP

cylinder valve and call local LP gas dealer for assistance.

•Do not release liquid propane (LP) gas into the atmosphere.

This is a hazardous practice.

•To remove gas from LP cylinder, contact an LP dealer or call a

local fire department for assistance. Check the telephone

directory under “Gas Companies” for nearest certified LP

dealers.

LP Cylinder Valve

Retainer Strap

Safety

Cap

LP Cylinder

•The LP cylinder used with your grill must meet the

following requirements:

•Use LP cylinders only with these required measurements: 12"

(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)

capacity maximum.

•LP cylinders must be constructed and marked in accordance

with specifications for LP cylinders of the U.S. Department of

Transportation (DOT) or for Canada, CAN/CSA-B339,

cylinders, spheres and tubes for transportation of dangerous

goods. Transport Canada (TC). See LP cylinder collar for

marking.

•LP cylinder valve must have:

•Type 1 outlet compatible with

regulator or grill.

•Safety relief valve.

•UL listed Overfill Protection

Device (OPD). This OPD safety

feature is identified by a unique triangular hand wheel. Use

only LP cylinders equipped with this type of valve.

•LP cylinder must be arranged for vapor withdrawal and include

collar to protect LP cylinder valve. Always keep LP cylinders in

upright position during use, transit or storage.

LP cylinder in upright position for vapor withdrawal

WARNING

If “growing” bubbles appear do not use or move the LP

cylinder. Contact an LP gas supplier or your fire

department!

Connecting Regulator to the LP Cylinder

1.LP cylinder must be properly secured onto grill. (Refer to

assembly section.)

2.Turn all control knobs to the OFF position.

3.Turn LP cylinder OFF by turning hand-wheel clockwise to a

full stop.

4.Remove the protective cap from LP cylinder valve. Always use

cap and strap supplied with valve.

Safety Relief Valve

Nipple has to be centered

into the LP cylinder valve.

OPD Hand Wheel

Type 1 outlet with

thread on outside

Do not use a POL transport plug

(plastic part with external threads)!

It will defeat the safety feature of

the valve.

Strap and Cap

LP Cylinder Exchange

•Many retailers that sell grills offer you the option of replacing

your empty LP cylinder through an exchange service. Use only

those reputable exchange companies that inspect, precision fill,

test and certify their cylinders. Exchange your cylinder only

for an OPD safety feature-equipped cylinder as described

in the "LP Cylinder" section of this manual.

•Always keep new and exchanged LP cylinders in upright

position during use, transit or storage.

•Leak test new and exchanged LP cylinders BEFORE

connecting to grill.

LP Cylinder Leak Test

For your safety

•Leak test must be repeated each time LP cylinder is exchanged

or refilled.

•Do not smoke during leak test.

•Do not use an open flame to check for gas leaks.

•Grill must be leak tested outdoors in a well-ventilated area,

away from ignition sources such as gas fired or electrical

appliances. During leak test, keep grill away from open flames

or sparks.

•Use a clean paintbrush and a 50/50 mild soap and water

solution.

s Do not use household cleaning agents. Damage to gas

train components can result.

Brush soapy solution onto areas indicated by arrows

in figure below.

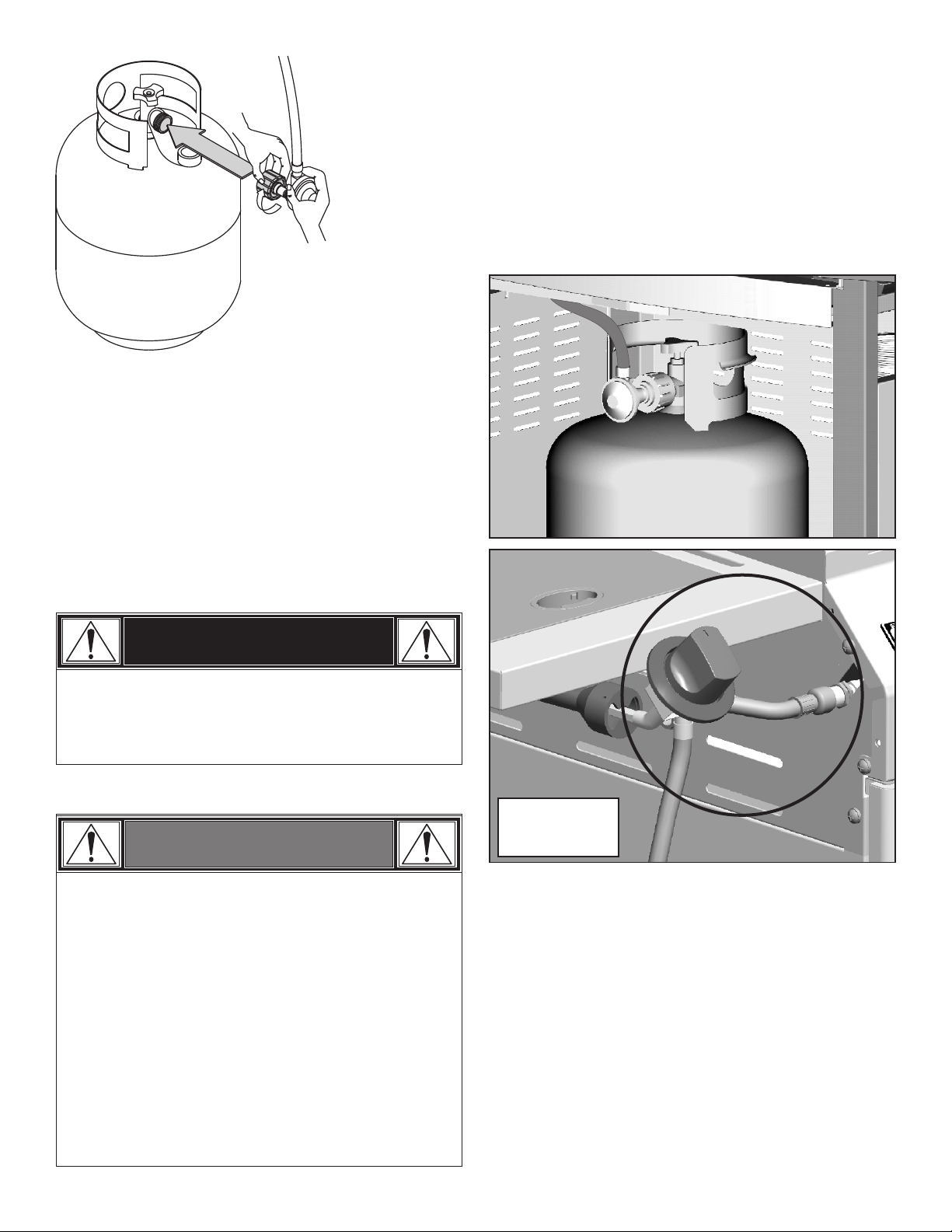

5.Hold regulator and insert nipple into LP

cylinder valve. Hand-tighten the

coupling nut, holding regulator in a

straight line with LP cylinder valve so

as not to cross-thread the connection.

6.Turn the coupling nut clockwise and tighten to a full stop. The

regulator will seal on the back-check feature in the LP cylinder

valve, resulting in some resistance. An additional one-half to

three-quarters turn is required to complete the

connection. Tighten by hand only – do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and

repeat steps 5 and 6. If you are still unable to complete the

connection, do not use this regulator!

Straight

Hold coupling nut and regulator

as shown for proper connection

to LP cylinder valve.

DANGER

• Do not insert any tool or foreign object into the valve

outlet or safety relief valve. You may damage the valve

and cause a leak. Leaking propane may result in

explosion, fire, severe personal injury, or death.

Leak Testing Valves, Hose and Regulator

1.Turn all grill control knobs to OFF.

2.Be sure regulator is tightly connected to LP cylinder.

3.Completely open LP cylinder valve by turning hand wheel

counterclockwise. If you hear a rushing sound, turn gas off

immediately. There is a major leak at the connection. Correct

before proceeding.

4.Brush soapy solution onto areas circled below.

5.If “growing” bubbles appear, there is a leak. Close LP

cylinder valve immediately and retighten connections. If leaks

cannot be stopped do not try to repair. Call for replacement

parts.

6.Always close LP cylinder valve after performing leak test by

turning hand wheel clockwise.

NOTE: Sideburner

shelf fascia not

shown for clarity.

• Outdoor gas appliance is not intended to be installed

in or on a boat.

• Outdoor gas appliance is not intended to be installed

in or on an RV.

• Never attempt to attach this grill to the self-contained

LP gas system of a camper trailer or motor home.

• Do not use grill until leak-tested.

• If a leak is detected at any time, STOP and call the fire

department.

• If you cannot stop a gas leak, immediately close

LPcylinder valve and call LP gas supplier or your fire

department!

WARNING

For Safe Use of Your Grill and to Avoid Serious

Injury:

•Do not let children operate or play near grill.

•Keep grill area clear and free from materials that burn.

•Do not block holes in sides or back of grill.

•Check burner flames regularly.

•Use grill only in well-ventilated space. NEVER use in

enclosed space such as carport, garage, porch,

covered patio, or under an overhead structure of any

kind.

•Do not use charcoal or ceramic briquets in a gas grill.

(Unless briquets are supplied with your grill.)

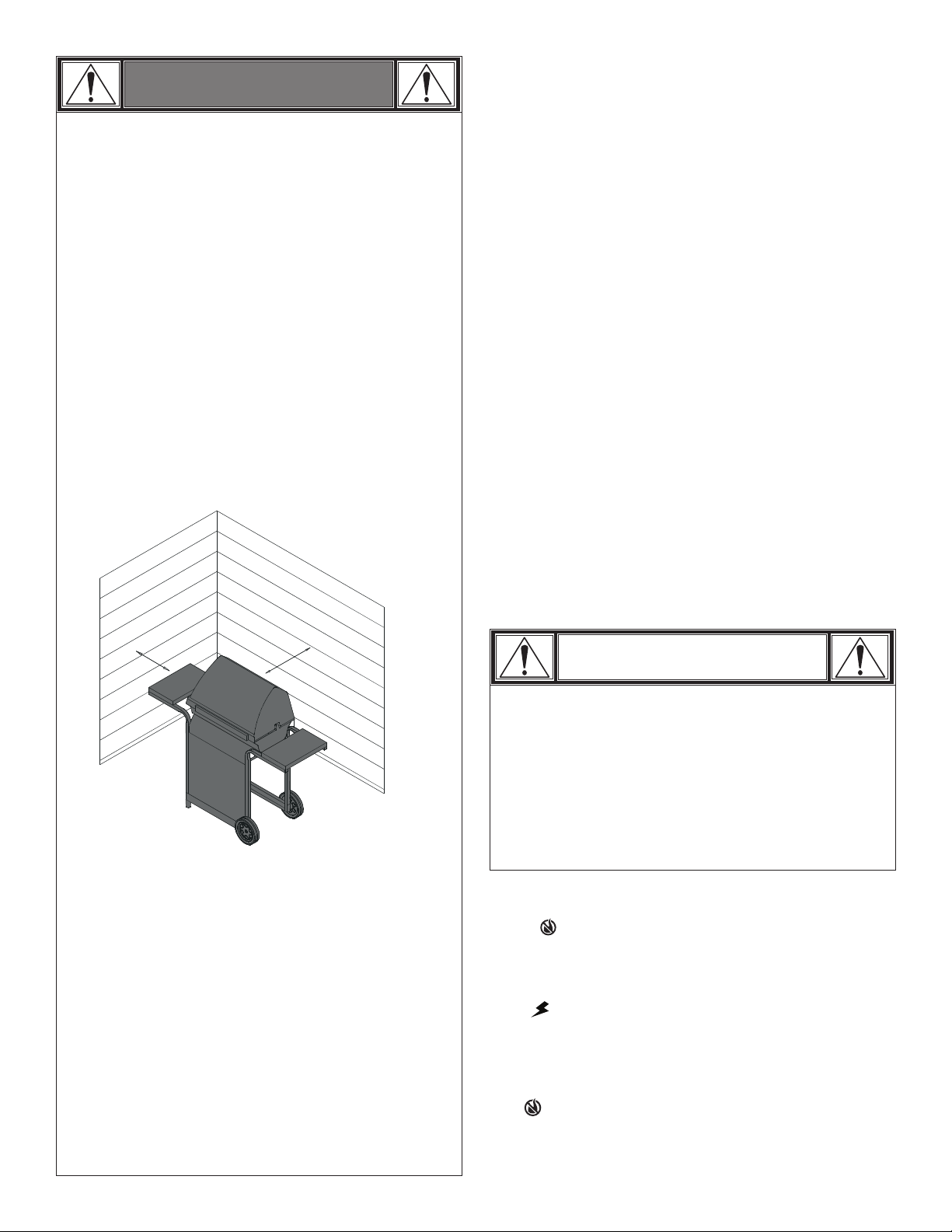

• Use grill at least 3 ft. from any wall or surface.

Maintain 10 ft. clearance to objects that can catch fire

or sources of ignition such as pilot lights on water

heaters, live electrical appliances, etc.

• Apartment Dwellers:

Check with management to learn the requirements

and fire codes for using an LP gas grill in your

apartment complex. If allowed, use outside on the

ground floor with a three (3) foot clearance from walls

or rails. Do not use on or under balconies.

• NEVER attempt to light burner with lid closed. A

buildup of non-ignited gas inside a closed grill is

hazardous.

• Never operate grill with LP cylinder out of correct

position specified in assembly instructions.

• Always close LP cylinder valve and remove

coupling nut before moving LP cylinder from

specified operation position.

Safety Tips

Before opening LP cylinder valve, check the coupling nut for

tightness.

When grill is not in use, turn off all control knobs and LP

cylinder valve.

Never move grill while in operation or still hot.

Use long-handled barbecue utensils and oven mitts to avoid

burns and splatters.

Maximum load for sideburner and side shelf is 10 lbs.

The grease tray must be inserted into grill and emptied after

each use. Do not remove grease tray until grill has

completely cooled.

 Clean grill often, preferably after each cookout. If a bristle

brush is used to clean any of the grill cooking surfaces,

ensure no loose bristles remain on cooking surfaces prior to

grilling. It is not recommended to clean cooking surfaces

while grill is hot.

If you notice grease or other hot material dripping from grill

onto valve, hose or regulator, turn off gas supply at once.

Determine the cause, correct it, then clean and inspect valve,

hose and regulator before continuing. Perform a leak test.

Keep ventilation openings in cylinder enclosure (grill cart) free

and clear of debris.

Do not store objects or materials inside the grill cart

enclosure that would block the flow of combustion air to the

underside of either the control panel or the firebox bowl.

The regulator may make a humming or whistling noise during

operation. This will not affect safety or use of grill.

If you have a grill problem see the "Troubleshooting Section".

If the regulator frosts, turn off grill and LP cylinder valve

immediately. This indicates a problem with the cylinder and it

should not be used on any product. Return to supplier!

CAUTION

• Putting out grease fires by closing the lid is not possible.

Grills are well ventilated for safety reasons.

• Do not use water on a grease fire. Personal injury may

result. If a grease fire develops, turn knobs and LP

cylinder off.

• Do not leave grill unattended while preheating or burning

off food residue on HI. If grill has not been regularly

cleaned, a grease fire can occur that may damage the

product.

Lighting instructions continued on next page.

Main Burner Lighting Instructions:

s Do not lean over grill while lighting.

1. Turn OFF all Bas Burner Control Valves.

2. Turn ON gas source or tank.

3. Open lid during lighting.

4. To ignite any main burner, turn the main burner control knob to

the position.

5. Push and hold ELECTRONIC IGNITOR button until the burner

lights.

6. Once burner is ignited, turn knob to desired setting.

7. If ignition does not occur in 5 seconds, turn the burner control

to OFF, wait 5 minutes, and repeat the lighting procedure.

8. Repeat step 4 through 7 for the remaining main burners.

If ignition still does not occur, follow match-lighting

instructions.

CAUTION

If ignition does NOT occur in 5 seconds, turn the

burner controls OFF, wait 5 minutes and repeat the

lighting procedure. If the burner does not ignite with

the valve open, gas will continue to flow out of the

burner and could accidently ignite with risk of injury.

Turn controls and gas source or tank OFF when not

in use.

WARNING

Match-Lighting

s Do not lean over grill while lighting.

2. Open lid. Turn on gas at LP cylinder.

3. Place lit match into match holder (hanging from cart side

panel), then into lighting hole on right or left side of grill.

4. Push in and turn far right or far left burner knob to HIGH .

Be sure burner lights and stays lit.

5. Light adjacent burners in sequence by pushing knobs in and

turning to HIGH .

Turn OFF all burner control valves.

Side Burner Lighting Instructions:

s Do not lean over grill while lighting.

1. Turn OFF all gas burner control valves.

2. Turn ON gas source or tank.

3. Open lid during lighting.

4. To ignite SIDEBURNER, turn sideburner knob to the

position.

5. Push and hold the ELECTRONIC IGNITOR button untill the

sideburner lights.

6. Once burner has ignited, turn knob to desired setting.

7 If ignition does not occur in 5 seconds, turn the burner control

to OFF, wait 5 minutes, and repeat the lighting procedure.

Sideburner Match Lighting

2. Open sideburner lid. Turn on

gas at LP cylinder.

3. Place lit match near burner.

4. Turn sideburner knob to

HIGH . Be sure burner

lights and stays lit.

Turn OFF all burner control valves.

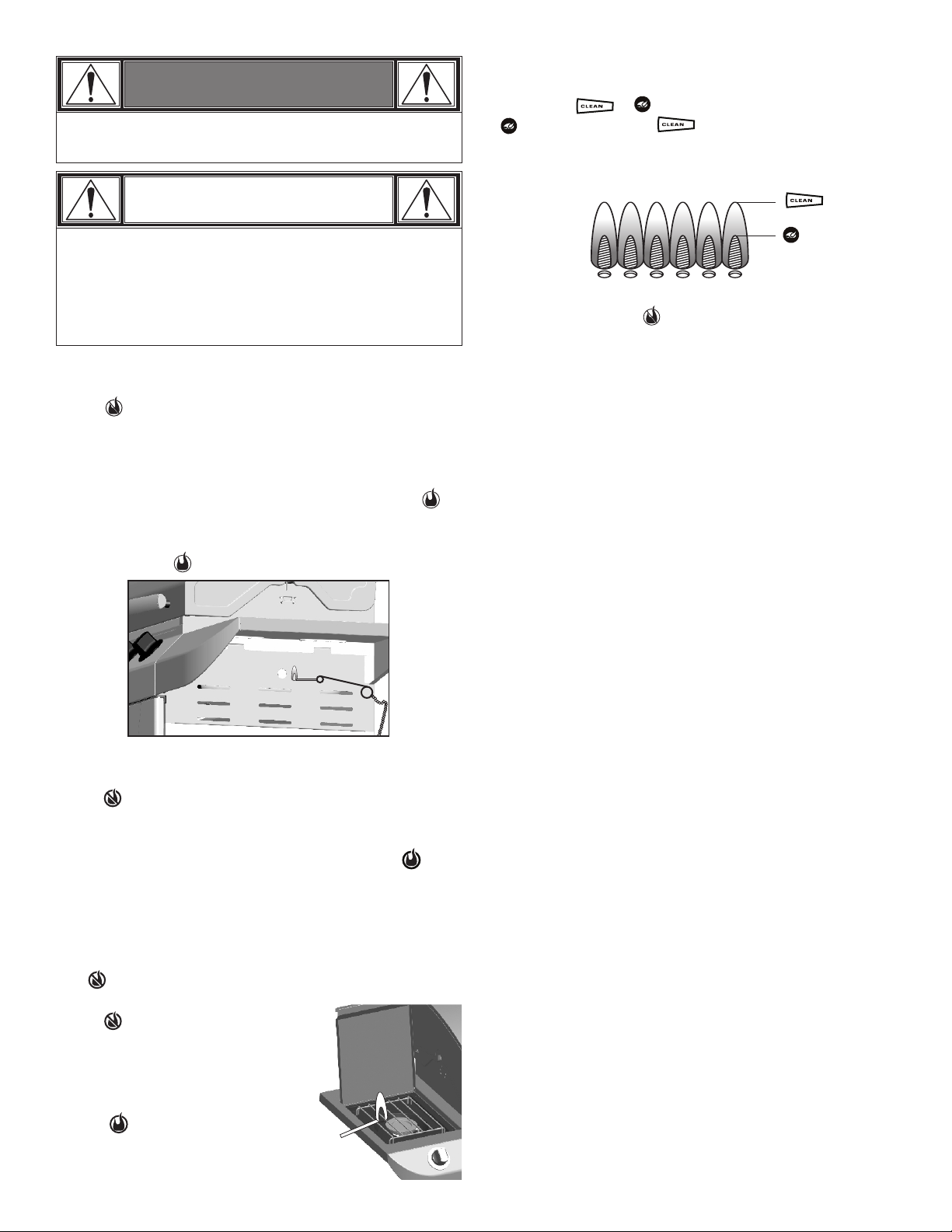

Burner Flame Check

•Remove cooking grates and troughs. Light burners, rotate

knobs from to . You should see a smaller flame in

position than seen on . Perform burner flame check

on sideburner, also. Always check flame prior to each use. If

only low flame is seen refer to "Sudden drop or low flame" in

the Troubleshooting Section.

Turning Grill Off

•Turn all knobs to position. Turn LP cylinder off by

turning hand-wheel clockwise to a full stop.

Ignitor Check

•Turn gas off at LP cylinder. Press and hold electronic ignitor

button. "Click" should be heard and spark seen each time

between collector box or burner and electrode. See

"Troubleshooting" if no click or spark.

Valve Check

•Important: Make sure gas is off at LP cylinder before

checking valves. Knobs lock in position. To check

valves, first push in knobs and release, knobs should spring

back. If knobs do not spring back, replace valve assembly

before using grill. Turn knobs to LOW position then turn back to

position. Valves should turn smoothly.

Hose Check

•Before each use, check to see if hoses are cut or worn.

Replace damaged hoses before using grill. Use only

valve/hose/regulator specified by manufacturer.

General Grill Cleaning

•Do not mistake brown or black accumulation of grease and

smoke for paint. Interiors of gas grills are not painted at the

factory (and should never be painted). Apply a strong solution

of detergent and water or use a grill cleaner with scrub brush

on insides of grill lid and bottom. Rinse and allow to completely

air dry. Do not apply a caustic grill/oven cleaner to painted

surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry.

 Do not use citrisol, abrasive cleaners, degreasers or a

concentrated grill cleaner on plastic parts. Damage to and

failure of parts can result.

•Porcelain surfaces: Because of glass-like composition, most

residue can be wiped away with baking soda/water solution or

specially formulated cleaner. Use nonabrasive scouring powder

for stubborn stains.

•Painted surfaces: Wash with mild detergent or nonabrasive

cleaner and warm soapy water. Wipe dry with a soft

nonabrasive cloth.

•Stainless steel surfaces: To maintain your grill’s high quality

appearance, wash with mild detergent and warm soapy water

and wipe dry with a soft cloth after each use. Baked-on grease

deposits may require the use of an abrasive plastic cleaning

pad. Use only in direction of brushed finish to avoid damage.

Do not use abrasive pad on areas with graphics.

• Cooking surfaces: If a bristle brush is used to clean any of

the grill cooking surfaces, ensure no loose bristles remain on

cooking surfaces prior to grilling. It is not recommended to

clean cooking surfaces while grill is hot.

OFF

CAUTION

SPIDER ALERT!

VALVE

CONTROL PANEL SPIDER WEBS

INSIDE VENTURI

If you notice that your grill is getting hard to light or that the

flame isn’t as strong as it should be, take the time to check and

clean the venturis.

In some areas of the country, spiders or small insects have been

known to create “flashback” problems. The spiders spin webs, build

nests and lay eggs in the grill’s venturi tube(s) obstructing the flow of

gas to the burner. The backed-up gas can ignite in the venturi behind

the control panel. This is known as a flashback and it can damage

your grill and even cause injury.

To prevent flashbacks and ensure good performance the burner and

venturi assembly should be removed from the grill and cleaned

before use whenever the grill has been idle for an extended period.

BURNER

SPIDER AND WEBS

INSIDE BURNER TUBE

Electrode

Firebox

Carryover tube

Firebox

burner

bracket

Storing Your Grill

•Clean cooking grates.

•Store in dry location.

•When LP cylinder is connected to grill, store outdoors in a well-

ventilated space and out of reach of children.

•Cover grill if stored outdoors. Choose from a variety of grill

covers offered by manufacturer.

•Store grill indoors ONLY if LP cylinder is turned off and

disconnected, removed from grill and stored outdoors.

•When removing grill from storage, follow “Cleaning the Burner

Assembly” instructions before starting grill.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner

assembly or if you have trouble igniting grill.

1. Turn gas off at control knobs and LP cylinder.

2. Remove cooking grates and flame tamers.

3. Remove screws and carryover tubes from rear of burners.

4. Remove screw and washers to disengage burner from

bracket on firebox.

5. Remove screws to detach electrode from burner. Electrode

should remain in firebox.

6. Carefully lift each burner up and away from valve openings.

We suggest three ways to clean the burner tubes. Use the one

easiest for you.

(A) Bend a stiff wire (a light weight coat hanger works well)

into a small hook. Run the hook through each burner

tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not

use a brass wire brush), run the brush through each

burner tube several times.

the burner tube and out the burner ports. Check each

port to make sure air comes out each hole.

7. Wire brush entire outer surface of burner to remove food

residue and dirt.

8. Clean any blocked ports with a stiff wire such as an open

paper clip.

9. Check burner for damage, due to normal wear and corrosion

some holes may become enlarged. If any large cracks or

holes are found replace burner.

VERY IMPORTANT: Burner tubes must reengage valve

openings. See illustrations at right.

10. Attach electrode to burner.

11. Carefully replace burners.

12. Attach burners to brackets on firebox.

13. Reposition carryover tubes and attach

to burners. Replace flame tamers and

cooking grates.

Correct

burner-to-valve

engagement

First Time Use

Read your Assembly Manual and ensure the grill is put together

properly. Remove all Point-of-Purchase advertising material from

all grill surfaces before first use. We recommend operating your

grill on its highest setting for 15-20 minutes prior to your first use.

This aids in removing the oils used during manufacturing.

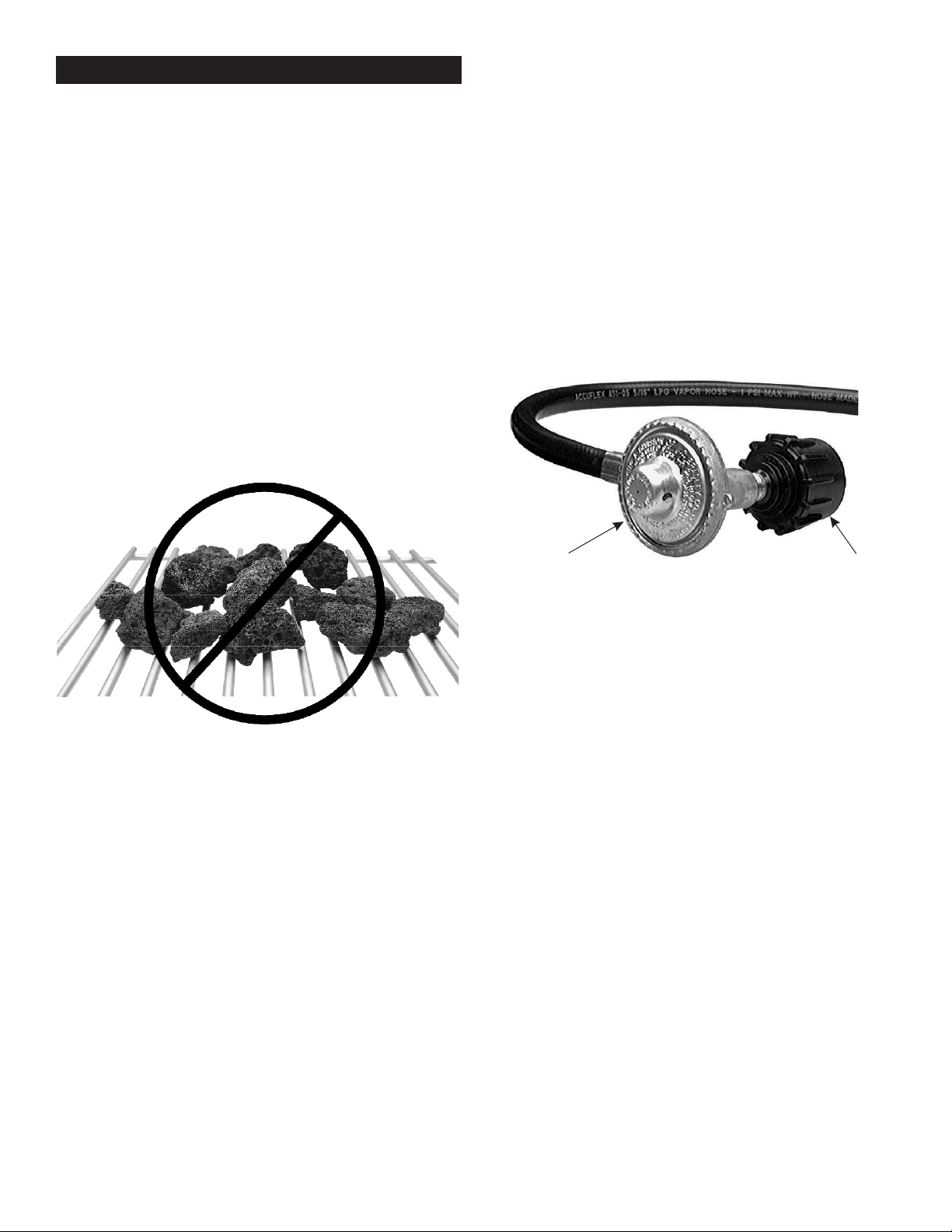

Lava Rock / Briquettes

This gas grill has been designed, engineered, and tested to be

used with flame tamers or heat distribution plates to provide

more even heating, improve the cleaning process, and reduce

flare-ups. The addition of after market lava rocks, charcoal, or

briquettes of any type will cause poor combustion and increase

the likelihood of a grease fire, and is not recommended. Using

briquettes, lava rock, or charcoal in this grill will void your

warranty. For extra smoke flavor, we recommend using a

smoker box with wood chips.

Temperature

The temperature gauge in the hood of your new grill measures

air temperature. The air temperature inside your grill will never

be as hot as the temperature at the cooking surface.

Note: Since 1995, all regulators (the part that attaches to the gas

tank to regulate the flow of gas) have included a safety feature

that restricts gas flow in the event of a gas leak. You can

inadvertently activate this safety feature without having a gas

leak. This typically occurs when you turn on the gas using the

grill control knob before you turn on the LP tank valve. If the gas

regulator safety feature activates, the grill will only reach

temperatures between 250°F and 300°F even with all burners on

the high setting.

If your grill is not getting hotter than 250°F to 300°F these

steps should be taken first to reset the gas regulator safety

device:

1. Open the grill lid.

2. Turn off all knobs on the control panel in front.

3. Turn off the tank knob.

4. Disconnect the regulator from the LP tank.

5. Wait 30 seconds.

6. Reconnect the regulator to the LP tank.

7. Slowly open the LP tank knob all the way. Do not put

excessive force on the valve at the full open position to avoid

damaging the valve.

8. Turn on the appropriate control knob and light the grill per the

instructions on the control panel.

An illustration of this process is included in this Product Guide.

See Troubleshooting section for additional information.

Pre-Heating Your Grill

Just like your home oven, your grill should be pre-heated to

provide optimum performance. Pre-heat the grill on high for 10-

15 minutes – longer if weather conditions require. Please refer to

the lighting instructions inside the Product Guide if you have

questions about how to light your grill. A match-light chain and

hole is provided for your convenience.

GRILLING GUIDE – Getting Started

Regulator Coupling Nut

Table of contents

Other Char-Broil Grill manuals

Char-Broil

Char-Broil 463620409 User manual

Char-Broil

Char-Broil 463460712 User manual

Char-Broil

Char-Broil 463420507 User manual

Char-Broil

Char-Broil 466870309 User manual

Char-Broil

Char-Broil Professional Pro S User manual

Char-Broil

Char-Broil ROTISSERIE 5995166 User manual

Char-Broil

Char-Broil RED 463250108 User manual

Char-Broil

Char-Broil Professional Core 468863021 User manual

Char-Broil

Char-Broil 13301857 User manual

Char-Broil

Char-Broil 415.16112010 User manual

Char-Broil

Char-Broil PERFORMANCE PRO Series User manual

Char-Broil

Char-Broil PERFORMANCE CHARCOAL GRILL 580 User manual

Char-Broil

Char-Broil 463215515 Owner's manual

Char-Broil

Char-Broil TRADITIONS 473721007 User manual

Char-Broil

Char-Broil TRU Infrared Patio Bistro 12601713 User manual

Char-Broil

Char-Broil Ultimate 140904 User manual

Char-Broil

Char-Broil 463630807 User manual

Char-Broil

Char-Broil 46322354632236 / 0-P47F2A (01-15-02) 4632236 User manual

Char-Broil

Char-Broil 11301696 User manual

Char-Broil

Char-Broil 463450805 Assembly User manual

Char-Broil

Char-Broil Grill2Go Ice User manual

Char-Broil

Char-Broil PATIO BISTRO 240 User manual

Char-Broil

Char-Broil 463244105 User manual

Char-Broil

Char-Broil Traditional 4638200 User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide

Stalgast

Stalgast 9730100 instruction manual
