Wire Connections to EL25 (Factory Settings for Relays)

Wire Specs and Run Distances

Power Wire Specs and Run Distances

Installation of the EL25

Rotating the Keypad for Vertical Mounting

Wiring 1 EL25 to the Telco Line (Alarm System Position)

Wiring Multiple EL25 Units to the Telco Line

Wiring with No Telco Line

Wiring to Dedicated Telco line

Wiring to an Internal Phone System

Wiring a Door Strike Lock

Wiring a Maglock

Wiring a Gate Operator

Wiring a Key Switch/PIR/REX

Wiring a Door Sensing Device

Wiring the AutoCall Feature

Wiring a Radio Frequency Module (RF) (Optional RF Module(s) Needed)

Wiegand Card Reader / Keypad (Optional Wiegand Module(s) Needed)

Wiring a Postal Lock Switch

Wiring an Internal Camera (CCTV) (Optional CCTV Module Needed)

Grounding the EL25

Wiring Power to the EL25 and Powering Up the Unit

Adjust Microphone / Speaker Volume

“Multiple Unit” Set-Up

Troubleshooting

EL25 Repair Parts

“Your” System Diagram and Wiring Configuration

Accessories

FCC and DOC Requirements

Appendix

Table of Contents

4-5

17-18

22-23

26-27

Wire Type

Mounting the Unit

Phone Lines

External Devices

Grounding the Unit

FCC and DOC and Appendix

Accessories

“Your” Set-Up

Repair Parts

Troubleshooting

Programming Adjustments

Power

Page 1

P12V

P5V

DATA 0

DATA 1

LED

COM P12V

P5V

DATA 0

DATA 1

LED

COM

J1J2

Wire Connections to EL25

Optional Modules

Note: All relays are factory set to “Strike” and “10 sec.”

Off

20-Pin Input

to Main Board

14-Pin Output

to Main Board

Ground

Output Board

Input Board

Back

Mounting

Plate

Optional Module Mounting Positions

RG-6 Coaxial

Connector

RG-59u

Coaxial

Connector

Input Board Connections Output Board Connections

Door 1 Exit Request and Door Status

Door 2 Exit Request and Door Status

Door 3 Exit Request and Door Status

Door 4 Exit Request and Door Status

Postal Lock Input

AutoCall Input

Power 12 VAC Input

Resident Tip / Ring

Telco Tip / Ring

Relay 4, NO,NC,COM

Relay 3, NO,NC,COM

Relay 2, NO,NC,COM

Relay 1, NO,NC,COM

Caution! A Static Discharge

can Damage Circuit Boards

Do Not overload the removable

terminal block connectors. One

wire per hole.

Main

Circuit

Board

CCTV

J400

Optional CCTV

Module (Page 15)

(Replaces Call

Button Board)

Optional RF

Module (Page 14)

(Fits in J400

and/or J407)

Optional Wiegand

Module (Page 14)

(Fits in J400

and/or J407)

J407

Page 2

Wire Specs and Run Distances

Use this chart to pull wires in preparation of your installation:

Use metal conduit

- run wires in metal conduit instead of PVC pipe. Wires run in PVC conduit may experience

interference. Metal conduits also add extra protection against lightning strikes.

Never

run

Data wires

and

High Voltage wires

in the

same

conduit. The high voltage wires may interfere with the data

wires, possibly causing the system to malfunction.

Page

Wire

Specification

Description of Wire Run Maximum

Distance

Recommended

Wire Type

Distance

5000 feet Belden #7838A

Alpha #1292C

Residence and Telco

Phone Lines

Door Strike

6-10

2 Twisted Pairs

18-24

AWG Shielded

2 -Conductor

18-22

AWG Shielded

Alpha #1292C

Magnetic Lock

Dry Contact Closure (Most

Gate Operators

)12

2 -Conductor

18-22

AWG Shielded

2 -Conductor

18-24

AWG Shielded

Alpha #1292C

Postal Lock

CCTV Camera

(Optional)

Grounding

the Chassis

2 -Conductor

18-24

AWG Shielded

Single Conductor

RG-59u Coaxial

AWG Copper

Alpha #1292C

Exit Request

(REX) /

Auxiliary Open

Devices

AutoCall

2 -Conductor

18-24

AWG Shielded

2 -Conductor

18-24

AWG Shielded

Alpha #1292C

Alpha #1295C

Door Status Sensor

Barium Ferrite and

Wiegand Readers

2 -Conductor

18-24

AWG Shielded

5 -Conductor

18-24

AWG Shielded

Alpha #1295C

Belden BRG6 Cable

Belden #9912

Belden #9240

BNC Connectors

Proximity Readers

Radio Frequency Module (RF)

5 -Conductor

AWG Shielded

RG-6 Coaxial

75 ohm

500 feet

1000 feet

100 feet

12 feet

(Amphenol #31-71008

or equivalent)

(Monitor with a

.25 volt p-p

composite signal

sensitivity)

Under 30 Feet

30 - 75 Feet

75 - 250 Feet

12 VAC Power (Included)

2 -Conductor Shielded

AWG

12 VDC Power (Not Provided)

2 -Conductor Shielded

AWG

N/A

Note:

Always

provide power from a dedicated source. Plug provided transformer into an outlet wired to its

own

10 Amp minimum

circuit breaker. This will prevent two problems:

Other equipment cannot introduce spikes, noise, surges, or dips into the power circuit that will affect the system.

The system's operation will not be affected if any other equipment develops a short circuit across the power line.

Off

Power Wire Specs and Run Distances

Page 3

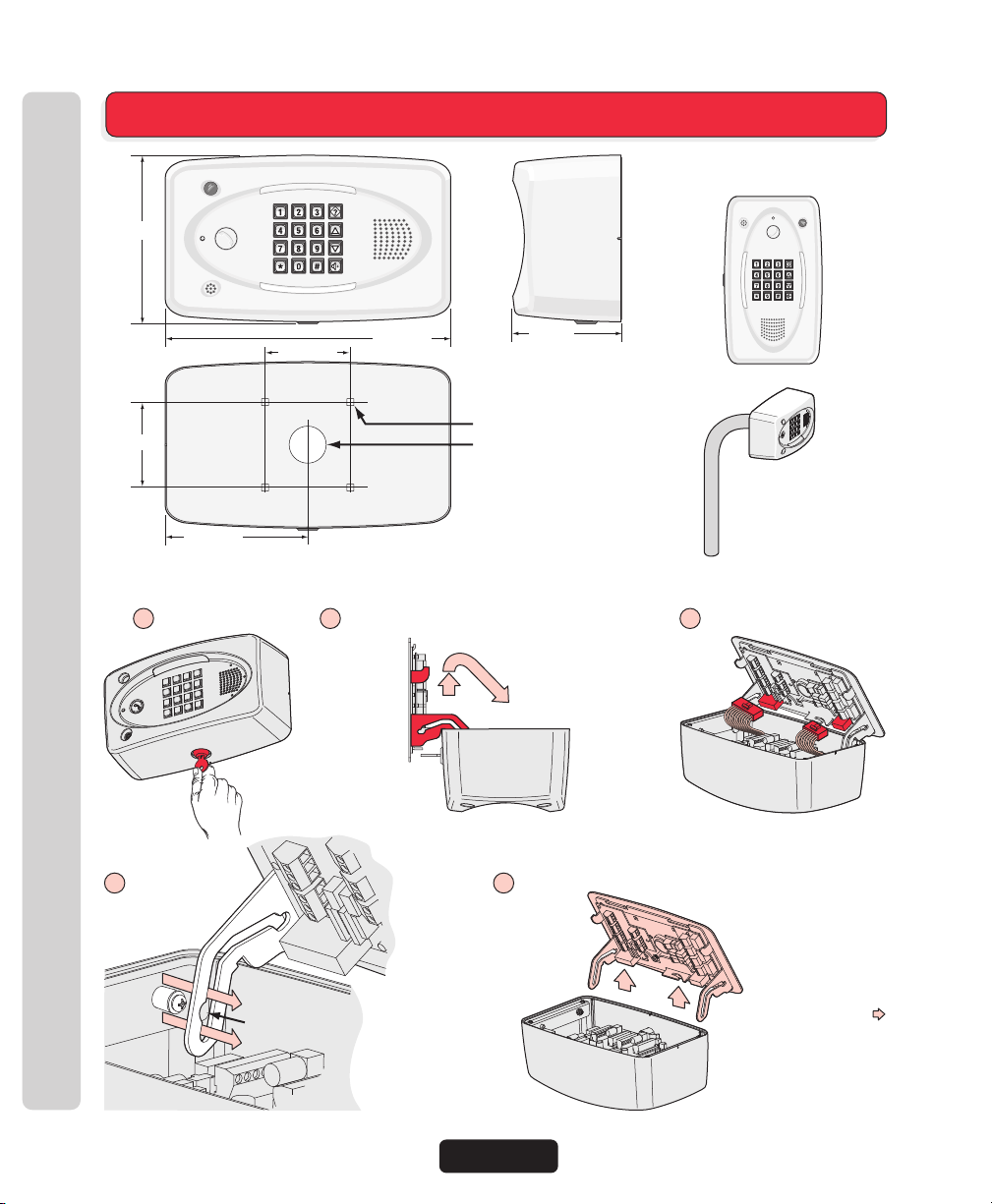

Installation of EL25

Off

1 2 3

4 5

Unlock Unit

Carefully

Lift Cover Up then Slide Out on Hinges Unplug the 2 Main Harnesses

Line up Notch with

Screw and Push

Hinge Out

Remove Back Mounting Plate from Cover

Screw

Notch

6 in.

3.9 in.

3.075 in. 10.25 in.

3.075 in.

5.125 in.

Mounting Holes (4)

Conduit Hole

Caution! A Static Discharge can Damage Circuit Boards

Vertical Mounting Position

with rotated keypad (see next page)

Optional

Pedestal Post

Mount

(Gooseneck)

Contiuned

Page 4

Installation of EL25

Rotating the Keypad for Vertical Mounting

Installation of EL25

Off

Disconnect all Plugs from Main Circuit Board and

Remove Board. (4 Screws)

2Remove Bracket. (4 Screws)

3Rotate Keypad 90 Degrees Clockwise.

4Reverse the Sequence to Reassemble Unit.

6Secure Back Mounting Plate to Surface or Pedestal Post

in 4 Places.

Reverse the Sequence to Reassemble Unit.

Bracket

Keypad

Main Circuit Board

Main Circuit Board Connections

J200 - Speaker

J402 - Light

J404 - Call Button Board

Run

All

Wires Through Conduit Hole for Connections.

EL25

MUST

be Properly

Grounded!

See Page 16.

Keep Wires Neat!

Use zip ties if necessary.

DO NOT Pinch Wires when

Closing and Locking the Unit!

Caution! A Static Discharge can

Damage Circuit Boards

ONLY Vertical

Mounting Position

Do Not overload the removable

terminal block connectors. One

wire per hole.

J401 - Keypad

J406 - Light

J201 - Microphone

Note: Bracket notch

lines up with ribbon

cable on keypad.

Page 5

Relay 4

Com

Relay 3

Com

Relay 2

Com

Relay 1

Com

Resident

Telco

Tip

Ring

Tip

Ring

Wiring 1 EL25 to Telco Line

Wiring a Single EL25

The bypass board allows the EL25 to be disconnected without interrupting normal telephone operation.

Wiring a Single EL25

OPERATE BYPASS

Ring

HOME

Tip Ring

TELCO

Tip

SYSTEM

Bypass Board

(Mount in the House)

(NOT Provided)

Ring

Tip Ring

Tip

Home Phone

Alarm System Position

Use 18-24 AWG

2 twisted pair

Important: The Voltmeter measurement

between the Tip and Ring should read

between 48 and 53 VDC.

Note: If the EL25 unit will be used in

conjunction with an alarm system,

you

must

connect the telephone line

to the alarm system first. If the units

are not connected in this order, they

will not operate properly.

4 3 2 1

When the EL25 unit is

in use

, the bypass switch must be set to the

operate

position.

When the EL25 unit is

disconnected

, the bypass switch must be set to the

bypass

position.

•

Output Board

(See page 2)

Telco Entrance Box

Demarcation Point

Do Not overload the removable terminal

block connectors. One wire per hole.

Important: The Bypass

Board (located inside

the property) allows

access to the phone in

case the EL25 fails.

Never

run

Data wires

and

High Voltage wires

in the

same

conduit.The high

voltage wires may interfere

with the data wires, possibly

causingthesystemto

malfunction.

Page 6

OPERATE BYPASS

Ring

HOME

Tip Ring

TELCO

Tip

SYSTEM

4 3 2 1

Resident

Telco

Tip

Ring

Tip

Ring

Relay 4

Com

Relay 3

Com

Relay 2

Com

Relay 1

Com

Resident

Telco

Tip

Ring

Tip

Ring

BYPASS

Ring

TELCO

Tip

Bypass Board for Unit 1 Bypass Board for Unit 2

Ring Ring

Ring

Tip Tip

Tip

Ring

Tip

Use 18-24 AWG

2 twisted pair

Important: You must program the Unit ID's for

each

EL25 wired in the series. See

“Multiple

Unit Set-Up”

page 19.

Important:The Voltmeter

measurement between the Tip

and Ring should read between

48 and 53 VDC.

When the EL25 units are

in use

, the bypass switches must be set to the

operate

position.

When the EL25 units are

disconnected

, the bypass switches must be set to the

bypass

position.

•

Wiring Multiple EL25 Units to Telco Line

Wiring Multiple EL25 Units

Up to 7 EL25s can share the same phone line. The bypass boards allow the EL25 units to be

disconnected without interrupting normal telephone operation.

Wiring Multiple EL25 Units

OPERATE BYPASS

Ring

HOME

Tip Ring

TELCO

Tip

SYSTEM

Last Bypass Board

Home Phone

Unit ID 2

Output Board

(See page 2)

Unit ID 1

Output Board

(See page 2)

Telco Entrance Box

Demarcation Point

Do Not overload the removable

terminal block connectors. One

wire per hole.

Important: The Bypass

Boards (located inside

the property)allow

access to the phone in

case

any

of the EL25s

fail.

Never

run

Data wires

and

High Voltage wires

in the

same

conduit.The high

voltage wires may interfere

with the data wires, possibly

causingthesystemto

malfunction.

4 3 2 1

Page 7

Relay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

Relay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

Relay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

to next EL25 (Unit ID 3 then 4 etc.)

No Telco Line

The EL25 can be a stand alone system that allows communication between the unit and a resident's

phones.

No Telco Line

Use 18-24 AWG

2 twisted pair

Use 18-24 AWG

2 twisted pair

Important: You must program the Unit ID's for

each

EL25 wired in the series. See

“Multiple Unit

Set-Up”

page 19.

Important: Only disable the Telco mode of the Unit

farthest

away from the house. See

“Disable Telco

Mode”

page 54 in the Keypad Programming Guide.

Unit ID 2

Output Board

(See page 2)

Single EL25

Multiple EL25s (Up to 7)

Output Board

(See page 2)

Ringer Equivalence Number (REN) of “5”.

Never

run

Data wires

and

High Voltage wires

in the

same

conduit.The high

voltage wires may interfere

with the data wires, possibly

causingthesystemto

malfunction.

Unit ID 1

Output Board

(See page 2)

Page 8

Dedicated Telco Line

Use 18-24 AWG

2 twisted pair

Single EL25

Telco Entrance Box

Demarcation Point

Never

run

Data wires

and

High Voltage wires

in the

same

conduit.The high

voltage wires may interfere

with the data wires, possibly

causingthesystemto

malfunction.

Multiple EL25s (Up to 7)

lay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

Tip

Output Board

(See page 2)

Relay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

Relay 1

Com

Relay 2

Com

Relay 3

Com

Relay 4

Com

Resident

Telco

Tip

Ring

Tip

Ring

Use 18-24 AWG

2 twisted pair

Important: You must program the

Unit ID's for

each

EL25 wired in the

series. See

“Multiple Unit Set-Up”

page 19.

Telco Entrance Box

Demarcation Point

Ring

Tip

to next EL25 (Unit ID 5 then 4 etc.

Unit ID 1 is farthest away from Telco Box)

Unit ID 7

Output Board

(See page 2)

Unit ID 6

Output Board

(See page 2)

Page 9

Other manuals for LiftMaster ELITE EL25

Table of contents

Other Chamberlain Intercom System manuals

Chamberlain

Chamberlain Elite EL25N User manual

Chamberlain

Chamberlain LiftMaster ELITE EL2000 User manual

Chamberlain

Chamberlain MyQ Business CAPXL User manual

Chamberlain

Chamberlain APEX Access Device User manual

Chamberlain

Chamberlain Smart Video Intercom M User manual

Chamberlain

Chamberlain LIFTMASTER MUGAPLM User manual

Chamberlain

Chamberlain RIFMS2 User manual

Chamberlain

Chamberlain LiftMaster 833-1LM User manual

Chamberlain

Chamberlain RWIA User manual

Chamberlain

Chamberlain Elite EL Series Owner's manual

Chamberlain

Chamberlain myQ Business CAPXM User manual

Chamberlain

Chamberlain OPI User manual

Chamberlain

Chamberlain LiftMaster Professional RIFM1LM User manual

Chamberlain

Chamberlain 845EML User manual

Chamberlain

Chamberlain ROI2 User manual

Chamberlain

Chamberlain NLS1 User manual

Chamberlain

Chamberlain LSIA User manual

Chamberlain

Chamberlain EL1SS User guide

Chamberlain

Chamberlain EL1SS User manual

Chamberlain

Chamberlain CAPXS User manual

Chamberlain

Chamberlain TAC11 Assembly instructions

Chamberlain

Chamberlain WIRELESS GATE ACCESS RGAIPI User manual

Chamberlain

Chamberlain RFDI User manual

Chamberlain

Chamberlain LiftMaster FDI User manual

Popular Intercom System manuals by other brands

Bticino

Bticino LINEA 3000 Installation

MSI

MSI MSI-140 owner's manual

golmar

golmar Stadio Plus instruction manual

CyberData

CyberData 011211 series Installation quick reference

Vidos

Vidos duo M1021 user manual

Vimar

Vimar ELVOX 7539/E Installation and operation manual

SSS Siedle

SSS Siedle BTSV 850-03 operating instructions

Dahua

Dahua VTO Series quick start guide

Elvox

Elvox 5651 Wiring instructions

Videx

Videx VIDEOKIT Series owner's manual

Rocom

Rocom Doortello Business FW T2.05W2.04 user guide

Viking

Viking E-35-EWP product manual

Safeguard Supply

Safeguard Supply LRA-EX1000 user manual

SSS Siedle

SSS Siedle BFCV 850 Series operating instructions

GRD

GRD MAX V2 user manual

Alecto

Alecto ADI-250 user manual

Aiphone

Aiphone IE-8MD Installation & operation manual

Perel

Perel EDB4 user manual
