Chamberlain Passport User manual

To prevent possible SERIOUS INJURY or DEATH from

electrocution:

• Be sure power is not connected BEFORE installing the

receiver.

To prevent possible SERIOUS INJURY or DEATH from a moving

gate or garage door:

• ALWAYS keep remote controls out of reach of children.

NEVER permit children to operate, or play with remote

control transmitters.

• Activate gate or door ONLY when it can be seen clearly,

is properly adjusted, and there are no obstructions to

door travel.

• ALWAYS keep gate or garage door in sight until completely

closed. NEVER permit anyone to cross path of moving gate

or door.

SPECIFICATIONS

Power: 12VDC, 50 mA

Temperature Rating: -40° to +185° F

Model CPWR3 RF Frequency: 390 MHZ

Accessory Transmitters

Visors: CPT1, CPT2, CPT3, CPT4

Key chains: CPTK1, CPTK3, CPTK1PH, CPTK3PH

OVERVIEW

The Wiegand Receiver (CPWR) is a communication device that

transmits an information packet to an access control unit such as

a Sentex Telephone Entry System. All receiver units utilize the

latest in Chamberlain®rolling code technology.

ACCESS CONTROL COMPATIBILITY

The CPWR outputs a 26-bit or 30-bit Wiegand format compatible

with Sentex access control systems.

CARTON INVENTORY

Wiegand Receiver

Antenna

Instructions

PARTS NOT PROVIDED

# 6 Mounting Hardware

5-conductor shielded cable; 22 AWG wire

Extension Kit (Optional)

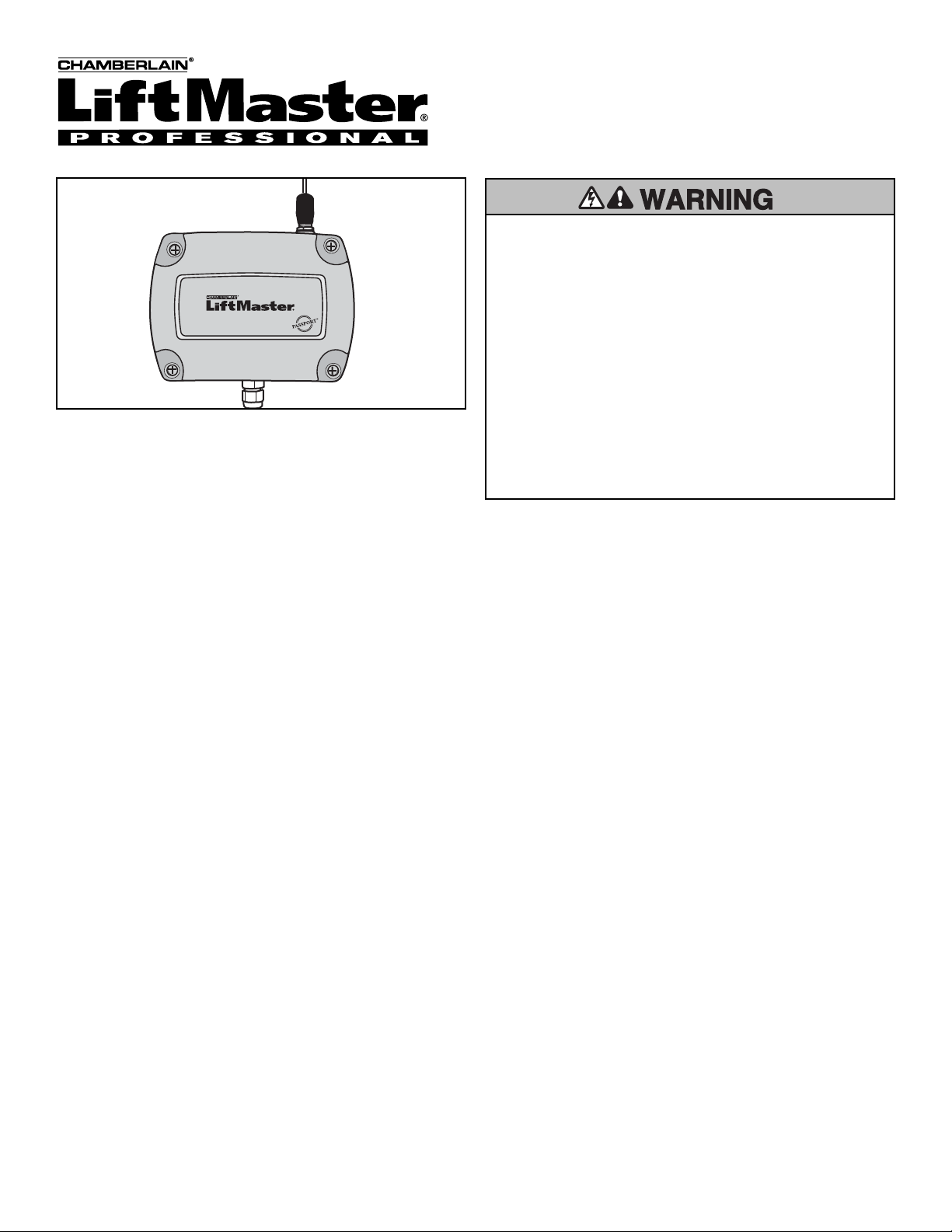

MODEL CPWR

390 MHz Wiegand Receiver with

Passport Technology

1535F11

3-Button Remote

Tr a n sm i t t er

Buttons 1-3 are

factory-set to ON.

BUTTON

FORMAT

FFC

Figure 5: 3-Button Transmitter Button Switches

1535F7

FORMAT

FFC

BUTTON

Figure 2: 30-bit DIP Switch Setting

SETTING THE SWITCHES

Before making changes to any of the DIP switches (Figure 1),

power MUST be disconnected from the receiver (unplug the

terminal block from J2 on the circuit board). Otherwise, your

changes will not take effect. Also, when setting the receiver’s DIP

switches, refer only to the numbers silk screened on the circuit

board (not the numbers on the DIP switch itself).

1. Disconnect power to the receiver.

2. Turn screws counterclockwise 1/4 turn and remove front

cover.

3. Before or while touching the circuit board, discharge any

static electricity:

(1) Use a grounding strap OR

(2) Touch a cold, grounded, metallic pipe.

4. The output code format switch settings are factory-set for the

30-bit format (Figure 2). To change the settings to 26-bit,

refer to Figure 3.

30-bit Switch Settings (Default):

S1, 3 = OFF or 0

S1, 2 = OFF or 0

S1, 1 = ON or 1

S1, 0 = ON or 1

26-bit Switch Settings:

S1, 3 = OFF or 0

S1, 2 = OFF or 0

S1, 1 = ON or 1

S1, 0 = OFF or 0

5. Set the transmitter button response(s).

• There are three DIP switches used to set the transmitter

button response(s) (Figures 4 or 5).

• To disallow receiver response to transmitter buttons, move

the DIP switch(es) to the LEFT. All button switches are

factory set to ON.

Switch S1, 1 controls Button #1 and Button #4*

Switch S1, 2 controls Button #2

Switch S1, 3 controls Button #3

* If using a CPT4 transmitter, Button #4 reacts to Button #1

settings, but uses a unique identification number and facility

code.

Left = OFF or 0

Right = ON or 1

RP2 U9

RP3 U10

RP1

F AC I L I T Y COD E

SENTEX SYSTEMS

MADE I N USA

109

FORMAT

BUTTON

FFC

U5 1TP1 TP4

22C

12C

CLOCK

DATA

C13 R1

C17

C23

C20

C18

C14

C10

C11 Y1

C15

C12

C16 R5 C19 R4 U6

62C

33C

43C

C29

C27

C25

R25

C28

R12

6R 11R

22R

R12

D11

D12

D13

SIGNAL

DATA

VALID

POWER

GRANTED

C30

C31

TP3

TP2

+5V

GND

R19 R20

C32

U12

D7 D6 D5 D4

R17 R16 R14 R15

R13

D16

01R

FACILITY CODE

15 73

FFC

FORMAT

BUTTON

Figure 1

1535F10

FORMAT

FFC

BUTTON

Figure 3: 26-bit DIP Switch Setting

1535F8

CPT4

Transmitter

Buttons 1-3 are

factory-set to ON.

BUTTON

FORMAT

FFC

Figure 4: CPT4 Transmitter Button Switches

Figure 7

Mounting

Holes

To Access Control

Circuit Board (Reader Port)

Figure 8

RP2 U9

RP3 U10

RP1

F A C I L I T Y CO D E

SENTEX SYSTEMS

MADE I N USA

109

FORMAT

BUTTON

FFC

U5 1TP1 TP4

CLOCK

DATA

C13 R1

C17

C23

C20

C18

C14

C10

C11 Y1

C15

C12

C16 R5 C19 R4 U6

62C

43C

C29

C27

C25

R25

C28

R12

62R

6R 11R

22R32

12R

D11

D12

D13

SIGNAL

DATA

VALID

POWER

GRANTED

C30

C31

TP3

TP2

+5V

GND

R19 R20

C32

U12

D7 D6 D5 D4

R17 R16 R14 R15

R13

D16

01R

Mounting

Holes

SETTING THE SWITCHES CONTINUED

6. Set a Fixed Facility Code (FFC).

• The FFC switch must be in the ON position (switch set to

right).

• Set the receiver’s facility code switches (labeled 0-5) to match

the facility code of the access control system.

Refer to the switch settings chart in the Appendix on page 5 for

assistance.

NOTE:

For installations that require the facility code of the

transmitters to be passed to the access control system, set the

FFC switch to the OFF position (set switch to left). Facility codes

are set in the transmitter at the factory to avoid code duplication.

FACILITY CODE

0FFC

FORMAT

BUTTON

The outside of the antenna connector is not ground. If using

an extension kit, do not allow it to contact a metal object.

INSTALLATION AND WIRING

1. Mount the Receiver.

Mount receiver to surface using #6 hardware (not provided).

(Figure 8)

NOTE:

Mount receiver with 18" of space above the receiver for the

antenna. The receivers should be installed at least 5' apart to

avoid “cross-talk”.

2. Connect the antenna.

Screw on antenna clockwise and slide rubber boot down to

meet o-ring (Figure 7).

3. Connect signal/power wires.

Remove the terminal block from J2 on the circuit board.

Connect wires from the CPWR 6-pin connector to the access

control system (Figure 8). Then re-insert the terminal block

onto J2.

Wire the CPWR to the access control systems’ card reader

port. Refer to the access control system’s instructions for

appropriate wiring detail. A typical wire connection might

resemble the following:

NOTE:

At power up, the CPWR will perform a system check and

produce a series of LED flash sequences (this is normal).

Facility code switches 6-15 are not used (must remain in the

OFF or left position).

FFC Factory Setting = ON (switch set to right).

Facility Code Factory Setting = All OFF (switches set to left).

CABLE SIGNALS WIRE COLOR

LED BROWN

DATA 1 WHITE

DATA 0 GREEN

+12VDC RED

COMMON (GND) BLACK

SHIELD SHIELD

TESTING AND TROUBLESHOOTING

1. Check the power.

Ensure that the red POWER LED is lit (Figure 9). If not, check

your power connections and/or source. Voltage reading

should be within the range of 9VDC – 18VDC.

2. Check for Receiver operation.

The SIGNAL LED (Figure 9) should be flickering continuously,

indicating that the RF receiver circuitry is operating.

3. Test the Transmitter/Receiver.

Press the transmitter button previously set in step 4, page 3,

within view of the receiver. If the DATA-yellow and

VALID-green LEDs do not light, review the Setting the

Switches and Connect Signal/Power Wires sections.

NOTE:

If the DATA-yellow and VALID-green LEDs flash repeatedly

and simultaneously, the format settings may be incorrect (refer to

Output Code Format).

If reception of the transmitter’s signal is significantly reduced,

there may be strong RF interference from other sources.

Common sources of interference include fluorescent lights,

neon signs, mercury vapor lamps, arc welders, and arcing

power lines. Interference due to lighting can be limited by

having an electrician wire a noise suppressor into the lamp,

light, or sign circuit.

NOTE:

It may be required to press the transmitter button twice at

first use.

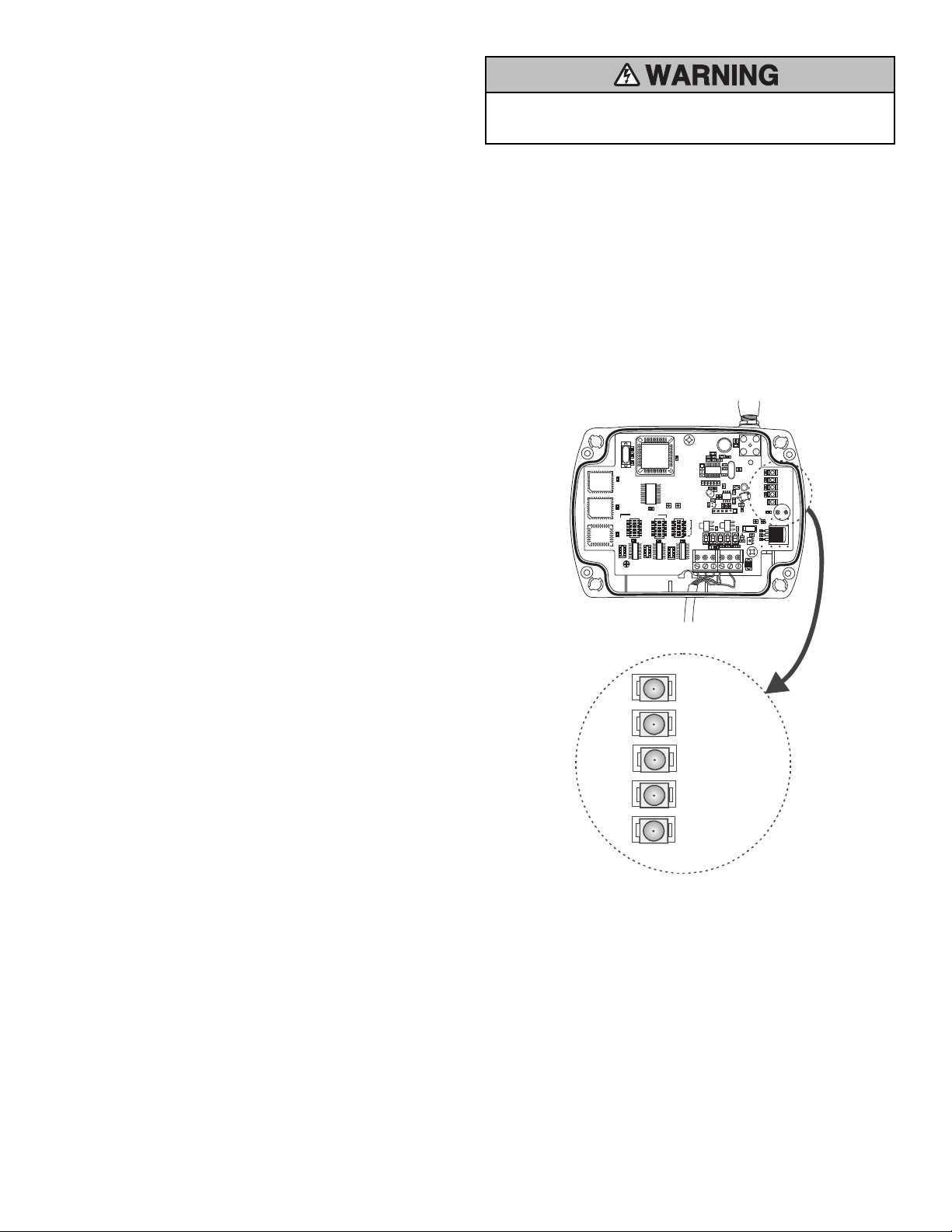

RECEIVER LED REFERENCE

(Figure 9)

SIGNAL – Red

This LED, when lit, indicates that the receiver has detected the

presence of RF energy. It is normal for this LED to flicker

continuously while the receiver is powered up.

DATA – Yellow

This LED indicates that the receiver recognizes the transmission

data as coming from a Chamberlain®transmitter with Passport

technology.

VALID – Green

This LED indicates that the receiver is sending a Wiegand format

output to the access control system.

POWER – Red

This LED indicates that the receiver has power.

GRANTED – Green

This LED indicates that the access control system has validated

the transmitted code and has granted access.

4. Attach the front cover.

Attach front cover of receiver by turning screws clockwise

1/4 turn. Do not over tighten.

Call your local power company if interference is due to arcing

power lines.

SIGNAL

D11

DATA

D12

VA L I D

D13

POWER

GRANTED

Figure 9

RP2 U9

RP3 U10

RP1

F A C I L I T Y CO D E

SENTEX SYSTEMS

MADE I N USA

109

FORMAT

BUTTON

FFC

U5 1TP1 TP4

22C

12C

CLOCK

DATA

C13 R1

C17

C23

C20

C18

C14

C10

C11 Y1

C15

C12

C16 R5 C19 R4 U6

33C

C29

01R

C27

C25

R25

C28

R12

6R 11R

22R32R42R12

D11

D12

D13

SIGNAL

DATA

VALID

POWER

GRANTED

C30

C31

TP3

TP2

+5V

GND

R19 R20

C32

U12

D7 D6 D5 D4

R17 R16 R14 R15

R13

D16

01R

APPENDIX: FACILITY CODE SWITCH SETTINGS

Refer to Figure 1 on page 1 for the facility code DIP switch location. Also, when setting the receiver’s DIP switches, refer only to the

numbers silk screened on the PC board (not the numbers on the DIP switch itself).

FC 000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

500 0 0 0 0 0 0 0 0 0 0 0 000

400 0 0 0 0 0 0 0 0 0 0 0 000

300 0 0 0 0 0 0 11111111

200 0 0 11 1100001111

100 1100 1100110011

00101010101010101

FC 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

500 0 0 0 0 0 0 0 0 0 0 0 000

41 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

300 0 0 0 0 0 0 11111111

200 0 0 11 1100001111

100 1100 1100110011

00101010101010101

FC 032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047

51 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

400 0 0 0 0 0 0 0 0 0 0 0 000

300 0 0 0 0 0 0 11111111

200 0 0 11 1100001111

100 1100 1100110011

00101010101010101

FC 048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063

51 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

41 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

300 0 0 0 0 0 0 11111111

200 0 0 11 1100001111

100 1100 1100110011

00101010101010101

LIMITED WARRANTY

LiftMaster warranties the receiver against original manufacturing defects for a period of three (3) years, measured from the day of

initial shipment by LiftMaster. This warranty is conditioned upon LiftMaster being paid in full for all equipment; this warranty is not

effective until such payment in full has been received. The warranty period shown above applies only to the LiftMaster receiver with

Passport technology). Since this is a manufacturer's warranty, not a dealer's warranty, installation, removal, and freight charges are not

part of this warranty, nor shall the installer be held liable in any way for removal, repair or installation of the Passport system unless

otherwise stated in a separate dealer's warranty. This warranty does not extend to systems or compartments that show evidence of

damage caused by vandalism, acts of God (e.g., lightning, flood), abuse, or unauthorized or improper service.

This document is protected by copyright and may not be copied or adapted without the prior written consent of LiftMaster. This

documentation contains information proprietary to LiftMaster and such information may not be distributed without the prior written

consent of LiftMaster. The software and firmware included in the LiftMaster product as they relate to this documentation are also

protected by copyright and contain information proprietary to LiftMaster.

HOW TO ORDER REPAIR PARTS

OUR LARGE SERVICE ORGANIZATION SPANS AMERICA

Installation and service information are available.

Call our TOLL FREE number:

1-800-528-2806

www.liftmaster.com

This manual suits for next models

Table of contents

Other Chamberlain Garage Door Opener manuals

Chamberlain

Chamberlain PD300DM 1/2 HP User manual

Chamberlain

Chamberlain POWER DRIVE 7520D 1/2 HP User manual

Chamberlain

Chamberlain Security+ 2280-976C User manual

Chamberlain

Chamberlain ATS 2113X 1/2 HP User manual

Chamberlain

Chamberlain LiftMaster 3280cm 1/2 HP User manual

Chamberlain

Chamberlain Whisper Drive Security+ WD822KCS User manual

Chamberlain

Chamberlain SMART GARAGE MYQ-G0301 User manual

Chamberlain

Chamberlain ML800EV User manual

Chamberlain

Chamberlain T User manual

Chamberlain

Chamberlain 8550W User manual

Chamberlain

Chamberlain 2265 User manual

Chamberlain

Chamberlain LiftMaster PROFESSIONAL LM60 Series User manual

Chamberlain

Chamberlain HD920EV User manual

Chamberlain

Chamberlain Series 5100 User manual

Chamberlain

Chamberlain LiftMaster Security+ 311 User manual

Chamberlain

Chamberlain LM3800TXSA User manual

Chamberlain

Chamberlain PowerDrive PD210 User manual

Chamberlain

Chamberlain Lift-Master Security+ 1000SDR User manual

Chamberlain

Chamberlain 8360W User manual

Chamberlain

Chamberlain Security+ 1000SDC-R User manual

Chamberlain

Chamberlain Merlin MT60P User manual

Chamberlain

Chamberlain C2405 User manual

Chamberlain

Chamberlain 8587W User manual

Chamberlain

Chamberlain 710CR4 User manual

Popular Garage Door Opener manuals by other brands

Dorma

Dorma ES 90 manual

Garaga

Garaga SECURITY+ 3265GCM 1HP owner's manual

Chase Doors

Chase Doors DuraShield installation manual

CSI

CSI Classic installation instructions

HATO

HATO 120 Automation manual

Richmond

Richmond GTR156 user manual

Raynor

Raynor 1280RGD owner's manual

CAME

CAME F4000 Series installation manual

B&D

B&D Controll-A-Door 5 instruction manual

BFT

BFT PRV AA SL Installation and user manual

Craftsman

Craftsman 139.53924 owner's manual

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift installation instructions

Westfalia

Westfalia 19 36 07 instruction manual

Cardin

Cardin BL Series instruction manual

Craftsman

Craftsman 139.53997D owner's manual

Bauer

Bauer CROSS18 Application. Installation and Maintenance Manual

Wayne-Dalton

Wayne-Dalton 8124 Installation instructions and owner's manual

Craftsman

Craftsman 139.18867 owner's manual
