Central Pneumatic 99640 Installation manual

3-IN-1 FLOORING NAILER/STAPLER

CLEAT & STAPLE TYPE

99640

SET UP AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams

within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly

from the product described herein. Tools required for assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10d

SKU 99640 For technical questions, please call 1-800-444-3353. Page 2

SAVE THIS MANUAL

Keep this manual for the safety warn-

ings and precautions, assembly, operat-

ing, inspection, maintenance and cleaning

procedures. Write the product’s serial

number in the back of the manual near the

assembly diagram (or month and year of

purchase if product has no number). Keep

this manual and the receipt in a safe and

dry place for future reference.

Safety Alert Symbol and Signal

Words

In this manual, on the labeling,

and all other information provid-

ed with this product:

This is the safety alert

symbol. It is used to alert

you to potential personal

injury hazards. Obey all

safety messages that

follow this symbol to avoid

possible injury or death.

DANGER indicates

a hazardous

situation which, if not

avoided, will result in death or

serious injury.

WARNING

indicates a

hazardous situation which, if

not avoided, could result in

death or serious injury.

CAUTION, used

with the safety

alert symbol, indicates a

hazardous situation which, if

not avoided, could result in

minor or moderate injury.

NOTICE is used to

address practices

not related to personal injury.

CAUTION, without

the safety alert

symbol, is used to address

practices not related to

personal injury.

IMPORTANT SAFETY

INSTRUCTIONS

INSTRUCTIONS PERTAINING

TO A RISK OF FIRE,

ELECTRIC SHOCK, OR

INJURY TO PERSONS

WARNING – When using

tools, basic precautions

should always be followed,

including the following:

To reduce the risks of electric shock,

re, and injury to persons, read all the

instructions before using the tool.

Work area

a. Keep the work area clean and well

lighted. Cluttered benches and dark

areas increase the risks of electric

shock, re, and injury to persons.

b. Do not operate the tool in explo-

sive atmospheres, such as in the

presence of ammable liquids,

gases, or dust. The tool is able to

create sparks resulting in the ignition

of the dust or fumes.

c. Keep bystanders, children, and

visitors away while operating the

tool. Distractions are able to result in

the loss of control of the tool.

SKU 99640 For technical questions, please call 1-800-444-3353. Page 3

Personal safety

a. Stay alert. Watch what you are do-

ing and use common sense when

operating the tool. Do not use the

tool while tired or under the inu-

ence of drugs, alcohol, or medica-

tion. A moment of inattention while

operating the tool increases the risk

of injury to persons.

b. Dress properly. Do not wear loose

clothing or jewelry. Contain long

hair. Keep hair, clothing, and

gloves away from moving parts.

Loose clothes, jewelry, or long hair

increases the risk of injury to persons

as a result of being caught in moving

parts.

c. Avoid unintentional starting. Be

sure the switch is off before con-

necting to the air supply. Do not

carry the tool with your nger on the

switch or connect the tool to the air

supply with the switch on.

d. Remove adjusting keys and

wrenches before turning the tool

on.

e. Do not overreach. Keep proper

footing and balance at all times.

Proper footing and balance enables

better control of the tool in unexpect-

ed situations.

f. Use safety equipment. A

dust mask, non-skid safety

shoes and a hard hat must

be used for the applicable

conditions. Wear heavy-duty work

gloves during use. Wear a full face

shield if you are producing metal

lings or wood chips.

g. Always wear eye protec-

tion. Wear ANSI-ap-

proved safety goggles with

side shields during use.

h. Always wear hearing

protection when using

the tool. Prolonged expo-

sure to high intensity noise

is able to cause hearing loss.

Tool use and care

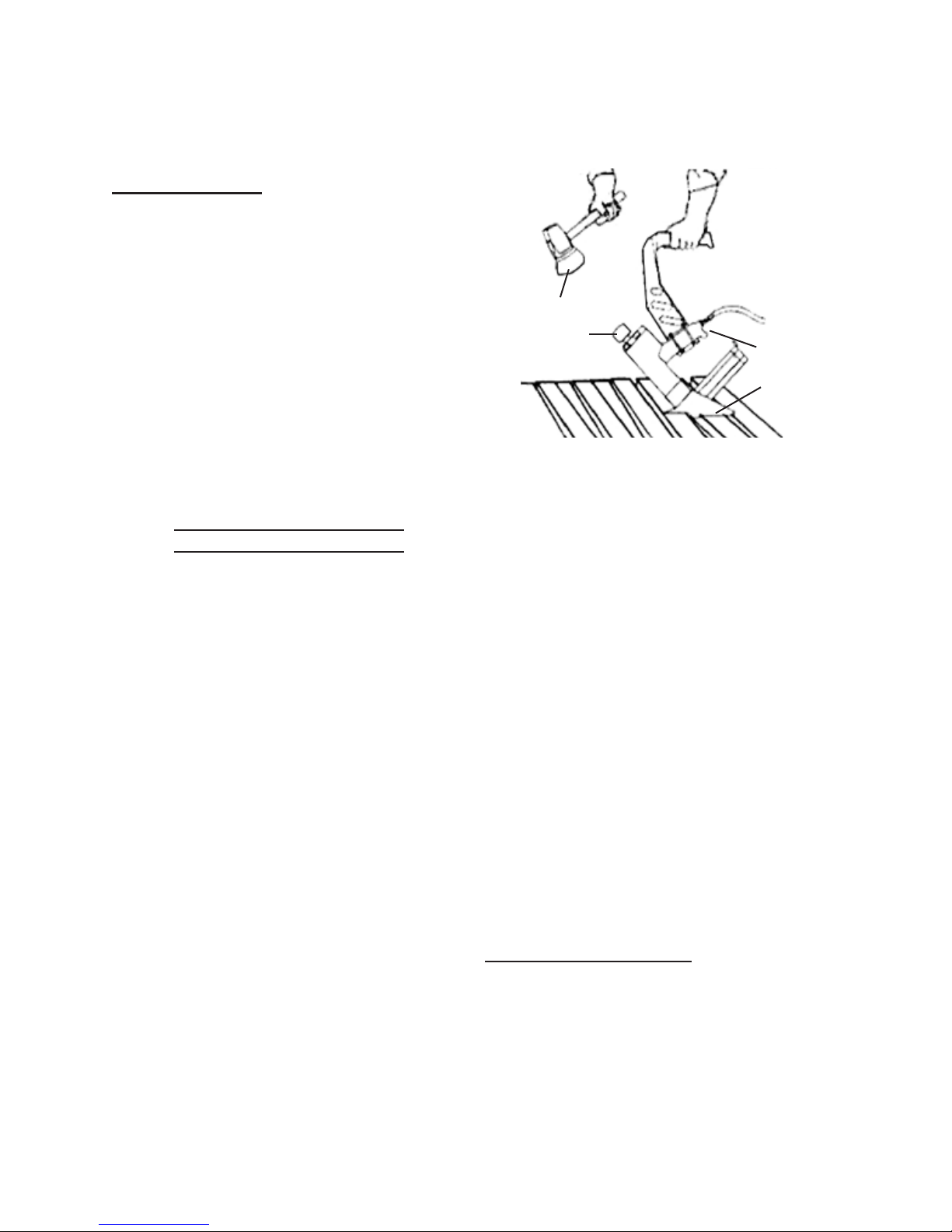

a. Avoid unintentional

misres. Always use

caution to avoid acci-

dentally striking Ham-

mer Face (2). Do not point

tool towards yourself or anyone or

whether it contains nails/staples or

not.

b. Do not load fasteners when Nailer

is connected to air hose. Always

assume tool contains fasteners. Unin-

tentional ring may occur.

c. Fire cleat nails and staples into

an appropriate work surface only.

Do not attempt to re cleat nails or

staples into surfaces too hard to

penetrate. Do not drive cleat nails

or staples on top of other cleat nails

or staples, or at too steep an angle.

Cleat nails and staples can ricochet,

causing personal injury. Never re

this tool into the air or point it toward

yourself or another person.

d. Hold tool away from head and

body during use. Tool may kick

back, causing injury.

e. Do not re cleat nails or staples

too close to edge of workpiece.

They may split the workpiece and y

free, causing personal injury.

SKU 99640 For technical questions, please call 1-800-444-3353. Page 4

f. Carry tool safely. Carry tool by

handle.

g. Use clamps or another practical

way to secure and support the

workpiece to a stable platform.

Holding the work by hand or against

the body is unstable and is able to

lead to loss of control.

h. Do not force the tool. Use correct

tool for application. The correct tool

will do the job better and safer at the

rate for which the tool is designed.

i. Disconnect the tool from the air

source before making any adjust-

ments, changing accessories, or

storing the tool. Such preventive

safety measures reduce the risk

of starting the tool unintentionally.

Turn off and detach the air supply

and safely discharge any residual

air pressure before leaving the work

area.

j. Store the tool when it is idle out of

reach of children and other un-

trained persons. A tool is dangerous

in the hands of untrained users.

k. Maintain the tool with care. Keep

tool clean. A properly maintained tool,

reduces the risk of binding and is

easier to control.

l. Check for misalignment or bind-

ing of moving parts, breakage of

parts, and any other condition that

affects the tool’s operation. If dam-

aged, have the tool serviced before

using. Many accidents are caused

by poorly maintained tools. There is a

risk of bursting if the tool is damaged.

m. Use only accessories that are

identied by the manufacturer for

the specic tool model. Use of an

accessory not intended for use with

the specic tool model, increases the

risk of injury to persons.

Service

a. Tool service must be performed

only by qualied repair personnel.

b. When servicing a tool, use only

identical replacement parts. Use

only authorized parts.

c. Use only the lubricants supplied

with the tool or specied by the

manufacturer.

Air source

a. Never connect to an air

source that is capable of

exceeding 120 PSI. Over

pressurizing the tool may

cause bursting, abnormal operation,

breakage of the tool or serious injury

to persons. Use only clean, dry,

regulated compressed air at the rated

pressure or within the rated pressure

range as marked on the tool (70 to

120 PSI). Always verify prior to using

the tool that the air source has been

adjusted to the rated air pressure or

within the rated air-pressure range.

b. Never use oxygen, carbon dioxide,

combustible gases or any bottled

gas as an air source for the tool.

Such gases are capable of explosion

and serious injury to persons.

SAVE THESE

INSTRUCTIONS.

Rev 09i

SKU 99640 For technical questions, please call 1-800-444-3353. Page 5

SYMBOLS AND

SPECIFIC SAFETY

INSTRUCTIONS

Symbol Denitions

Symbol Property or statement

noNo-load speed

.../min Revolutions or reciprocation per

minute

PSI Pounds per square inch of pressure

ft-lb Foot-pounds of torque

BPM Blows per minute

CFM Cubic Feet per Minute ow

SCFM Cubic Feet per Minute ow at

standard conditions

NPT National pipe thread, tapered

NPS National pipe thread, straight

WARNING marking concerning Risk

of Eye Injury. Wear ANSI-approved

eye protection.

WARNING marking concerning Risk

of Hearing Loss. Wear hearing

protection.

WARNING marking concerning Risk

of Respiratory Injury. Wear NIOSH-

approved dust mask/respirator.

WARNING marking concerning Risk

of Explosion.

Specic Safety Instructions.

1. The warnings and precautions dis-

cussed in this manual cannot cover

all possible conditions and situations

that may occur. It must be under-

stood by the operator that common

sense and caution are factors which

cannot be built into this product, but

must be supplied by the operator.

2. WARNING: Some dust created by

power sanding, sawing, grinding, drill-

ing, and other construction activities,

contains chemicals known [to the

State of California] to cause cancer,

birth defects or other reproductive

harm. Some examples of these

chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and

cement or other masonry products

• Arsenic and chromium from chemi-

cally treated lumber

Your risk from these exposures var-

ies, depending on how often you do

this type of work. To reduce your

exposure to these chemicals: work in

a well ventilated area, and work with

approved safety equipment, such as

those dust masks that are specially

designed to lter out microscopic

particles. (California Health & Safety

Code § 25249.5, et seq.)

3. Take caution, as some woods contain

preservatives such as copper chro-

mium arsenate (CCA) which can be

toxic. When nailing these materials,

extra case should be taken to avoid

inhalation and minimize skin contact.

4. WARNING: The brass components

of this product contain lead, a chemi-

cal known to the State of California

to cause birth defects (or other repro-

ductive harm). (California Health &

Safety code § 25249.5, et seq.)

5. Only use with accessories rated to

handle forces exerted by tool during

operation. Other accessories not de-

signed for the forces generated may

break and forcefully launch pieces.

SKU 99640 For technical questions, please call 1-800-444-3353. Page 6

6. Attach all accessories properly to the

tool before connecting the air sup-

ply. A loose accessory may detach or

break during operation.

7. Obey the manual for the air compres-

sor used to power this tool.

8. Install in-line shutoff valve to allow

immediate control over air supply in

emergency, even if hose is ruptured.

9. Do not lay tool down until it has com-

pletely stopped. Moving parts can

grab surface and lead to control loss.

Vibration Precautions

This tool vibrates during use. Re-

peated or long-term exposure to vibra-

tion may cause temporary or permanent

physical injury, particularly to the hands,

arms and shoulders. To reduce the risk of

vibration-related injury:

1. Anyone using vibrating tools regu-

larly or for an extended period should

rst be examined by a doctor and

then have regular medical check-

ups to ensure medical problems are

not being caused or worsened from

use. Pregnant women or people

who have impaired blood circulation

to the hand, past hand injuries, ner-

vous system disorders, diabetes, or

Raynaud’s Disease should not use

this tool. If you feel any medical or

physical symptoms related to vibra-

tion (such as tingling, numbness, and

white or blue ngers), seek medical

advice as soon as possible.

2. Do not smoke during use. Nico-

tine reduces the blood supply to the

hands and ngers, increasing the risk

of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration

when there is a choice between dif-

ferent processes.

5. Include vibration-free periods each

day of work.

6. Grip tool as lightly as possible (while

still keeping safe control of it). Let

the tool do the work.

7. To reduce vibration, maintain tool as

explained in this manual. If abnormal

vibration occurs, stop immediately.

SAVE THESE

INSTRUCTIONS.

SKU 99640 For technical questions, please call 1-800-444-3353. Page 7

SPECIFICATIONS

Air Pressure

Range 70-120 PSI

Maximum Air

Pressure 120 PSI

Air Inlet 1/4” -18 NPT

Fastener

Capacity and

Size Range

120 1/2” Crown Flooring Staples

Length: 1-1/2” to 2”

Gauge: 15 1/2 Ga

100 “L” or “T” Type Flooring Cleats

Length: 1-1/2” to 2”

Gauge: 16 Ga

Air

Consumption 4 SCFM @ 90 PSI

Safety Trigger Slugging Actuation Only

(No Safety)

Accessories

Wrench Set

Slugging Hammer

Air Coupler Adapter

Air Tool Oil Dropper

Spare Base Plate

UNPACKING

When unpacking, check to make sure

that the item is intact and undamaged. If

any parts are missing or broken, please

call Harbor Freight Tools at the number

shown throughout the manual as soon as

possible.

• This air tool may be shipped with a

protective plug covering the air inlet.

Remove this plug before set up.

ASSEMBLY

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Note: For additional information regarding

the parts listed in the following pages,

refer to the Assembly Diagram near

the end of this manual.

• This tool may be shipped with the

Arm (80) detached from the main

body. If so, follow these instruc-

tions:

Arm (80)

Handle (69)

Bracket (72)

Nut (70) and

Washer (71)

Figure A

Set the Arm against the Handle (69)

and slide the Brackets (72) through

the Arm holes slots and holes.

Thread Washers (71) and Nuts (70)

over ends of Brackets.

See Figure A.

2. Wrench-tighten the Nuts until Brack-

ets are secured and the Arm is locked

against Handle.

Air Supply Setup

TO PREVENT

EXPLOSION:

Use only clean, dry, regulated,

compressed air to power tool.

Do not use oxygen, carbon

dioxide, combustible gases,

or any other bottled gas as a

power source for tool.

REV 08j; 09c; 09i

SKU 99640 For technical questions, please call 1-800-444-3353. Page 8

1. Incorporate an in-line oiler, shut-off

valve, regulator with pressure gauge,

and lter for best service, as shown in

the diagram above. An in-line shut-

off valve is an important safety

device because it controls the air

supply even if the air hose is rup-

tured.

Note: If an automatic oiler system is not

used, add a few drops of Pneumatic

Tool Oil to the airline connection be-

fore operation. Add a few more drops

after each hour of continual use.

2. Attach an air hose to the compres-

sor’s air outlet. Connect the air hose

to the air inlet of the tool. Other com-

ponents, such as a connector and

quick coupler, will make operation

more efcient, but are not required.

WARNING! TO PREVENT SERIOUS

INJURY FROM ACCIDENTAL

OPERATION: Do not install a

female quick coupler on the tool.

Such a coupler contains an air valve

that will allow the air tool to retain

pressure and operate accidentally

after the air supply is disconnected.

Note: Air ow, and therefore tool perfor-

mance, can be hindered by under-

sized air supply components.

3. The air hose must be long enough

to reach the work area with enough

extra length to allow free movement

while working.

4. Close the in-line safety valve be-

tween the compressor and the tool.

5. Turn on the air compressor according

to the manufacturer’s directions and

allow it to build up pressure until it

cycles off.

6. Adjust the air compressor’s output

regulator so that the air output is

enough to properly power the tool,

but the output will not exceed the

tool’s maximum air pressure at any

time. Adjust the pressure gradually,

while checking the air output gauge

to set the right pressure range.

7. Inspect the air connections for leaks.

Repair any leaks found.

8. If the tool will not be used at this time,

turn off and detach the air supply

and safely discharge any residual air

pressure.

Note: Residual air pressure should not be

present after the tool is disconnected

from the air supply. However, it is a

good safety measure to attempt to

discharge the tool in a safe fashion

after disconnecting to ensure that the

tool is disconnected and unpowered.

SKU 99640 For technical questions, please call 1-800-444-3353. Page 9

To Attach An Air Connector:

1. Attach a 1/4” Connector (not includ-

ed) to the Adapter (82) prior to opera-

tion.

2. Wrap about 3” of pipe thread seal

tape (not included) onto threads of

the Connector before attaching it to

the Adapter.

OPERATING INSTRUCTIONS

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

Inspect tool before use, looking

for damaged, loose, and

missing parts. If any problems

are found, do not use tool until

repaired.

Loading Nails and Staples

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION: Detach the air

supply, safely discharge any

residual air pressure in the

tool, and release the throttle

and/or turn the switch to its

off position before performing

any inspection, maintenance,

or cleaning procedures.

TO PREVENT SERIOUS

INJURY: Do not adjust or

tamper with any control or

component in a way not

specically explained within

manual. Improper adjustment

can result in tool failure or

other serious hazards.

WARNING! Disconnect the Floor

Nailer from the air compressor when-

ever loading or servicing. After dis-

connecting the Floor Nailer from the

air compressor, there could still be

enough air pressure to re the Nailer.

After the air hose is disconnected,

always re the Nailer into scrap wood

repeatedly to make sure all of the

compressed air is expended.

Loading Cleat Nails:

1. Pull the Pusher (56) back to end of

Magazine (52). Lock Pusher in place

by using Safety Lock (54). Then pull

Side Load Magazine (61) back.

2. Place full clip of desired fasteners

into Magazine (61) from the side.

Up to 100 Cleat Nails may be loaded

into Nailer.

REV 09i, 10d

Safety

Lock (54)

Side Load

Magazine

(61) Magazine

(52)

Pusher (56)

SKU 99640 For technical questions, please call 1-800-444-3353. Page 10

3. Push Side Load Magazine forward

and press Lock to unfasten Pusher.

Loading Staples:

1. Pull the Pusher (56) back to the end

of Magazine (52). Lock Pusher in

place by using Safety Lock (54).

Then pull Side Load Magazine (61)

back.

2. Place a full clip of 1/2” Crown Staples

or 1-1/2” - 2” Cleat Nails in the Maga-

zine (52) from the top. Up to 120

Crown Staples may be loaded into

Nailer.

3. Push Side Load Magazine forward

and press Lock to unfasten Pusher.

Operating Floor Nailer

1. WARNING! Extreme caution must

be used whenever this tool is con-

nected to an air supply. If the tool is

dropped, or if the Hammer Face (2) is

accidentally struck, then the tool will

re a nail or staple, potentially caus-

ing SEVERE PERSONAL INJURY.

2. Attach the Floor Nailer to the air sup-

ply at the Quick Connector. Start

your compressor and check the

pressure, making sure it is set at the

recommended 70-120 PSI. Do not

exceed the maximum 120 PSI.

3. WARNING! Keep your feet clear of

the Floor Nailer.

4. NOTE: Before using on a oor, test

the tool on a scrap piece of wood.

Adjust the driving depth by provid-

ing more or less air pressure. Never

exceed 120 PSI.

5. Hold the Hand Grip (81) securely and

press the Spacer (36) to the work

surface, making sure the Spacer is

over the nail/staple target position.

Hammer (1)

Hammer

Face (2)

Hand Grip (81)

Spacer

(37)

Work Surface

Press down hard so that the Spacer

(36) is rmly contacting the work

surface. Then, using the Hammer (1),

strike the Hammer Face (2) rmly

to drive the fastener into work sur-

face. Lift the Floor Nailer off the work

surface. Repeat this process until the

job is completed.

7. WARNING! After disconnecting Nail-

er from air compressor, there could

still be enough air pressure to re

Nailer. After the air hose is discon-

nected, always re Nailer into scrap

wood repeatedly to make sure all of

compressed air is expended.

8. When nished, make sure to store

the Floor Nailer in a clean, dry, safe

location out of reach of children and

other unauthorized people.

To Change The Spacer:

The Floor Nailer is designed to install

1/2” and 25/32” hardwood ooring.

The tool is factory set with a 1/4” thick

shoe plate for 25/32” hardwood oor-

ing. An additional 5/16” thick shoe

plate is also include for installing 1/2”

Rev 09i, 10d
