Casablanca Tribeca Instruction manual

TribecaTribecaTribeca

English

Owner’s Guide and Installation Manual

Form# M6001-01

20120416

M6001-01 • 04/16/12 • Casablanca Fan Company

Welcome

Table Of Contents

Preparing the Fan Site .................3

1 • Getting Ready......................6

2 • Installing the Ceiling Bracket........7

3 • Assembling and Hanging the Fan ...8

4 • Wiring Your Ceiling Fan.............9

5 • Installing the Canopy ...............10

6 • Assembling the Blades..............11

7 • Installing the Switch Housing .......12

8 • Operating and Cleaning Your Ceiling

Fan ...............................13

9 • Troubleshooting....................14

Your new Casablanca® ceiling fan is an addition to your home or

oce that will provide comfort and performance for many years. is

installation and operation manual gives you complete instructions for

installing and operating your fan.

We are proud of our work. We appreciate the opportunity to supply

you with the best ceiling fan available anywhere in the world.

Before installing your fan, for your records and warranty assistance,

record information from the carton and Casablanca nameplate label

(located on the top of the fan motor housing).

Cautions and Warnings

•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING

INSTALLATION. SAVE THESE INSTRUCTIONS.

• Use only Casablanca replacement parts.

• To reduce the risk of personal injury, attach the fan directly to the

support structure of the building according to these instructions,

and use only the hardware supplied.

• To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the

outlet box and associated wall switch location. If you cannot lock

the circuit breakers in the o position, securely fasten a prominent

warning device, such as a tag, to the service panel.

• All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualied electrician.

• To reduce the risk of personal injury, do not bend the blade

attachment system when installing, balancing, or cleaning the fan.

Never insert foreign objects between rotating fan blades.

• To reduce the risk of re, electrical shock, or motor damage, do not

use a solid-state speed control with this fan. Use only Casablanca

speed controls.

• is product conforms to UL STD 507 and is certied to STD C22.2

No. 113.

• Wash your hands after your fan installation is complete.

M6001-01 • 04/16/12 • Casablanca Fan Company

7’ Minimum

Blades to

Floor

9’ Minimum

Ceiling

Height

30” From

Wall or

Nearest

Obstruction

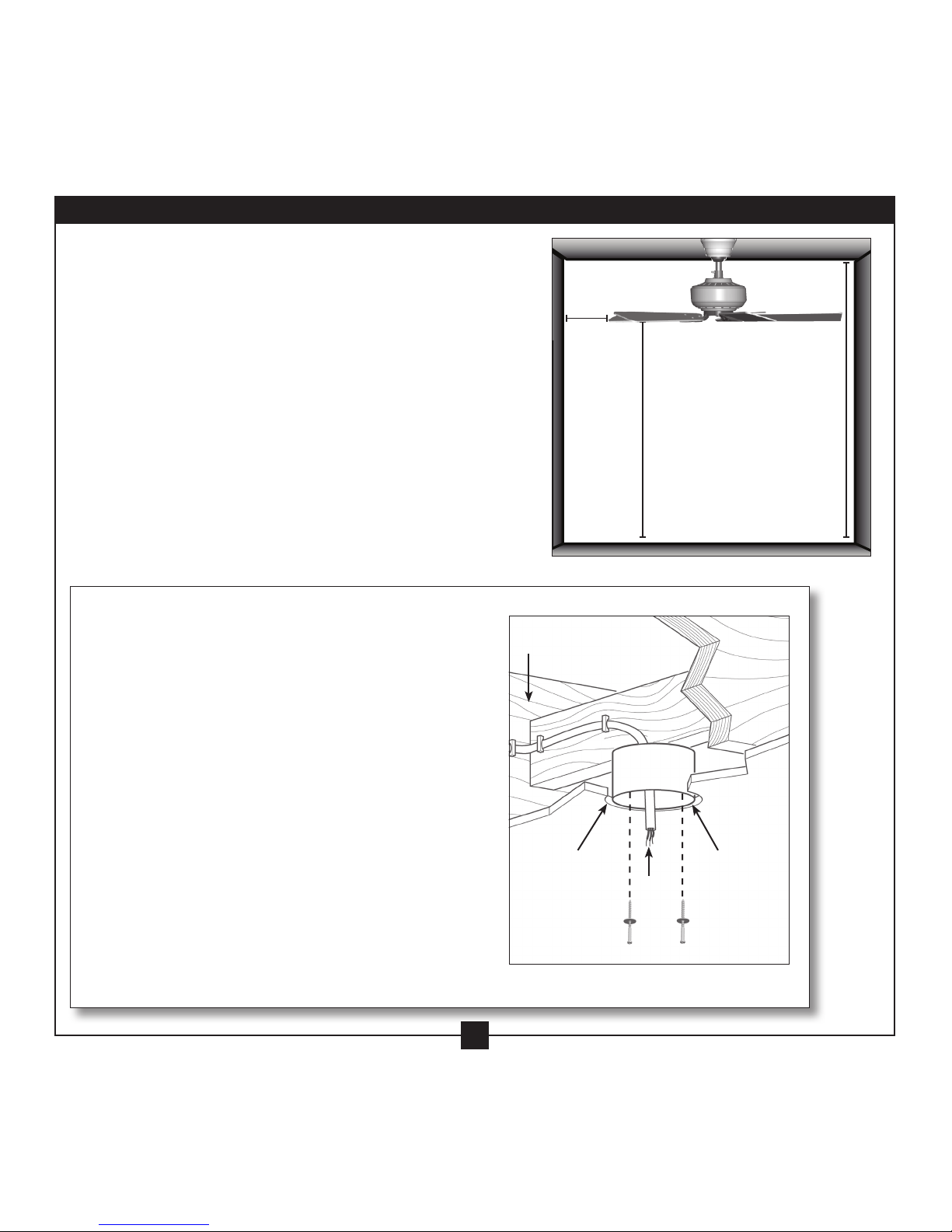

Step 1 - Choose the Fan Site

Proper ceiling fan location and attachment to the building

structure are essential for safety, reliable operation, maximum

eciency, and energy savings.

Choose a fan site where:

• No object can come in contact with the rotating fan blades during

normal operation.

• e fan blades are at least 7 feet above the oor and the ceiling is

at least 9 feet high.

• e fan blades have no obstructions to airow, such as walls or

posts, within 30 inches of the fan blade tips.

• e fan is directly below a joist or support brace that will hold the

outlet box and the full weight of the fan.

Checklist for Existing Fan Site

If you want to use an existing fan site, complete the following checklist to

determine if the site is acceptable and safe for your new Casablanca fan.

If you cannot check o every item, prepare a new fan site as described on

this page.

Fan Support System

• Fan attaches directly to building structure.

• Fan support system will hold full weight of the fan and light kit.

Ceiling Hole

• e outlet box clearance hole is directly below the joist or support brace.

Outlet Box

• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as

specied by the support brace manufacturer).

• e outlet box is secured to the joist or support brace by wood screws

and washers through the inner holes of outlet box.

• e outer holes of the outlet box are aligned with joist or support brace.

• e bottom of the outlet box is recessed a minimum of 1/16” into

ceiling.

Wiring

• e electrical cable is secured to outlet box by an approved connector.

• Six inches of lead wires extend from outlet box.

If your existing fan site is suitable, skip ahead to Section 2 • Installing the

Ceiling Bracket.

Suitable Existing Fan Site

Fan Support

System

Fan Support

System Wiring

Outlet Box

Preparing the Fan Site

M6001-01 • 04/16/12 • Casablanca Fan Company

Preparing the Fan Site (continued)

CAUTION: All wiring must be in

accordance with national and local

electrical codes and ANSI/NFPA 70. If

you are unfamiliar with wiring, use a

qualied electrician.

Steps 2 – 3

Step 4

Step 5

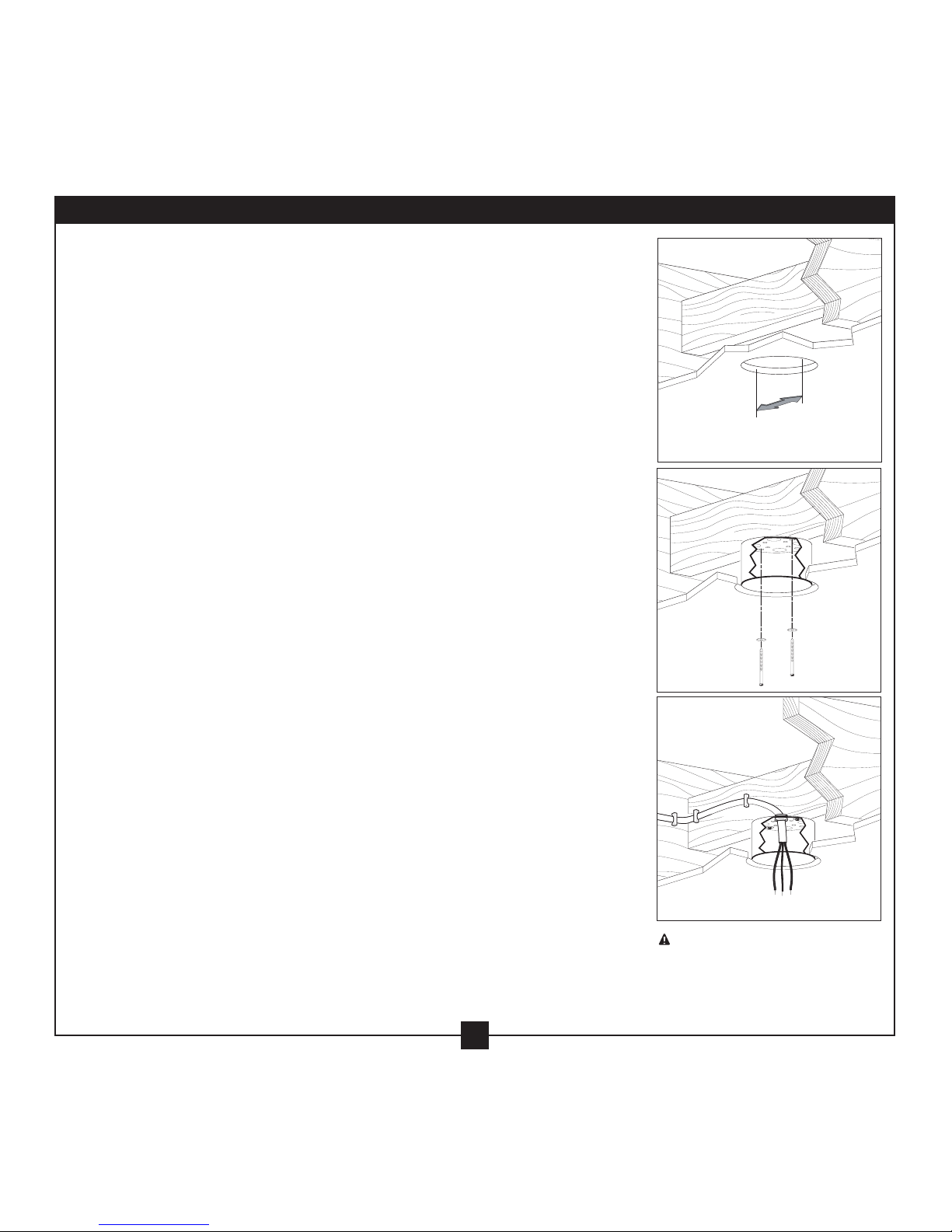

Step 2 - Cut the Ceiling Hole

2-1. Locate the site for the ceiling hole directly below the joist or support brace that

will hold the outlet box and fan.

2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use

the hole to install the support brace and outlet box.

Step 3 - Install a Support Brace, If Necessary

Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,

determine if it is positioned to allow you to recess the outlet box a minimum of

1/16” into the ceiling. If NOT, install a support brace as follows:

3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to

recess the bottom of the outlet box a minimum of 1/16” into the ceiling.

3-2. Check the support brace to ensure it will support the full weight of the fan and

light kit.

Step 4 - Install the Outlet Box

4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”

wood screws and washers, available from any hardware store or electrical supply

house.

4-2. Orient the outlet box so that both the inner and outer holes in the box align

with the joist or support brace.

4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)

through the inner holes of the outlet box.

4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”

wood screws and washers.  e bottom of the outlet box must be recessed a

minimum of 1/16” into the ceiling.

Step 5 - Prepare the Wiring

5-1. Make sure the circuit breakers to the fan supply line leads and associated wall

switch location are turned o . If you cannot lock the circuit breakers in the

o position, securely fasten a prominent warning device, such as a tag, to the

service panel.

5-2. read the fan supply line through the outlet box so that the fan supply line

extends at least 6” beyond the box.

5-3. Attach the fan supply line to the outlet box with an approved connector,

available at any hardware store or electrical supply house.

5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA 70.

You have now successfully prepared your ceiling fan site. For instructions to install

your ceiling fan, go to your fan manual and continue with Section 2 • Installing the

Ceiling Bracket.

Installer’s Choice and Optional Accessories

Standard Mounting hangs from the

ceiling by a downrod (included).

Support Brace

Standard

Mounting

Style

Ceiling

Outlet Box

Angled

Mounting

Style

M6001-01 • 04/16/12 • Casablanca Fan Company

Installer’s Choice and Optional Accessories

Support Brace

Ceiling

Outlet Box

Angled Mounting recommended for a

vaulted or angled ceiling.

For ceilings higher than 9 feet, you can purchase Casablanca

extension downrods. All Casablanca fans use sturdy 3/4” diameter

pipe to assure stability and wobble-free performance.

CAUTION: To reduce the risk of personal injury, attach the

fan directly to the support structure of the building according

to these instructions, and use only the hardware supplied.

Understanding Mounting and Installer’s Choice

Casablanca’s 2-position mounting system provides you maximum

installation exibility and ease. You can install your fan in one

of two ways, depending on ceiling height and your preference:

standard or angled mounting. e steps in this manual include

instructions for both mounting methods.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a

wall-mounted or remote speed control. To install and use the

accessories, follow the instructions included with each product.

For quiet and optimum performance of your Hunter fan, use only

Hunter speed controls.

M6001-01 • 04/16/12 • Casablanca Fan Company

Installing Multiple Fans?

If you are installing more than

one fan, keep the fan blades and

blade irons (if applicable) in sets,

as they were shipped.

To install a ceiling fan, be sure you can do the following:

• Locate the ceiling joist or other suitable support in ceiling.

• Drill holes for and install wood screws.

• Identify and connect electrical wires.

• Lift 40 pounds.

If you need help installing the fan, your Casablanca fan dealer can

direct you to a licensed installer or electrician.

Gathering the Tools

You will need the following tools for installing the fan:

• Electric drill with 9/64” bit

• Standard screwdriver (magnetic tip recommended)

• Phillips-head screwdriver (magnetic tip recommended)

• Wrench or pliers

• Ladder (height dependent upon installation site)

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Refer

to the included Parts Guide. Check for any shipping damage to the

motor or fan blades. If any parts are missing or damaged, contact your

Casablanca dealer or call Casablanca Technical Support Department at

888-227-2178 (In Canada, call 1-866-268-1936).

Preparing the Fan Site

Before you begin installing the fan, follow all the instructions in

“Preparing the Fan Site.” Proper ceiling fan location and attachment

to the building structure are essential for safety, reliable operation,

maximum eciency, and energy savings.

1 • Getting Ready

WARNING! To avoid possible electrical shock, make certain

that electricity is turned off at the circuit breaker or fuse box

before attempting any installation or repair procedure.

M6001-01 • 04/16/12 • Casablanca Fan Company

CAUTION: To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the outlet box

and associated wall switch location. If you cannot lock the circuit breakers

in the o position, securely fasten a prominent warning device, such as a

tag, to the service panel.

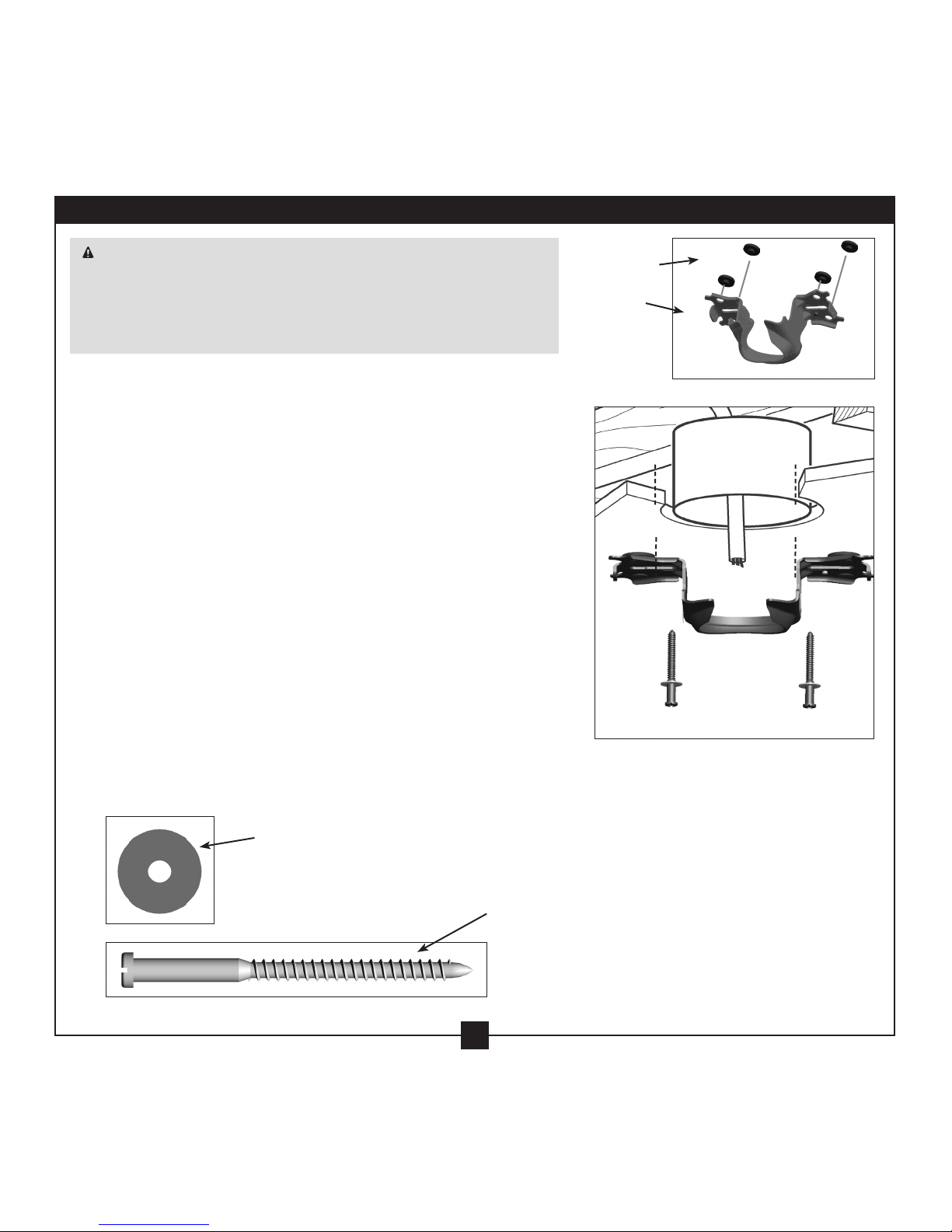

2-1. Note: e ceiling bracket may be mounted to an existing ceiling-

-fan-rated outlet box. If the outlet box is not ceiling-fan-rated,

Drill two pilot holes into the wood support structure.

e pilot holes should be 9/64” in diameter and through the

outermost holes in the outlet box.

2-2. Your fan comes with four neoprene noise isolators. Position the

isolators between the ceiling bracket and the ceiling by inserting

the raised areas on each isolator into the holes in the ceiling

bracket.

2-3. Align the slotted holes in the ceiling bracket with the pilot holes

you drilled in the wood support structure. Note: e isolators

should be ush against the ceiling.

2-4. Place a at washer on each of the two 3” wood screws and pass

the screws through the slotted holes in the ceiling bracket into the

pilot holes you drilled.

Tighten the screws into the 9/64” pilot holes; do not use lubricants

on the screws. Do not over tighten.

Flat Washer

3” Wood

Screw

Steps 2-3 – 2-5

2 • Installing the Ceiling Bracket

Step 2-2

Ceiling

Bracket

Isolator

M6001-01 • 04/16/12 • Casablanca Fan Company

WARNING: Fan may fall if not assembled as directed in these

installation instructions.

You can assemble your fan for standard or angled mounting as

shown in steps below.

3-1. Unbundle the wires from the fan.

3-2. Feed the wires from the fan through the downrod.

Note: Make sure all the wires are on the same side of the metal

dowel pin inside the downrod.

3-3. Loosen the square head setscrew on the adapter in order to

install the downrod.

3-4. Insert the downrod into the adapter. Tighten by turning the

downrod assembly at least 4-5 full turns until it stops. Note:

When the downrod assembly is fully installed, 2-3 threads

on the pipe will still be visible; this is normal. Securely

retighten the setscrew with a wrench or pliers.

WARNING: If the setscrew is not tightened securely, the fan

may fall.

3-5. (Optional) - e wires can be cut (shortened), but leave at

least 8” extending from the top of the downrod.

3-6. Raise the fan and place the downrod ball into the ceiling bracket.

Steps 3-1 – 3-4

Step 3-6

Downrod

Ball

Ceiling

Bracket

3 • Assembling and Hanging the Fan

For angled ceilings, point

opening toward peak

Downrod

Canopy

Setscrew Adapter

M6001-01 • 04/16/12 • Casablanca Fan Company

4 • Wiring Your Ceiling Fan

All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualiﬁed electrician.

4-1. Make sure the power is still o at the breaker box.

4-2. To connect the wires, hold the bare metal leads together and place a

wire connector over them, then twist clockwise until tight. For all wire

connections use the wire connector provided.

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

Note: For dual switch wiring, skip steps 4-3 through 4-6. Continue on

next page; performing steps 4-7 through 4-11.

Single Switch Wiring:

4-3. Connect the green or bare wire (grounding) wire from the ceiling

to the green wire with yellow stripe (grounding) from the ceiling

bracket and to the green wire with yellow stripe (grounding) from

the fan.

4-4. Connect the white wire (grounded) from the ceiling to the white wire

from the fan.

4-5. Connect the black wire (ungrounded) from the ceiling to the black

wire and the blue wire from the fan.

4-6. After all connections are made, turn wire connectors upward and

push them up into the outlet box. Be sure to separate the grounded

wires from the ungrounded wires inside the outlet box.

white

black (ungrounded) black

blue

white (grounded)

green or bare

(grounding)

green wire

with yellow

stripe

green wire

with yellow

stripe

Wire

Connector

Step 4-3 and 5-3

Steps 4-4 -4-5

M6001-01 • 04/16/12 • Casablanca Fan Company

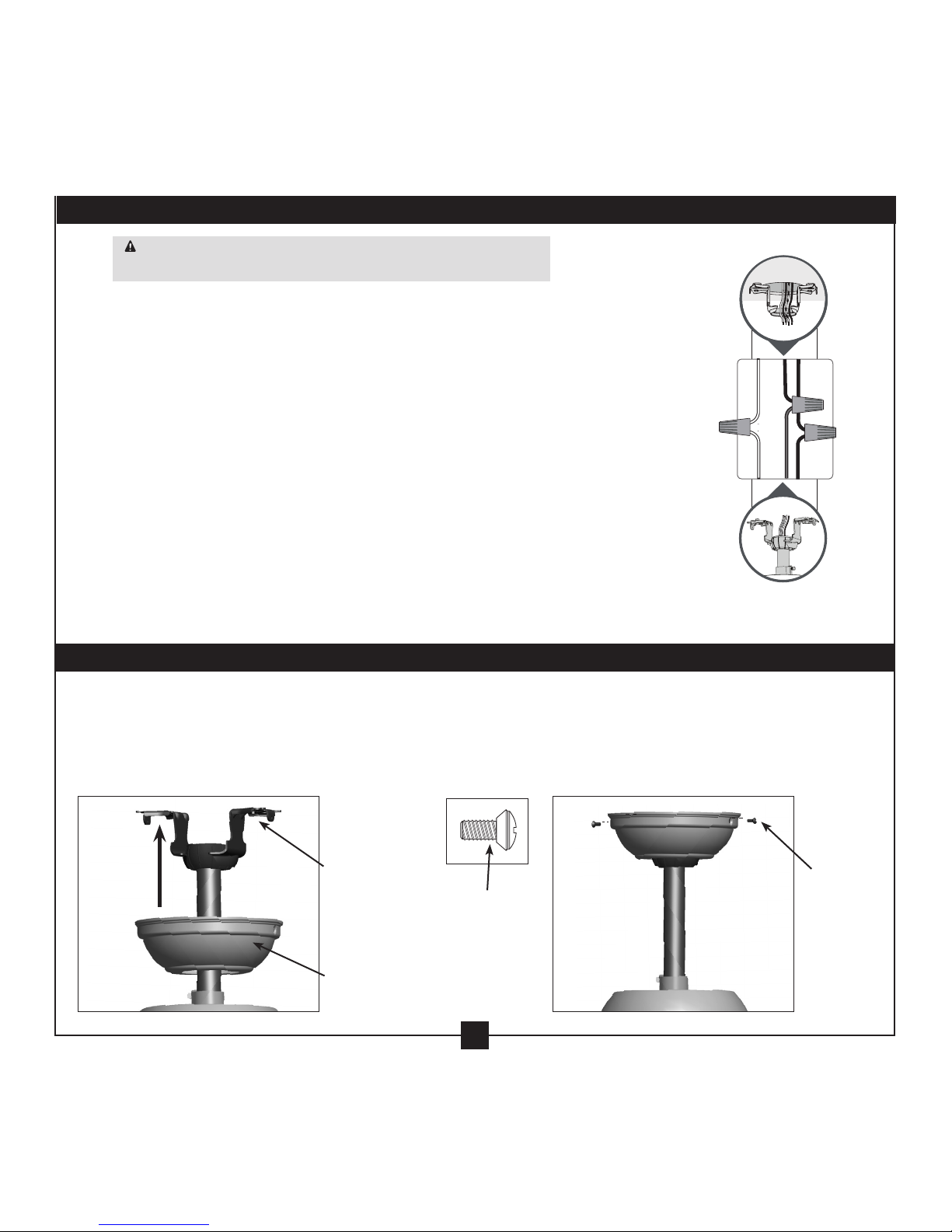

5-1. Raise the canopy over the ceiling bracket and

align the two holes of the canopy and the

ceiling bracket.

5-2. Insert and tighten the canopy screws securely.

Step 5-1

Steps 4-8 - 4-10

Canopy Screw

Canopy

Hanger

Bracket

5 • Installing the Canopy

4 • Wiring Your Ceiling Fan (continued)

white

black/white

(ungrounded)

black

blue

white (grounded)

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

Dual Switch Wiring:

4-7. Connect the green or bare wire (grounding) from the ceiling to the

green wire with yellow stripe (grounding) from the ceiling bracket

to the green wire with yellow stripe (grounding) from the fan. See

image on previous page.

4-8. Connect the white wire (grounded) from the ceiling to the white wire

from the fan.

4-9. Connect the black wire (ungrounded) from the ceiling to the black

wire from the fan.

4-10. Connect the blue wire from the fan to the black wire with white

stripe (ungrounded) from the wall switch.

4-11. After all connections are made, turn wire connectors upward and

push them up into the outlet box. Be sure to separate the grounded

wires from the ungrounded wires inside the outlet box.

black

(ungrounded)

Steps 5-2

Canopy

Screw

Other manuals for Tribeca

Table of contents

Other Casablanca Fan manuals

Casablanca

Casablanca CEILING FAN Operating instructions

Casablanca

Casablanca S3 User manual

Casablanca

Casablanca 42900-01W User manual

Casablanca

Casablanca Campana User manual

Casablanca

Casablanca Le Grande User manual

Casablanca

Casablanca Four Seasons III Hugger User manual

Casablanca

Casablanca MA038-01 User manual

Casablanca

Casablanca Panama Halo User manual

Casablanca

Casablanca WAILEA User manual

Casablanca

Casablanca aris User manual

Casablanca

Casablanca Verrazano User manual

Casablanca

Casablanca Silhouette II User manual

Casablanca

Casablanca Ceiling fans User manual

Casablanca

Casablanca Key Largo II User manual

Casablanca

Casablanca Metropolitan User manual

Casablanca

Casablanca Axial Instruction manual

Casablanca

Casablanca 54005 User manual

Casablanca

Casablanca C42GxxxL User manual

Casablanca

Casablanca M6006-01 User manual

Casablanca

Casablanca FOUR SEASONS III User manual

Casablanca

Casablanca Cottage Wet User manual

Casablanca

Casablanca WHITMAN User manual

Casablanca

Casablanca CEILING FAN User manual

Casablanca

Casablanca Utopian 54042 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
