Casablanca Aris User manual

www.CasablancaFanCo.com 1.888.227.2178

PAGE

30 inches

7 feet

PAGE

What to Expect with

Your Installation Ceiling Bracket

Ladder

PAGE

Tools Needed

Wiring

Maintenance

& Cleaning

Blades Troubleshooting

Downrod

Switch Housing

Preparation

Canopy

PAGE

Table of Contents

PAGE

Operation

PAGE

Mounting Options

Congratulations on purchasing your new

Casablanca® ceiling fan! It will provide

comfort and performance in your home

or ofce for many years. This installation

and operation manual contains complete

instructions for installing and operating

your fan.

We are proud of our work and appreciate

the opportunity to supply you with the

best ceiling fan available anywhere in the

world.

To register your fan, please visit:

www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

PAGE

Wall Control

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip to

nearest wall or

obstruction 7 feet

from bottom

edge of blade

to the oor

Select a downrod length

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg)

and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or

servicing your fan, disconnect the power by turning off the

circuit breakers to the outlet box and associated wall switch

location. If you cannot lock the circuit breakers in the off

position, securely fasten a prominent warning device, such as a

tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage,

use only Casablanca Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade

brackets when installing the blade brackets, balancing the blades,

or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

c.1 - All wiring must be in accordance with national and local

electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions may cause

harmful interference to radio communications.

Assess ceiling angle

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Ceiling angles greater

than 34° will require an

Angled Mounting Kit.

See page 4 for details.

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

M8520-01 • 06/13/14 • © Casablanca Fan Company

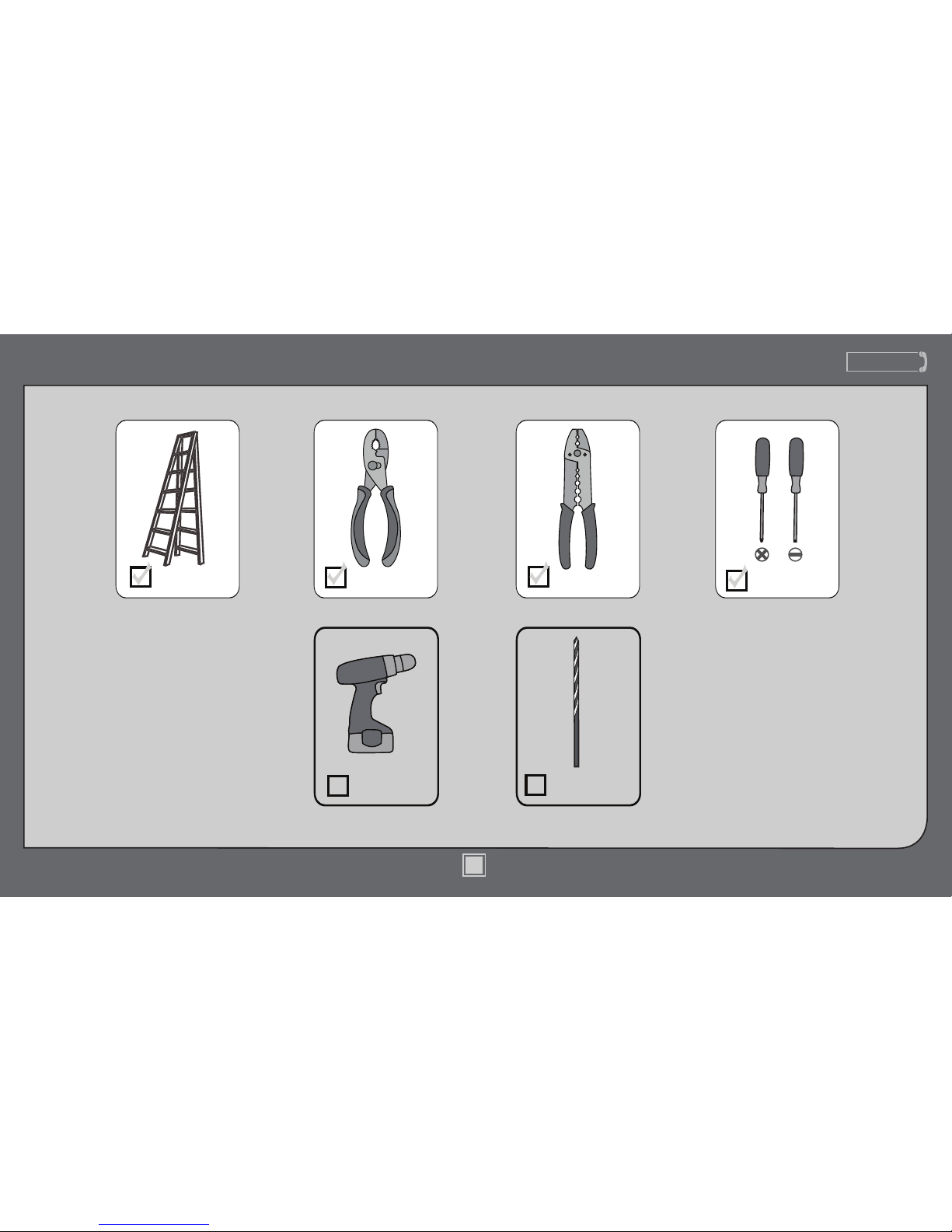

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

www.CasablancaFanCo.com 1.888.227.2178

M8520-01 • 06/13/14 • © Casablanca Fan Company

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

You need ONLY

a Longer

Downrod

*most common

If you have a at ceiling:

Hang your fan by a standard downrod (included).

Mounting Options

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line

34°

Use the three steps below to determine if your ceiling angle is greater than 34°

1.888.227.2178

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.21781.888.227.2178

www.CasablancaFanCo.com

Ceiling Bracket

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

For angled ceilings, point

opening toward peak.

If you are unable to do this,

call Technical Support at

1-888-277-2178.

Make sure all four bumpers are

still attached.

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

OFF

Turn Power

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

Preparation 1.888.227.2178

www.CasablancaFanCo.com

Remove the shipping blocks from the

motor. Discard the screws.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.CasablancaFanCo.com/FAQs and click

“How do I properly install multiple remote-

controlled fans?” for more information.

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Included

Longer

Downrod

for angled

ceilings or

ceilings 10’ or

higher

Shorter

Downrod

for fans installed

close to ceiling

Standard

Downrod

for ceilings 8-10’ high

Option 1Option 2

Option 3

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

KEEP!

8”

3/8”

(not to scale)

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Downrod (continued)

8” 3/8”

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.

M8520-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

M8520-01 • 06/13/14 • © Casablanca Fan Company

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Put the wires and downrod through the canopy.

Let the canopy sit loosely on top of the fan.

www.CasablancaFanCo.com 1.888.227.2178

Wiring

Using an orange wire

connector from

the hardware bag,

connect the three

grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the ceiling,

downrod, and hanging

bracket.

green/yellow stripe

(grounding)

green/yellow stripe

white

black

blue

white (common out)

black (fan out)

blue (light out)

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Note: To connect the wires,

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

Using the blue wire

connectors from the remote

control hardware bag,

connect the white wire

from the receiver (marked

“common out”) to the white

wire from fan. Connect the

black wire from the receiver

(marked “fan out”) to the

black wire from the fan.

Connect the blue wire from

the receiver (marked ”light

out”) to the blue wire from

the fan. The red wire from

the receiver will not be used,

it has a pre-installed wire

terminator.

Refer to CAUTION c.1 on pg. 2

Using an orange wire

connector from

the hardware bag,

connect the black wire

(ungrounded) from the

ceiling to the black wire

from the receiver (marked

“live in”). Connect the

white wire (grounded)

from the ceiling to

the white wire from

the receiver (marked

“neutral in” or

“common in”).

black (ungrounded)

white (grounded) white (neutral in)

black (live in)

Table of contents

Other Casablanca Fan manuals

Casablanca

Casablanca utopia 54040 User manual

Casablanca

Casablanca CONCENTRA User manual

Casablanca

Casablanca M6016-01 User manual

Casablanca

Casablanca 59285 User manual

Casablanca

Casablanca Metropolitan User manual

Casablanca

Casablanca Bel Air User manual

Casablanca

Casablanca CHELSEA User manual

Casablanca

Casablanca Ainsworth 55005 User manual

Casablanca

Casablanca Axial Instruction manual

Casablanca

Casablanca Stealth User manual

Casablanca

Casablanca Areto 54120 User manual

Casablanca

Casablanca S3 User manual

Casablanca

Casablanca Academy 54083 Instruction manual

Casablanca

Casablanca WAILEA User manual

Casablanca

Casablanca Bel Air Halo User manual

Casablanca

Casablanca Zephair User manual

Casablanca

Casablanca PANAMA User manual

Casablanca

Casablanca Isotope User manual

Casablanca

Casablanca Ainsworth 55005 User manual

Casablanca

Casablanca M8503-01 User manual

Casablanca

Casablanca Veneto User manual

Casablanca

Casablanca Stealth Instruction manual

Casablanca

Casablanca Le Grande User manual

Casablanca

Casablanca Wailea 59523 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual

Casablanca aris User manual

Popular Fan manuals by other brands
