CAS EC-II Series User manual

CONTENTS

1. Precautions Before Using Scale................. 7

2. Installation.......................................................... 8

A. Package Contents................................................. 8

B. Overall View......................................................... 8

3. Explanation Of Display Symbols.............. 9

4. Keypad Functions...........................................11

5. Connection Description...............................12

A. Remote port......................................................... 12

B. Extra display/Control box port....................... 12

C. RS-232 output port............................................ 15

6. Operations.........................................................16

A. Switch on & off................................................... 16

B. Zero the scale....................................................... 17

C. Sampling before counting................................. 17

D. Counting by using reduction unit weight...... 20

E. Storing PLU(Product Look UP) to Memory 21

F. Subtract container’s weight.............................. 31

G. Weight / Quantity accumulation..................... 34

H. Preset counting check range............................ 36

I. Preset weight check range.................................. 38

J. Change platform................................................. 40

7. User Programming Functions..................42

A.Auto. Shut off time span....................................42

B. Backlight type......................................................43

C. Change unit of measure from kg/g to Pound44

D. Unit weight recomputing ..................................45

E. Transmit method setting....................................46

F. Baud Rate setting.................................................47

G. Label format setting

(available when a label printer is connected.)48

H. Check alarm type...............................................49

I. Cancel Tare setting...............................................52

J. Remote platform setting.....................................53

K. Three section control signal..............................54

L. Transmit method of extra display...................55

M. Baud rate setting of extra display...................56

N. Zero Tracking Range.........................................57

O. Zero display Range............................................58

P. Stable class Range................................................59

Q. Stable class Rate..................................................60

8. Calibration(can only be done in kg/lb).61

9. Power supply & battery operation.......63

10. RS-232 Output.......................................64

11. Error Codes ............................................71

12. Technical Data........................................72

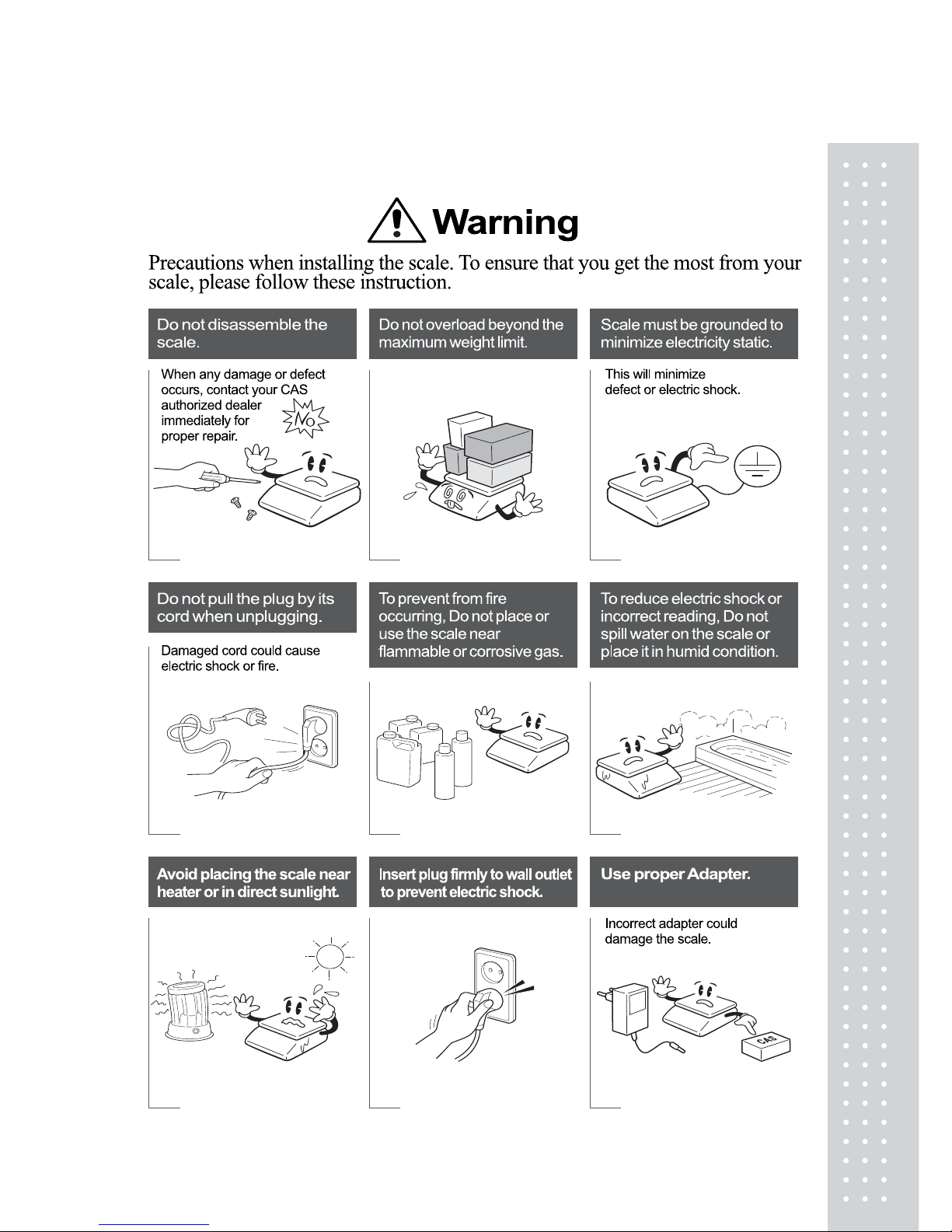

PRECAUTIONS

1. Precautions Before Using The Scale

Environment

The scale should always be used in an environment, which is free from excessive

air currents, corrosives, vibration, and temperature or humidity extremes.

These factors will affect displayed weight reading.

DO NOT install the scale:

●Next to open windows or doors causing drafts or rapid temperature changes.

●Near air conditioning or heating vents.

●Near vibrating, rotating or reciprocating equipment.

●Near magnetic fields or equipment that generates magnetic fields.

●On an unstable work surface

●In a dusty environment

●In direct sunlight.

Leveling the Scale

The scale is equipped with a level indicator on the back side, right bottom of the

front panel and four adjustable leveling feet. Adjust the leveling feet until the

bubble appears in the center circle of the indicator.

Turn on Scale

Do not turn on scale with anything on the platform.

Press the “ON/OFF” switch located on the right side of the bottom of the scale

to turn on the scale.

The scale will start to count down from nine to zero. The scale is then ready for use.

Give a warm-up for 15~30 minutes before use.

※ Attention ※

There is a dust protection cover as standard.

Before turning on the scale, the dust protection cover should be attached on the body

with using an adhesive tape so that the cover does not touch the pan. If the cover

touches the pan, a weight value can be wrong.

2. Installation

A. Package Contents

- Scale

- Power Adapter

- User Manual

- Loadcell connector : Use to connect scale with remote platform.

- RS-232 connector : Use to connect the scale with extra display.

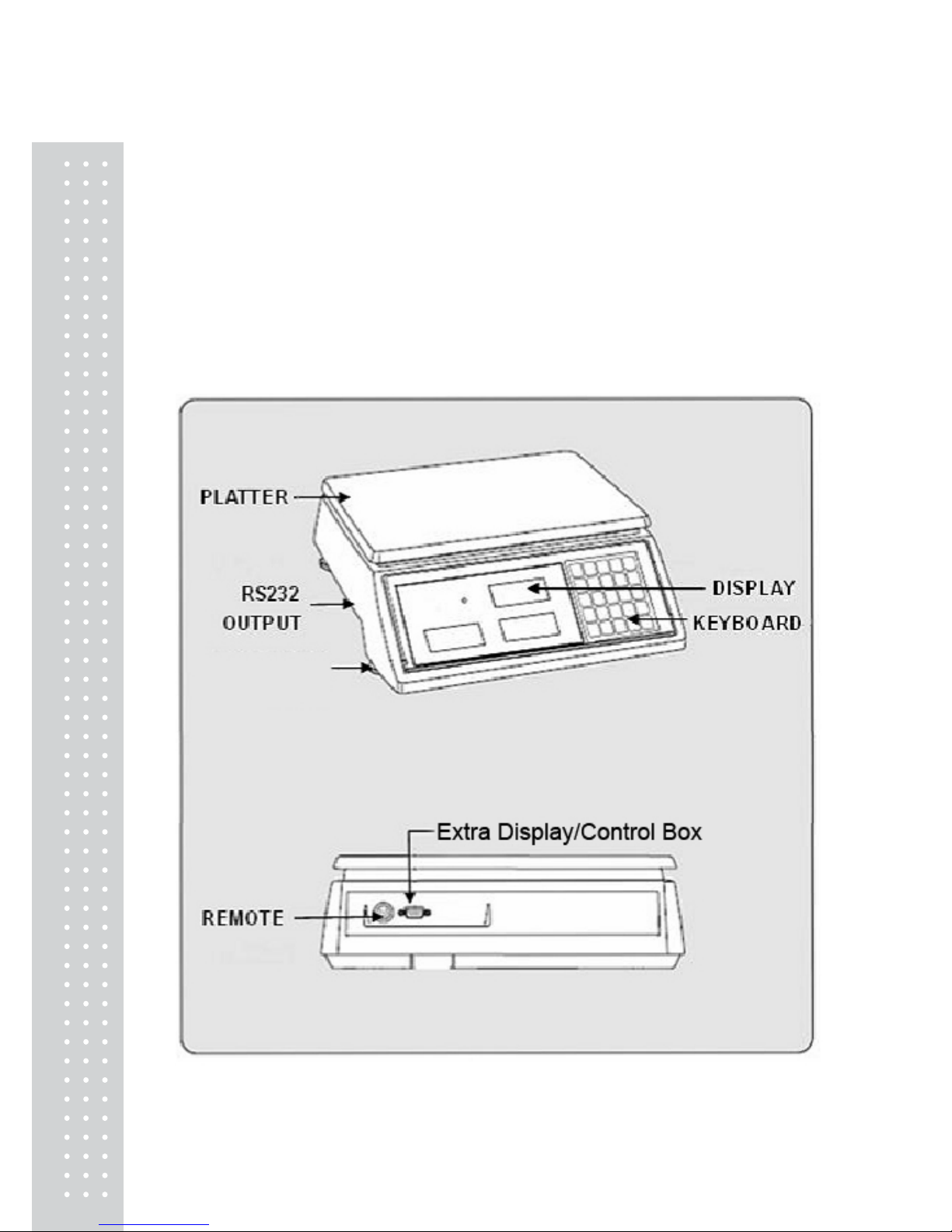

B. Overall view

LEVELING

FOO

3. Explanation Of Display Symbols

■US Version

■International Version

Display Windows

●Weight Display

Total 6 digits for weight accumulated or being measured on the pan.

●Unit Weight Display

Total 6 digits for unit weight or times of weight accumulated.

●Count Display

Total 6 digits for number accumulated or being counted on the pan.

Indicated Symbols

Symbols Specification

NET Scale is in TARE mode.

Scale is in ZERO mode.

Scale is in ACCUMULATION mode.

The display reading is in STABLE condition.

Lack of Sample Weight

If the total sample weight on the pan is less than 10 display

divisions, a triangular indicator will appear to remind the user

to add more samples until the indicator disappears.

Lack of Unit Weight

If the unit weight is less than 1/10 display divisions,

a triangular indicator will appear to remind the user that the

displayed unit weight is too small for getting accurate quantity

calculations.

Low Voltage

HI,LO,OK Check alarm function indication.

Kg/Ib Current weighing unit.

Negative

Count The scale is in negative counting mode.

Remote Remote platform is used.

4. Keypad Functions

Keys Specification

0~9 Numeric keys

Decimal point key

C Use this key to clear out the displayed numeric

readings.

Use this key to exit from setting mode.

ZERO If there is a minor weight displayed without anything on

the pan, Press the zero key to clear the display.

TARE Use this key to preset the known tare value when

nothing on the pan.

Use this key to subtract container’s weight.

SMPL Use this key to input sample size.

U.WT Use this key to input the known unit weight of item to be

counted.

ALARM Use this key to input the HIGH & LOW weight/quantity

limit for check function.

ADD Use this key to accumulate weight/quantity measured.

TOTAL Use this key to recall total weight, count & accumulation

times.

REMOTE Use this key to change remote platform.

SET Use this key to enter into User Programming Functions.

ENTER/UNIT Use this key to confirm the parameter setting.

Use this key to change weighing unit kg/Ib.

MOVE Use this key to move the parameter value in Set Mode.

Shortcut key of “10” for sampling in counting mode.

MEMORY Long press to enter into memory mode.

Press this key twice to recall stored information.

GROSS Use this key to display gross weight.
