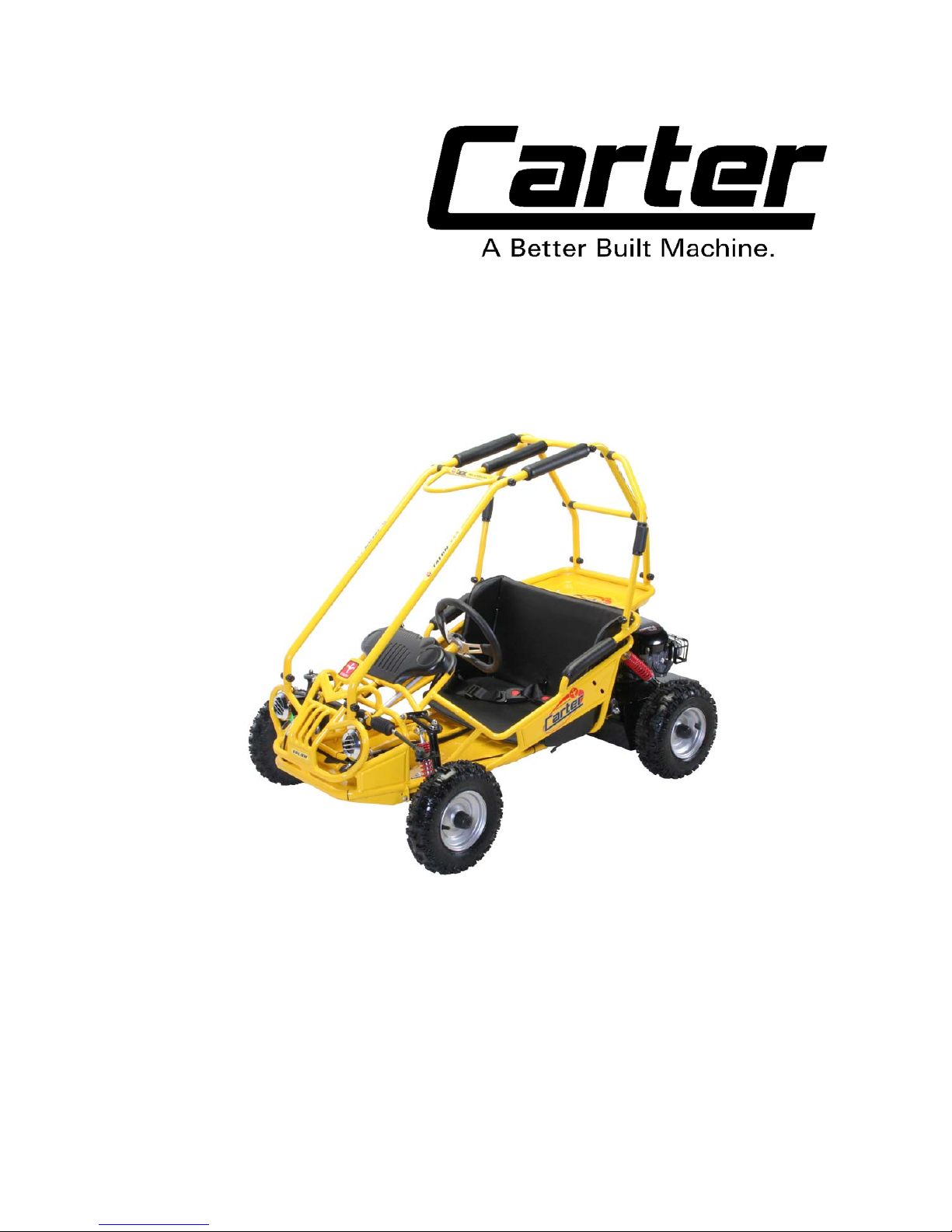

Carter 2503 User manual

Owners Manual

Parts Manual

Mini Talon model 2503

This manual contains very important safety information.

Please read the entire manual prior to using your Mini

Talon. Maintain this manual for future reference.

Revision 03.22.06v1

MINI-Talon Limited Warranty

The warranty policy applies to those cases where the new vehicle is unloaded from its

shipping container, set up and delivered by an authorized dealer and under normal use

and service is found to have defects in parts or workmanship under the following terms

and conditions. This warranty covers the MINI-Talon and related components, except

engine, for a period of 90 days. The engine is warranted by the manufacturer. The engine

warranty can be found in the engine manual.

This warranty does not apply to any part, which in opinion of the seller, or

manufacturer, was defective because of improper maintenance, improper assembly,

alterations, abuse, negligence or accident.

Should warranty service be required on your MINI-Talon during the warranty

period, please contact your nearest authorized dealer for repairs.

What is not covered under this warranty?

Misuse, negligence, alterations, accidents or any abnormal use including non-Genuine

parts, renting or leasing, competition or racing. This warranty does not cover loss of use

of the unit or loss of time, inconvenience, or normal wear and deterioration caused by the

use or storage of consumable items such as spark plugs, chains, brake shoes, fuses, clutch

plates, sprockets, light bulbs, battery and tires.

Carter Brothers Manufacturing Co., Inc.

1871 US Hwy 231

Brundidge, AL 36010

(P) 1-800-523-5278

(F) 1-334-735-3500

Contents

OwnersManual Page

1. Foreword------------------------------------------------------------------------------------------3

2. Safety----------------------------------------------------------------------------------------------4

3. Ready to Drive?----------------------------------------------------------------------------------9

4. Operation----------------------------------------------------------------------------------------12

5. Adjustments-------------------------------------------------------------------------------------14

6. Periodic Checks and Services ----------------------------------------------------------------18

PartsManual Page

1. Frame Group -----------------------------------------------------------------------------------22

2. Steering Shaft Assembly ---------------------------------------------------------------------24

3. Suspension Arm Assembly -------------------------------------------------------------------26

4. Axle Section ------------------------------------------------------------------------------------28

5. Rear End ----------------------------------------------------------------------------------------30

6. Wire Elec. Seat ---------------------------------------------------------------------------------32

Thank you for purchasing our MINI-Talon. We hope you will enjoy it. Before

you operate the Mini-Talon, please read through this Owner’s Manual carefully as it

contains important safety and maintenance information. Failure to follow the warnings

contained in this manual can result in serious injuries.

Be sure to follow the recommended maintenance schedule and service your

MINI-Talon accordingly. Preventive maintenance is extremely important to the

longevity of your MINI-Talon.

Beginners should seek instructions from your dealer or qualified instructors

before and during initial use of the MINI-Talon. It is also recommended to practice in a

large open area and to familiarize yourself with the operations of this MINI-Talon.

We hope you will have a pleasant experience with our products and thanks again

for choosing our MINI-Talon.

SAFETY

2.1 Notes to Parents

We know that you, as parent, will have your youngster’s safety foremost in mind.

Serious injury can result from the improper use of MINI-Talons. Your youngster’s safety

will depend on you taking a “safety first” approach to MINI-Talon driving at all times. It

is important to carefully read and follow the instructions and warnings contained in this

manual and on the labels pasted on the MINI-Talon.

Once your youngster is ready to learn to drive, you must be familiar with this

MINI-Talon. You will be serving as teacher, coach, and safety supervisor for your

youngster. You must know the controls, handling characteristics, maintenance

requirements, and proper driving techniques. Read and understand this manual and labels

attached to this vehicle. You must supervise your youngster’s operation of this MINI-

Talon at all times and permit continual use only if you determine your youngster has the

ability and judgement to operate this MINI-Talon safely.

Teaching your youngster MINI-Talon safety is a step-by-step process. It begins

with safety rules and moves to actual driving procedures. Since youngsters learn at

different rates, it is up to you to set the pace of your youngster’s progress. At some point

you may decide that he or she is not ready to drive this MINI-Talon.

Always closely supervise your youngster’s driving. This is true even if your

youngster has learned and mastered the rules and skills of safe MINI-Talon driving.

Youngsters get tired and become careless easily. They do not always see everything that

is important around them. Your close supervision and good judgement are a must.

Show your youngster how to use each control as you describe its action. Refer to

this manual to learn control location and function before instructing your youngster. Test

yourself by operating the controls. Have your youngster dress in proper protective gear

and sit in the machine as you point out each control. It is important to have your

youngster wear protective gear whenever siting in this MINI-Talon.

2.2 Safety Introduction

In order to keep everyone safe, you must take responsibility for the safe operation of your

MINI-Talon.

To help you make informed decisions about safety, we have provided operating

procedures and other information on labels and in this manual. This information alerts

you to potential hazards that could hurt you or others. It is not practical or possible to

warn you about all hazards associated with operating or maintaining a MINI-Talon. You

must use your own good judgement. You will find important safety information in a

variety of forms, including:

Safety Labels On the kart

Safety Messages Proceeded by a safety alert symbol and one of two signal

words: WARNING or CAUTION

SAFETY

WARNING

Physical harm may result from failure to adhere to the instructions that are described

within the WARNING labels.

This entire manual is filled with important safety information. Please read it carefully.

2.3 Protective Gear

To parents: MINI-Talon driving demands that your youngster wears proper protective

gear. MINI-Talon drivers should ALWAYS wear a helmet, eye protection, gloves, long

pants, a long-sleeved shirt or jacket, and over-the-ankle boots. Anything less is not

adequate protection. NEVER let anyone drive a MINI-Talon without an approved

helmet. Be sure it fits correctly. It should be snug but not tight. It must be properly

fastened. Have your youngster wear safety gear whenever getting in a MINI-Talon. This

action will stress the importance of safety gear and help to develop safe driving habits.

Helmets and gloves can be purchased from your dealer. You can also purchase safety

gear from Carter Brothers Manufacturing Co. by calling 800-523-5278 or visiting us at

www.carterbro.com.

2.4 Safety Information

There is much that can be done to protect the operator of the MINI-Talon. You will find

many helpful recommendations throughout this manual. The following are a few that we

consider most important.

Always Wear Protective Gear

It’s a proven fact that helmets significantly reduce the number and severity of head

injuries. Always wear an approved motorcycle helmet, eye protection, sturdy boots,

gloves, and other protective gear. Always fasten seat belts. Correctly fastened and

adjusted seatbelts will protect the operator and passenger.

Drive Off-Road Only

Your MINI-Talon is designed and manufactured for off-road use only. The tires are not

made for pavement. If you need to cross a paved or public road, get off and walk your

MINI-Talon across.

Do Not Operate This MINI-Talon at Night

Darkness can greatly reduce a driver’s visibility and judgement. Driving at night is

dangerous and will increase the possibility of an accident

Never Run Your MINI-Talon Indoors

The exhaust from the engine contains a tasteless, odorless, and poisonous gas called

carbon monoxide.

SAFETY

Keep Away From Moving Parts of the MINI-Talon

No one should ever place their hands or other parts of their body near any moving part of

the MINI-Talon. Failure to adhere to this warning will cause physical harm to your body.

Skidding or Sliding

The terrain surface can be a major factor affecting turns. Skidding in a turn is more likely

to occur on slippery surfaces such as snow, ice, mud, and loose gravel. If you skid, you

may lose all directional control. To avoid skidding, keep your speed low and drive

carefully.

Hold On to the Wheel

Driving without holding onto the steering wheel is very hazardous.

Always drive at a safe speed, depending on the situation.

Driving down a slope too fast may result in the MINI-Talon overturning.

A wet road prolongs the stopping distance of your vehicle. Always take care that you

only drive at a speed at which you are able to stop in time.

Going downhill at considerable speed may be achieved, requiring a longer breaking time.

Taking sharp turns at a high speed may also cause the MINI-Talon to overturn.

2.5 Safety Labels

This section presents some of the most important information and recommendations to

help you drive your MINI-Talon safely. Please take a few moments to read the labels on

your MINI-Talon. (Fig. 1)

The labels should be considered permanent parts of the MINI-Talon. If a label comes off

or becomes hard to read, contact your dealer for warning label replacements.

Fig. 1

SAFETY

2.6 Safe Driving Precautions

Off- Road Use Only

The MINI-Talon and its tires are designed and manufactured for off-road use only and

not for pavement use. Driving on pavement can cause poor handling and control. Your

youngster should not drive the MINI-Talon on pavement.

WARNING

Operating this MINI-Talon on paved surfaces

may seriously reduce effective handling and

control of the MINI-Talon, and may cause the

kart to go out of control. Never operate the MINI-

Talon on any paved surfaces, including sidewalks,

driveways, parking lots, and streets.

When driving off-road, remember to always obey local off-road driving laws and

regulations. Obtain permissions to drive on private property. Avoid restricted areas and

obey “no trespassing” signs.

Keep Hands and Feet on Controls

Feet must stay on the foot pedals at all times and hands must stay on the steering wheel.

Be sure to stress this important rule. It is important to maintain balance and to control

the MINI-Talon. Removing hands or feet away from the controls can reduce your ability

to react and control the MINI-Talon.

WARNING

Removing hands from Steering wheel or feet from

foot controls during operation can reduce your

ability to control the MINI-Talon or could cause

you to lose your balance and fall off the MINI-

Talon. Always keep both hands on the steering

wheel and both feet on the foot controls of your

MINI-Talon during operation.

Hot Components

Show your youngster the engine, exhaust pipe, and muffler. Tell him or her not to touch

these parts because they are hot. Explain that they will remain hot after the engine is

stopped. Also explain that hands and feet must be kept away from all moving parts of the

MINI-Talon.

Inspection

Your youngster’s safety depends in part on the condition of the MINI-Talon. Be sure to

inspect it before each use. Starting and refueling of the vehicle should only be done by

responsible adults. Follow a regular maintenance program.

SAFETY

Adult Supervision

Even after young drivers have learned the basic driving skills, direct supervision by an

experienced adult is necessary AT ALL TIMES. Make sure that all MINI-Talon users

under your supervision get proper driving instructions. Follow safety precautions strictly

to provide a “safety first” approach to MINI-Talon driving. Teaching your youngster

how to drive the MINI-Talon safely will increase the enjoyment of MINI-Talon.

Control Speed

Driving at excessive speed increases the chance of an accident. In choosing a proper

speed, you need to consider the capability of your MINI-Talon, the terrain, visibility and

other operating conditions, plus operator skills and experience.

WARNING

Operating this MINI-Talon at excessive speed in

creases your chances of losing control of the

MINI-Talon, which can result in an accident.

Always drive at a speed that is proper for your

MINI-Talon. Your speed will be affected by the

terrain, visibility and other operating conditions,

and your experience.

Use Care on Unfamiliar or Rough Terrain

Before letting your youngster drive in a new area, always check the terrain thoroughly.

Don’t let them drive fast on unfamiliar terrain or when visibility is limited. Watch out for

obstructions like hidden rocks, bumps, or holes.

WARNING

Failure to use care when operating this MINI-

Talon on unfamiliar terrain could result in the

MINI-Talon overturning or going out of control.

Go slowly and be extra careful when operating on

unfamiliar terrain. Always be alert to changing

terrain conditions when operating the MINI-

Talon.

Never let your youngster drive past the limit of visibility. Maintain a safe distance

between their MINI-Talon and other off-road vehicles. Always exercise caution and use

extra care on rough, slippery, and loose terrain.

Ready to Drive?

WARNING

Failure to use extra care when operating on

excessively rough, slippery, or loose terrain could

cause loss of traction or vehicle control, which

could result in an accident, including an overturn.

Do not operate on excessively rough, slippery, or

loose terrain until you have learned and practiced

the skills necessary to control the MINI-Talon on

such terrain. Always be especially cautious on

these kinds of terrain.

Do Not Perform Stunts

Your youngster should always operate their MINI-Talon in a safe and reasonable manner.

When driving, they should always keep all four wheels on the ground.

WARNING

Attempting wheelies, jumps, and other stunts

increases the chance of an accident, including an

overturn.

Never attempt stunts, such as wheelies or jumps.

Before the MINI-Talon is driven for the first time, we urge you to:

♦Read this owner’s manual and the labels on your MINI-Talon carefully.

♦Make sure you understand all the safety messages.

♦Know how to operate all the controls and insure your youngster has been taught and

understands how to operate all the controls.

Table of contents

Other Carter Utility Vehicle manuals

Carter

Carter INTERCEPTOR GTR 250 User manual

Popular Utility Vehicle manuals by other brands

Polaris

Polaris ACE 900 SP owner's manual

TrailMax

TrailMax T-12-UR manual

Floe

Floe Cargo Max 9.5-73 Assembly instructions

Toro

Toro 07277 Workman 2110 Operator's manual

Taylor-Dunn

Taylor-Dunn B0-050-00 Operation, t roubleshooting and replacement parts manual

Toro

Toro 133-7128 installation instructions

Taylor-Dunn

Taylor-Dunn ET 3000 manual

Kayo

Kayo S70 Assembly manual

Range Road

Range Road RR608 Assembly manual

Landoll

Landoll 900D Series Operator's manual

pronovost

pronovost PUMA-10000 Operator's manual

SSI SCHAEFER

SSI SCHAEFER WEASEL LITE user manual

Club Car

Club Car TURF 272 2005 Maintenance service manual

Toro

Toro 07059TC Operator's manual

Cushman

Cushman Turf Truckster 84069 Parts & maintenance manual

BERG

BERG Large Trailer user manual

Cub Cadet

Cub Cadet Big Country 641 Operator's manual

Westward

Westward Go-4 XTR Operator's manual
