Carrier T-55 User manual
1
808-255
02/00
INSTALLATION INSTRUCTIONS
T-55 SPACE TEMPERATURE SENSOR WITH OVERRIDE
T-56 SPACE TEMPERATURE SENSOR WITH OVERRIDE & SETPOINT ADJUSTMENT
COMPONENT LIST
The Model T-55 Space Temperature Sensor with Override and T-56 Space Temperature Sensor
with Override & Setpoint Adjustment consists of the following components:
• (1) Space temperature sensor
• (2) 6-32" x 1" round head machine screws
LOCATING THE SENSOR
The T-55 and T-56 space temperature sensors measure building interior temperature and should be
located on an interior building wall. The sensor wall plate accommodates the NEMA standard 2 x 4
junction box. The sensor can be mounted directly on the wall surface if acceptable by local codes.
Do not mount the sensor in drafty locations such as near air conditioning or heating ducts, over heat
sources such as baseboard heaters, radiators, or directly above wall mounted lighting dimmers. Do
not mount the sensor near a window that may be opened, or near a wall corner or door. Sensors
mounted in these areas will have inaccurate and erratic sensor readings.
Mount the sensor approximately 5 ft from the floor, in an area representing the average temperature
in the space. Allow at least 4 ft between the sensor and any corner and mount the sensor at least 2 ft
from an open doorway.
Note: Clean sensor with damp cloth only. Do not use solvents.
TO INSTALL THE T-55 AND T-56 SENSOR
(See Figure 1 below)
1. Locate the two Allen-type screws at the bottom of the sensor.
2. Turn the two screws clockwise to release the cover from the sensor wall mounting plate.
3. Lift the cover from the bottom and then release it from the top fasteners.
4. Feed the wires from the electrical box through the opening in the center of the sensor mount-
ing plate.
808-255
02/00 2
5. Using two no. 6-32 x 1 mounting screws (provided with the sensor) secure the sensor to the
electrical box.
6. Use 20 gage wire to connect the sensor to the controller. The wire is suitable for distances of
up to 500 ft. Use a three-conductor shielded cable for the sensor and setpoint adjustment
connections. The standard CCN communication cable can be used. If the setpoint adjustment
(slidebar) is not required, then an unshielded, 19 or 20 gage, two-conductor, twisted pair
cable can be used.
The CCN network service jack requires a separate, shielded CCN communication cable.
Always use separate cables for CCN communication and sensor wiring. (Refer to Figure 2 or
3 for wire terminations.)
7. Replace the cover by inserting the cover at the top of the mounting plate first, then swing the
cover down over the lower portion. Rotate the two Allen head screws counterclockwise until
the cover is secured to the mounting plate and located in position.
8. For more sensor information, see Table 2 for thermistor resistance vs. temperature values.
Figure1
T-56 Space Temperature Sensor
Warm
Cool
3
808-255
02/00
WIRING THE T-55 AND T-56 SENSOR
1. Refer to Figure 2 or 3. Identify the sensor wiring cable. If using 3-conductor cable, this cable
will contain a red, black, and white wire.
2. Strip back the cable jacket for at least 3 inches. Strip 1/4 in of insulation from each conduc-
tor. Cut the shield and drain wire from the sensor end of the cable.
3. Connect the sensor cable as follows:
a. Connect the Red wire to the SPT terminal on the controller. Connect the other end of the
Red wire to the left terminal on the sensor's SEN terminal block.
b. Connect the Black wire to the SPTGND terminal on the controller. Connect the other end
of the Black wire to the remaining open terminal on the sensor's SEN terminal block.
c. On the T-56 sensor, connect the remaining wire (White/Clr) to the controller's T-56
terminal. Connect the other end of the White/Clr wire to the rightmost terminal on the
sensor's SET terminal block.
d. On T-56 sensors, install a jumper between the two center terminals (right SEN and left
SET).
WIRING THE CCN NETWORK COMMUNICATION SERVICE JACK
Wire Specifications
The Carrier Comfort Network (CCN) Communication Bus wiring is field supplied and field in-
stalled. It consists of shielded three-conductor cable with drain (ground) wire. The cable selected
must be identical to the CCN Communication Bus wire that is being used for the entire network.
Refer to the CCN Installation and Start-up Manual (808-211) for recommended cable types. Refer
to Table 1 for color code recommendations. For wiring instructions, refer below to the instructions
titled To Wire the CCN Service Jack.
808-255
02/00 4
Table 1
Color Code Recommendations
Signal Type CCN BUS Wire Plug Pin
Color Number
+ Red 1
Ground White 2
- Black 3
Note: The communication bus drain wires (shields) must be tied together at each controller. If the
communication bus is entirely within one building, the resulting continuous shield must be
connected to ground at only one single point. If the communication bus cable exits from
one building and enters another building, connect the shields to ground at a lightning
suppressor in each building where the cable enters or exits (one point only).
To Wire the CCN Service Jack
1. Refer to Figures 2 and 3 below. Strip back the jacket from the CCN communication cable(s)
for at least 3 inches. Strip 1/4 in of insulation from each conductor. Remote the shield and
separate the drain wire from the cable. Twist together all the shield drain wires and fasten
them together using an closed end crimp lug or a wire nut. Tape off any exposed bare wire to
prevent shorting.
2. Connect the CCN + signal wire(s) (Red) to Terminal 5.
3. Connect the CCN - signal wire(s) (Black) to Terminal 2.
4. Connect the CCN Gnd signal wire(s) (White/Clr) to Terminal 4.
5. Connect to the RJ-11 port using the Network Service Tool or a similar CCN user interface
and verify that you can communicate with CCN controllers on the CCN Communication Bus.
5
808-255
02/00
Figure2
T-55 Space Temperature Sensor Wiring
Figure3
T-56 Space Temperature Sensor Wiring
234561
SW1
SEN SET
Cool Warm
WHT
(T56)
BLK (GND)
RED (SPT)
RED(+)
WHT(GND)
BLK(-) CCN COM
SENSOR WIRING
JUMPER
TERMINALS
AS SHOWN
234561
SW1
SEN
BLK (GND)
RED (SPT)
RED(+)
WHT(GND)
BLK(-) CCN COM
SENSOR WIRING
808-255
02/00 6
Table2
Thermistor Resistance vs Temperature Values
for Space Temperature Sensor
Temp Temp Resistance
(C) (F) (Ohms)
-40 -40 335,651
-35 -31 242,195
-30 -22 176,683
-25 -13 130,243
-20 -4 96,974
-15 5 72,895
-10 14 55,298
-5 23 42,315
0 32 32,651
5 41 25,395
10 50 19,903
15 59 15,714
20 68 12,494
25 77 10,000
30 86 8,056
35 95 6,530
40 104 5,325
45 113 4,367
50 122 3,601
55 131 2,985
60 140 2,487
65 149 2,082
70 158 1,752
This manual suits for next models
1
Table of contents
Other Carrier Temperature Controllers manuals
Carrier
Carrier ZS Standard User manual
Carrier
Carrier P/N 33CSSN2-MH User manual
Carrier
Carrier ZS Plus User manual
Carrier

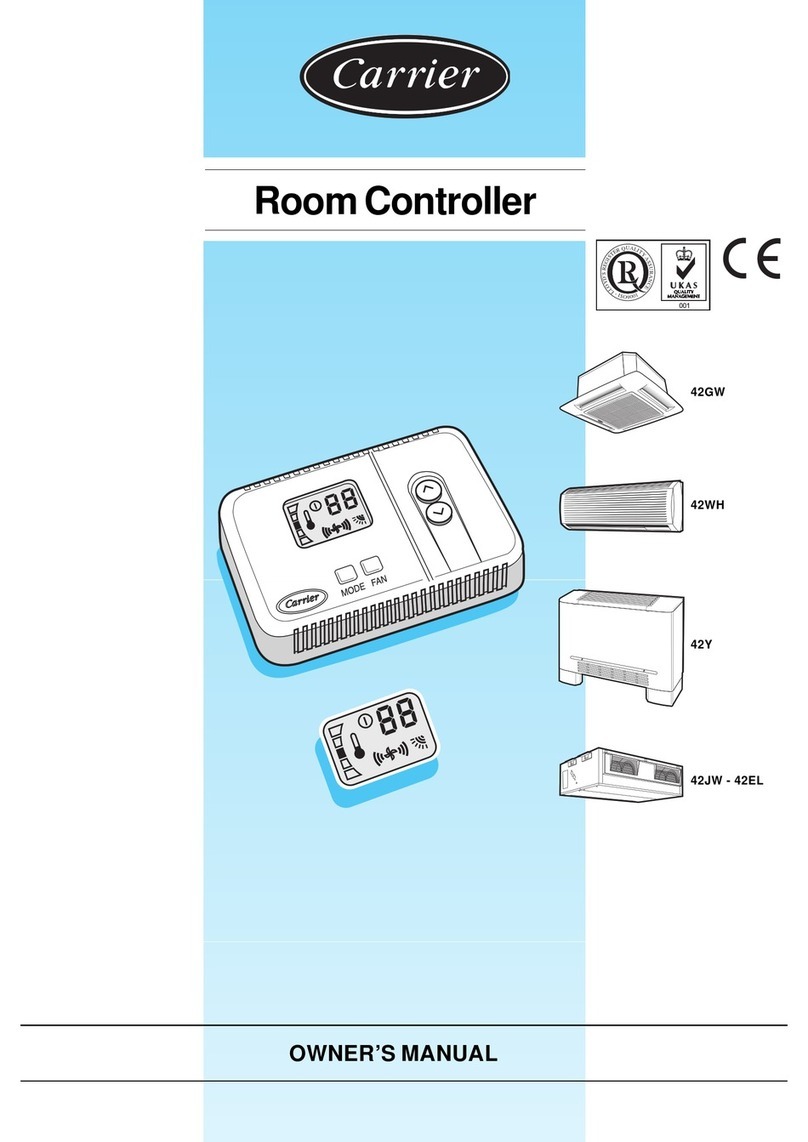

Carrier Room Controller User manual
