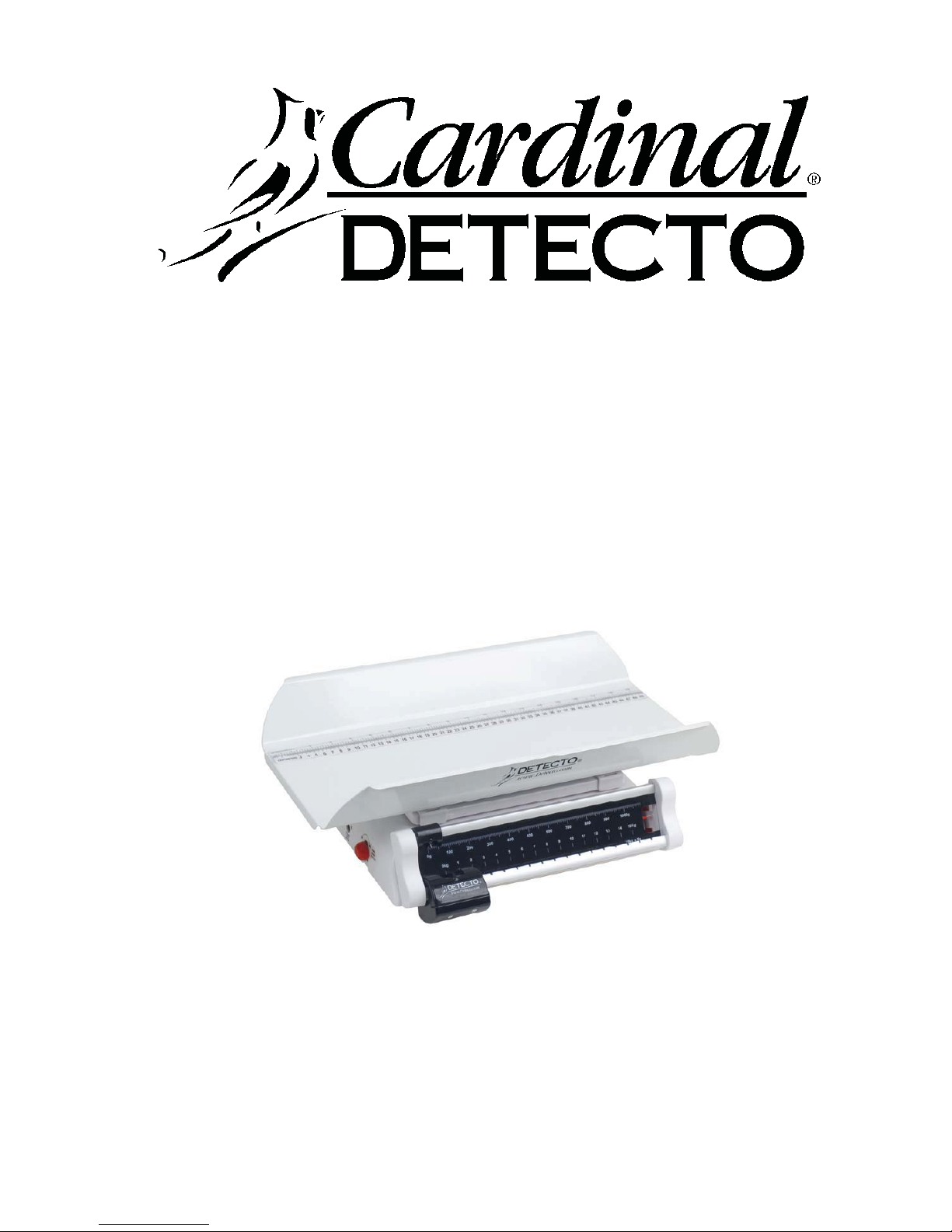

Cardinal 2341 User manual

MODEL 2341

BABY SCALE

Owners Manual

CARDINAL SCALE MFG. CO.

8535-M213-O1 Rev. B PO BOX 151 xWEBB CITY, MO 64870

06/11 PH

(

417

)

673-4631 xFAX

(

417

)

673-5001

Web Site - http://www.detectoscale.com

Technical Support: Ph: 866-254-8261 y[email protected]

SPECIFICATIONS

Capacity ................... 16 kg x 5 kg

Tray Size ................. 51 cm W x 20 cm D / 20 in W x 8 in D (flat portion)

Overall Size ............. 51 cm W x 33 cm D x 19 cm H / 20 in W x 13 in D x 7.5 in H

Application ............... Non legal for trade

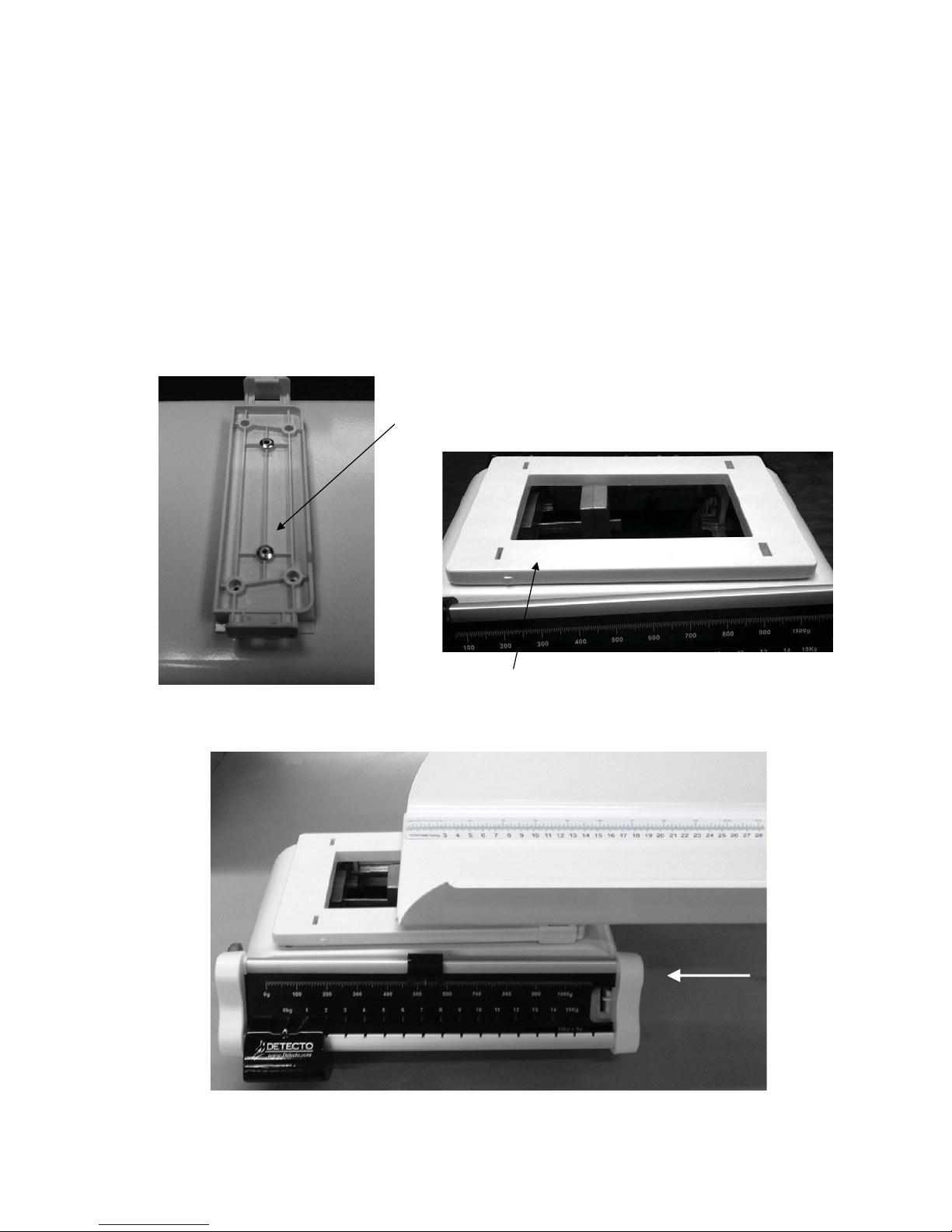

UNPACKING AND SET-UP INSTRUCTIONS

1. Remove scale and tray from carton and packing.

2. Set scale on firm level surface.

3. Attach tray to scale by sliding tray brackets (fig. 2) onto weighbridge (fig. 1) of scale

base from right side to left as shown (fig. 3) until it snaps in place.

fig. 1 (bottom view)

fig. 2

Weighbridge

Tray Bracket

Slide Tray

fig. 3

1

4. Unlock the beam by rotating the lock knob as indicated on the right side of the scale.

(fig. 4)

fig. 4

5. To zero scale, slide both upper & lower poise weights to the far left until they point to 0

. Using the screwdriver adjust the coarse zero adjustment screw (clockwise to raise

inter

. Turn the fine zero adjust knob (counter clockwise to raise beam, clock wise to lower

Upper Poise

fig. 5

Lower Poise

6

beam, counter clockwise to lower beam) until the floating beam pointer and fixed po

are nearly aligned. (fig. 6)

7

beam) to complete alignment of pointers.

fig. 6

2

OPERATING INSTRUCTIONS

1. Before weighing, make certain the scale is set to zero. See set-up above if it is not.

2. Place infant on scale.

3. Lift the large lower poise and slide it until the beam tip starts

4. Slide the small upper poise until the beam pointer aligns with the fixed pointer. (fig. 7)

5. Read and record weight.

6. Remove infant from scale.

CAUTION: DO NOT LEAVE CHILD UNATTENDED ON SCALE!

Beam Pointer

Fixed Pointer

fig. 7

3

4

5

6
