Caple ATA900 User manual
Sense Atara Chimney Hood
Instruction Manual
ATA900
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
2
Instruction manual ATA900
2Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 9
Installation 10
Operation 16
Care and Maintenance 17
Troubleshooting 19
Product Dimensions 20
Caple Contact Details 24
3
3
Please keep this instruction manual for future reference Instruction manual ATA900
INTRODUCTION
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your new extractor, we strongly suggest that you read
this instruction manual thoroughly before use. If treated with care, your Caple extractor should
give you years of trouble-free use.
To register ownership, please follow the instructions on the guarantee card supplied with the
appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to the
installation, use and maintenance of the appliance.
This hood is designed to extract unpleasant odours from the kitchen; it is not intended to extract
steam. In order to operate the unit correctly and safely, please read this instruction manual
carefully before installation and use.
The cooker hood uses high quality materials and is made with a streamlined design. Equipped with
an electric motor and centrifugal fan, it provides strong extraction with low noise. It also features
non-stick grease filters and an easy installation.
4
Instruction manual ATA900
4Please keep this instruction manual for future reference
IMPORTANT
-This appliance must only be used for the purpose it is
intended. Other types of use are not permitted and may
prove dangerous. Caple will not be held liable for any
damage caused by the incorrect use of the appliance.
-Do not use any accessories or attachments not
recommended by Caple as this may result in fire, electric
shock or injury.
-To protect against fire, electrical shock and injury to
persons, do not immerse cords or plugs in water or any
other liquid.
-Never touch the appliance with wet or damp hands.
-Never pull the power cable as you could damage it.
If the appliance is faulty, do not attempt to repair it.
Isolate it from the mains electric supply and contact
Caple Service either by phone
0117 938 7420 or email service@caple.co.uk
-Keep all packaging (including plastic bags, polystyrene
foam etc) out of the reach and away from children.
-Do not rest large or unstable objects on any part of
the appliance.
5
5
Please keep this instruction manual for future reference Instruction manual ATA900
IMPORTANT
-Caple cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that Caple reserve the right to invalidate
the guarantee supplied with this product following
incorrect installation or misuse of the appliance. Under
no circumstances should any external covers be removed
for servicing or maintenance except by suitably
qualified personnel.
SAFETY INSTRUCTIONS
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned regularly
in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames under
the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
6
Instruction manual ATA900
6Please keep this instruction manual for future reference
-If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then
its flue must be of the sealed or balanced flue type. If
other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of extraction,
room volume, length of ducting, ventilation available and
the cleanliness of the filters.
7
7
Please keep this instruction manual for future reference Instruction manual ATA900
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.
8
Instruction manual ATA900
8Please keep this instruction manual for future reference
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate the
appliance from the electrical supply.
ELECTRICAL SHOCK HAZARD
-Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-This appliance must be connected to the mains by a
competent person. We recommend that the appliance is
connected by a qualified electrician who is a member of
the N.I.C.E.I.C who will comply with the I.E.E and local
regulations. Electrical information can be found on the
rating plate.
9
9
Please keep this instruction manual for future reference Instruction manual ATA900
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk
10
Instruction manual ATA900
10 Please keep this instruction manual for future reference
INSTALLATION
Prepare for the installation:

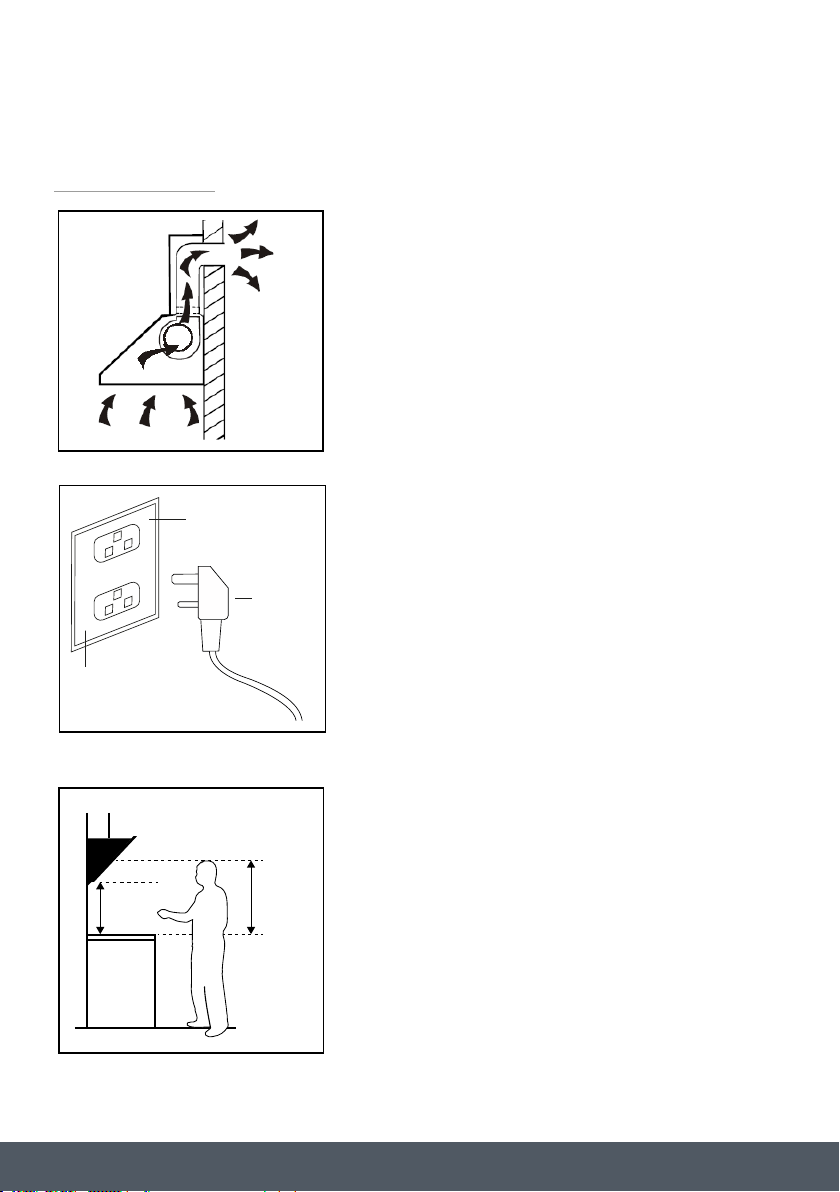

If you have an outlet to the outside, your cooker hood can
be connected as per the below picture by means of an
extraction duct with an interior diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be installed so that there is a
space
of 650-760mm from the centre of the mesh grease filters
to the hob (435-545mm from the bottom of the hood to
the hob). It is the manufacturer of the hob who determines
the clearance required and the clearance quoted by the
hob manufacturer must be followed. In the absence of any
instructions supplied with a gas hob the minimum distance
between the hob and the centre of the mesh grease filters
must be at least 760mm.
4
435-545mm 650-760mm
Earthed Outlet Box
Earthed Plug
Earthed Outlet
