Canon PowerShot S50 Instruction Manual

CHAPTER 4. PARTS CATALOG

CONTENTS

PowerShot S50

Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1

Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2

Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3

Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg4

Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg5

Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg6

Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg7

Service Tools-2 ----------------------------------------------------------------------------------------------------------------------- Pg8

Category of CLASS

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

Y: Service Tools

PowerShot S50

Casing Parts

Pg1

28 34

910 31

13 12

16 17

22 23

33 24

PARTS LIST

PowerShot S50

Pg1

1 CM1-1592-000 B 1 BARRIER UNIT SILVER

CM1-1579-000 B 1 BARRIER UNIT BLACK

2 CM1-1591-000 B 1 FRONT COVER UNIT SILVER

CM1-1578-000 B 1 FRONT COVER UNIT BLACK

3 CD1-4980-000 B 1 BASE, STRAP SILVER

CD1-4953-000 B 1 BASE, STRAP BLACK

4 CD1-3919-000 C 1 PLATE, LEFT

5 CD1-4977-000 B 1 BARRIER, DC SILVER

CD1-4950-000 B 1 BARRIER, DC BLACK

6 CS8-5250-000 C 1 SPRING, DC BARRIER

7 CS8-5252-000 C 1 SPRING, FRONT GRAND

8 CD1-3920-000 C 1 PIN, BAR DETECT

9 CM1-1211-000 C 1 BARRIER FPC UNIT

10 WK1-5140-000 C 1 BATTERY, LITHIUM (2ND)

11 CD1-3921-000 C 1 PLATE, BAR DETECT 1

12 CD1-3922-000 C 1 PLATE, BAR DETECT 2

13 CD1-3923-000 C 1 SPACER, BAR E

14 CD1-3912-000 C 1 PLATE, BAR PLANE

15 CD1-3911-000 C 1 SPACER, BAR

16 CS8-5251-000 C 1 SPRING, BAR LOCK LEV

17 CD1-3913-000 C 1 PLATE, BAR LOCK

18 CM1-1595-000 B 1 TOP COVER UNIT SILVER

CM1-1583-000 B 1 TOP COVER UNIT BLACK

19 CD1-3964-010 C 1 SHEET, SPEAKER

20 CM1-1593-000 B 1 BOTTOM LID UNIT SILVER

CM1-1580-000 B 1 BOTTOM LID UNIT BLACK

21 CD1-4976-000 B 1 COVER, JACK SILVER

CD1-4949-000 B 1 COVER, JACK BLACK

22 CD1-3938-000 C 1 SPACER, LCD

23 CD1-3906-010 B 1 WINDOW, LCD

24 CM1-1594-000 B 1 REAR COVER UNIT SILVER

CM1-1582-000 B 1 REAR COVER UNIT BLACK

25 CY1-6253-000 B 1 PLATE, BODY NUMBER (J) SILVER

(FOR JAPAN)

#13111xxxxx

CY1-6254-000 B 1 PLATE, BODY NUMBER (N) SILVER

(FOR USA/CANADA)

#13211xxxxx

CY1-6255-000 B 1 PLATE, BODY NUMBER (E) SILVER

(FOR EUROPE)

#13311xxxxx

CY1-6257-000 B 1 PLATE, BODY NUMBER (N) BLACK

(FOR USA/CANADA)

#13211xxxxx

26 CD1-3908-000 C 1 BUSH, SPEAKER

27 CD1-4992-000 C 1 WASHER

28 CD1-4046-000 C 3 SCREW SILVER

CD1-4958-000 C 3 SCREW BLACK

29 XA1-7170-257 F 1 SCREW

30 CD1-4045-000 C 2 SCREW

31 XA4-9140-307 F 3 SCREW

32 XA1-7140-287 F 1 SCREW

33 XA4-9170-359 F 1 SCREW

34 CD1-4045-000 C 7 SCREW SILVER

CD1-4957-000 C 7 SCREW BLACK

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S50

Pg2

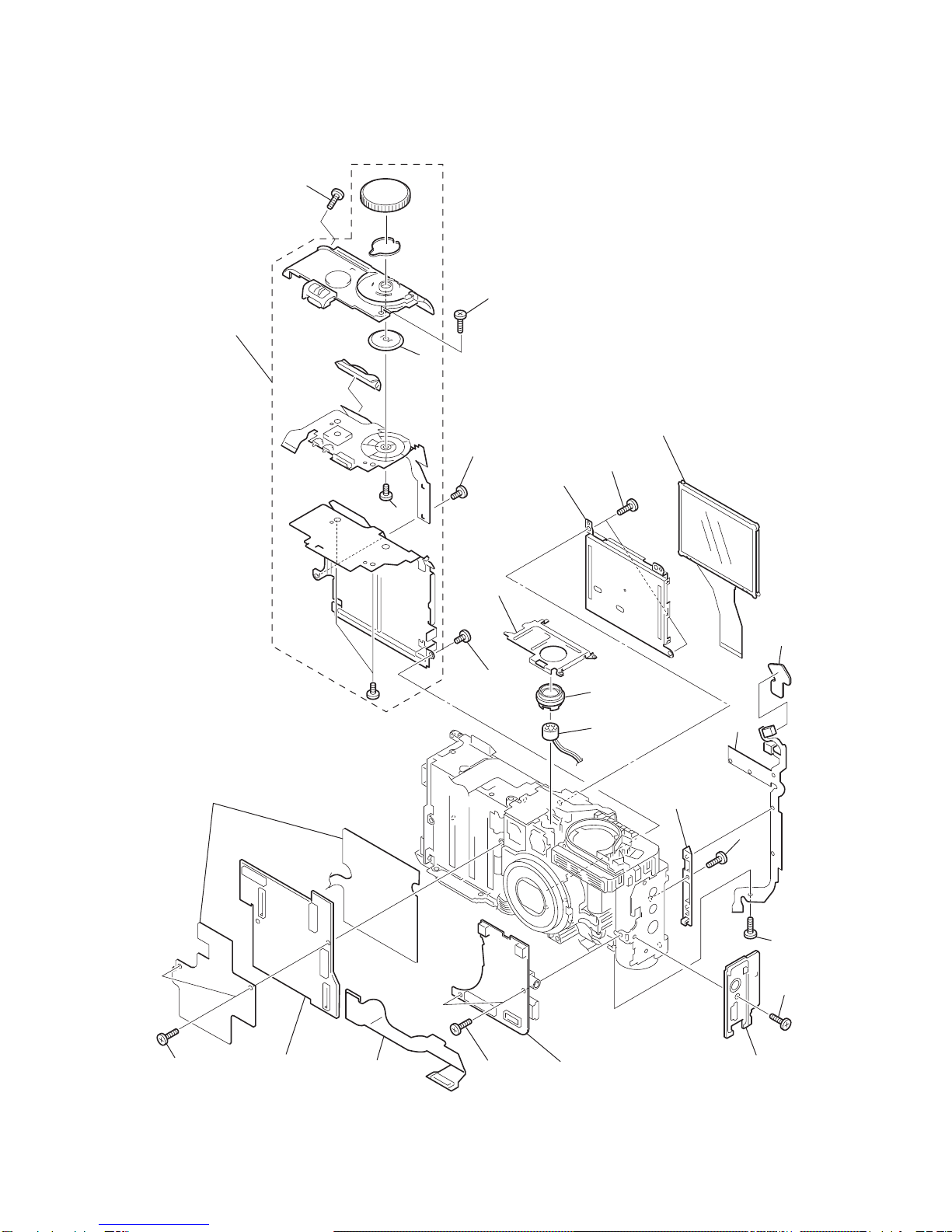

Internal Parts-1

345

16 16

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PARTS LIST

PowerShot S50

Pg2

1 CM1-1600-000 C 1 PCB ASS’Y, MAIN

2 CD1-4874-000 C 1 SHEET, MAIN

3 CM1-1554-000 C 1 MJ MODULE UNIT

4 CM1-1553-000 C 1 PCB ASS’Y, JAL

5 CD1-4975-000 C 1 BASE, JACK SILVER

CD1-4948-000 C 1 BASE, JACK BLACK

6 CD1-3903-000 C 1 BASE, RSW

7 CM1-1557-000 C 1 SW MODULE UNIT

8 CD1-3904-010 C 1 FRAME, TOP

9 CD1-3909-000 C 1 HOLDER, MICROPHONE

10 CM1-1215-000 C 1 MICROPHONE UNIT

11 CM1-1230-000 C 1 BACK LIGHT UNIT

12 WG2-5233-000 C 1 PANEL, LCD

WG2-5233-001 C 1 PANEL, LCD (SELECTION)

13 CM1-1589-000 B 1 OPERATION BASE UNIT SILVER

CM1-1576-000 B 1 OPERATION BASE UNIT BLACK

14 CL1-1060-000 C 1 BRUSH UNIT

15 CD1-4592-000 C 1 SHIELD, IR SENSOR

16 XA1-7170-207 F 6 SCREW

17 XA1-7170-307 F 2 SCREW

18 FC2-8736-000 F 2 SCREW

19 CD1-4045-000 C 1 SCREW SILVER

CD1-4957-000 C 1 SCREW BLACK

20 XA4-9170-359 F 2 SCREW

21 XA4-9170-357 F 1 SCREW

PowerShot S50

Pg3

Internal Parts-2

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PARTS LIST

PowerShot S50

Pg3

1 CD1-3846-000 B 1 CAP, BARREL SILVER

CD1-4936-000 B 1 CAP, BARREL BLACK

2 CD1-3860-000 C 1 TAPE, FC

3 CD1-4959-000 B 1 CAP, FRONT

4 CM1-1596-000 C 1 OPTICAL UNIT SILVER

CM1-1574-000 C 1 OPTICAL UNIT BLACK

5 CD1-3869-000 C 1 HOLDER, LED

6 CM1-1223-000 B 1 FINDER UNIT

7 CS8-5209-000 C 1 SPRING, CCD

8 CD1-3894-000 C 1 BASE, TRIPOD

9 CD1-3888-000 C 1 FRAME, MAIN

10 CD1-3965-000 C 1 SHEET, FRAME

11 CD1-3914-010 B 1 LOCKER, BATTERY

12 CM1-1561-000 C 1 SPEAKER UNIT

13 CM1-1525-000 C 1 FLASH UNIT

14 CM1-1601-000 C 1 PCB ASS’Y, DC/DC

15 CY4-6072-000 D 1 FUSE, DAITO KE16

16 CM1-1219-020 C 1 BATTERY BOX UNIT

17 CM1-1210-000 C 1 CF UNIT

18 XA1-7170-307 F 5 SCREW

19 XA4-9140-507 F 2 SCREW

20 XA4-9170-359 F 4 SCREW

21 XA1-7170-207 F 3 SCREW

22 CD1-3967-000 C 1 SCREW

PowerShot S50

N.Sl : N.S Stand for No Stock (Product available)

Accessories-1

Pg4

FC-32M

Wrist Strap WS-300

WS-400

DC Coupler

DR-700

USB Interface Cable

IFC-300PCU

CF Card FC-32M

Canon Digital Camera

Solution Disk,

ArcSoft Camera Suite Disk

AV Cable AVC-DC100

Battery Charger

CB-2LT / CB-2LTE

N.S

Compact Power Adapter

CA-PS700

N.S

AC Cable

Battery Pack NB-2L CF CASE

N.S

PLUG TYPE

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PARTS LIST

PowerShot S50

Pg4

1 C84-1082-000 B 1 STRAP, WRIST WS-300 SILVER

C84-1158-000 B 1 STRAP, WRIST WS-400 BLACK

2 C84-1165-000 S 1 CD-ROM, SOLUTION VER.12.0 (J/E) FOR JAPAN

C84-1166-000 S 1 CD-ROM, SOLUTION VER.12.0 (E/F/S) FOR USA, CANADA

C84-1167-000 S 1 CD-ROM, SOLUTION VER.12.1 (J/E/C) FOR ASIA, AUSTRALIA

3 CD1-4054-000 B 1 COVER, TERMINAL NB-2L

4 D82-0641-000 C 1 CABLE, AC (J) FOR JAPAN

D82-0642-000 C 1 CABLE, AC (N) FOR USA, CANADA

D82-0643-000 C 1 CABLE, AC (E) FOR EUROPE, ASIA

D82-0644-000 C 1 CABLE, AC (B) FOR ASIA

D82-0645-000 C 1 CABLE, AC (A) FOR AUSTRALIA

5 C84-1078-000 B 1 DC COUPLER DR-700

6 FC2-9610-000 B 1 CASE, CF

PowerShot S50

Accessories-2

Pg5

N.S

Waterproof Seal

Silicone Grease

Anti-Condensation Solution

Neck Strap

Sheet

Waterproof Case WP-DC 300

N.S

N.Sl : N.S Stand for No Stock (Product available)
