AF Setting Guidebook

Detailed explanations of how to master high-performance

AF features to capture that perfect moment

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

CONTENTS

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

Features of The AF on EOS-1D X

New AF Setting Operability

Chapter 1

AF Conguration Tool

[Presets]

Chapter 2

AF Conguration Tool

[Parameters]

Chapter 3

AF area selection modes

Chapter 4

EOS-1D X 61-Point High-Density

Reticular AF Cross-type Points

Chapter 5

Release property settings during

Servo AI

Chapter 6

Utilizing the AF point setting and

registration

Using ISO Auto

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

AF Custom Guide Functions that Controls

61-Point High-Density Reticular AF

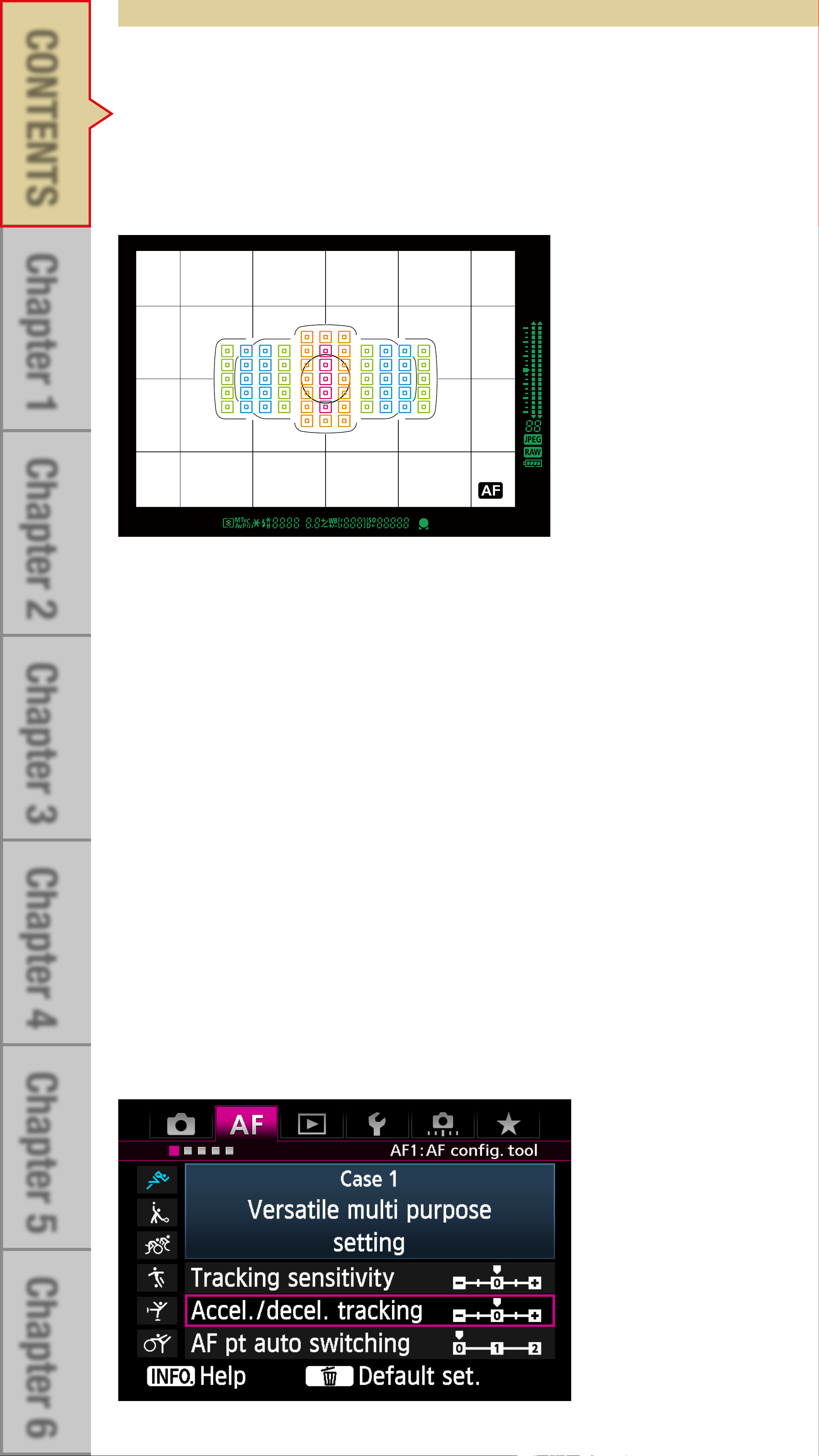

Features of The AF on EOS-1D X

The EOS-1DX is equipped with a newly-developed

61-Point High-Density Reticular AF. By arranging the 61

AF points in a dense concentration, the level of freedom

in composition, and tracking performance of quick-

moving subjects is improved. In combination with AI

Servo AF III, which incorporates a new algorithm

ensuring, accurate focusing on a subject is possible. You

can also effectively set AI Servo AF features using the AF

Configuration Tool. Because you can choose from six

different presets, the correct settings are always quick

and easy, without all the trouble that comes from

adjusting settings for individual parameters to match the

subject or scene.

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

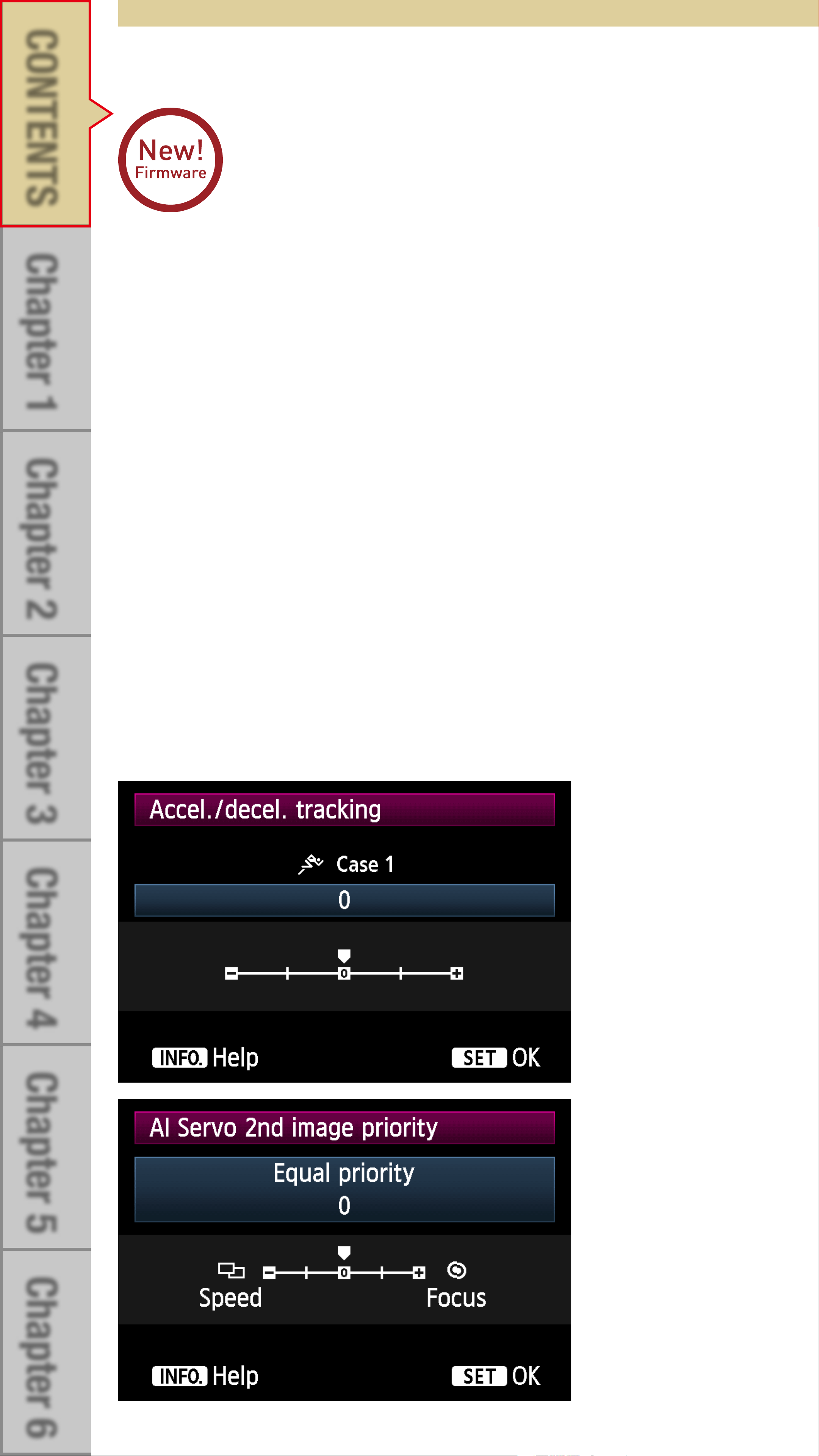

Firmware V2.0

In the new EOS-1DX firmware V2.0, AF performance is

even further improved and operability is expanded with

a focus on AF. AF performance in low-light conditions is

improved for the first shot of AI Servo AF, demonstrating

its true ability when shooting subjects in dark locations.

Additionally, this version incorporates numerous helpful

features that assist in shooting moving subjects, such as

newly-added special AF parameters to deal with speed

changes in moving subjects, and additional functions

that can be assigned to the button customization. This

AF Setting Guidebook introduces effective settings to

make full use of the EOS-1D X high-performance AF

features including new functions of V2.0 of the

firmware.

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

New AF Setting Operability

All AF-related menu functions now in a

separate menu

The AF1 tab includes

the AF Configuration Tool

The AF1 tab is important when shooting moving subjects

using the AI Servo AF of the EOS-1D X. It is possible to

effectively set AI Servo AF characteristics by selecting the

option that closely matches the scene with the AF

Configuration Tool.

AF-related setting items

in the AF menu

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

The Various AF-related functions are

now incorporated into an AF menu tab

The various AF-related settings that were previously

included in the custom functions (C.Fn) menu, have

been incorporated into the new AF menu tab. This

makes smooth access to AF-related settings possible. In

particular, the AF Configuration Tool included in tab AF1

can be used to easily match settings with the AI Servo AF

characteristics, making it an important feature that takes

advantage of the advanced AF performance on the EOS-

1D X. By selecting from six presets (Case 1 - Case 6),

makes it possible to set the AI Servo AF characteristics to

most accurately suit the subject's movement, and scene

conditions. It is also possible for fine control to adjust

each parameters separately.

(Refer to P. 9 – 47 for AF Configuration Tool details.) Tabs

[AF 2] – [AF 5] include a variety of settings such as

shutter-release timing settings, a setting for the number

of AF points that can be selected and AF area selection

method.

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

Various settings for AF-related features

can be made with AF menus [AF2] - [AF5]

The [AF/2] tab includes settings related to cameras

priority concerning shutter-release timing when using AI

Servo AF. [AI Servo 1st image priority] and [AI Servo 2nd

image priority] make it possible to make focusing the

priority slowing the shutter-release timing, or prioritize

faster shutter-release.

AF2 AI Servo

Settings related to the

camera priorities when

using AI Servo AF

Within the [AF3] tab, the [One-Shot AF release priority]

settings related to focusing and shutter-release timing

when using One-Shot AF release priority. The other

options [USM lens electronic MF] and [AF-assist beam

firing], control the manual focus operation of some

lenses and the operation of AF assist function of

attached Speedlites.

AF3 One-Shot

Settings related to

focusing and

shutter-release timing

when using One-Shot

AF release priority

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

Select which and how AF points are selected. This menu

includes settings related to [AF area selection mode]

([Automatic AF point selection criteria], [Selectable AF

points], [AF area selection mode], [AF area selection

method], and [Orientation linked AF point]). In addition

there is the [Lens drive when AF impossible] option in

this menu.

AF4

Includes general

settings related to AF

point selection

Within [AF5] tab are settings that control how AF points

are displayed in the viewfinder such as ([AF point display

during focusing], [VF display illumination], and [AF status

in viewfinder]). With the (Manual AF pt. selec pattern)

the AF point selection can stop at the peripheral AF

point or instead loop back to the opposite side of the AF

area. For those who need to make fine adjustments to

the focus position [AF Microadjustment] is available.

AF5

Includes general settings

related to display of AF

points, etc.

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS

Chapter 1

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2CONTENTS Chapter 1

Overview of AF Conguration

Tool [Presets]

Case 1

Versatile multi-purpose setting

Case 2

Continue to focus-track even

when the subject momentarily

moves from the AF points

Case 3

Focus instantly on subjects that

move into the AF points

Case 4

Focus track subjects that

accelerate or decelerate quickly

Case 5

Focus on subjects with erratic

movement

Case 6

Focus on subjects with erratic

movement and changes in speed

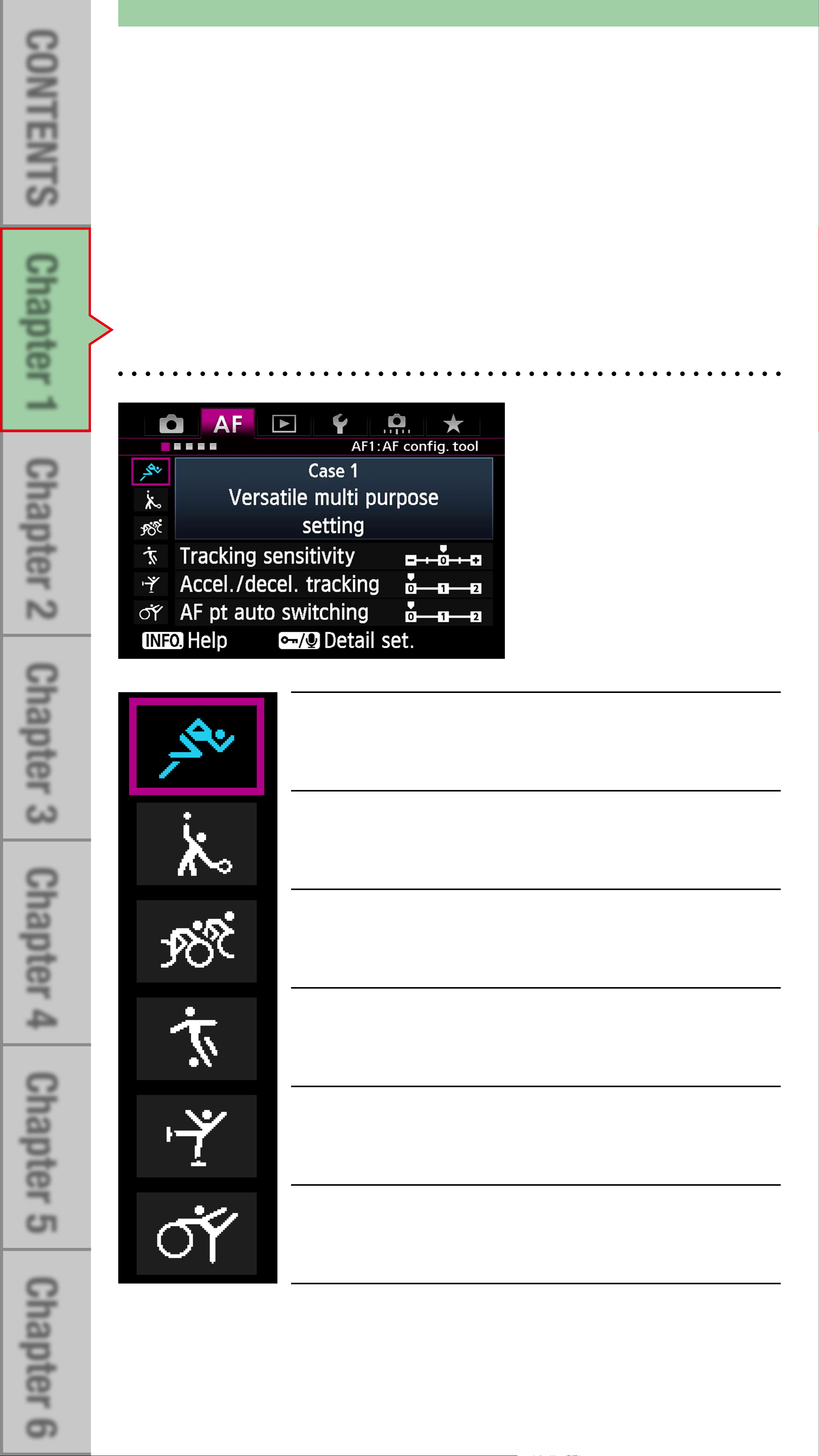

AF Configuration Tool

[Presets]

Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2Chapter 1CONTENTS Chapter 6Chapter 5Chapter 4Chapter 3Chapter 2CONTENTS Chapter 1

For subjects that change

speed and move erratically*

For erratic subjects, moving in

any direction*

For subjects that accelerate or

decelerate quickly

Instantly focus on subjects

suddenly entering AF points

Continue to track subjects,

ignoring possible obstacles

Versatile multi-purpose

setting

A combination of parameters to best suit the

characteristics of subject movement have been used to

create the presets from Case 1 – Case 6. By selecting the

appropriate icon, the different AI Servo AF settings can

be selected to suit the subject.

The best parameters

for different subjects

and shooting scenes

are combined into

presets from

Case 1 - 6

*This setting is not available with the Single-point Spot

AF(Manual selection) and Single-point AF(Manual

selection) modes

Case 6

Case 5

Case 4

Case 3

Case 2

Case 1

Overview of AF Configuration

Tool [Presets]
