Safety precautions

WARNING

FORBIDDEN

Meaning and description of the symbols

Contents marked with this symbol relate to product and

user safety. Please operate the machine in strict

conformity to the contents of this manual to minimize

the risk of personal injury and/or damage to the

machine.

Contents marked with this symbol describe actions

prohibited to perform. If performed these actions will

endanger the user’s personal safety and may result in

injury.

Please insert the power cord into a rated

voltage outlet. Be sure to use a

single-phase three pin outlet. Also, the

terminal of the outlet must be grounded.

If possible, please install an electric

leakage protector.

When the machine is in use, place the

power plug in a location where it can be

easily inserted and extracted by hand.

Be sure to remove the plug if power

failure occurs, when moving or cleaning

the machine, or when the machine is

idle.

If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

Use only the supplied hose set for

the connection.

Never reuse old hose sets!

Do not place the machine in a damp

place like the bathroom and never

wash it with water. Do not place wet

laundry on the

control panel.

Do not use water warmer than 50 °C .

If the washing machine is installed on the

ground near carpet, make sure to keep

the ventilation hole clear of obstruction.

Ventilation hole

atthe bottom of

the washing

machine

To avoid abnormal vibrations in spinning,

do not use the machine to wash

water-proof laundries like raincoats,

bike covers etc.

Do not attempt to take apart, repair

or alter the machine by yourself.

Do not wash laundry with volatile or

flammable materials (such as thinner,

petrol etc.).

Do not put any high temperature or

heavy objects on the washing machine.

Keep the machine away from direct

sunlight and heat sources like the

radiator.

Disabled children or those not under

adult supervision should not operate

the machine.

To guarantee your

safety, please

ensure the power

outlet is grounded

before use.

To protect your laundry and the

washing machine,please remove

all coins,buttons,sand,hairpins

and other foreign materials before

washing.

This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

– farm houses;

– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– areas for communal use in blocks of flats or in launderettes.

Please check if the water

faucet is turned on and

make sure you have the

proper water pipe

connection

It is recommended to use

foamless washing powder.

Do not share the outlet with other electric

appliances. If the power plug is damaged,

or feels loose when plugged into the

outlet, stop using the

plug immediately.

Do not stretch hands into the workingmachine.It is

dangerous even if the rotation is slow. Take special

care of the children.This appliance is not intended

for use by persons (including children)with educe

physical, sensoryor mental capabilities ,

of lack of

experience andknowledge,

unless they have been

given supervision or instruction

conceming use of the

appliance by a person

responsible for their safety.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities,or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety. Children should

be supervised to ensure that they do not play with

the appliance.

Machine Components

Wash time Drain

Wash program Spin time

Control panel

If you wish to set it

for less than 2

min, you should

first turn past 6

min and then turn

back.

Intensity can be

set to mormal

or soft.

Warning: do not

set the switch on

Drain position

during washing.

If to set to less than

1 min, in order to

ensure a long

service life, please

first turn past 2 min

and then turn back.

Packing list

Twin-tub washing

machine Water intake

hose

Gland Draining

hose

Bottom

leg

off

drain

normal

soft

wash time wash program drain spin time

Drain hose drainage should be smooth and unobstructed.

Installation and adjustment

overflow filter

lint filter

For your security and to ensure correct operation of the machine, please install and

adjust the machine according to this manual’s instructions.

Installation of the lint filter

Place the bottom side of the lint filter into the

overflow filter, then push the top side into the

overflow filter.

After installation, please double check to

make sure that the lint filter is installed in the

correct location; otherwise it may fall off

during operation.

Drain hose usage

1.The height of the drain hose shall be

less than 10cm, or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed, please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm,and the

length shall not exceed 1.5m.

If the extra hose is too long, cut it either

at point A or B.

Insert the water intake hose

into the water-inlet entrance

on the control panel.

Water intake hose

Water inlet

Add water as necessary.

The drain hoses in the wash tub when out off factory ,before use the machine,

please screw the drain hose on the drain valve parts , make sure the drain hose

fixing as necessary.

Drain valve parts 2.Install the drain hose

1.Remove the cover

Install the washer legs

1.Carefully tilt the washing machine to the back and install the bottom legs at the

front of the base.Make sure that the legs are installed in place.(Figure 1).

2.Carefully tilt the washing machine to front and install the bottom legs at the back

of the base.Make sure that legs are installed in place.(Figure 2)

On model RTT 2131WSZ-19.

Bottom legs Bottom legs

Figure 1 Figure 2

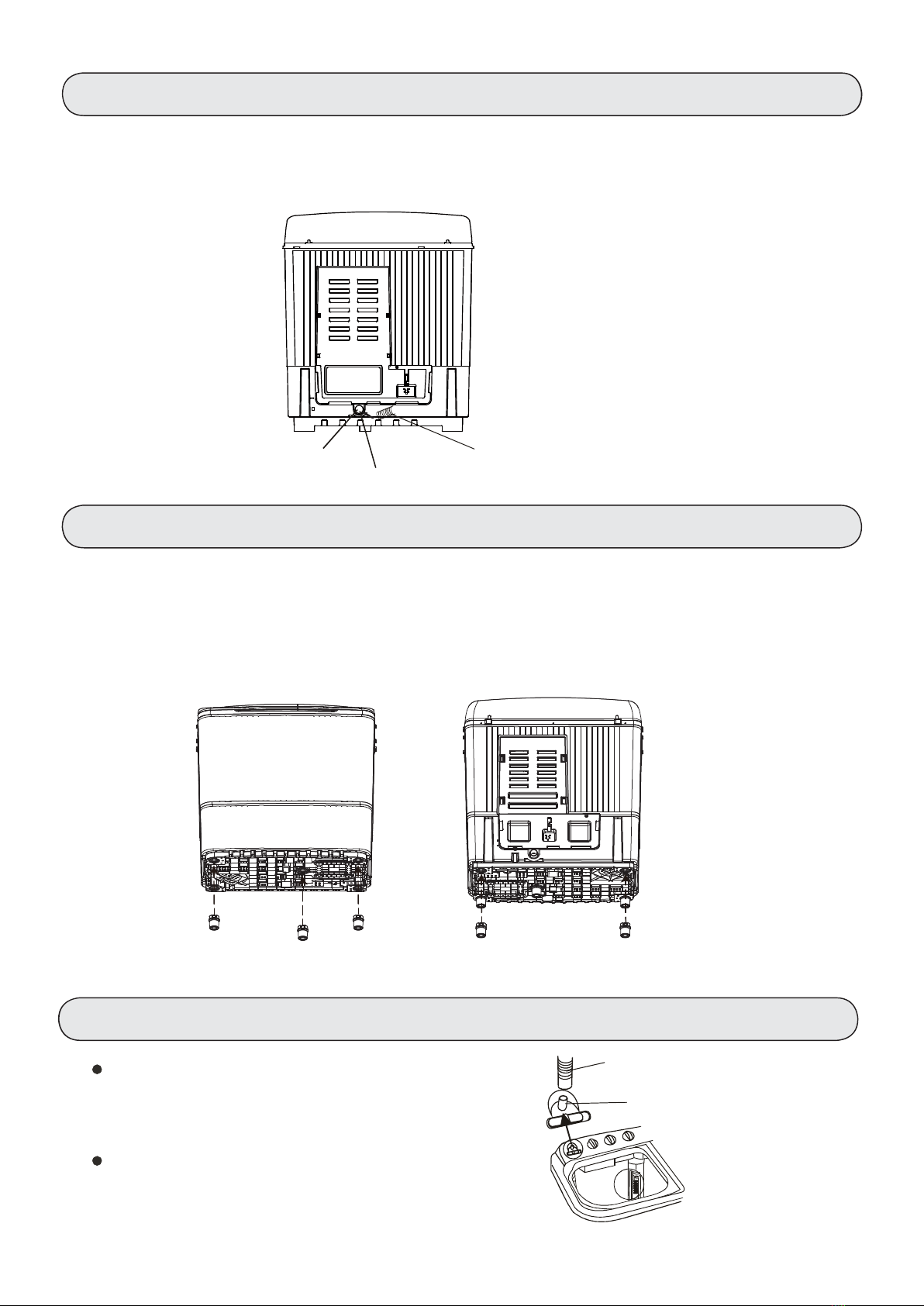

Change the direction of the drain hoses

Install the water intake hose

Pay attention to followings before washing the laundries

Basic know-how

Pre-wash Preparation

The maximum capacity during washing and spinning cycles

refers to the max weight of standard dry laundry that can be

washed or spun at one time. The laundry quantity during one

washing cycle should be lower than the rated capacity.

Thickness, size, and the type of cloth will influence actual

washing capacity. It is acceptable to put in a reasonable amount

of laundry as the laundry will be mixed around during the

washing process.

To avoid splashing, do not select the “Maximum” water level for

low loads.

Using high sudsing detergent is not recommended.

Check to see if

the items have

special washing

requirements.

Put hard to

absorb water

items into the

machine by hand.

Empty out

pockets. Take

out any coins,

sand, hairpins

Check to see if

the items are

appropriate for

use with the

washing

Do not overload the washer.

Stretch and loosen the laundry

before putting it into the washer.

Tie any long strips;

fasten buttons; and

close any zippers.

For laundry that

is susceptible to

lint balls and/or

has long fur,

turn it inside out

before putting it

in the washer.

Do not put

laundry

polluted by

chemicals into

the washing

machine

directly.

For heavily soiled laundry, try to

remove dirt such as mud or dust

first and apply detergent in

advance. This will help to

remove the stains more easily.

Divide

non-colorfast

laundry from

other laundry.

When the pulsator is running, some noise may emit from

laundry that contains buttons. To minimize this noise,

surround laundry with buttons with other laundry.

Detergent use

Using bleach detergent:

How to add detergent:

Method 1 - directly dissolving in the machine:

1.Add a small quantity of water to the machine.

2.Add the detergent powder. Run washing machine for 30 seconds to dissolve powder

completely.

3.Place laundry into the washing machine and select a suitable water level.

Method 2 - instantly dissolving the detergent powder:

1.Prepare warm water at 30 °C and a container.

2.Add the detergent powder while stirring until it dissolves fully.

Laundry powder is more prone to damage laundry than liquid detergent. Please exercise

caution and do not exceed the maximum quantity.

Dosages of detergent powder may vary. Please follow the instructions on the detergent

Add water to suitable levels. Dilute the bleach with a separate container. Pour it slowly

into the washing machine.

Avoid using whitening agents on laundry with colors and/or patterns as they are prone to

lose color.

The whitening agent should not come in direct contact with the laundry.

Refer to the product instructions for information on proper usage and quantity

Dissolve powder whitening agents before use.

Note:

The energy test program(RTT 2131WSZ-19)

Full load Cotton 60:Manually fill in hot water(35 to 36 liters)and cold water up to the 4 water

level after Normal wash 45min,then keep washing 30min Drain Spin twice each for 5min 5min

cold rinse with 4 water level Drain Spin twice each for 5min

Partial load Cotton 60:Same as Full load Cotton 60 but with 28 to 29 liters hot water in washing

process and spin once after washing and rinsing Water level select 1

Partial load Cotton 40:Same as Full load Cotton 60 but with 24 to 25 liters hot water in washing

process and spin once after washing and rinsing Water level select 1

The energy test program(RTT 2151WSZ-19)

Full load Cotton 60:Manually fill in hot water 47 to 48 liters and cold water up to the 4 water

level after Normal wash 45min then keep washing 45min Drain Spin twice each for 5min 5min

cold rinse with 4 water level Drain Spin twice each for 5min

Partial load Cotton 60:Same as Full load Cotton 60 but with 28 to 29 liters hot water in washing

process and spin once after washing and rinsing Water level select 1

Partial load Cotton 40:Same as Full load Cotton 60 but with 23 to 24 liters hot water in washing

process and spin once after washing and rinsing Water level select 1

Washing sequence

Washing

Figure 1

Figure 6

Figure 4

Figure 5

Figure 2

TOR

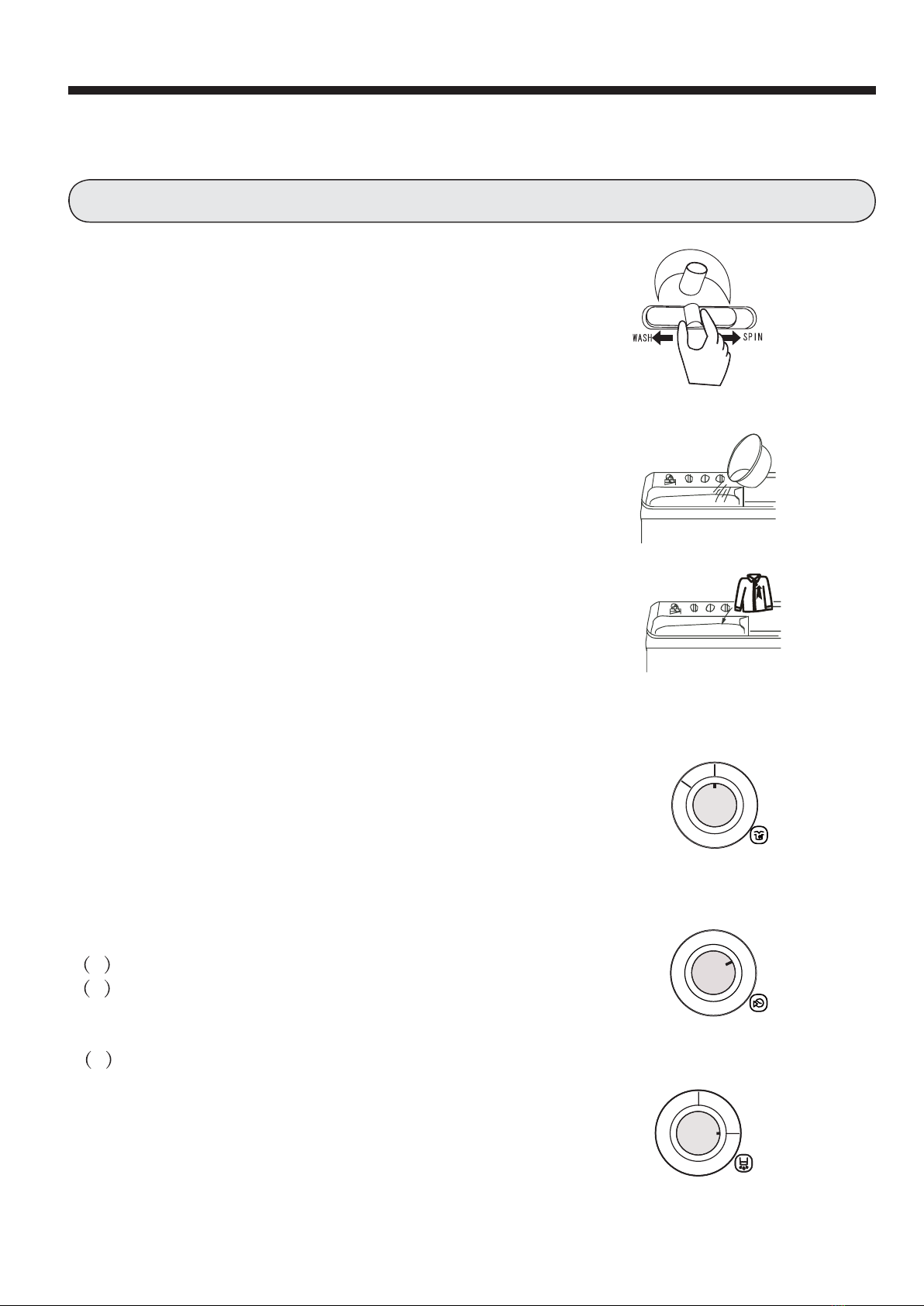

1.Inlet selector

4 Select intensity..

2.Add water

Set the selector to “WASH”.(Figure1)

Machine begins to dispense detergent uniformly.(Figure2)

3.Put in the wash load. Add more water as

necessary.(Figure3)

Select “SOFT ” or “NORMAL” water flow

intensity according to the wash load.(Figure4)

5.Select wash time.

Select wash time according to the wash load.(Figure5)

6.After the wash is completed, set the switch to the “DRAIN”

position.(Figure6 )

Figure 3

The washing instruction with soaking:

1 0-15 minutes is normal washing;

2 15-45 minutes is sport soaking and the pulsator will

run 2.5 minutes each 7.5 minutes interval, until sport soaking

is end, finally it is 15 minutes normal washing;

3 When the user select the soaking, firstly make sure the

detergent power is fully dissolved. Otherwise it may be

harmful to clothing.

off

drain

normal

soft

wash program

wash time

This manual suits for next models

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
