Calspas Spa Surrounds User manual

LTR20091033, Rev. A

12/16/08

CONTACT INFORMATION

For customer service, please contact

your authorized dealer immediately. If

you need additional information and/

or assistance, please contact:

LMS Customer Service Department

1462 East Ninth Street

Pomona, CA 91766.

Toll Free: 1-800-CAL-SPAS

Fax: 1-909-629-3890

Read This First!

Carefully read and follow all safety instructions.

When installing and assembling your surround

package, it is recommended that two or more

people be involved.

Do not use the unit during an electrical storm.

Do not climb on top of the surround package. While

the surround package is made out of high-quality

material and is extremely durable, it is not meant

to support weight. In addition, falling off of the

surround package while climbing on it can result in

serious injury or death.

Do not attempt any repair without consulting the

manufacturer rst. Unauthorized repairs will void

the manufacturer’s warranty (within the rst 90

days).

written consent is strictly prohibited.

Cal Spas™ and Cal Enclosures™ are registered trademarks.

Due to continuous improvement programs, all models, operation, and/or

specications are subject to change without prior notice.

LTR20091033, Rev. A

12/16/08

Assembly ........................1

Tools and Materials ....................1

Step Assembly ........................1

Planter Assembly......................5

Bar Stool Assembly ....................6

Bar Assembly and Installation ...........7

Bench Assembly......................13

Panel Assembly ......................15

Maintenance ....................17

Warranty Information.............18

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Whether you assemble your surround package yourself or hire someone to do it, your new surround package

needs to be assembled in a specic order. Our Cal Enclosures professionals have determined through their

experience that this is the easiest way to assemble your surround package.

Tools and Materials

Utility knife 25’ tape measure Cordless drill

100’ extension cord Electric drill Phillips-head drill tips

1/8” pilot hole drill bit 9/16” socket Slotted-head drill tips

Sandpaper (various grades) Redwood stain Wood putty

Gray wash stain Rags 1/2” ratchet and impact drill

1/2” carbide drill bit (masonry bit)

Step Assembly

Two Tier, 30” Step

Stand the legs up at 30” apart. Place the upper step on top of the upper section of the step.1.

To attach the step, screw in 4 screws (2 at each rear corner): 1 into the step leg and 1 into the step itself.2.

Place the lower step on the lower section of the step.3.

To attach the step, screw in 4 screws (2 on each on the outside of the step). Use the toe-in method on both 4. sides, as shown.

Assembly

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Package R Step Assembly

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Package D, E, and I Step Assembly

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Cal Select Step Assembly

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Planter Assembly

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Bar Stool Assembly

Attach the bar stool legs to support the brace using the provided 2 ½” screws. There will be a total of 121. screws.

Place the bar stool seat on a at surface. (Make sure the nish side is on the ground.) Attach the leg 2. assembly using four 2 ½” screws.

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

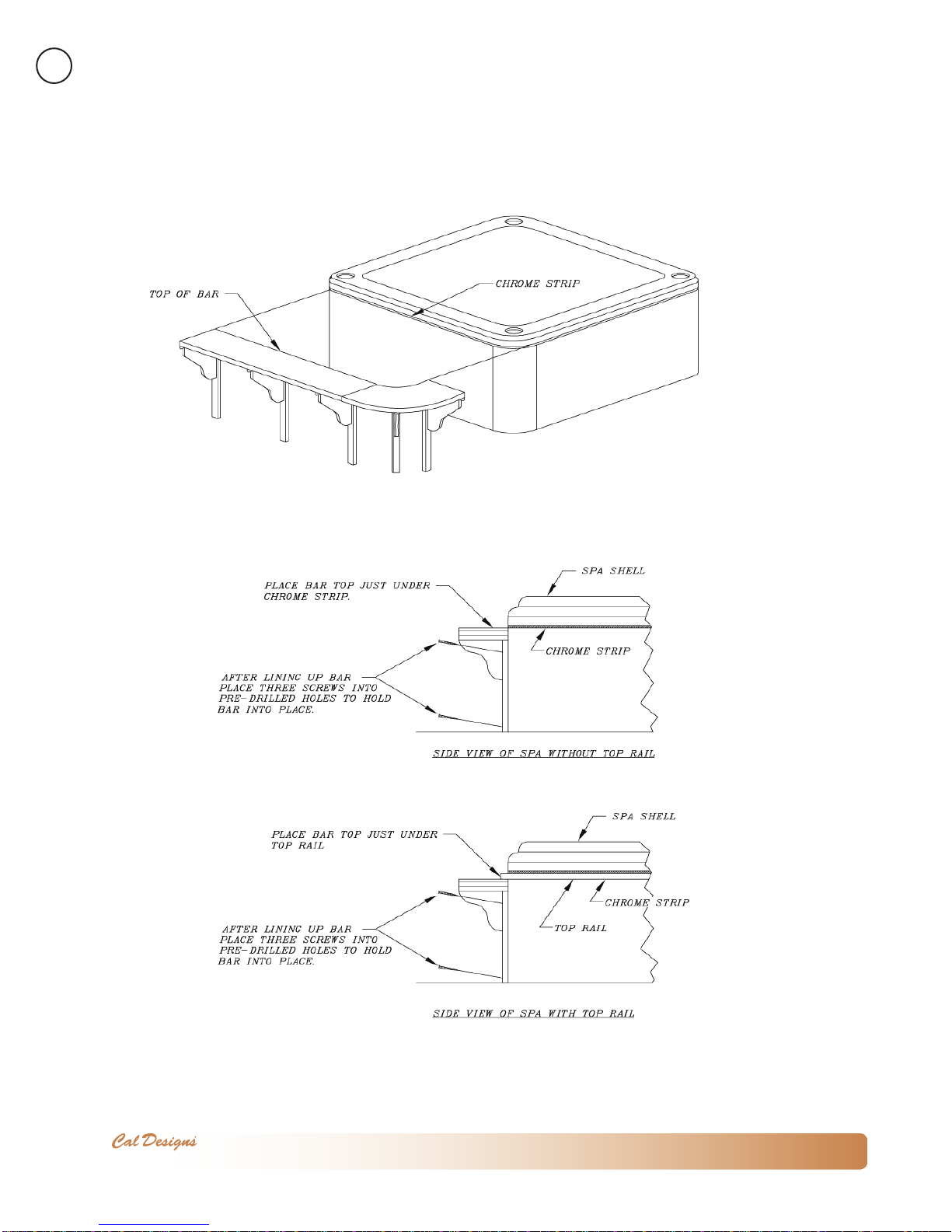

Bar Assembly and Installation

Package B and M

2009 Spa Surrounds

LTR20091033, Rev. A

Assembly

www.ca l spas.com

Package C, J, and N
