Caloo CV-608 User manual
CV-608 Seated Row
Seated Row
INSTRUCTION MANUAL
Caloo Ltd
CALOO LTD
Unit 9A, Triangle Business Park, Wendover Road, Stoke Mandeville,
Buckinghamshire, HP22 5BL.
www.caloo.co.uk | 01296 614448 | [email protected]
INSTRUCTION MANUAL
Model No.: CV-608 Seated Row
Caloo Ltd
Thank you for purchasing our product.
Please read this instructions before installing and exercising, and keep it for future reference.
Failure to follow instructions may cause injury to you.
WARNING
1. This unit is intended for youths and adults or users having an overall height greater than 1
400 mm.
2. Before beginning any fitness program, obtain a complete physical examination from your
physician.
3. Do not overexercise. If you feel any painful sensation or have abnormal symptoms, stop your
workout immediately and consult your physician.
4. Maximum allowed weight of a user is 150 kg. Maximum allowed number of user is one
person. Other user is prohibited to enter the training zone while the unit is in use.

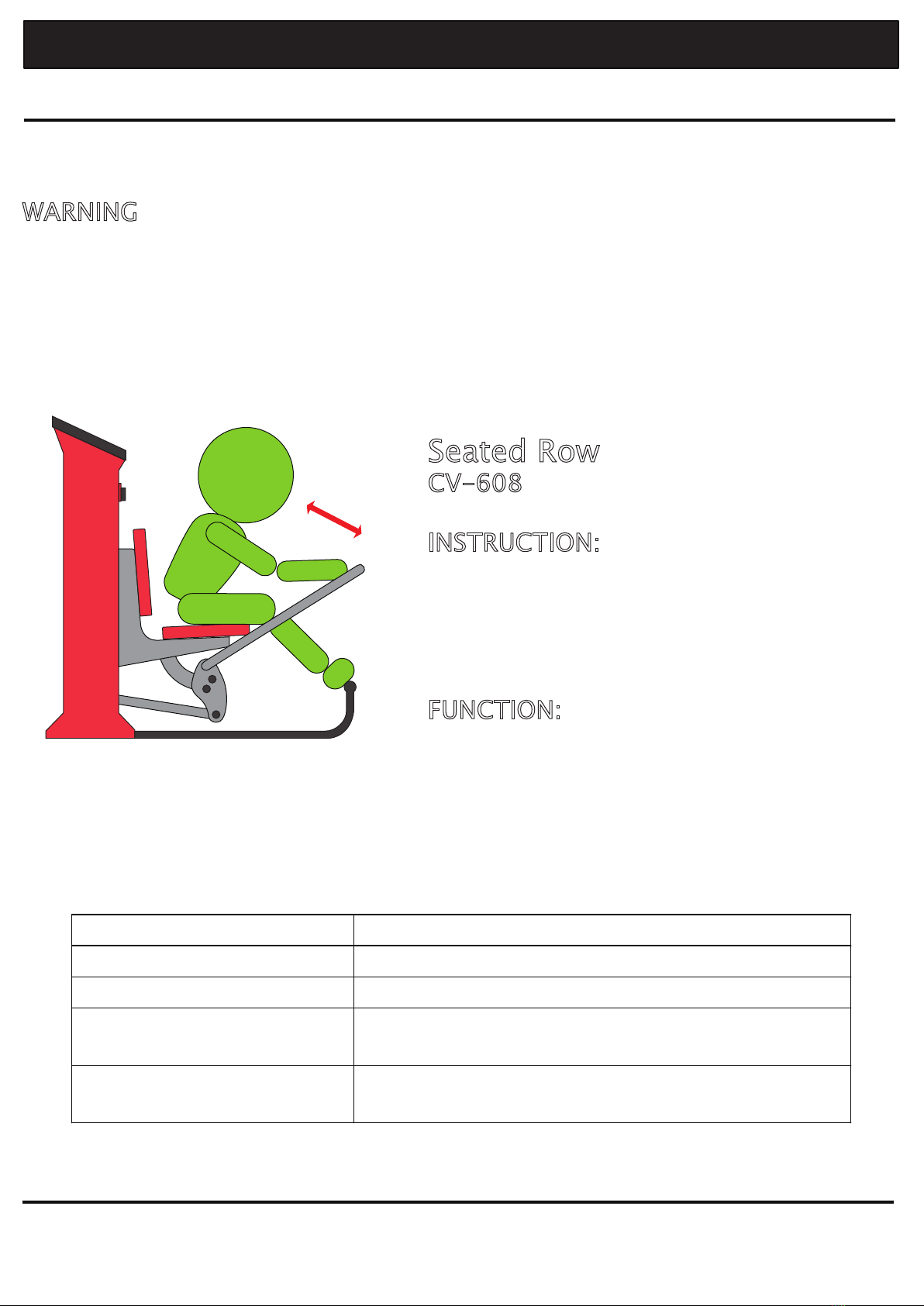

Seated Row
CV-608
INSTRUCTION:
1. Sit on the seat. Rest both of your feet on the
bars and grip the handles.
2. Simulate rowing movement.
3. Turn the dial clockwise or anticlockwise to
increase or decrease your exercise difficulty.
FUNCTION:
Enhances the mobility of lower limbs and
joints, improve heart and lung capacity.
Safety Standard EN16630:2015
Year of Production To be completed at time of manufacture.
Manufacturer Caloo Ltd
Address Unit 12, Boxted Farm,Berkhamstead
Road, Hemel Hempstead, HP1 2SG
Contact 01442 265489
INSTALLATION
Model No.: CV-608 Seated Row
Product Size: 1366 x 822 x 1295 mm
Free Height of Fall:517 mm
Net Weight: 103.2 kg

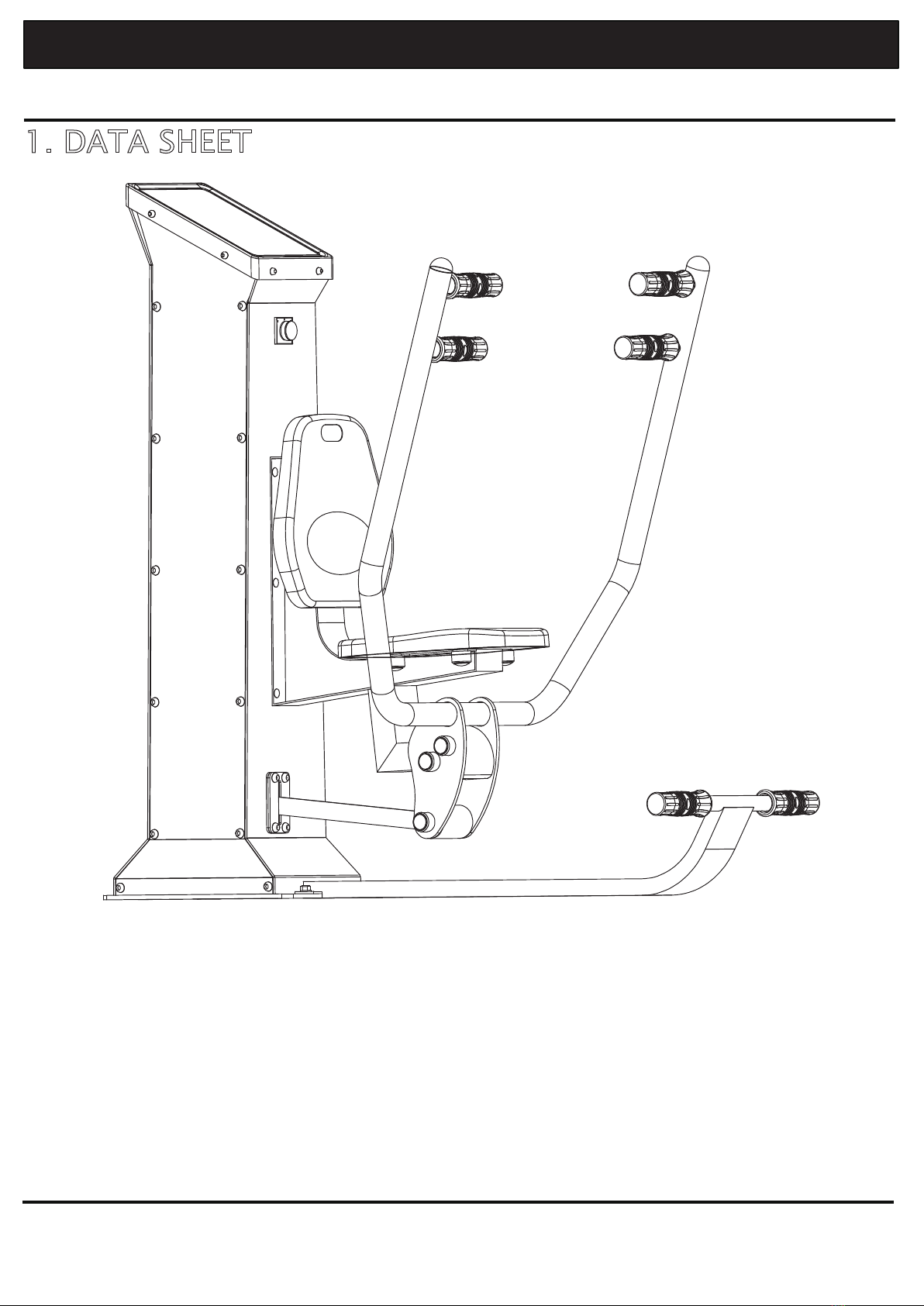

1. DATA SHEET
Caloo Ltd
INSTALLATION
Model No.: CV-608 Seated Row

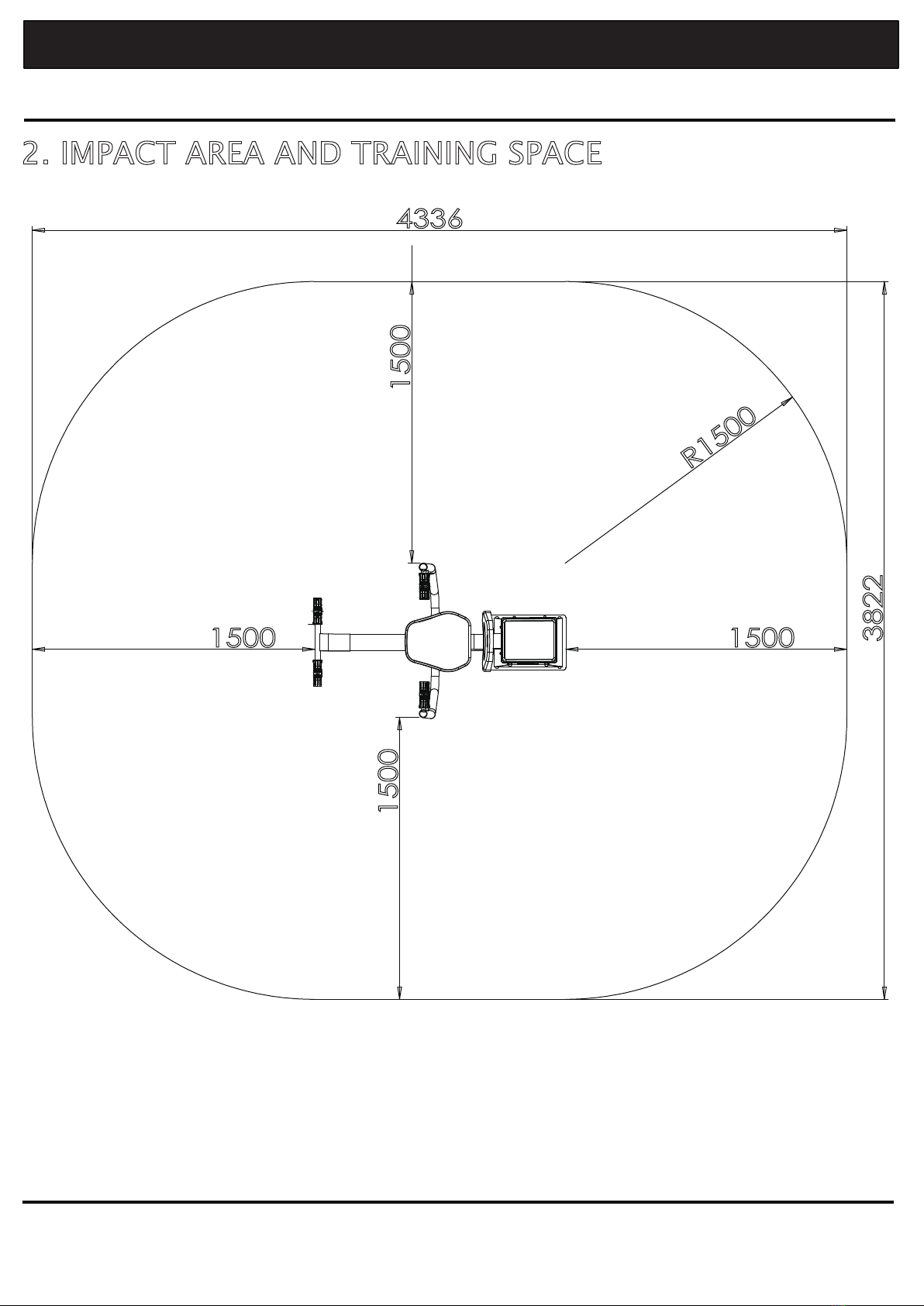

2. IMPACT AREA AND TRAINING SPACE
Area Size: 4336mm x 3822mm, 15 m2,
Required Surface: Any
Caloo Ltd
1500
15001500
1500
R1500
3822
4336
INSTALLATION
Model No.: CV-608 Seated Row
Caloo Ltd

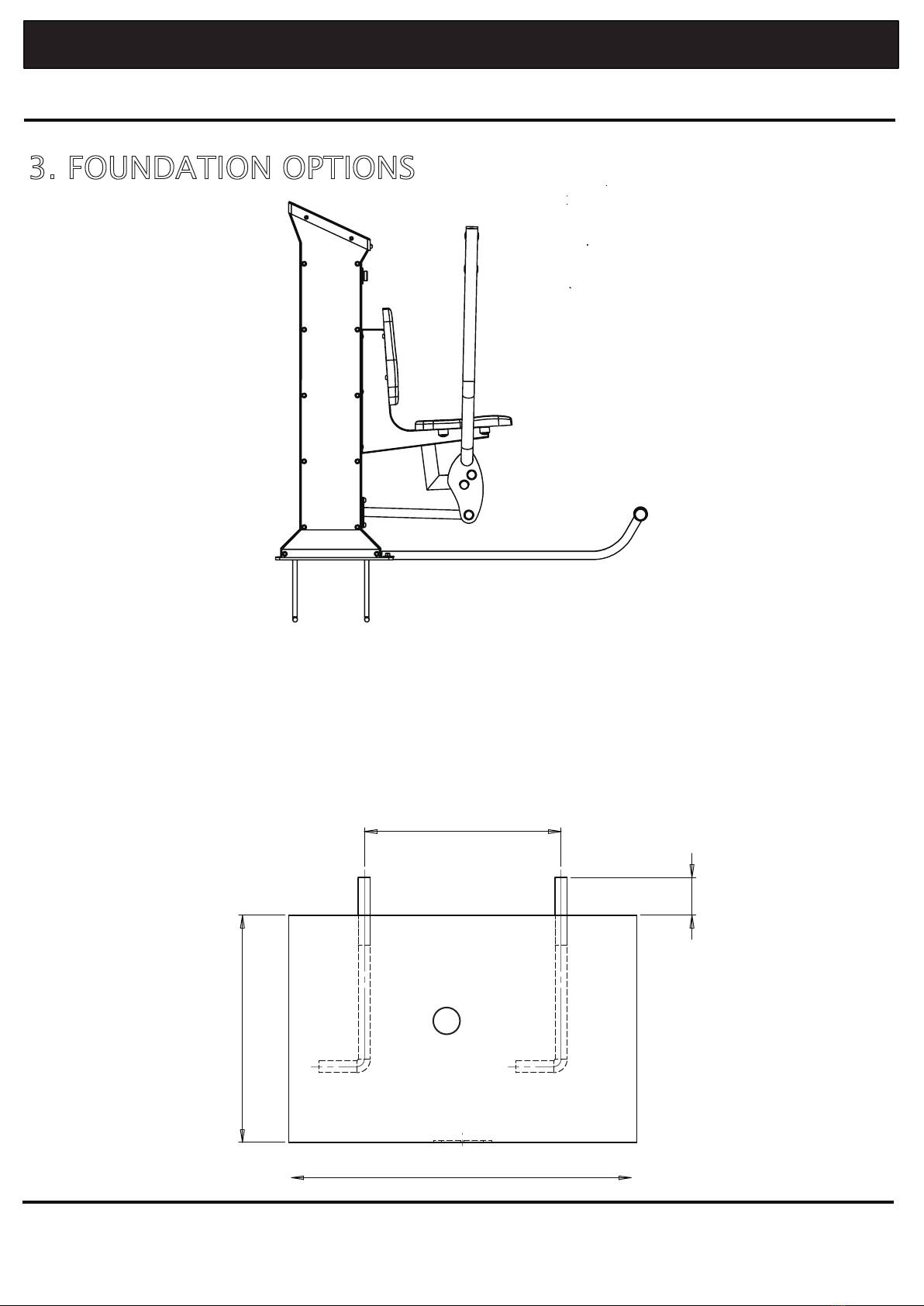

3. FOUNDATION OPTIONS
①pylon foundation
3.1 MOUNTING AREA HAS NO CONCRETE SURFACE
For this type of mounting area, a concrete block is needed. All dimensions in mm.
①
A
260
50
500
600
INSTALLATION
Model No.: CV-608 Seated Row
Caloo Ltd
A: Pylon Foundation Bolts
1. Make the concrete block according to above drawings
2. Embed 4 foundation bolts into the concrete block.
3. Wait for the concrete block to cure completely. Recommended curing time: 48 hours.
A: Pylon Expansion Bolts
1. Make sure the concrete surface is clean and flat.
2. Drill 4 expansion bolt holes with a concrete hammer accoring to above drawing.
3. Use a hammer to mount the expansion bolts into the concrete ground.
A

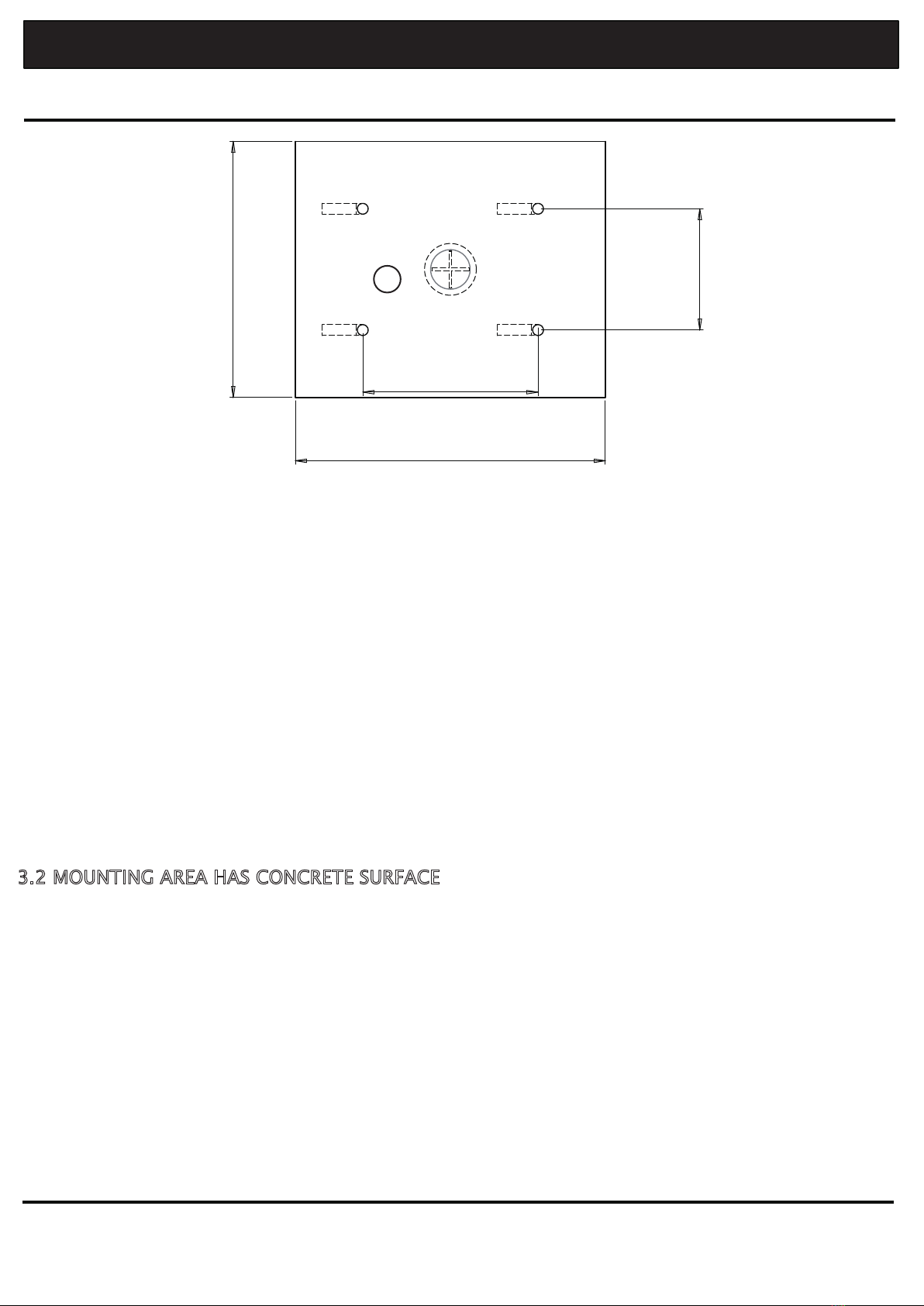

3.2 MOUNTING AREA HAS CONCRETE SURFACE
180
260
600
600
Caloo Ltd
INSTALLATION
Model No.: CV-608 Seated Row
This fitness unit has been factory aligned and tested before shipment. But it is still highly
recommended that the unit has a thorough checking before mounting.
4.1 SPARE PARTS IN PACKAGE
4.2 UNPACKING AND CHECKING
1. Take off the protective foam films around the product. Do not use sharp objects to cut off
the films in case the unit surface might be scratched.
2. Place the unit on a flat and clean surface.
3. Check for cracks or open areas in the painted coating.
4. Check the dial on the pylon. Turn the dial clockwise or anticlockwise to see if the turning is
smooth.
5. Check the screws and bolts. All the screws and bolts should have been be tightened and
covered with caps unless the screws have a half round head.
6. Check the plastic pipe caps.
7. Check the plastic grips and/or pedals.
8. Contact your dealer and do not mout the unit if a defect is spotted.
Never mount or even operate the unit until all the checking process has finished and no defe-
acts have been found.
4. PRE-MOUNTING
3.1
No. Desc. Qty
A pylon foundation bolt 4
3.2
No. Desc. Qty
A pylon expansion bolt 4
Caloo Ltd
INSTALLATION
Model No.: CV-608 Seated Row

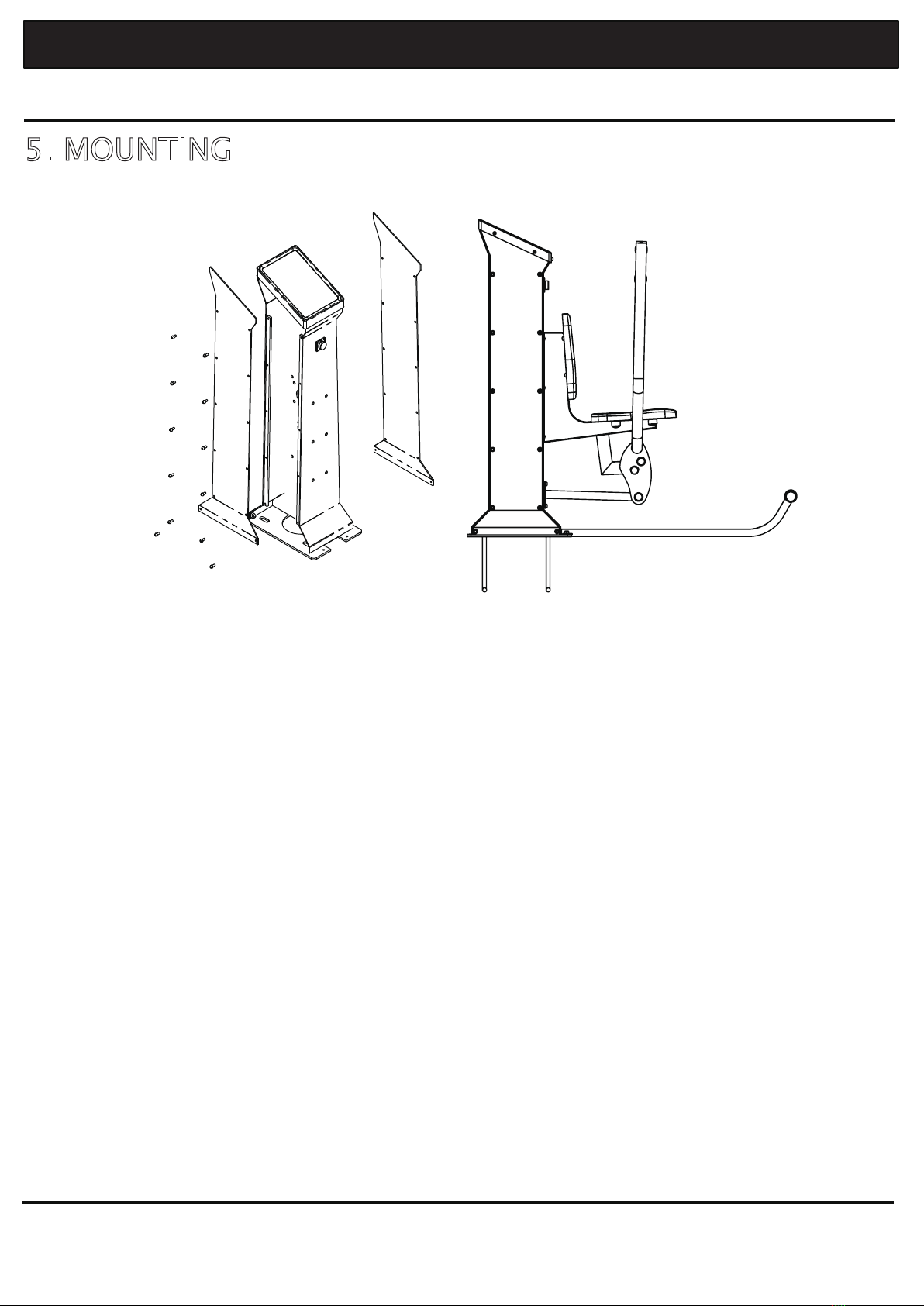

1. Place the unit on a flat and solid ground surface.
2. Loose and unfix the screws on each side panel. There are 12 screws on each side panel.
3. Disassemble the side panels from the unit.
4. Place the unit onto the mounting surface. As shown above.
5. Tighten the foundation bolts or the expansion bolts. Use a socket set and straight bar
to tighten fully. Please note: a set of grips or adjustable spanner will not tighten fully.
6. Assemble the side panels and tighten the Anti-theft screws.
Make sure the checking process has finished before mounting.
5. MOUNTING
After all the mounting process is done, the unit needs to go through another thorough
checking and testing before it’s open to use.
6.1 SETTING UP AND CHECKING
1. Dust and clean the whole fitness unit.
2. Check for cracks or open areas in the painted coating.
3. Check the dial on the pylon. Turn the dial clockwise or anticlockwise to see if the turning is
smooth.
4. Check the screws and bolts. All the screws and bolts should have been be tightened and
covered with caps unless the screws have a half round head.
5. Check the plastic pipe caps.
6. Check the plastic grips and pedals.
6.2 TESTING
1. Make sure all the screws and bolts have been tightened before testing.
2. Place both of your feet on the pedals and grip the handles.
3. Move the pedals up and down and check if the movement is sooth and consistent.
4. Turn the dial clockwise or anticlockwise and check if the workout difficulty can be adjust-
ed.
5. The stepper is ready to use when all the testing has finished and no defects have been
found.
6. Should there be any malfunction, contact your dealer.
Caloo Ltd
INSTALLATION
Model No.: CV-608 Seated Row
6. POST-MOUNTING
7. CIRCUIT DIAGRAM
Caloo Ltd
DIAGRAM
Model No.: CV-608 Seated Row
Y
Q1
Q2
Q3
GR R R
Dial
30A-23V
*Design is subject to change without notice.
Bridge Rectifier
160A
self excited generator
300W 24V
variable resistor
