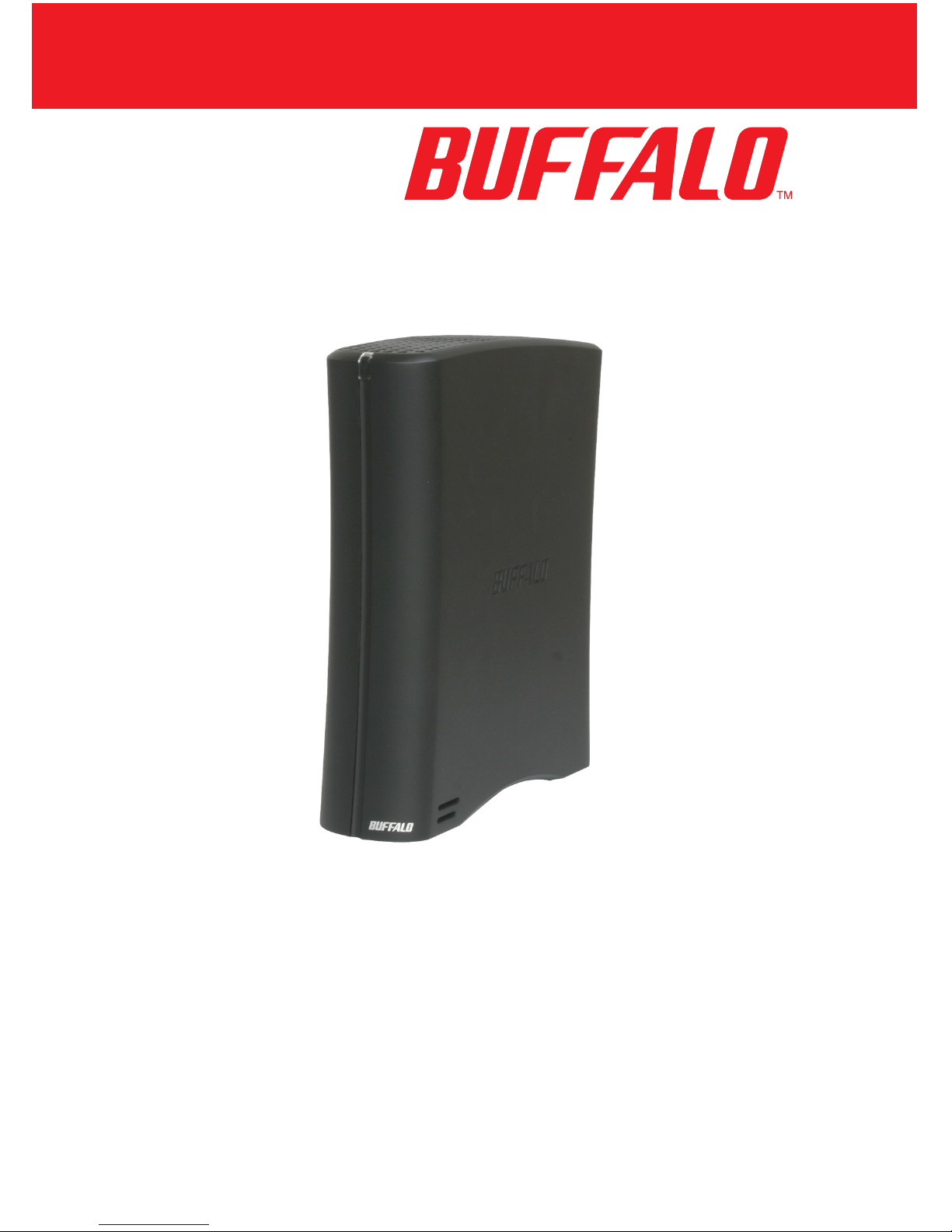

Buffalo DriveStation HD-CEU2 User manual

DriveStation HD-CEU2

External USB Hard Drive

User Manual

www.buffalotech.com

35011159 ver.01

DriveStation USB Hard Drive HD-CEU2

Thank you for purchasing a Bualo DriveStation External Hard Drive.

• DriveStation USB Hard Drive

• Power Adapter

• USB Cable

• Quick Setup Guide

• Warranty Statement

Connect the power cord to a surge protector or power outlet and to the

DriveStation. Then, connect the included USB cable into the USB port on

the back of the DriveStation.

Package Contents

Installation

Installation (Continued)

Connect the other end of the USB cable to the USB port on the computer

or device you are adding the DriveStation to.

The DriveStation will install automatically.

On a Windows computer, the new drive will be available in My Computer.

By default it will use the rst available drive letter and will be named HD-

CEU2. With a Mac, the new drive will appear on the desktop.

Format

By default, the DriveStation is formatted with FAT32, allowing it to be used

with OS X, Windows, and Linux operating systems. If you’re going to use

it with programs that generate lesizes larger than 4GB, such as backup

or video editing software, reformat the DriveStation as an NTFS drive

(Windows), a Mac OS Extended drive (Mac), or an XFS drive (Linux).

Optional Utilities

The DriveStation includes several optional utilities. To install and use these

utilities, execute DriveNavi.exe, located on your DriveStation or available

for download from www.bualotech.com.

The DriveStation Navigator quickly guides you through the cabling and

power-up process for the DriveStation.

The TurboUSB utility improves data transfer speeds for your DriveStation.

Memeo AutoBackup software is available for backing up documents,

multimedia les, and other les from your Windows PC to the DriveStation.

A license for using Memeo on a single PC or workstation is included with

your DriveStation. Please view the Memeo documentation for more

information on installing and using Memeo. As with all backup programs,

reformat the DriveStation with NTFS before use with Memeo backup

software.

Disk Formatter lets you easily reformat your DriveStation.

SecureLockWare encrypts the data on your DriveStation, preventing the

data from being accessed by anyone but you.

The Power Save Utility is a simple utility that allows a user to schedule

shut-down and startup times for the DriveStation disk.

To learn more about installing and using these utilities, click on View User

Manual.

Troubleshooting

FAQ

The following is a list of common issues with the DriveStation. Following

each issue are possible resolutions.

I see the DriveStation in My Computer but I cannot access it.

The drive requires formatting. Try using the Disk Formatter Utility on the

DriveNavigator CD-ROM. Consult the manual for the Disk Formatter

Utility for more help. The manual can also be found on the DriveNavigator

CD-ROM.

I cannot see the DriveStation in My Computer.

Verify that the POWER light is on. If it is not, then ensure that the power

switch is in the ON position.

Try toggling the POWER MODE switch right below the power switch. The

POWER MODE switch toggles whether the device is powered up via a USB

signal (“Auto”) or purely based on the power switch’s position (“Manual”).

If you have installed the Power Save Utility, then verify that the DriveStation

was not put into power saving mode. Consult the manual for the

Power Save Utility for additional help. The manual can be found on the

DriveNavigator CD-ROM.

Verify that the hard drive inside the DriveStation is spinning. This

can be veried by placing your hand on the sides of the case and feeling

for a slight vibration. Also, after the DriveStation has been powered on

for fteen minutes or more it will begin to get warm. If neither of the

proceeding tests veried that the hard drive is spinning, then please contact

technical support for further assistance.

My backup program can’t save les to the DriveStation.

Reformat your DriveStation with NTFS, Mac OS Extended, or XFS. FAT32 is

limited to 4GB lesizes.

Technical Specications

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

USB Standards: USB Specication Rev. 2.0

Seek Time: Max. 11 milliseconds

Transmission Speed: Max. 480 Mbps

Power Supply: external, AC100-240V 50/60Hz

Power Consumption: Max. 24 W, Average 12 W

Dimensions(W x H x D): 1.8 x 6.9 x 6.1 in.

45 x 175 x 156 mm

Weight: 2.2 lb. / 1.0 kg

Operating Environment: 5 - 35 degree C / 41 - 95 degree F

20-80% humidity (non-condensing)

OS Compatibility: Windows 2000, XP, Vista, 7

Mac OS X 10.2.7 or later

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CE Mark Warning

USB Standards: USB Specication Rev. 2.0

Seek Time: Max. 11 milliseconds

Transmission Speed: Max. 480 Mbps

Power Supply: external, AC100-240V 50/60Hz

Power Consumption: Max. 24 W, Average 12 W

Dimensions(W x H x D): 1.8 x 6.9 x 6.1 in.

45 x 175 x 156 mm

Weight: 2.2 lb. / 1.0 kg

Operating Environment: 5 - 35 degree C / 41 - 95 degree F

20-80% humidity (non-condensing)

OS Compatibility: Windows 2000, XP, Vista, 7

Mac OS X 10.2.7 or later

• The equipment that you have purchased required the extraction and use of

natural resources for its

production.

• The equipment may contain hazardous substances that could impact health

and the environment.

• In order to avoid the dissemination of those substances in our environment and

to diminish the load on

natural resources, we encourage you to use the appropriate take-back systems.

• The take-back systems will reuse or recycle most of the materials of your end of

life equipment

appropriately.

• The crossed-out wheeled bin symbol invites you to use those systems.

• If you need more information on the collection, reuse and recycling systems,

please contact your local or

regional waste administration.

Environmental Information

USA/Canada Technical Support is available 24 hours a day, 7 days a week

toll-free: 866-752-6210

email: info@buffalotech.com

Europe Technical Support is available between

9am-6pm (Monday-Thursday) (GMT)

and 9am-4:30pm on Fridays.

email: helpdesk@buffalo-technology.ie

phone (UK only): 087 12 50 12 60*

phone: +353 61 70 80 50

*Calls cost 8.5p per minute

www.buffalotech.com
