Bryant TSTATBBPQ501 Guide
72 72
I2:00
SET
AM
Tu
USERS INFORMATION MANUAL
MODEL TSTATBBPQ501
5+2 DAY PROGRAMMABLE
DIGITAL THERMOSTAT
Heating & Cooling Systems
NOTE TO INSTALLER:
This manual must be left with the equipment user.
Meets California Title 24 Residential
next
run
off
set
prog
SINGLE STAGE HEAT & COOL
THERMOSTAT
5+2 DAY PROGRAMMABLE
Separate programs for
weekdays & weekends
Large, easy to read,
backlit digital display
Installation Flexibility
Batteries required for
4-wire operation
No batteries needed
for 5-wire operation
Table Of Contents
LOCATION OF CONTROLS
DISPLAY
NORMAL OPERATION
Manual Thermostat Operation
Time Period Operation
CLOCK SET
ADVANCED SETUP
Page 1
3
4
5
6
8
PROGRAMMING Setup
Overview
Program Setup
7
9
16
SAFETY WARNINGS
2
BATTERY REPLACEMENT
WARRANTY
18
19
Bryant Heating & Cooling Systems Patents Pending 4/03
Safety Warnings
Page 2
TSTATBBPQ501
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
The 2 Alkaline “AA” batteries must be replaced at least
every 12 months to assure proper operation.
The thermostat will display the Low Battery
code (fig. 1) on the display of the thermostat
when it is time to replace the batteries. If the
thermostat is connected to 24v power, the
Batteries may still be installed, but are not required.
When is displayed the batteries must be replaced
immediately. The manufacturer cannot be liable for
improper operation of the thermostat if the batteries are
not immediately replaced.
The annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the Heat if the
batteries are exhausted.
CAUTION
This device complies with Part 15 of the FCC rules.
Operation is subject to the following 2 conditions:
(1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including
interference that may cause undesired operation.
FIG. 1
Location of Controls
Page 3
72 72
I2:00
SET
AM
Tu
MODE SWITCH
On or Auto
FAN SWITCH
UP & DOWN
BUTTONS
HEAT/COOL
INDICATOR
Heat, Cool or Off
PROGRAM SWITCH
RUN program
Program OFF
SET program
NEXT BUTTON
For programmingFor programming
How to Use: The Next button is used to advance
from one step to the next in the programming and
advanced setup screens of the thermostat (pages 8-16).
It is also used to enter the Advanced Setup screens (page 16).
next
run
off
set
prog
The Heat/Cool
indicator will only
energize if the
thermostat is system
powered.
Display
Page 4
8888
I2:00
SET
PM
AM
MTuWThF
SaSuHeatCool
Morning
Evening
Night
Day
Day of the week. When programming, MTuWThF
represents the 5 weekdays, SaSu represent the
2 weekend days.
Heat and Cool indicators. In normal operation, Heat
or Cool appears, reflecting the mode switch position.
Clock Display.
Desired Set temperature indicator.
Current room temperature indicator.
Time period indicators. These indicate the part of
the program that is currently active, if the program
switch is positioned to Run.
Page 5
Normal Operation
72 72
I2:00
SET
AM
Tu
Manual Operation (program switch OFF)
Select heat or cool with the mode switch.
Normally leave the fan switched to auto.
In fan auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Adjust the desired set temperature with the
Up or Down buttons.
On or Auto
Program
Switch
RUN
OFF
SET
PROGRAM
SWITCH
MODE SWITCH FAN SWITCH
Heat
next
run
off
set
prog
UP & DOWN
BUTTONS
Heat, Cool or Off
Normal Operation
Page 6
72 72
I2:00
SET
AM
Tu
MODE SWITCH
Programmed Operation (program switch RUN)
Select heat or cool with the mode switch.
Normally leave the fan switched to auto.
In fan auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Optionally; adjust the desired set temperature
for temporary override. The programmed
settings will restore in the following time period.
On or Auto
FAN SWITCH
Program
Switch
RUN
OFF
SET
PROGRAM
SWITCH
Heat
next
run
off
set
prog
UP & DOWN
BUTTONS
Heat, Cool or Off
Page 7

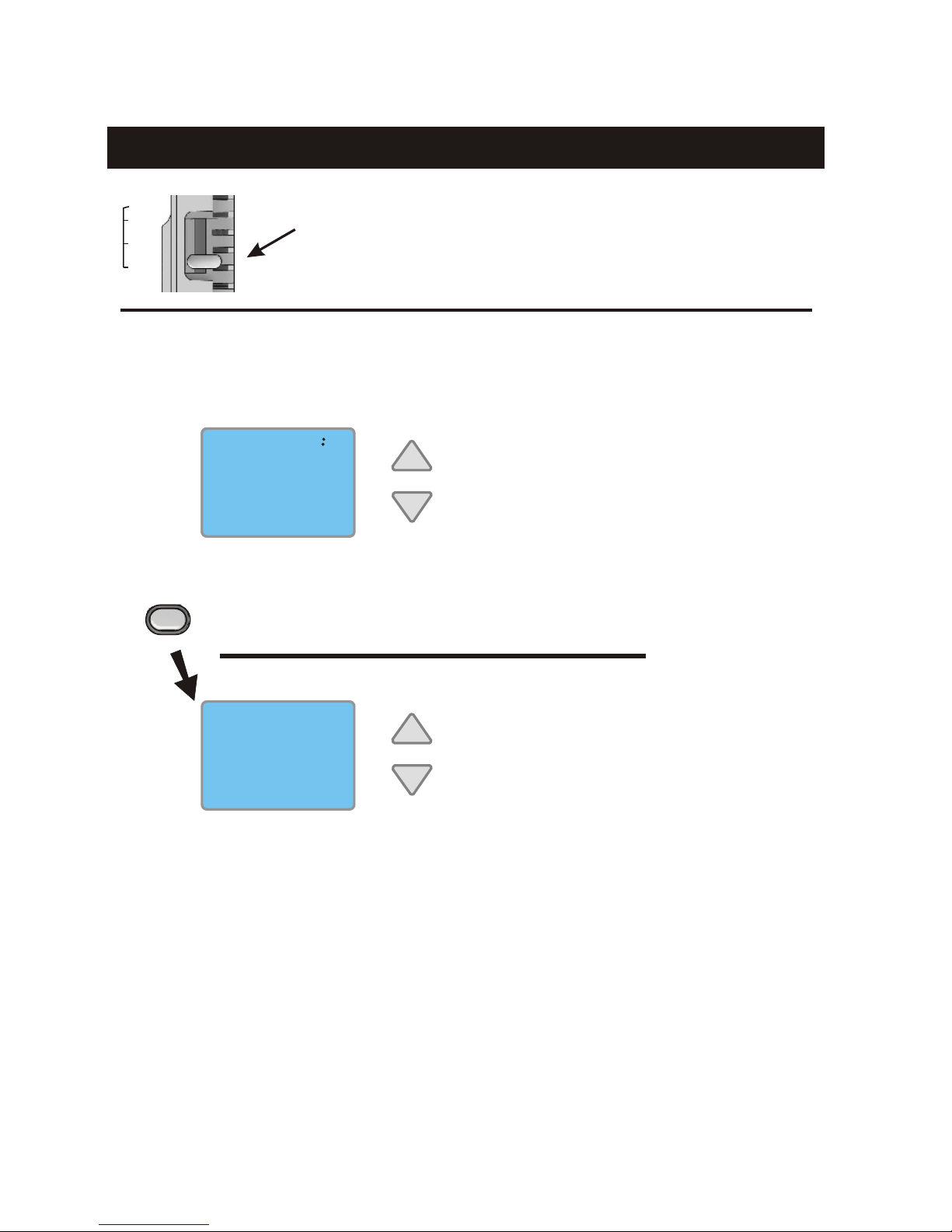

Clock Set
6:00
PM
NEXT
Use these buttons to
adjust the current time.
Use these buttons to
adjust the current day.
Su
Slide the program switch to the SET position.
6:00
PM
Pushing and holding the Up or Down buttons will slew the time by
10s of minutes.
Press the NEXT button for 5 seconds to enter advanced
setup. (Page16)
Setting the time & day are the first 2 steps after
sliding the program switch to SET.
Program
RUN
OFF
SET
Page 8
Time Period Programming
Program
Switch
RUN
OFF
SET
PROGRAM SWITCH
Overview
Slide the program switch to the SET position.
The blinking icon(s) on the display may be
changed by pressing the Up or Down buttons.
After the blinking icon is changed how you want
it, press the Next button.
The next icon in ‘programming sequence’ will flash.
It can be modified with the Up & Down buttons.
Continue the steps above until programming is complete.
Slide the program switch to RUN and the thermostat
will now run the time period programming.
If the program switch is in the OFF position, the thermostat
will not run the time period program. In this case the
thermostat will be a manual heat or cool only thermostat.
Please be certain to program each time period in chronological
order to ensure proper programmed operation of the
thermostat. For example, if the Morning Start Time is
6:30am, then the Day Start Time MUST be programmed
for any time AFTER the 6:30am Morning Start Time.
Page 9
Time Period Programming
Slide the program switch to the SET position. The
1st 2 steps are clock and day set, see page 7.
Program
RUN
OFF
SET
Next Page
6:00
AM
MTuWThF
Morning
NEXT
Use these buttons to
adjust the start time for
the morning time period.
78
6:00
SET
AM
MTuWThF
Cool
Morning
NEXT
Use these buttons to
adjust the cool setpoint for
the morning time period.
70
6:00
SET
AM
MTuWThF
Heat
Morning
NEXT
Use these buttons to
adjust the heat setpoint for
the morning time period.
8:00
AM
MTuWThF
Use these buttons to
adjust the start time for
the day time period.
Day
NEXT
Weekday Programming
