PARTS REFERENCE LIST

MODEL: P-touch BB4

REVISED

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B55L111 - 201 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in April, 2002.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM ................................................................................1

2 . COVERS ..................................................................................................3

3 . MAIN PCB................................................................................................5

4 . RUBBER KEY...........................................................................................7

5 . ATTACHMENTS.......................................................................................7

6 . PRINTED MATTER ..................................................................................9

7 . PACKING MATERIALS...........................................................................11

-1-

MODEL BB4 8V2-U31-045

1 . PRINT MECHANISM

-2-

1 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA5531001 1CHASSIS ASSY

2LA0123001 1DC MOTOR ASSY NAPLES

3UN3640001 2SCREW, PAN 1.7X2.5

4LA5580001 1CUTTER LEVER BB4, BLUE6357

5LA3061001 1HEAD ASSY KF2400-21

6UB3941001 1CUP SCREW, M2.6X4

7LA3066001 1ROLLER HOLDER ASSY

8LA3072001 1ROLLER HOLDER SPRING

9 048020346 1 RETAINING RING, E2

MODEL BB4 8V2-U31-045

-3-

MODEL BB4 8V2-U31-061

2 . COVERS

-4-

2 . COVERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA5533001 1BODY COVER BB4, WHITE1598

2LA5534001 1LCD PANEL BB4 (USA/CAN/WALMART)

2LA5576001 1LCD PANEL BB4 EC (DEU/GBR/FRA/IRL/NLD/CHE/DNK/SWE/ITA/BEL/NOR/ESP/ZAF)

3LA7449001 10 TAPTITE, BIND B M2.6X4

4LA5535001 1BOTTOM COVER BB4, WHITE1598

5LA5536001 2BATTERY TERMINAL P1

6LA5537001 3BATTERY TERMINAL P2

7LA5538001 1LENS

8LA5539001 1SELECT DIAL USA, WHITE1598 (USA)

8LA5571001 1SELECT DIAL DEU, WHITE1598 (DEU)

8LA5569001 1SELECT DIAL CAN, WHITE1598 (CAN/WALMART)

8LA5582001 1SELECT DIAL GBR, WHITE1598 (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/NOR/ESP

/ZAF)

8LA5586001 1SELECT DIAL FRA, WHITE1598 (FRA)

9LA5829001 1DIAL SHEET BB4

10 LA5542001 1ENTER KEY, WHITE1598

11 LA5543001 1SELECT DIAL CLAW

12 085270617 2 TAPTITE, BIND B M2.6X6

13 LA5545001 1CASSETTE COVER BB4, WHITE1598

14 LA3856001 1ROLLER HOLDER CAM

15 LA5581001 1FCC LABEL BB4,US (USA)

15 LA5584001 1FCC LABEL BB4, CA (CAN/WALMART)

MODEL BB4 8V2-U31-061

-5-

MODEL BB4 8V2-U31-101

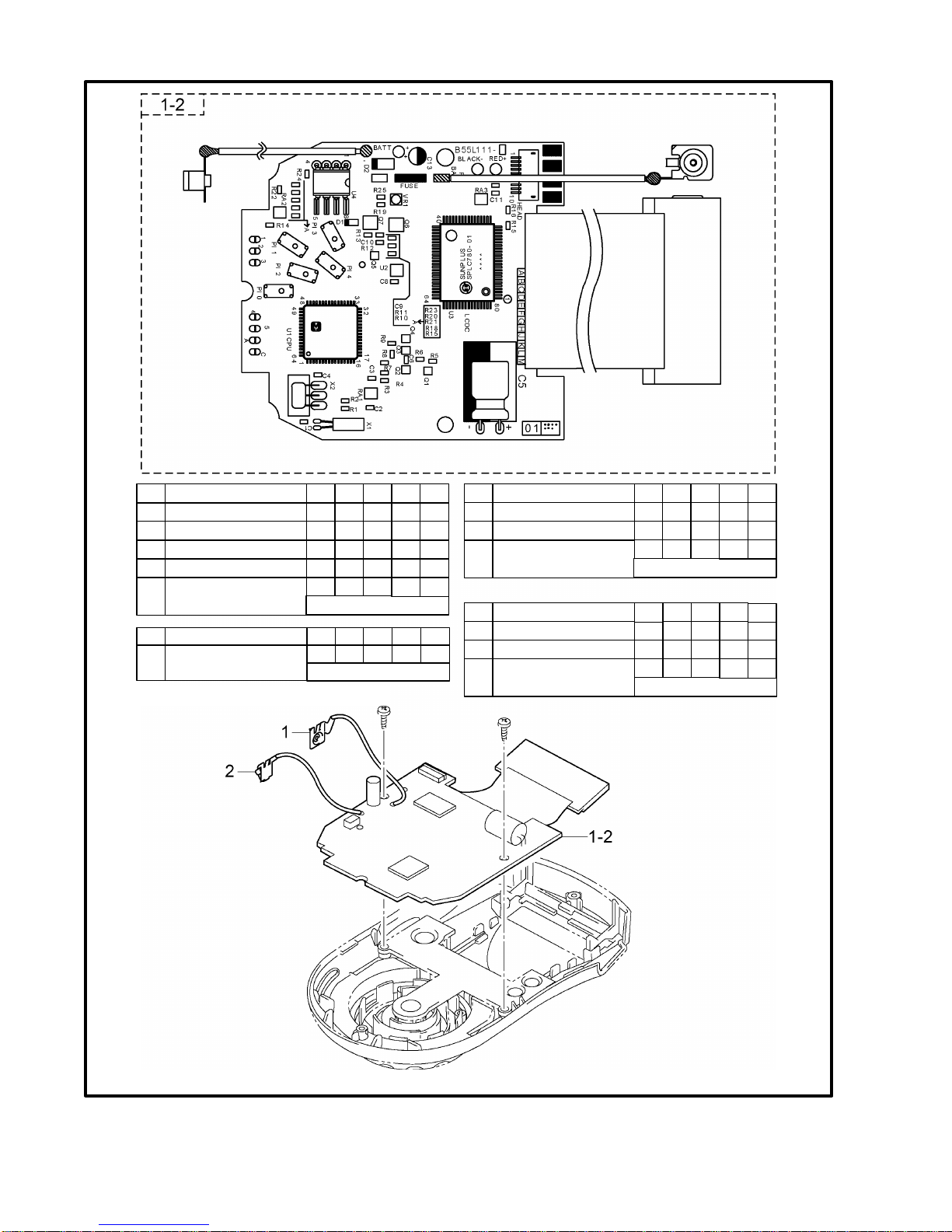

3 . MAIN PCB

Belgium HHH

04 Switzerland H H L

03 France LH H

Germany HLH

Spec.

No. Destination 123

Solder Points

H H

4 5

Netherlands (Holland) H H H H L 08 Spain HLH

07 Italy LH H

02 England/Ireland H H H

Spec.

No. Destination 1 2 3

Solder Points

H H

4 5

12 Sweden H H L

11 Norway HLH

09 Denmark LH H

Spec.

No. Destination 1 2 3

Solder Points

H H

4 5

H: Solder point opened L: Solder point closed

10 U.S.A./Canada H H H

Spec.

No. Destination 1 2 3

Solder Points

H H

4 5

-6-

3 . MAIN PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B55L111-210C LA5546001 1MAIN PCB ASSY BB4 US (USA/CAN/WALMART)

1-2 B55L111-201 LA6541004 1MAIN PCB ASSY BB4 EC (DEU)

1-2 B55L111-202 LA6529003 1MAIN PCB ASSY BB4 EC (GBR/IRL/ZAF)

1-2 B55L111-203 LA6541005 1MAIN PCB ASSY BB4 EC (FRA)

1-2 B55L111-206 LA6541001 1MAIN PCB ASSY BB4 EC (NLD)

1-2 B55L111-204 LA6541002 1MAIN PCB ASSY BB4 EC (CHE)

1-2 B55L111-209 LA6551003 1MAIN PCB ASSY BB4 EC (DNK)

1-2 B55L111-212 LA6551001 1MAIN PCB ASSY BB4 EC (SWE)

1-2 B55L111-207 LA6873001 1MAIN PCB ASSY BB4 EC (ITA)

1-2 B55L111-205 LA6541003 1MAIN PCB ASSY BB4 EC (BEL)

1-2 B55L111-211 LA6551002 1MAIN PCB ASSY BB4 EC (NOR)

1-2 B55L111-208 LA6529002 1MAIN PCB ASSY BB4 EC (ESP)

1LA5553001 1PLUS TERMINAL ASSY BB4

2LA5556001 1MINUS TERMINAL ASSY BB4

MODEL BB4 8V2-U31-101

-7-

MODEL BB4 8V2-U31-910

4 . RUBBER KEY

MODEL BB4 8V2-U31-003

5 . ATTACHMENTS
