Brother HL-P2500 User manual

Brother Laser Printer

PARTS REFERENCE LIST

MODEL: MFC-P2500 / HL-P2500

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

Dec., 1999

PL-PRN003

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

< Example >

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

Revision No.: marked on the main printed circuit board.

B48K056 - 201A

Revision No.: marked on the power supply printed circuit board.

Rev. A

2. Design-changed parts :

If the parts are changed, any one of the following symbols is indicated in the REMARKS column.

#A : compatible between old and new

#B : replaceable from old to new

#D : incompatible

# : newly established

3. The original of this list was made based on the information available in December, 1999.

4. Parts are subject to change in design without prior notice.

(1) (4)

(3)

(2)

Design change indication

Specification No .

Pattern alteration No.

Circuit board No.

Design change indication

(The first version has no sign.)

CONTENTS

1. FRAME / DRIVE UNIT.......................................................................... 1

2. LASER UNIT......................................................................................... 1

3. DOCUMENT SCANNER FRAME......................................................... 3

4. PAPER FEEDER.................................................................................. 5

5. FIXING UNIT ........................................................................................ 5

6. PAPER CASSETTE.............................................................................. 7

7. COVER................................................................................................. 9

8. CONTROL PANEL.............................................................................. 11

9. MAIN PCB .......................................................................................... 13

10. ENGINE PCB...................................................................................... 13

11. LOW-VOLTAGE POWER SUPPLY PCB ........................................... 15

12. HIGH VOLTAGE POWER SUPPLY PCB........................................... 15

13. AC CORD........................................................................................... 17

14. ACCESSORIES.................................................................................. 17

15. DOCUMENTS..................................................................................... 19

16. PACKING MATERIALS ...................................................................... 19

17. ADJUSTMENT TOOL......................................................................... 21

1. FRAME / DRIVE UNIT

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1 UL9311001 1 MAIN MOTOR ASSY

2 087320616 4 TAPTITE, CUP S M3X6

3 LJ4069001 1 SOLENOID ASSY

4 000300415 1 SCREW, BIND M3X4

5 LJ4432001 1 TAPE 32X12

6 UL8984001 1 LINK

7 LJ4015001 1 FAN MOTOR UNIT

8 UL9099001 1 TONER EMPTY PCB UNIT (LIGHT EMISSION) B512038

9 087320616 2 TAPTITE, CUP S M3X6

10 UL8507001 4 RUBBER FOOT

11 UL9104001 1 TONER EMPTY PCB UNIT (LIGHT RECEPTION) B512037

12 087320616 1 TAPTITE, CUP S M3X6

13 LJ8031001 1 LT RELAY PCB ASSY B512060

14 087320616 1 TAPTITE, CUP S M3X6

15 UG3005000 1 FERRITE CORE: 16X8X10

MODEL MFC-P2500/HL-P2500 84U-Z11-010

2. LASER UNIT

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1 LJ4157001 1 LASER UNIT (SP) (B512033)

2 087321615 3 TAPTITE, CUP S M3X16

MODEL MFC-P2500/HL-P2500 84U-Z11-020

- 1 -

MODEL MFC-P2500/HL-P2500 84U-Z11-010

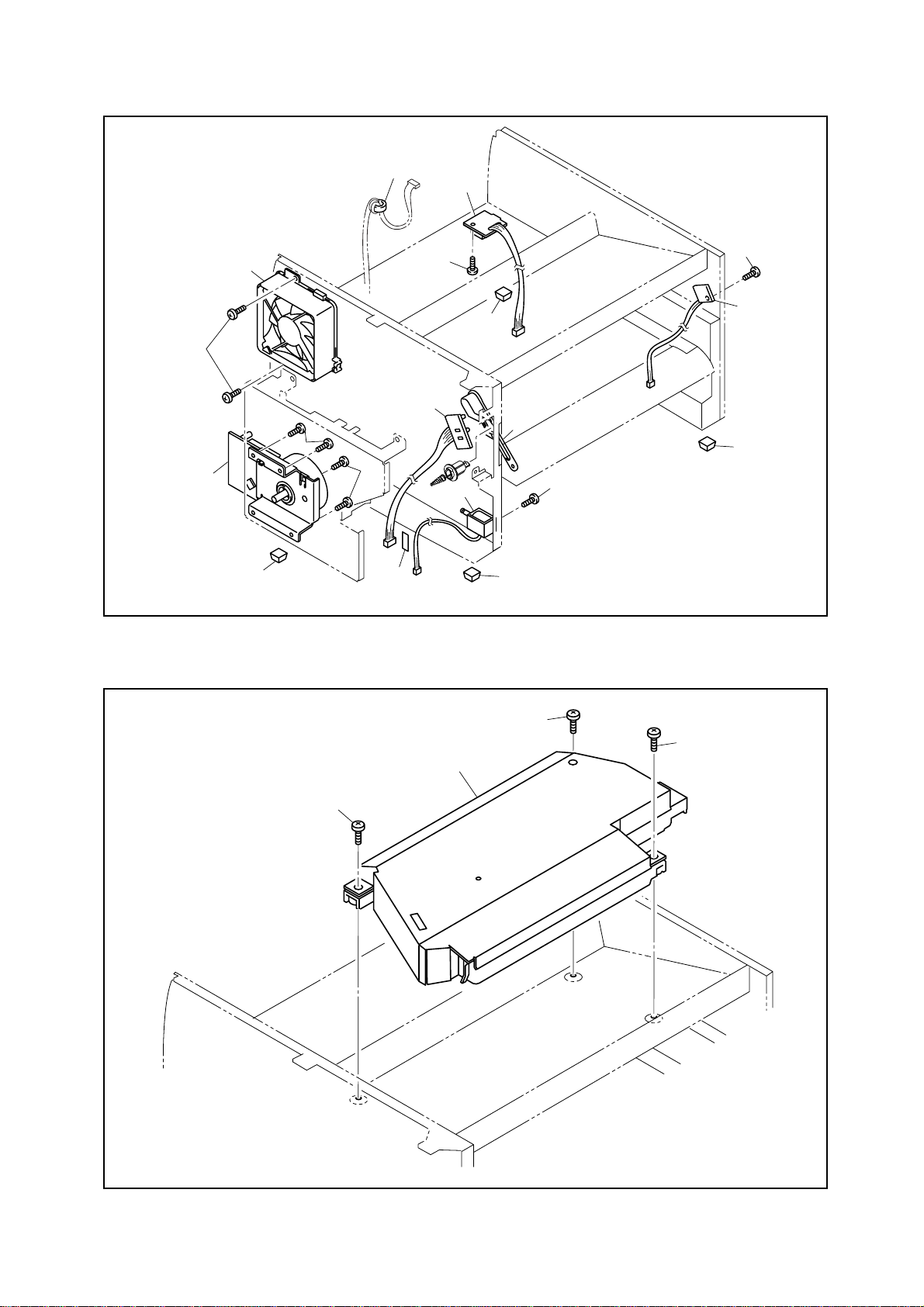

1. FRAME / DRIVE UNIT

2. LASER UNIT

- 2 -

MODEL MFC-P2500/HL-P2500 84U-Z11-020

3. DOCUMENT SCANNER FRAME

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 LE1072001 2 DOCUMENT SEPARATION ROLLER

2 UF4369000 1 PRESSURE ROLLER SHAFT

3 UF9009001 2 PRESSERE ROLLER

4 UU7032001 2 LF SPRING

5 UU2027001 1 SCANNER MOTOR

6 0A4300605 1 SCREW, PAN (S/P WASHER) M3X6

7 UU2028001 2 CIS SPRING

8 LE1160001 1 CIS UNIT ZL (SP)

9 UU2029001 1 DOCUMENT FEED ROLLER

10 LE1196001 2 ROLLER GEAR

11 UL6244002 2 EJECT PINCH ROLLER

12 UU2009001 2 EJECT PINCH ROLLER SPRING

13 UU2031001 1 DOCUMENT EJECT ROLLER

14 087311016 4 TAPTITE, CUP B M3X10

MODEL MFC-P2500/HL-P2500 84U-Z11-015

- 3 -

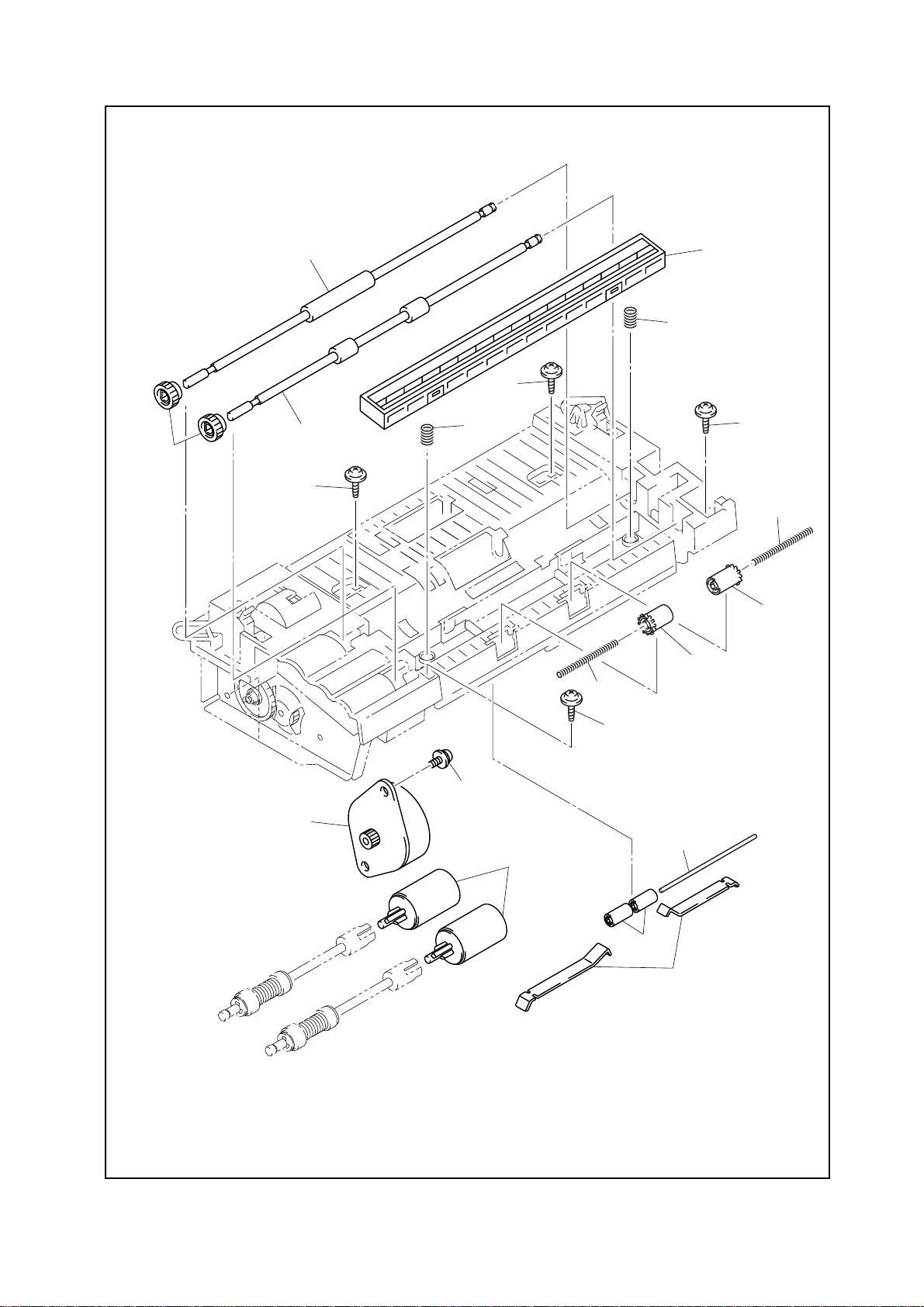

3. DOCUMENT SCANNER FRAME

MODEL MFC-P2500/HL-P2500 84U-Z11-015

- 4 -

4. PAPER FEEDER

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 UL9060001 1 PAPER FEED ROLLER ASSY

2 UL9066001 1 PAPER PICK-UP ROLLER ASSY

3 LJ4499001 1 TR ELECTRODE HELICAL SPRING

MODEL MFC-P2500/HL-P2500 84U-Z11-040

5. FIXING UNIT

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 LJ4164001 1 FIXING UNIT, 115V (SP)

1 LJ4168001 1 FIXING UNIT, 230V (SP)

1-1 UL8902001 1 THERMISTOR ASSY

1-2 087311215 1 TAPTITE, CUP B M3X12

1-3 LJ4169001 1 HEAT ROLLER 25 (SP)

1-4 UL8908001 2 HR BEARING 25

1-5 LJ4160001 1 HALOGEN LAMP, 115V (SP)

1-5 LJ4163001 1 HALOGEN LAMP, 230V (SP)

1-6 UL8929001 8 EJECT PINCH ROLLER

1-7 LJ4431001 8 PINCH SPRING

1-8 LJ4407001 2 CLEANER ROLLER ASSY

1-9 LJ4409001 2 CLEANER SPRING

1-10 087312015 2 TAPTITE, CUP B M3X20

1-11 Z07200001 1 TAPTITE, PAN B M3X10

2 087320815 1 TAPTITE, CUP S M3X8

3 LJ4740001 2 SHOULDER SCREW

MODEL MFC-P2500/HL-P2500 84U-Z11-050/051

- 5 -

MODEL MFC-P2500/HL-P2500 84U-Z11-040

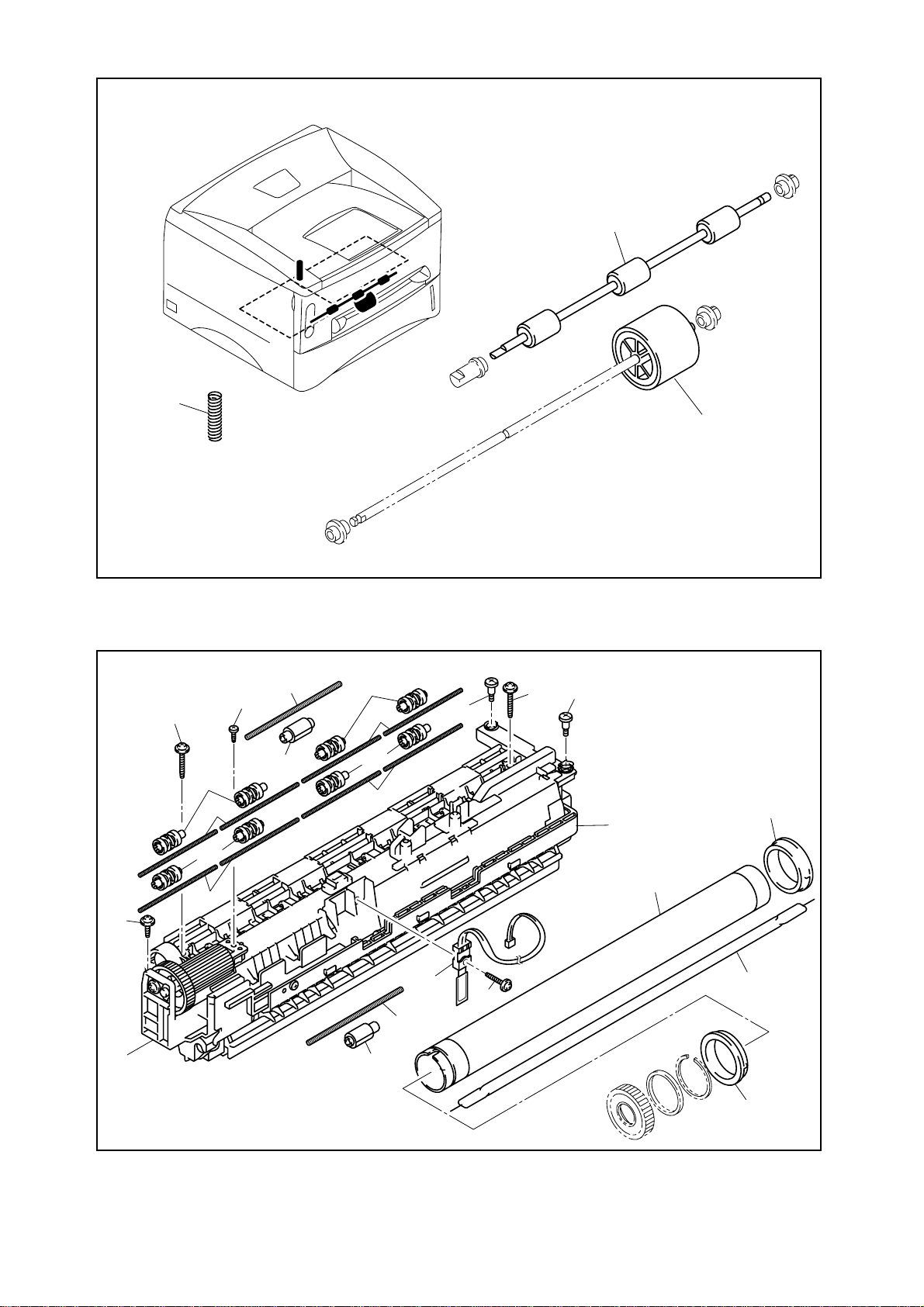

4. PAPER FEEDER

5. FIXING UNIT

- 6 -

MODEL MFC-P2500/HL-P2500 84U-Z11-050/051

1-10

1-11

1-6

1-7

1-6

1-7

1-6

1-10

1-1

1-9

1-8

1-3

1-2

1-4

1-5

1-9

1-8

6-A. PAPER CASSETTE, LGL

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 LE1162001 1 PAPER TRAY ASSY, LGL (SP)

1-1 LJ4537001 1 PRESSURE PLATE ASSY, LGL

1-2 UL9077001 2 PRESSURE PLATE SPRING

1-3 UL9078001 1 SIDE GUIDE L

1-4 UL9079001 1 SIDE GUIDE R

1-5 U73515001 2 TAPTITE, CUP B M2.6X5

1-6 UL9080001 2 SIDE GUIDE RACK

1-7 UL9081001 1 SIDE GUIDE GEAR

1-8 UL9082001 1 FRICTION SPRING

1-9 087310815 1 TAPTITE, CUP B M3X8

1-10 UL9083001 1 REAR PAPER GUIDE

1-11 UL9084001 1 SEPARATION PAD HOLDER ASSY

1-12 UL9090001 1 SEPARATION PAD SPRING

1-13 UL9091001 1 PAPER INDICATOR

1-14 UL9092001 1 LOCK LEVER

1-15 LJ4534001 1 PRESSURE ROLLER HOLDER, LGL

1-16 LJ4195001 1 PRESSURE ROLLER COLLAR

1-17 LJ4226001 1 PRESSURE ROLLER SHAFT

1-18 UL9095001 1 RELEASE LEVER EXTENSION SPRING

1-19 LJ2061001 1 PAPER TRAY COVER

1-20 UF8709001 1 TAPTITE, TORX PAN B M3X8

1-21 LJ4272001 1 TRAY COVER FILM

1-22 LJ4221001 1 SCRATCH SPONGE HOLDER ASSY

1-23 LJ4200001 2 SCRATCH SPONGE SPRING

MODEL MFC-P2500/HL-P2500 84U-Z11-045

6-B. PAPER CASSETTE, A4

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 LJ4181001 1 PAPER TRAY ASSY, A4 (SP)

1-1 UL9074001 1 PRESSURE PLATE ASSY, A4

1-2 UL9077001 2 PRESSURE PLATE SPRING

1-3 UL9078001 1 SIDE GUIDE L

1-4 UL9079001 1 SIDE GUIDE R

1-5 U73515001 2 TAPTITE, CUP B M2.6X5

1-6 UL9080001 2 SIDE GUIDE RACK

1-7 UL9081001 1 SIDE GUIDE GEAR

1-8 UL9082001 1 FRICTION SPRING

1-9 087310815 1 TAPTITE, CUP B M3X8

1-10 UL9083001 1 REAR PAPER GUIDE

1-11 UL9084001 1 SEPARATION PAD HOLDER ASSY

1-12 UL9090001 1 SEPARATION PAD SPRING

1-13 UL9091001 1 PAPER INDICATOR

1-14 UL9092001 1 LOCK LEVER

1-15 LJ4196001 1 PRESSURE ROLLER HOLDER, A4

1-16 LJ4195001 1 PRESSURE ROLLER COLLAR

1-17 LJ4226001 1 PRESSURE ROLLER SHAFT

1-18 UL9095001 1 RELEASE LEVER EXTENSION SPRING

1-19 LJ2061001 1 PAPER TRAY COVER

1-20 UF8709001 1 TAPTITE, TORX PAN B M3X8

1-21 LJ4272001 1 TRAY COVER FILM

1-22 LJ4221001 1 SCRATCH SPONGE HOLDER ASSY

1-23 LJ4200001 2 SCRATCH SPONGE SPRING

MODEL MFC-P2500/HL-P2500 84U-Z11-047

- 7 -
