Brother DCP-130C User manual

STEP 1

STEP 2

Setup is Complete!

Quick Setup Guide

Setting Up the Machine

Installing the Driver & Software

DCP-130C

Before you can use the machine, you must set up the hardware and install the software.

Please read this Quick Setup Guide for the correct setup procedure and installation instructions.

Keep this Quick Setup Guide, the User’s Guide and the supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Symbols used in this guide

Warning

Caution

Improper Setup

Warnings tell you what to do to prevent

possible personal injury.

Cautions specify procedures you must

follow or avoid to prevent possible

damage to the machine or other objects.

Improper Setup icons alert you to

devices and operations that are not

compatible with the machine.

Note

User’s Guide or Software User’s Guide

Notes tell you how you should respond

to a situation that may arise or give tips

about how the current operation works

with other features.

Indicates reference to the User’s Guide

or Software User’s Guide we have

supplied.

Table of Contents

Getting Started

Carton components...................................................................................................................................... 2

Control panel................................................................................................................................................ 3

STEP1 –

Setting Up the Machine

Removing the protective parts ..................................................................................................................... 4

Loading paper .............................................................................................................................................. 4

Connecting the power cord .......................................................................................................................... 5

Installing the ink cartridges........................................................................................................................... 6

Print quality check ........................................................................................................................................ 8

Choosing your language (Canada only)....................................................................................................... 8

Setting the LCD contrast .............................................................................................................................. 9

Setting the date and time ............................................................................................................................. 9

STEP2 –

Installing the Driver & Software

Windows®

For USB Interface Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ................................... 12

Macintosh®

For USB Interface Users

(For Mac OS®X 10.2.4 or greater) ........................................................................................................... 15

Consumables

Replacement consumables........................................................................................................................ 18

Ink cartridge .......................................................................................................................................... 18

Getting Started

Carton components

Carton components may vary from one country to another.

Save all packing materials and the carton in case for any reason you must ship your machine.

A USB interface cable is not a standard accessory.

Please make sure you use a USB 2.0 cable that is no longer than 6 feet long (2 meters).

Your DCP has a USB interface that is compatible with the USB 2.0 specification. This interface is also

compatible with Hi-Speed USB 2.0; however, the maximum data transfer rate will be 12 Mbits/s. The DCP can

also be connected to a computer that has a USB 1.1 interface.

DO NOT connect the interface cable at this time.

Connecting the interface cable is done during the software installation process.

When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port

on a keyboard or a non-powered USB hub.

Quick Setup Guide

CD-ROM

User’s Guide

Accessory Order Form

Black (LC51BK)

Yellow (LC51Y)

Cyan (LC51C)

Magenta (LC51M)

Ink Cartridges

Getting Started

Control panel

1 Copy keys

2OKkey

3 Navigation keys

4 Stop/Exit key

5 Start keys

6On/Offkey

7Inkkey

8 Scan key

9 PhotoCapture key

10 Menu key

11 LCD (Liquid Crystal Display)

12 Warning LED

For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

Note

When the machine is idle (not being used) it will return to the default display shown above. The default display

can give you useful information about the current settings.

1245

6789

101112

Current Enlarge/

Reduce setting

Current Copy

Quality setting

Current Number of

Copies setting

Setting Up the Machine

STEP1

1 Removing the protective

parts

1Remove the protective tape and film covering

the scanner glass.

Improper Setup

DO NOT connect the USB cable. Connecting

the USB cable is done during the software

installation process.

2 Loading paper

You can load up to 100 sheets of 20 lb

(80g/m2) paper.

For details, see About paper in Chapter 2 of

the User’s Guide.

1Pull the paper tray completely out of the

machine and lift the output paper tray cover (1).

2Press and slide the paper side guides (1) and

paper length guide (2) to fit the paper size.

3Fan the stack of paper well to avoid paper jams

and misfeeds.

4Gently put the paper into the paper tray print

side down and top edge first.

Check that the paper is flat in the tray.

Setting Up the Machine

Note

When you use Legal size paper, press and hold

the universal guide release button as you slide out

the front of the paper tray.

5Gently adjust the paper side guides with both

hands and the paper length guide to the paper.

Make sure the paper side guides and paper

length guide touch the sides of the paper.

Note

Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

6Close the output paper tray cover.

7Push the paper tray firmly back into the

machine.

8While holding the paper tray in place, pull out

the paper support ( ) until it clicks, and then

unfold the paper support flap ( ).

Note

Do not use the paper support flap for Legal paper.

3 Connecting the power cord

1Connect the power cord.

Improper Setup

DO NOT connect the USB cable. Connecting

the USB cable is done during the software

installation process.

Note

The control panel warning LED will stay on until

you have installed the ink cartridges.

Setting Up the Machine

STEP1

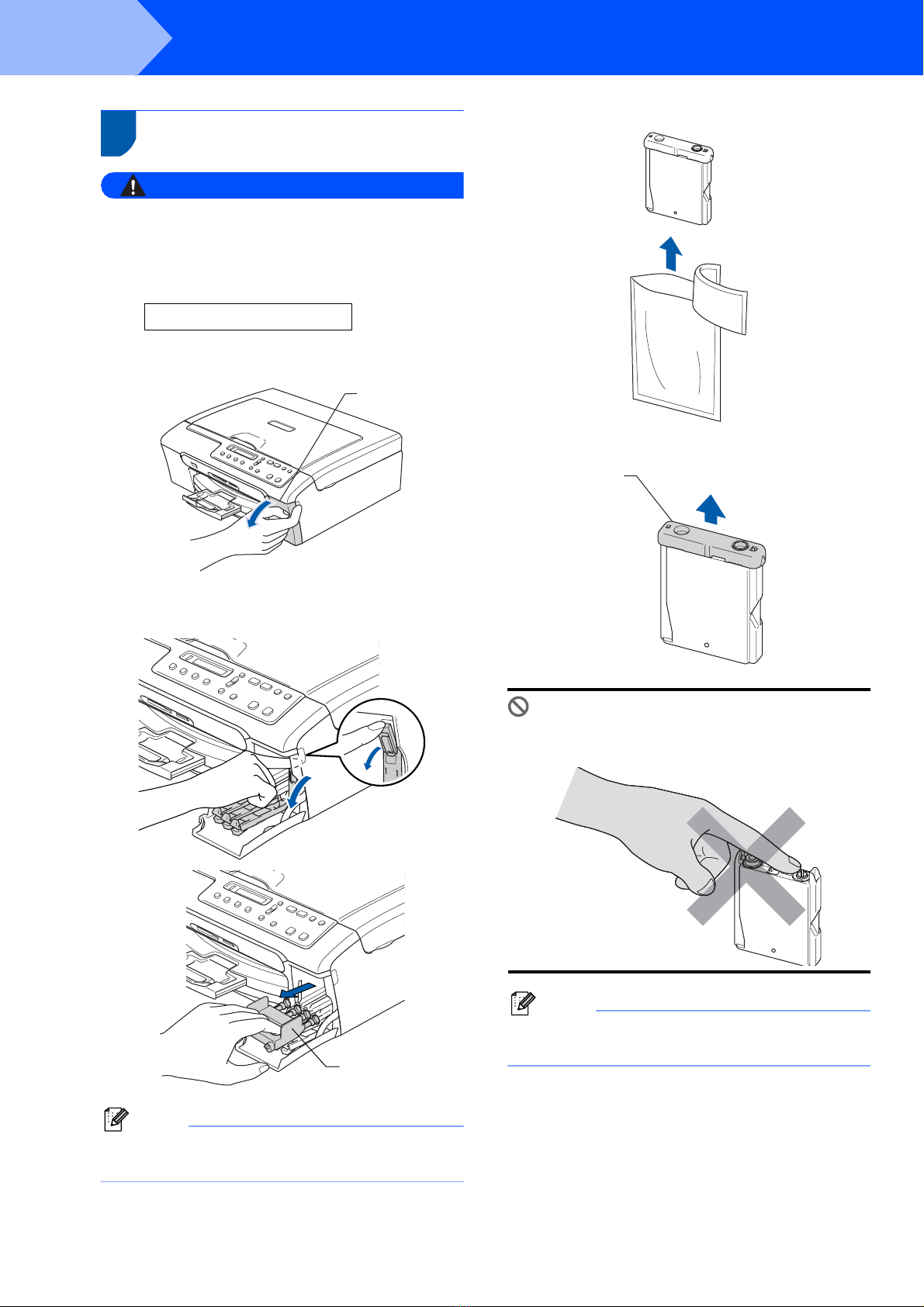

4 Installing the ink cartridges

Warning

If ink gets in your eyes, wash them out with water

at once, and if irritation occurs consult a doctor.

1Make sure that the power is turned on.

The LCD shows:

No Cartridge

2Open the ink cartridge cover (1).

3Push all the lock release levers down and

remove the yellow protective part (1).

Note

Do not throw away the yellow protective part. You

will need it if you transport the machine.

4Take out the ink cartridge.

5Carefully remove the protective yellow cap (1).

Improper Setup

DO NOT touch the area shown in the

illustration below.

Note

If the protective yellow cap comes off when you

open the bag, the cartridge will not be damaged.

Setting Up the Machine

6Install each ink cartridge in the direction of the

arrow on the label.

Take care to match the color of the lock release

lever (1) with the cartridge color (2), as shown

in the diagram below.

7Lift each lock release lever and push it until it

clicks, and then close the ink cartridge cover.

Note

If the LCD shows install Black, install

Yellow, install Cyan or install Magenta

after you install the ink cartridges, check that the

ink cartridges are installed properly.

The machine will clean the ink tube system for

use for the first time. This process will occur

only once, the first time ink cartridges are

installed. The cleaning process will last

approximately four minutes.

The LCD shows:

Preparing System

Approx 4 Minutes

Cleaning

Please Wait

Caution

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of the

cartridge.

• If you mix the colors by installing an ink

cartridge in the wrong position, clean the print

head several times after correcting the

cartridge installation. (See Cleaning the print

head in Appendix B of the User’s Guide.)

• Once you open an ink cartridge, install it in the

machine and use it up within six months of

installation. Use unopened ink cartridges by

the expiration date written on the cartridge

package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out of

the cartridge.

• Brother strongly recommends that you do not

refill the ink cartridges provided with your

machine. We also strongly recommend that

you continue to use only Genuine Brother

Brand replacement ink cartridges. Using or

attempting to use potentially incompatible

inks and/or cartridges in your machine may

cause damage to the machine itself and/or it

may result in unsatisfactory print quality. Our

warranty coverage does not apply to any

problem that was caused by the use of

unauthorized third party ink and/or cartridges.

To protect your investment and guarantee

your print quality please continue to replace

consumed ink cartridges with only Genuine

Brother Branded Supplies.

Mbrother

XXXX

Setting Up the Machine

STEP1

5 Print quality check

1After the cleaning cycle is finished, the LCD

shows:

Set Paper and

Press Start

2Make sure paper is loaded in the paper tray.

Press Color Start.

The machine starts printing the Print Quality

Check Sheet (only during initial ink cartridge

installation).

3Check the quality of the four color blocks on the

sheet.

(black/ yellow/ cyan/ magenta)

Improper Setup

Avoid touching the printed surface of the

paper immediately after printing, the surface

may not be completely dry and may stain your

fingers.

4The LCD shows:

Is Quality OK?

aYes bNo

5Do one of the following:

If all lines are clear and visible, press a

(Yes) to finish the quality check.

If you can see missing short lines, press b

(No) and go to step 6.

6The LCD asks you if the print quality is OK for

black and color. Press a(Yes) or b(No) .

Black OK?

aYes bNo

Color OK?

aYes bNo

After pressing a(Yes) or b(No) for both black

and color, the LCD shows:

Start Cleaning?

aYes bNo

7Press a(Yes), the machine will then start

cleaning the colors.

8After cleaning is finished, press Color Start.

The machine starts printing the Print Quality

Check Sheet again and goes back to step 3.

6 Choosing your language

(Canada only)

1Press Menu.

2Press aor bto choose 0.Initial Setup

Press OK.

3Press aor bto choose 0.Local Language

Press OK.

4Press aor bto choose your language.

Language:English

5Press OK.

6Press Stop/Exit.

OK Poor

Other manuals for DCP-130C

Table of contents

Other Brother All In One Printer manuals

Brother

Brother MFC-J200 Operating and maintenance manual

Brother

Brother MFC-J425W User guide

Brother

Brother FAX-1840CN User manual

Brother

Brother DCP-L8410CDW User manual

Brother

Brother DCP 350C - Color Inkjet - All-in-One User manual

Brother

Brother MFC-7440N User manual

Brother

Brother IntelliFax-4100 User manual

Brother

Brother MFC-J6925DW User manual

Brother

Brother MFC 9760 - B/W Laser - All-in-One User manual

Brother

Brother MFC-9*970CDW User manual

Brother

Brother HL-4150CDN Installation instructions

Brother

Brother MFC-J220 User manual

Brother

Brother MFC 230C - Color Inkjet - All-in-One User manual

Brother

Brother MFC 640CW - Color Inkjet - All-in-One User manual

Brother

Brother FAX1 570MC User manual

Brother

Brother MFC-7860DW User manual

Brother

Brother MFC-9130CW Operating and maintenance manual

Brother

Brother MFC-8890DW User manual

Brother

Brother MFC-J690DW User manual

Brother

Brother 1960C - IntelliFAX Color Inkjet User manual

Brother

Brother MFC-8440 User manual

Brother

Brother DCP-9040CN Safety guide

Brother

Brother MFC-J995DW User manual

Brother

Brother MFC 885CW - Color Inkjet - All-in-One User manual

Popular All In One Printer manuals by other brands

Triumph Adler

Triumph Adler DC 2016 Instruction handbook

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Canon

Canon ImageCLASS 2300 setup sheet

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide

Copystar

Copystar CS 4551ci Specifications

Konica Minolta

Konica Minolta Magicolor 4650EN Service manual
