Brodit 216025 User manual

Product 216025

216025 Passive holder with tilt swivel With swiveling top support for an extra firm installation.

The choice for you who want to have you PDA firmly in place, properly attached and still within easy reach. The

holder has a strong, robust design to withstand rough handling in professional use. The swiveling top part keeps

your device extra securely in place in the holder, it "locks" the device in the holder so that it can not shake the

least. It is easy to place the PDA in the holder, and to take it with you when leaving the vehicle. You can attach e.

g. a charging cable to the device while in the holder. The holder is equipped with a tilt swivel so you can easily

adjust the angle for good viewing. Attach onto a ProClip Mounting Platform or a Pedestal Mount.

EAN: 7320282160258

Item no 216025 fits:

Xplore M6 (For all countries)

Xplore M60 (For all countries)

Zebra M6 (For all countries)

Zebra M60 (For all countries)

1. 2.

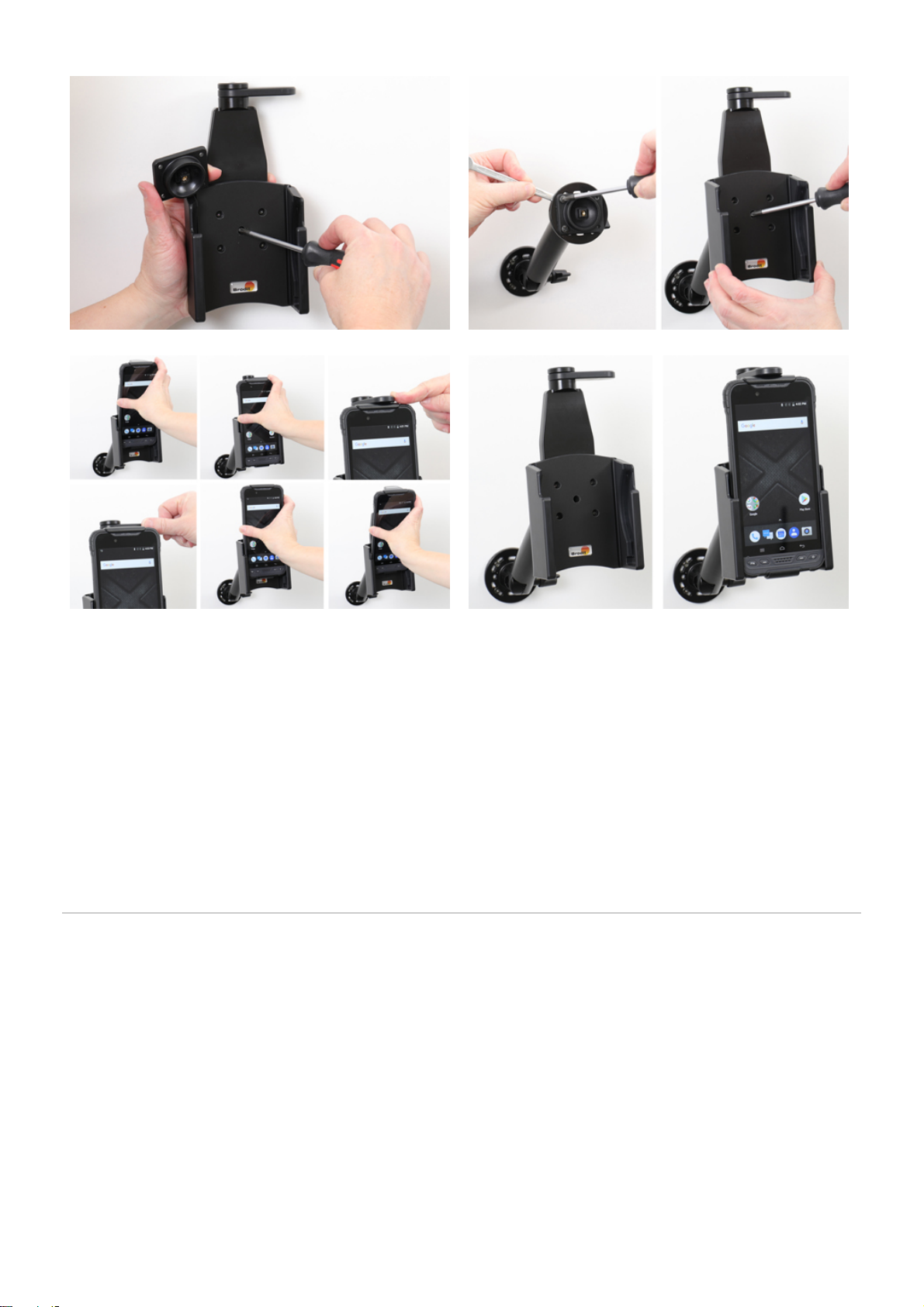

INSTALLATION INSTRUCTIONS

4.3.

Please read all of the instructions and look at the pictures before attaching the holder.

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed

screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw

until the holder is firmly in place, but still can be adjusted.

3. To place the device in the holder: Place the device over the holder and slide it straight downward into the

holder. Turn the swiveling top support sideways in order to "lock" the device in place in the holder.

To remove the device from the holder: Turn the swiveling top support sideways in order to set the device free. Lift

the device straight upward, out from the holder.

4. The holder is in place.
