Brinkmann Hampton User manual

Heavy-Duty Natural Gas Grill

Gril Résistant de Gaz Naturel

OWNER’S MANUAL / NOTICE D’UTILISATION

WARNING/AVERTISSEMENT

HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS ARE

IGNORED. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL

TO AVOID PERSONAL INJURY, INCLUDING DEATH OR PROPERTY DAMAGE.

UNE EXPLOSION DANGEREUSE RISQUE DE SE PRODUIRE SI CES

AVERTISSEMENTS ET INSTRUCTIONS SONT IGNORÉS. LIRE ET RESPECTER TOUS

LES AVERTISSEMENTS ET INSTRUCTIONS DE CETTE NOTICE POUR ÉVITER DES

BLESSURES GRAVES, VOIRE MORTELLES, OU DES DÉGÂTS MATÉRIELS.

ASSEMBLY AND OPERATING INSTRUCTIONS

INSTRUCTIONS D’ASSEMBLAGE ET D’UTILISATION

SAVE THIS MANUAL FOR FUTURE REFERENCE

CONSERVER CETTE NOTICE POUR RÉFÉRENCE

NOTICE TO INSTALLER:

LEAVE THESE INSTRUCTIONS

WITH THE GRILL OWNER FOR

FUTURE REFERENCE.

AVIS À L’INSTALLATEUR:

REMETTRE CETTE NOTICE AU

PROPRIÉTAIRE POUR QU’IL

PUISSE S’Y RÉFÉRER PLUS

TARD.

WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.

THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR

ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.

WHEN YOU SEE THE SAFETY ALERT SYMBOL

PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!

READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

DANGER

IMPORTANT SAFETY

WARNINGS

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open Lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your

fire department.

1. DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any

other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

a) DO NOT store a spare LP cylinder under or near this appliance.

b) Never fill the cylinder beyond 80% full.

c) If the information in (a) and (b) are not followed exactly, a fire causing death or

serious injury may occur.

WARNING

DANGER

General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting Natural Gas and Hose to Grill . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Leak Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

Pre-start Check List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lighting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–9

Operating Grill and Helpful Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12

Proper Care and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–14

Transporting and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14–15

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–17

Parts List and Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 18–27

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and

carefully follow all of the messages.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

FOR COVERS, ACCESSORIES AND OTHER PRODUCTS, PLEASE VISIT US ONLINE AT:

www.brinkmann.net

FOR GRILL WARRANTY REPLACEMENT PARTS, PLEASE VISIT US AT:

www.grillpartsonline.com

WARNING

• Never use natural gas in a unit designed for liquid propane gas.

• Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal

smoking box to contain ash and prevent fires.

• Leak test all connections before first use, even if grill was purchased fully assembled and after

each tank refill.

• Never check for leaks using a match or open flame.

CAUTION: Strong odors, colds, sinus congestion, etc. may prevent the detection of

propane. Use caution and common sense when testing for leaks.

• Always keep your gas grill free and clear of gasoline, lighter fluid, paint thinner, or other

flammable vapors and liquids or combustible materials.

• Always check the grill prior to each use as indicated in the "Pre-Start Check List" section of

this manual.

• DO NOT obstruct the flow of combustion or ventilation air.

• Never place more than 15 pounds on the side burner. DO NOT lean on the side burner shelf.

• Keep children and pets away from hot grill. DO NOT allow children to use or play near this grill.

• DO NOT leave the grill unattended while in use.

• DO NOT allow the gas hose to come in contact with hot surfaces.

• DO NOT allow grease from drain hole to fall on hose or valve regulator assembly.

• Keep any electrical supply cords away from water or heated surfaces.

• Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local

authority to determine proper size and type.

• For household use only. DO NOT use this grill for anything other than its intended purpose.

• DO NOT use while under the influence of drugs or alcohol.

• Grill is hot when in use. To avoid burns:

• DO NOT attempt to move the grill.

• Lock the wheels so the unit does not accidentally move.

• Wear protective gloves or oven mitts.

• DO NOT touch any hot grill surfaces.

• DO NOT wear loose clothing or allow hair to come in contact with grill.

USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS GRILL.

FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS

MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

GENERAL WARNINGS

WARNING

• DO NOT use hard metal piping of any kind to connect this type of grill to a natural gas source.

Use only hose specified by manufacturer. Using hard metal piping or convoluted metal tubing is

an unsafe practice. Movement of the grill can cause breakage of metal pipe.

• The appliance and its individual shut off valve must be disconnected from the gas supply piping

system during any pressure testing of that system at test pressures in excess of

1/2 psi (3.5 kPa).

• The appliance must be isolated from the gas supply piping system by closing its individual

manual shut off valve during any pressure testing of the gas supply piping system at test

pressure equal to or less than 1/2 psi (3.5 kPa).

• This grill is designed for natural gas use at 7 inch water column supply pressure. Verify supply

pressure with your local gas company. Not for use with LP gas.

• Connections to gas source must be performed by a certified plumber.

INSTALLATION INFORMATION:

The installation of this appliance must be in accordance with:

All applicable local codes, or in the absence of local codes, either:

• National Fuel Gas Code,

• ANSI Z223.1 1988 or latest edition (USA)

• Natural Gas Installation Code: CAN/CGA B149.1 (Canada)

• Propane Installation Code: CAN/CGA B149.2 (Canada)

To check your local codes, see your local LP gas dealer or natural gas company. This grill was not

intended to be connected to a LP gas cylinder. If an external electrical source is utilized, it must be

electrically grounded in accordance with local codes, or in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA 22.1.

• FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed

or breezeway.

• Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to

prevent dangers associated with gas accumulation and toxic vapors. Although minimum clearance

is 36 inches (91 cm), we strongly recommend that you do not operate this appliance within 10 ft.

(3.0 m) of any structure, combustible material or extra LP gas cylinders not attached to the

appliance. Not adhering to these clearances will prevent proper ventilation and may increase the

risk of a fire and/or property damage, which could also result in personal injury.

• Maintain a minimum clearance of 36 inches (91 cm) between all sides of grill, deck railings, walls or

other combustible material. DO NOT use grill under overhead unprotected combustible

construction.

• DO NOT use or install this grill in or on a recreational vehicle and/or boat.

• Never use your grill without leak testing all gas connections and hoses. See the section on

“Leak Testing” in this manual for proper procedures.

• Visually inspect the hose assembly prior to each use for evidence of damage, excess wear or

deterioration. If found, replace the assembly before using your grill. Only the Brinkmann

supplied replacement should be used.

WARNING

CONNECTING YOUR GRILL TO THE NATURAL GAS SOURCE

1. Coat pipe nipple with gas resistant teflon tape or pipe dope. Tighten quick-disconnect coupling onto

pipe nipple that leads to natural gas supply (Figure A).

2. After grill is completely assembled, make sure natural gas supply valve is “OFF” and then connect

natural gas hose to socket. Push sleeve back on socket (Figure B) and insert plug until sleeve snaps

forward, locking plug into socket. Be sure to leak test these connections prior to use.

Pipe nipple

Quick-disconnect

coupling Plug

Push sleeve back to attach

Sleeve

Socket

Natural gas supply

Natural gas supply Hose

Hose

Insert cover when hose is disconnected

DISCONNECTING YOUR GRILL FROM THE NATURAL GAS SOURCE

1. Turn natural gas supply valve “OFF”

2. To disconnect, push sleeve back and pull plug out of sleeve.

(Figure A)

(Figure B)

Supply valve

LEAK TESTING:

To prevent fire or explosion hazard:

• DO NOT smoke or permit ignition sources in the area while conducting a leak test.

• Perform test OUTDOORS only in a well ventilated area.

• Never perform a leak test with a match or open flame.

• Never perform a leak test while the grill is in use or while grill is still hot.

WHEN TO PERFORM A LEAK TEST:

• After assembling your grill and before lighting for the first time, even if purchased fully assembled.

• Every time the gas hose is connected to the natural gas supply or if any of the gas components

are replaced.

• Any time your grill has been moved.

• At least once per year or if your grill has not been used for more than 60 days.

CHECKING FOR LEAKS:

1. Create a mixture of 50% water and 50% liquid dishwashing soap.

2. Open the lid.

3. Ensure all control knobs are set to the "OFF" position.

4. Ensure gas hose is tightly connected to gas

source.

5. Turn on the fuel supply on at the source.

6. Apply the soap water mixture to the following:

Quick-disconnect coupling

Plug and hose connection

The full length of gas supply hose

Gas supply hose connection to side

burner valve assembly.

Side burner valve stem cap.

Gas supply connection to gas

manifold.

WARNING

Watch For Bubbles

DANGER

7. Check each place listed (A -F) for growing bubbles which indicates a leak.

8. Turn OFF gas supply at natural gas supply.

9. Turn on control knobs to release gas pressure in hose.

10. Turn control knobs to OFF position.

11. Tighten any leaking connections.

12. Repeat soapy water test until no leaks are detected. DO NOT use the grill if leaks cannot be

stopped. Contact a qualified gas appliance repair service.

13. Turn OFF gas supply at natural gas supply until you are ready to use your grill.

14. Wash off soapy residue with cold water and towel dry.

15. Wait 5 minutes to allow all gas to evacuate the area before lighting grill.

CAUTION: DO NOT use the grill if leaks cannot be stopped. Contact a qualified gas appliance

repair service.

Note: The leak test must be performed in an area that has adequate lighting in order to see if

bubbles are developing.

PRE-START CHECK LIST:

Property damage, bodily harm, severe burns, and death could result from failure to follow these

safety steps. These steps should be performed after the grill has been assembled, stored, moved,

cleaned, or repaired. DO NOT operate this grill until you have read and understand ALL of the

warnings and instructions in this manual.

•Ensure that the grill is properly assembled.

•Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. If it is

evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior the grill

being used.

•Leak check all gas connections and hose. See section on "Leak Testing".

•Ensure that all electrical supply cords are properly grounded and are kept away from water and hot

surfaces.

•Position your grill on level ground in a well ventilated location, a safe distance from combustible

materials and buildings.

•Properly place the empty grease tray under the grease drain hole in the bottom of the

grill to catch grease during use.

•DO NOT obstruct the flow of combustion and ventilation air.

WARNING

LIGHTING INSTRUCTIONS:

Follow the instructions exactly.

1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside

the grill. An explosion could occur if grill lid is down.

2. Check that all burner control knobs and the natural gas supply are turned to the "OFF" position.

3. Turn on the natural gas supply.

4. DO NOT stand with head, body, or arms over the grill when lighting.

Note: If burner does not light or flame is too low, you may have spider or other insect blockage in

burner. See "Burner Assembly/Maintenance" under Proper Care and Maintenance.

LIGHTING THE MAIN BURNERS:

1. Open lid before lighting burner.

2. Make sure all control knobs are in the "OFF" position.

3. Push and hold down the IGNITION BURNER control knob and turn

SLOWLY (2 to 3 seconds) to "IGNITE".You should hear the igniter click.

Note: Step 3 may need to be repeated 2-3 times to light grill.

4. If ignition does NOT occur in 5 seconds, turn control knob to OFF, wait

5 minutes to allow gas to dissipate and repeat lighting procedure.

5. To light other burners light adjacent burners first, push and turn control knobs to HIGH. Follow Step 4.

6. If burner does not ignite using the igniter, wait 5 minutes, see "Match Lighting the Main Burners"

section.

7. To turn off, turn each control knob clockwise until it locks in the "OFF" position. This does not turn off

the gas flow from the gas supply.

MATCH LIGHTING THE MAIN BURNERS:

1. Open lid before lighting.

2. Turn the burner control knobs to "OFF".

3. Place a paper match in the end of the matchlighter. Strike the match

and place through lighting hole in the left hand side of the grill to

approximately 1/2" (1 to 2 cm) from the burner.

4. Turn on the FAR LEFT burner control knob to the "HIGH" position. The

burner should light within 5 seconds.

5. If the burner does not light, turn the control knob to "OFF" and wait 5 minutes for gas to dissipate and

repeat lighting procedure.

6. Once lit, light adjacent burners in sequence by pressing in and rotating the control knob to the "HIGH"

position.

7. If the burner does not light within the first few attempts of match lighting, there is a problem with the

gas supply. Turn off the gas at the burner and natural gas supply. DO NOT attempt to operate the grill

until the problem is found and corrected. See "Trouble Shooting" section of this manual.

WARNING

Lighting Hole

Matchlighter

WARNING

Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip

any of the warnings and instructions contained in the preceding sections of this manual.

Note: If burner does not light or flame is too low, you may have spider or other insect blockage in

burner. See "Burner Assembly/Maintenance" under Proper Care and Maintenance.

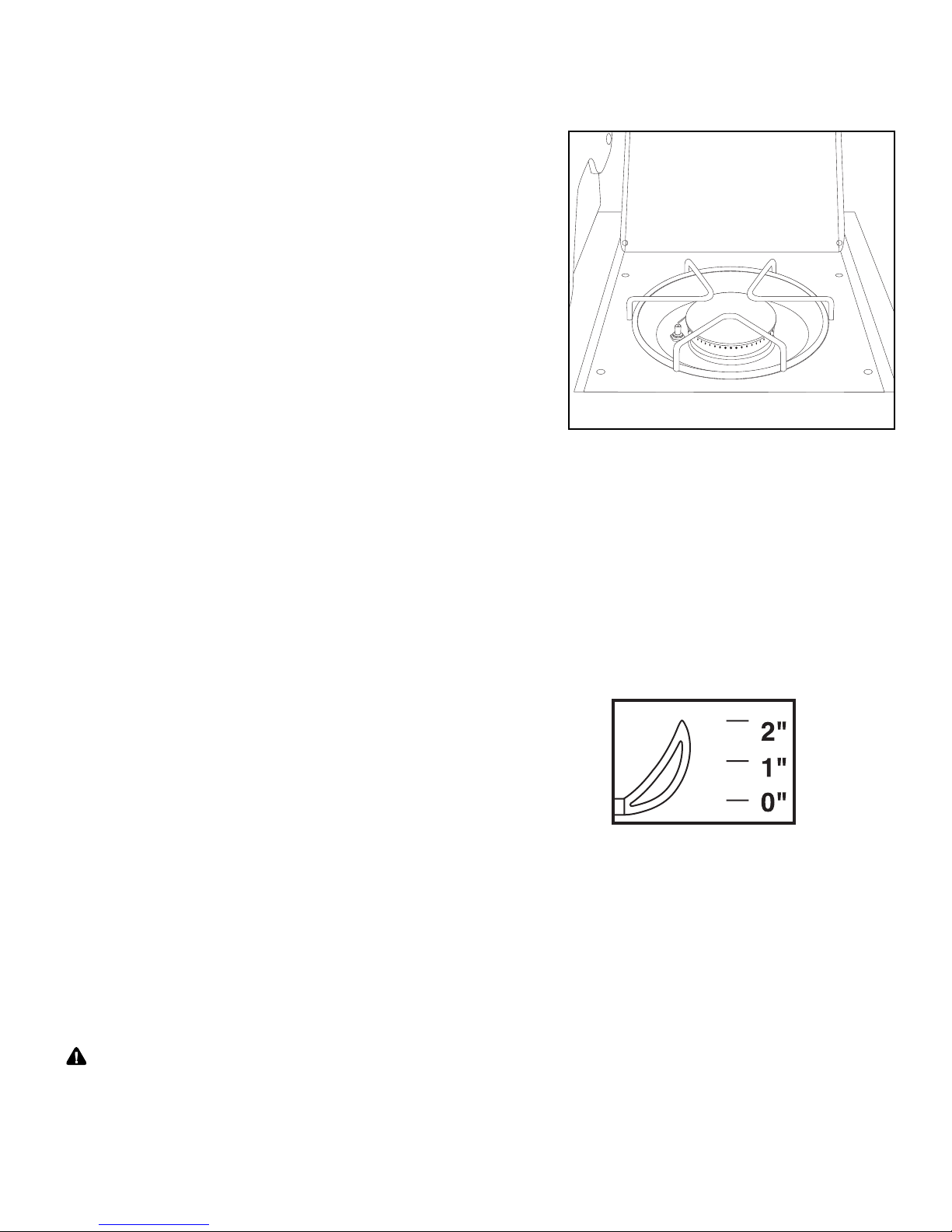

LIGHTING THE SIDE BURNER:

1. Open lid before lighting side burner.

2. Make sure control knob is in the "OFF" position.

3. Push and hold down the side burner control knob and turn

SLOWLY (2 to 3 seconds) to "IGNITE".You should hear the

igniter click.

Note: Step 3 may need to be repeated 2-3 times to light

grill.

4. If ignition does NOT occur in 5 seconds, turn control knob

to OFF, wait 5 minutes to allow gas to dissipate and

repeat lighting procedure.

5. To turn off, turn control knob clockwise until it locks in OFF

position.

MATCH LIGHTING THE SIDE BURNER:

1. Open the lid to the side burner before lighting.

2. Turn the burner control knob to "OFF".

3. Strike and carefully place a match approximately 1/2" (1 to 2 cm) from the burner.

4. Turn the side burner control knob to the "HIGH" position. The burner should light within 5 seconds.

5. If the burner does not light, turn the control knob to "OFF" and wait 5 minutes for gas to dissipate

and repeat lighting procedure.

6. If the burner does not light within the first few attempts of match lighting, there is a problem with the

gas supply. Turn off the gas at the burner and natural gas supply. DO NOT attempt to operate the

grill until the problem is found and corrected. See "Trouble Shooting" section of this manual.

TURNING OFF THE GRILL:

1. Turn off the natural gas supply.

2. Turn all burner control knobs to the "OFF" position.

Note: Turn off natural gas supply first to prevent gas from

being left in the system under pressure.

CAUTION !

• The natural gas supply should always be in the off, or closed position when the grill is not in use.

Note: Observe flame height when lit: Flame

should be a Blue/Yellow color between

1"–2" when burner is on "HIGH".

This manual suits for next models

Table of contents

Languages:

Other Brinkmann Grill manuals

Brinkmann

Brinkmann 7741 User manual

Brinkmann

Brinkmann 810-1750-S User manual

Brinkmann

Brinkmann ProSeries 4415 User manual

Brinkmann

Brinkmann ProSeries 2235 User manual

Brinkmann

Brinkmann Gourmet S-80 User manual

Brinkmann

Brinkmann Porcelain 4 Burner Gas Grill User manual

Brinkmann

Brinkmann 855-3303-S User manual

Brinkmann

Brinkmann 5-Burner Gas Grill User manual

Brinkmann

Brinkmann Series 6419 User manual

Brinkmann

Brinkmann ZONE User manual

Brinkmann

Brinkmann Southgate Heavy-Duty Natural Gas Grill User manual

Brinkmann

Brinkmann 810-1456-S User manual

Brinkmann

Brinkmann Southgate User manual

Brinkmann

Brinkmann Pitmaster deluxe User manual

Brinkmann

Brinkmann 810-6570-F Assembly instructions

Brinkmann

Brinkmann HIL-5502-SMK User manual

Brinkmann

Brinkmann Pro Series 668 User manual

Brinkmann

Brinkmann Stillwater Charcoal/Wood Smoker & Grill User manual

Brinkmann

Brinkmann Patio Grill User manual

Brinkmann

Brinkmann 810-3250-K User manual

Brinkmann

Brinkmann Smoke 'N Pit OUTDOOR BARBECUE GRILL & SMOKER User manual

Brinkmann

Brinkmann Professional Stainless Steel User manual

Brinkmann

Brinkmann Deluxe Professional User manual

Brinkmann

Brinkmann Portable Tabletop Grill User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Char-Broil

Char-Broil 463722714 Product guide

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide
