10T600

Illustrated Parts List

Model Series

10T600

TYPE NUMBER

0111 through 3705.

TABLE OF CONTENTS

Air Cleaner 5. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Brake 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 4. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankcase Cover/Sump 3. . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 2. . . . . . . . . . . . . . . . . . . . . .

Exhaust System 5. . . . . . . . . . . . . . . . . . . .

Flywheel 6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Supply 4. . . . . . . . . . . . . . . . . . . . . . . . .

Gasket Set −Engine 2. . . . . . . . . . . . . . . . .

Gasket Set −Valve 2. . . . . . . . . . . . . . . . . .

Governor Spring 5. . . . . . . . . . . . . . . . . . . .

Ignition 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . . .

Operator’s Manual 2. . . . . . . . . . . . . . . . . .

Piston/Rings/Connecting Rod 3. . . . . . . .

Rewind Starter 6. . . . . . . . . . . . . . . . . . . . . .

Warning Label 2. . . . . . . . . . . . . . . . . . . . . .

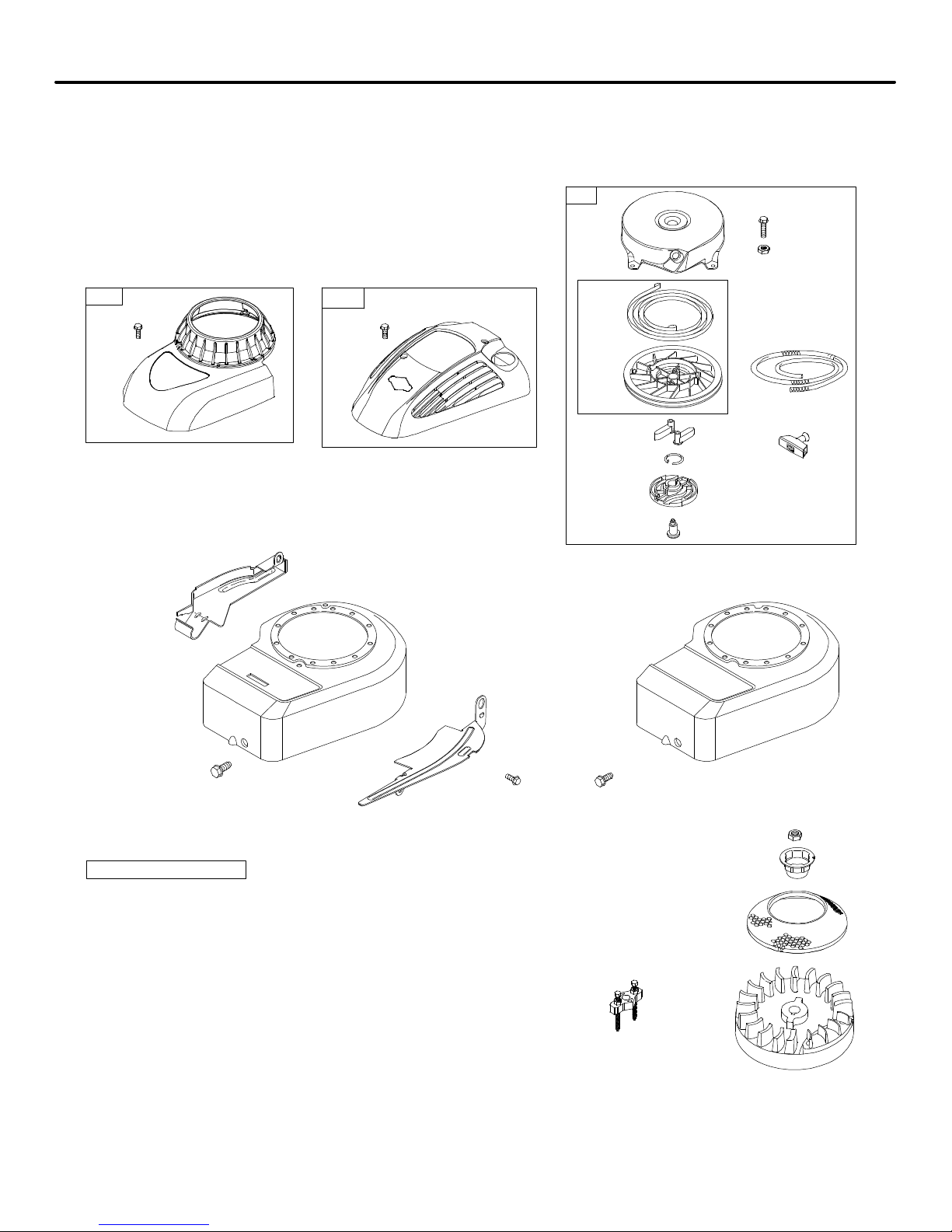

10T600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−2 Assemblies include all parts shown in frames. 05/27/2008

712

20 163

9524

358 ENGINE GASKET SET

868

842

718

870 871869

383

337

635

306

307

1095 VALVE GASKET SET

616

615

562

404

505

227

529

847

524

525

287

842

523

1330 REPAIR MANUAL1058 OPERATOR’S MANUAL 1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

635B

842

523A

883

10T600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−3 Assemblies include all parts shown in frames. 05/27/2008

26 27

40 45

741

718A

868

10T600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−4 Assemblies include all parts shown in frames. 05/27/2008

365

529

957

190A

190

670

180

90 976

394

913

106

163 97 130

633

1218

393

390

617

724

612

957A 957B

10T600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−5 Assemblies include all parts shown in frames. 05/27/2008

300A

534

163

536

535

745

923

621

922

745A

729

356

334

851

333 24

635

925

772

269

268

270

271

202 209

356A

188

222A

222

300

613

832C

836A

836B

222H

222B

621

836

832A

333B

635B

851A

883

10T600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−6 Assemblies include all parts shown in frames. 05/27/2008

332

455

363

305

304

1036 EMISSIONS LABEL

459

608

55 65

592

1211

1210

689

456

597

969

921

305

304A

37A

37B

921A

969A

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

10T600

KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−7 Assemblies include all parts shown in frames. 05/27/2008

1 699650 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 698691 Sump−Engine

5 790169 Head−Cylinder

7KΔ698717 Gasket−Cylinder Head

8 791781 Breather Assembly

9KΔ695890 Gasket−Breather

10 691666 Screw

(Breather Assembly)

11 691245 Tube−Breather

12 K692218 Gasket−Crankcase

(Standard)

(.015” Thick)

−−−−−− Note −−−−−−

K270895 Gasket−

Crankcase

(.005” Thick)

K270896 Gasket−

Crankcase

(.009” Thick)

13 691640 Screw

(Cylinder Head)

15 691680 Plug−Oil Drain

16 691472 Crankshaft

Used on Type No(s).

0113, 0116, 0705,

1010, 1085, 3705.

−−−−−− Note −−−−−−

692989 Crankshaft

Used on Type No(s).

0111, 0112, 0114,

0115, 0556.

20 K391483S Seal−Oil

(PTO Side)

22 692551 Screw

(Crankcase

Cover/Sump)

23 795549 Flywheel

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

−−−−−− Note −−−−−−

795695 Flywheel

(Used After Code Date

08012900).

Used on Type No(s).

0111, 0112, 0116.

690843 Flywheel

(Used Before Code

Date 08013000).

Used on Type No(s).

0111, 0112.

24 222698S Key−Flywheel

25 790908 Piston Assembly

(Standard)

−−−−−− Note −−−−−−

792532 Piston

Assembly

(.020” Oversize)

26 790909 Ring Set

(Standard)

−−−−−− Note −−−−−−

795134 Ring Set

(.020” Oversize)

27 691588 Lock−Piston Pin

28 699659 Pin−Piston

29 699654 Rod−Connecting

32 691664 Screw

(Connecting Rod)

33 296676 Valve−Exhaust

34 296677 Valve−Intake

35 690520 Spring−Valve

(Intake)

36 690520 Spring−Valve

(Exhaust)

37A 793748 Guard−Flywheel

(Muffler Side)

Used on Type No(s).

0111, 0112, 0113,

0114, 0115, 0116,

0556, 0705, 1010,

1085, 3705.

37B 697403 Guard−Flywheel

(Carburetor Side)

Used on Type No(s).

0111, 0112, 0113,

0114, 0115, 0116,

0556, 0705, 1010,

1085, 3705.

40 692194 Retainer−Valve

43 697799 Slinger−Governor/Oil

45 691762 Tappet−Valve

46 691998 Camshaft

50 699644 Manifold−Intake

51 K699649 Gasket−Intake

54 691111 Screw

(Intake Manifold)

55 692144 Housing−Rewind

Starter

58 697316 Rope−Starter

(88 5/8” Long)

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

−−−−−− Note −−−−−−

691921 Rope−Starter

(70” Long)

Used on Type No(s).

0111, 0112, 0116.

60 691915 Grip−Starter Rope

65 690837 Screw

(Rewind Starter)

73 699850 Screen−Rotating

78 692198 Screw

(Flywheel Guard)

81 691179 Lock−Muffler Screw

Used on Type No(s).

0113, 0116, 1010.

90 790206 Carburetor

97 697414 Shaft−Throttle

106 691901 Seat−Inlet

130 691190 Valve−Throttle

163 K271139S Gasket−Air Cleaner

180 494406 Tank−Fuel

188 692198 Screw

(Control Bracket)

190 691640 Screw

(Fuel Tank)

(1 3/4” Long)

190A 691108 Screw

(Fuel Tank)

(9/16” Long)

202 698835 Link−Mechanical

Governor

209 698726 Spring−Governor

(Pink)

Used on Type No(s).

0113, 0705, 1010,

3705.

−−−−−− Note −−−−−−

790220 Spring−

Governor

(Black)

Used on Type No(s).

0111, 0112, 0116.

698719 Spring−

Governor

(Light Blue)

Used on Type No(s).

0114, 0115, 0556,

1085.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

10T600

KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−8 Assemblies include all parts shown in frames. 05/27/2008

222 698725 Bracket−Control

Used on Type No(s).

0114, 0115, 0705,

1085, 3705.

222A 792240 Bracket−Control

Used on Type No(s).

0111, 0112.

222B 699326 Bracket−Control

Used on Type No(s).

0116, 0556.

222H 795550 Bracket−Control

Used on Type No(s).

0113, 1010.

227 697402 Lever−Governor

Control

268 691025 Casing−Control Wire

269 691026 Wire−Control

270 691027 Nut

(Control Wire Casing)

271 691028 Lever−Control

287 691002 Screw

(Dipstick Tube)

300 692307 Muffler

(Super Lo Tone)

Used on Type No(s).

0113, 0116, 1010.

300A 394569S Muffler

(Round Lo Tone)

Used on Type No(s).

0111, 0112, 0114,

0115, 0556, 0705,

1085, 3705.

304 697411 Housing−Blower

(Compliance Engines)

Used on Type No(s).

0113, 0114, 0115,

0705, 1010, 1085,

3705.

−−−−−− Note −−−−−−

790297 Housing−

Blower

(Compliance Engines)

Used on Type No(s).

0116, 0556.

304A 791392 Housing−Blower

(Non Compliance

Engines)

Used on Type No(s).

0111, 0112.

305 692198 Screw

(Blower Housing)

306 690400 Shield−Cylinder

(Used Before Code

Date 06101100).

307 690345 Screw

(Cylinder Shield)

(Used Before Code

Date 06101100).

332 690662 Nut

(Flywheel)

333 793281 Armature−Magneto

Used on Type No(s).

0111, 0114, 0556,

0705, 1085, 3705.

333B 793352 Armature−Magneto

Used on Type No(s).

0112, 0113, 0115,

0116, 1010.

334 691061 Screw

(Magneto Armature)

337 802592S Plug−Spark

Used on Type No(s).

0111, 0112, 0114,

0115, 0116, 0556,

0705, 1010, 1085,

3705.

356 692390 Wire−Stop

Used on Type No(s).

0113, 0114, 0115,

0116, 0556, 0705,

1010, 1085, 3705.

356A 693010 Wire−Stop

Used on Type No(s).

0111, 0112.

358 794209 Gasket Set−Engine

363 19069 Puller−Flywheel

365 790029 Screw

(Carburetor)

383 89838S Wrench−Spark Plug

390 691839 Spring−Choke

Diaphragm

393 691837 Screen−Carburetor

394 795083 Diaphragm−Carburetor

(Used After Code Date

07080800).

−−−−−− Note −−−−−−

495770 Diaphragm−

Carburetor

(Used Before Code

Date 07080900).

404 690272 Washer

(Governor Crank)

455 691236 Cup−Flywheel

Used on Type No(s).

0111, 0112, 0113,

0114, 0115, 0116,

0556, 0705, 1010,

1085, 3705.

456 692299 Plate−Pawl Friction

459 281505S Pawl−Ratchet

505 691251 Nut

(Governor Control

Lever)

523 692040 Dipstick

523A 691913 Dipstick

Used on Type No(s).

0113, 0114, 0115.

524 K691876 Seal−Dipstick Tube

525 691320 Tube−Dipstick

529 692189 Grommet

534 691417 Screw

(Air Cleaner)

535 698369 Filter−Air Cleaner

Foam

536 698472 Cleaner−Air

562 691119 Bolt

(Governor Control

Lever)

592 690800 Nut

(Rewind Starter)

597 691696 Screw

(Pawl Friction Plate)

608 499706 Starter−Rewind

(88 5/8” Rope)

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

−−−−−− Note −−−−−−

690101 Starter−

Rewind

(70” Rope)

Used on Type No(s).

0111, 0112, 0116.

612 496046S Tube−Pick Up

613 691413 Screw

(Muffler)

Used on Type No(s).

0113, 0116, 1010.

615 690340 Retainer−Governor

Shaft

616 697405 Crank−Governor

617 270344S Seal−O Ring

(Intake Manifold)

621 692310 Switch−Stop

(Brake)

633 691321 Seal−Choke/Throttle

Shaft

(Throttle)

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

10T600

KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3746−9 Assemblies include all parts shown in frames. 05/27/2008

635 66538S Boot−Spark Plug

Used on Type No(s).

0111, 0114, 0556,

0705, 1085, 3705.

635B 793351 Boot−Spark Plug

Used on Type No(s).

0112, 0113, 0115,

0116, 1010.

670 691633 Spacer−Fuel Tank

689 691855 Spring−Friction

718 690959 Pin−Locating

(Cylinder)

718A 499047 Pin−Locating

(Crankshaft)

724 697478 Retainer−Seal

729 690586 Clip−Wire

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

741 691805 Gear−Timing

745 691146 Screw

(Brake)

(7/8” Long)

745A 690859 Screw

(Brake)

(1/2” Long)

772 691111 Screw

(Linkage Cover)

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

832A 699670 Guard−Muffler

(Round Lo Tone)

Used on Type No(s).

0556.

832C 790743 Guard−Muffler

Used on Type No(s).

0113, 0116, 1010.

836 690664 Screw

(Muffler Guard)

(13/32” Long)

Used on Type No(s).

0556.

836A 790745 Screw

(Muffler Guard)

(1/2” Long)

Used on Type No(s).

0113, 0116, 1010.

836B 691125 Screw

(Muffler Guard)

(5/8” Long)

Used on Type No(s).

0113, 0116, 1010.

842 K691870 Seal−O Ring

(Dipstick Tube)

847 691440 Dipstick/Tube

Assembly

851 493880S Terminal−Spark Plug

851A 692424 Terminal−Spark Plug

868 697338 Seal−Valve

869 699641 Seat−Valve

(Intake)

870 699642 Seat−Valve

(Exhaust)

871 699643 Bushing−Valve Guide

(Exhaust Valve)

−−−−−− Note −−−−−−

63709 Bushing−Valve

Guide

(Intake Valve)

883 KΔ691880 Gasket−Exhaust

913 494409 Seat−Check Valve

921 699796 Cover−Blower Housing

Used on Type No(s).

0113, 0114, 0115,

0705, 1010, 1085,

3705.

921A 793973 Cover−Blower Housing

Used on Type No(s).

0116, 0556.

922 692135 Spring−Brake

923 691487 Brake

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

925 691349 Cover−Linkage

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

957 497929S Cap−Fuel Tank

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

957A 791129 Cap−Fuel Tank

Used on Type No(s).

0116.

957B 792878 Cap−Fuel Tank

Used on Type No(s).

0111, 0112.

969 692523 Screw

(Blower Housing

Cover)

(2/3” Long)

Used on Type No(s).

0113, 0114, 0115,

0556, 0705, 1010,

1085, 3705.

969A 694046 Screw

(Blower Housing

Cover)

(2 1/4” Long)

Used on Type No(s).

0116, 0556.

976 694394 Primer−Carburetor

1036 Label−Emissions

(Available From A

Briggs & Stratton

Authorized Dealer)

1058 277038 Operator’s Manual

1095 498526 Gasket Set−Valve

1210 499901 Pulley/Spring

Assembly

(Pulley)

1211 499901 Pulley/Spring

Assembly

(Spring)

1218 695866 Seal−O Ring

(Carburetor)

1319 794467 Label−Warning

1330 270962 Repair Manual

Other Briggs & Stratton Engine manuals

Briggs & Stratton

Briggs & Stratton 252700 Manual

Briggs & Stratton

Briggs & Stratton classic 450 series Installation and operation manual

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series User manual

Briggs & Stratton

Briggs & Stratton 140000 Professional 1000 Series User manual

Briggs & Stratton

Briggs & Stratton Vanguard 290000 User manual

Briggs & Stratton

Briggs & Stratton MS3419 Installation and operation manual

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Installation and operation manual

Briggs & Stratton

Briggs & Stratton Vanguard EFI 380000 Operating instructions

Briggs & Stratton

Briggs & Stratton Vanguard 290000 User manual

Briggs & Stratton

Briggs & Stratton 190000 Series User manual

Briggs & Stratton

Briggs & Stratton 110400 Installation and operation manual

Briggs & Stratton

Briggs & Stratton 90000 series User manual

Briggs & Stratton

Briggs & Stratton 287700 Series Installation instructions

Briggs & Stratton

Briggs & Stratton 12H800 Series Setup guide

Briggs & Stratton

Briggs & Stratton 120000 User manual

Briggs & Stratton

Briggs & Stratton 400000 Professional Series User manual

Briggs & Stratton

Briggs & Stratton 127700 Series Setup guide

Briggs & Stratton

Briggs & Stratton 090000 User manual

Briggs & Stratton

Briggs & Stratton 100600 Series User manual

Briggs & Stratton

Briggs & Stratton 400000 Professional Series User manual

Briggs & Stratton

Briggs & Stratton Snow Series MAX User manual

Briggs & Stratton

Briggs & Stratton 95700 Series Installation and operating manual

Briggs & Stratton

Briggs & Stratton 543200 Series Setup guide

Briggs & Stratton

Briggs & Stratton 233400 to 233499 Setup guide

Popular Engine manuals by other brands

Rotax

Rotax 125 senior MAX evo installation manual

Kohler

Kohler K361 Service manual

MTD

MTD OHV Series user guide

Kohler

Kohler COMMAND CH18-745 Service manual

Mercury

Mercury D4.2L D-Tronic manual

Selve

Selve SE Plus-RC Series Operating instruction

Perkins

Perkins 1206E-E66TA Operation and maintenance manual

Skov

Skov DA 174 Technical user guide

Rossi

Rossi TX11 Series manual

Siemens

Siemens SIMOTICS T-1FW3 Configuration manual

AL-KO

AL-KO PRO 350 Instructions for use

MTU

MTU 12 V 4000 Lx4 operating instructions

Nanni

Nanni N3.30 Workshop manual

Nanni

Nanni N5.160 CR2 Operator's manual

KSB

KSB SuPreme Series Installation & operating manual

Hiwin

Hiwin EM1 Series user manual

Rotax

Rotax 912 i series Service instructions

Siemens

Siemens SIMOTICS XP 1MB1 operating instructions
