IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water.

Unplug immediately.

2. Do not use while bathing or in a shower when the appliance is connected to an

electrical outlet.

3. Do not place, store or charge the appliance where it can fall or be pulled

into a tub or sink. Do not place in or drop into water or other liquid.

4. When not using for a longer period of time, unplug this appliance from the

electrical outlet.

5. Unplug this appliance before cleaning.

6. This appliance is provided with a special cord set with integrated Safety Extra

Low Voltage power supply. Do not exchange or manipulate any part of it.

FOR HOUSEHOLD USE

SAVE THESE INSTRUCTIONS

English

5647320_Com_550_NA Seite 4 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

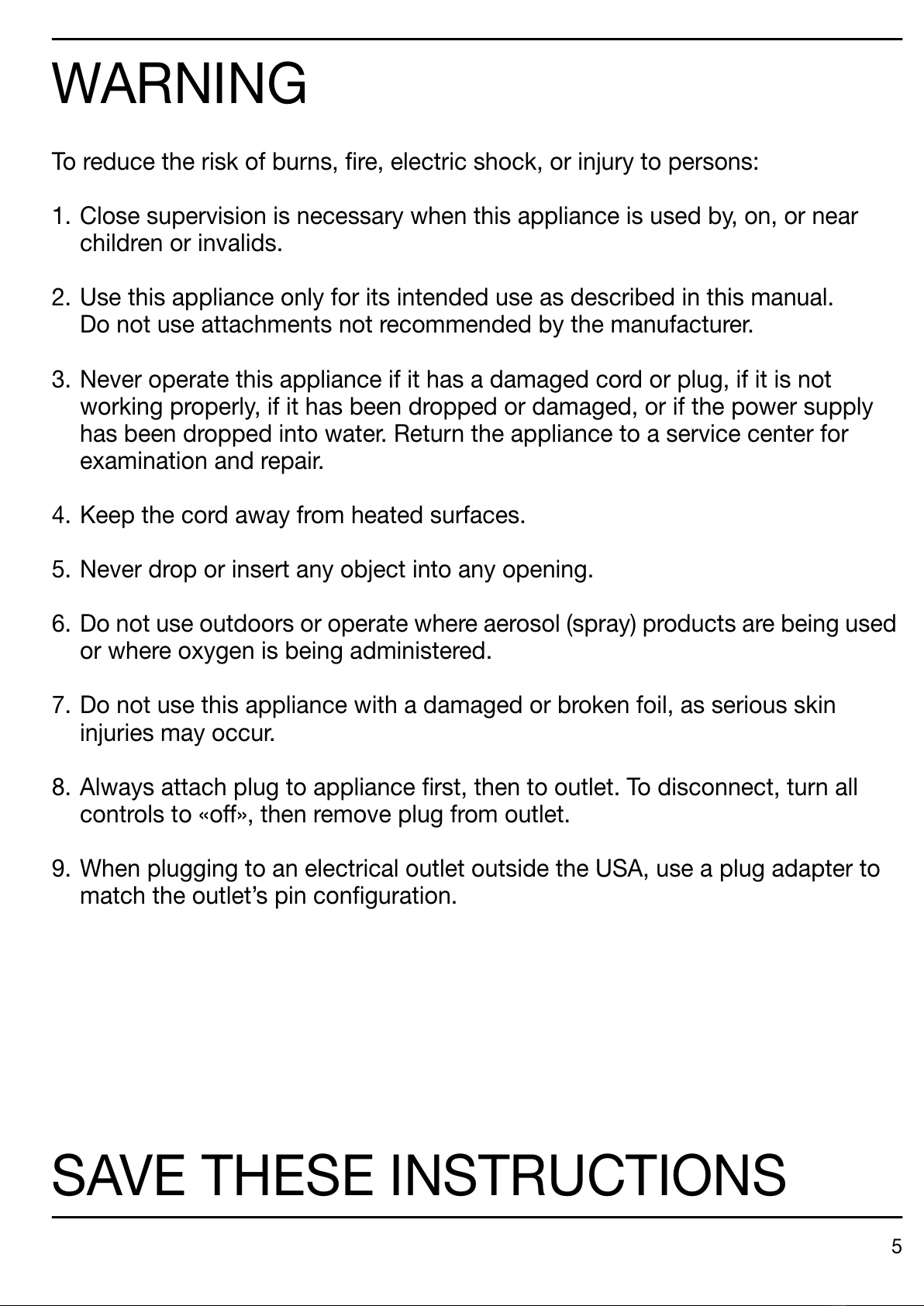

WARNING

To reduce the risk of burns, ﬁre, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near

children or invalids.

2. Use this appliance only for its intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is not

working properly, if it has been dropped or damaged, or if the power supply

has been dropped into water. Return the appliance to a service center for

examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening.

6. Do not use outdoors or operate where aerosol (spray) products are being used

or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious skin

injuries may occur.

8. Always attach plug to appliance ﬁrst, then to outlet. To disconnect, turn all

controls to «off», then remove plug from outlet.

9. When plugging to an electrical outlet outside the USA, use a plug adapter to

match the outlet’s pin conﬁguration.

SAVE THESE INSTRUCTIONS

5647320_Com_550_NA Seite 5 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

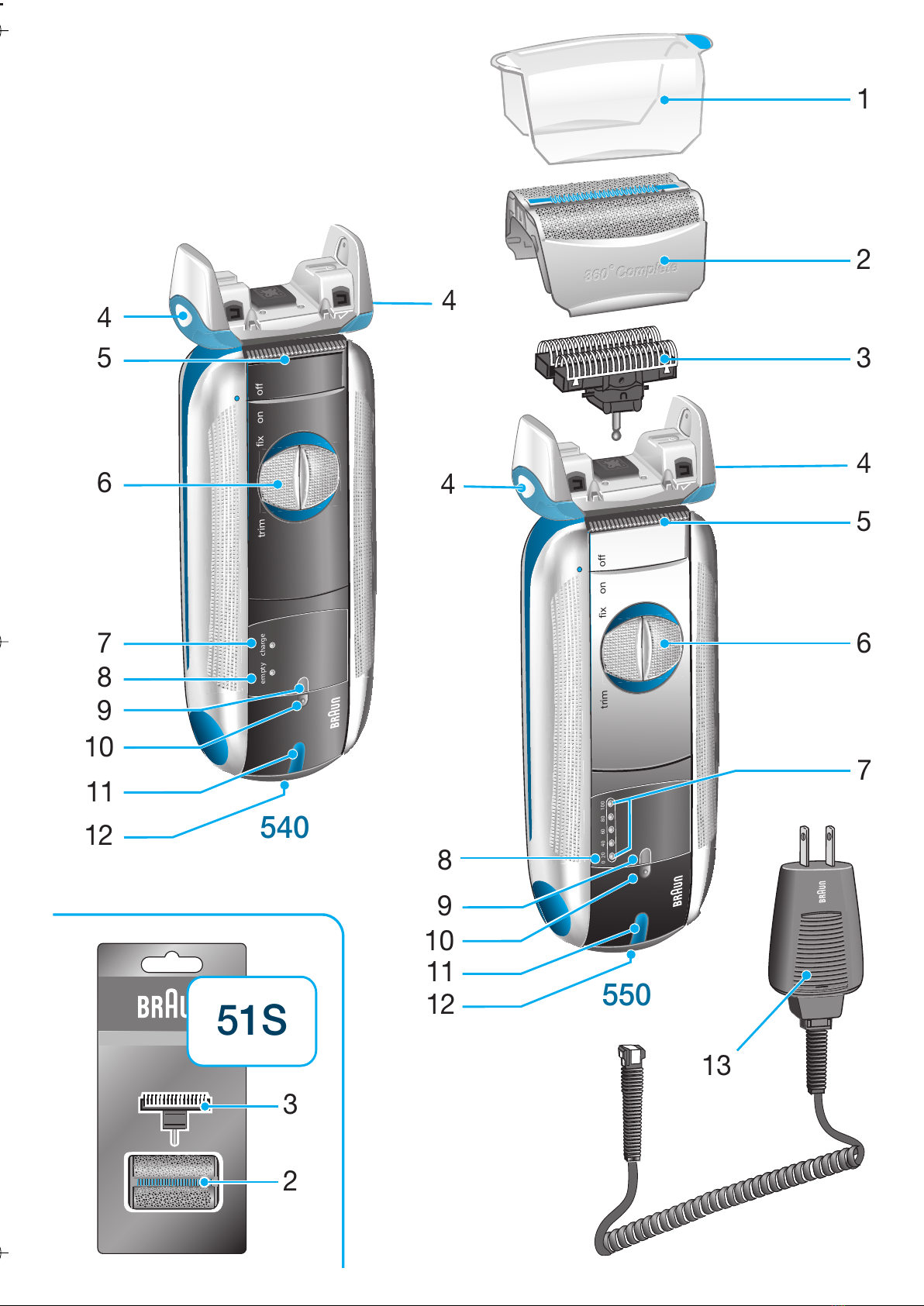

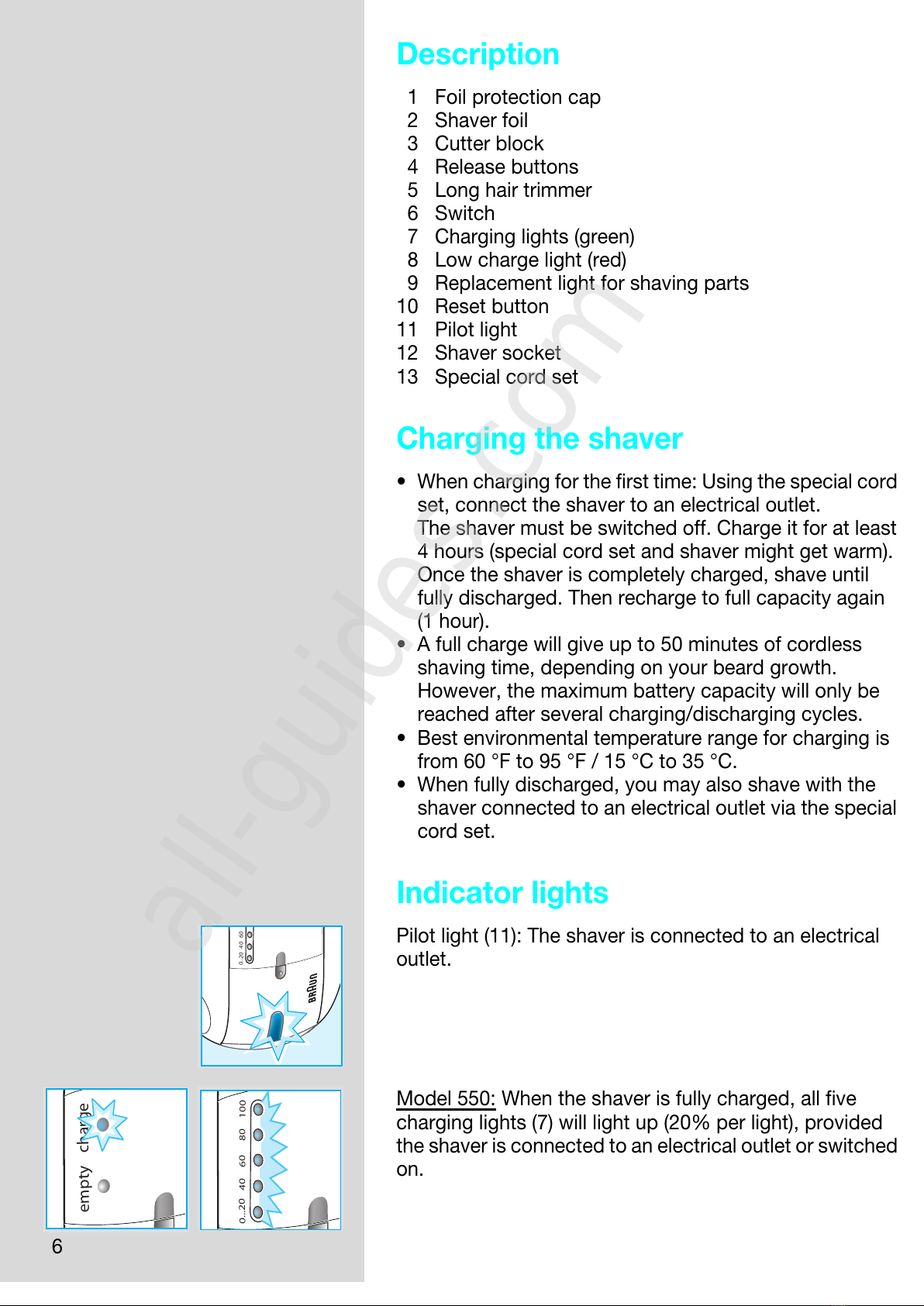

Description

1 Foil protection cap

2 Shaver foil

3 Cutter block

4 Release buttons

5 Long hair trimmer

6 Switch

7 Charging lights (green)

8 Low charge light (red)

9 Replacement light for shaving parts

10 Reset button

11 Pilot light

12 Shaver socket

13 Special cord set

Charging the shaver

• When charging for the first time: Using the special cord

set, connect the shaver to an electrical outlet.

The shaver must be switched off. Charge it for at least

4 hours (special cord set and shaver might get warm).

Once the shaver is completely charged, shave until

fully discharged. Then recharge to full capacity again

(1 hour).

• A full charge will give up to 50 minutes of cordless

shaving time, depending on your beard growth.

However, the maximum battery capacity will only be

reached after several charging/discharging cycles.

• Best environmental temperature range for charging is

from 60 °F to 95 °F / 15 °C to 35 °C.

• When fully discharged, you may also shave with the

shaver connected to an electrical outlet via the special

cord set.

Indicator lights

Pilot light (11): The shaver is connected to an electrical

outlet.

Model 550: When the shaver is fully charged, all five

charging lights (7) will light up (20% per light), provided

the shaver is connected to an electrical outlet or switched

on.

0..20 40 60

0...20 40 60 80

100

empty charge

5647320_Com_550_NA Seite 6 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

all-guides.com

Model 540: The green single charging light (7) shows that

the shaver is being charged. When fully charged, the

charging light flashes or goes off. If later on, the charging

light comes on again, this indicates that the shaver is

being recharged to maintain its full capacity.

The red low charge light (8) flashes when the battery

capacity has dropped below 20%, provided the shaver is

switched on. The remaining capacity will then be sufficient

for 2 to 3 shaves.

Shaving

Switch positions

off = (switch is locked)

Press and push up the switch to operate the shaver:

on = Shaving with the pivoting head

(the pivoting cutting system automatically adjusts

to every contour of your face).

fix = Shaving with the pivoting head locked at an angle

(to permit shaving in difficult areas, e.g. under the

nose).

trim= The long hair trimmer is activated

(for trimming sideburns, moustache and beard).

Tips for the perfect shave

• It can take up to 14-21 days for your beard to adjust

to the new shaving system.

• Shave before washing your face or taking a shower,

as skin tends to swell after washing.

• The drier the skin, the closer the shaving results will

be.

• Hold the shaver at right angles (90°) to the skin.

Stretch the skin and shave against the direction of

beard growth.

• To maintain 100% shaving performance, replace

your foil and cutter block, when the replacement light

(9) comes on (after about 18 months), or when worn.

0...20 40 60 80

100

empty charge

fix on

trim fix on

5647320_Com_550_NA Seite 7 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

Cleaning

Never use water to clean the shaver.

For easy cleaning after each shave, switch the shaver off.

Press the release buttons to lift the shaver foil (do not

remove the foil completely). Switch on the shaver for

approx. 5–10 seconds so that the shaved stubbles can

fall out.

Then remove the shaver foil and tap it out on a flat surface.

Using the brush, clean the inner area of the pivoting head.

However, do not clean the shaver foil nor the cutter block

with the brush as this may damage them.

Put a drop of light machine oil onto the long hair trimmer

and the shaver foil.

Replacement light for shaving parts / Reset

To maintain 100% shaving performance, replace your foil

and cutter block, when the replacement light for shaving

parts (9) comes on (after about 18 months) or when worn.

Change both parts at the same time for a closer shave with

less skin irritation.

(Shaver foil and cutter block: 51S)

The replacement light will remind you during the next 7

shaves to replace the shaving parts. Then the shaver will

automatically reset the display.

After you have replaced the shaving parts (foil and cutter

block), use a ball-pen to push the reset button (10) for at

least 3 seconds to reset the counter.

While doing so, the replacement light blinks and goes off

when the reset is complete. The manual reset can be done

at any time.

fix on off

on off

oil

fix on

off

fix on

off

0...20 40 60 80

51S

5647320_Com_550_NA Seite 8 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

Preserving the batteries

In order to maintain the optimum capacity of the re-

chargeable batteries, the shaver has to be fully discharged

(through normal use) every 6 months approximately.

Then recharge the shaver to full capacity. Do not expose

the shaver to temperatures higher than 50 °C for extended

periods of time.

Environmental notice

This appliance contains rechargeable batteries.

To protect the environment, do not dispose of the

appliance in the household waste at the end of its useful

life. Disposal can take place at a Braun Service Center or

appropriate collection sites.

Subject to change without notice.

For electric specifications, see printing on the special cord

set.

5647320_Com_550_NA Seite 9 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of

defects in material and workmanship for a period of two years from the date of

original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace

it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun

Service Center closest to you.

This warranty does not cover foils, cutter blocks or damage resulting from

accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear,

servicing performed or attempted by unauthorized service agencies or failure to

provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE.

IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states

do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other

legal rights which vary from state to state.

5647320_Com_550_NA Seite 10 Freitag, 7. März 2008 10:25 10

All manuals and user guides at all-guides.com

Other manuals for 5 Series

This manual suits for next models

Table of contents

Languages:

Other Braun Electric Shaver manuals

Braun

Braun BT9441 User manual

Braun

Braun SilkFinish FG 1000 User manual

Braun

Braun Flex Syncro 7514 User manual

Braun

Braun FreeControl 1775 User manual

Braun

Braun SyncroPro 5492 User manual

Braun

Braun BT 32 User manual

Braun

Braun WaterFlex Series User manual

Braun

Braun SERIES7 5693 User manual

Braun

Braun PocketGo 575 Quick guide

Braun

Braun Lady Braun style universal 5575 User manual

Braun

Braun cruZer 6 face User manual

Braun

Braun Gillette CruZer2 Z30 User manual

Braun

Braun TriControl 4736 User manual

Braun

Braun Silk-epil Xpressive 7381 WD User manual

Braun

Braun 7 series User manual

Braun

Braun MGK 3225 User manual

Braun

Braun SERIES 7 720 User manual

Braun

Braun 360S-4 User manual

Braun

Braun Tri Control S 4776 User manual

Braun

Braun Silk-epil LS 5360 User manual

Braun

Braun 7 series User manual

Braun

Braun Series 3 User manual

Braun

Braun CT6cc User manual

Braun

Braun 190s-1 User manual

Popular Electric Shaver manuals by other brands

Philips

Philips MicroAction 4402LC Specifications

Philips

Philips HQ7740 user guide

Philips

Philips Norelco BG2022 Bodygroom Specifications

Norelco

Norelco Quadra 7610X owner's manual

Philips

Philips 7616X manual

Philips

Philips HQ802 Specifications

Philips

Philips HQ7363/17 user manual

Philips

Philips NORELCO S7371 manual

Daga

Daga MT-400 Directions for use

Philips

Philips RQ119x manual

Remington

Remington BHT100 user manual

Philips

Philips Bodygroom BG2000 brochure

Kompernass

Kompernass KH 5537 operating instructions

Remington

Remington BHT6100 manual

Philips

Philips qc5365 user manual

MIA

MIA Aqua Body manual

Philips

Philips NORELCO AT880 user manual

Matheo

Matheo MLR 15 manual
