Braeburn 5310 User manual
Touchscreen
®
5310
5320
Programmable Touchscreen Thermostats
For 1 Heat / 1 Cool Systems
For Systems Up to 4 Heat / 2 Cool
Detailed
User Manual
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
Attention
Read all instructions before proceeding.
Store this manual for future reference
©2012 Braeburn Systems LLC • All Rights Reserved • Made in China. 5310W-110-02
®
Contents
1 About Your Thermostat
Thermostat Features ................................................ 3
Thermostat and Display ........................................... 4
Thermostat TouchPadsTM........................................... 6
2 Setting User Options
Advanced User Options ............................................ 8
Table of User Options ............................................... 9
Service Monitors (Filter, UV and Humidier Pad) ........ 10
Extended Hold Time Period ..................................... 10
Temporary Override Adjustment Limit ..................... 11
Program Override Time Limit .................................. 11
Thermostat Lock Code ........................................... 11
Audible Tone .......................................................... 12
3 Setting Your Program Schedule
Setting the Time and Day ....................................... 12
Tips Before Setting Your Program Schedule ........... 13
Programming a 7 Day Residential Schedule ........... 16
Progamming a 5-2 Day Residential Schedule ......... 18
Programming a 7 Day Commercial Schedule ......... 19
4 Operating Your Thermostat
Setting the System Control Mode ......................... 21
Setting the Fan Control Mode ............................... 22
Setting the Temperature ....................................... 23
Status Indicators .................................................. 24
Program Event Indicator ....................................... 25
Resetting the Thermostat ..................................... 25
5 Additional Operation Features
Auto Changeover Mode ....................................... 26
Adaptive Recovery Mode ..................................... 27
Circulating Fan Mode .......................................... 27
Progammable Fan Mode ...................................... 28
Compressor Protection ........................................ 28
Locking and Unlocking the Thermostat................. 29
AC Power Monitor ............................................... 31
Indoor Remote Sensing ....................................... 31
Outdoor Remote Sensing .................................... 32
6 Thermostat Maintenance
Screen Cleaning .................................................. 35
Battery Replacement ........................................... 36
User Manual 2
Congratulations! You are in control of one of the easiest-to-use touchscreen thermostats on the
market today. This thermostat has been designed to provide you with years of reliable performance
and comfort control.
Features
• SpeedBar® multi-function button simplies programming and setting changes.
• SpeedSet™ programming gives you the option of programming all 7 days at once.
• Convenient HOLD feature lets you override the program schedule.
• Large 6.5 sq. in. bright blue backlit display is easy to read.
• Extra large display characters make viewing settings even easier.
• User selectable service monitors remind you of required system maintenance.
• Precise temperature accuracy keeps you in control of your comfort.
• Convenient programmable and circulating fan modes.
• Optional indoor or outdoor remote sensing.
3 User Manual
INSTRUCTIONS
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
Attention
1
About Your Thermostat
User Manual 4
1
2
3
5
10
11
9
14
12
4
8
13
67
5 User Manual

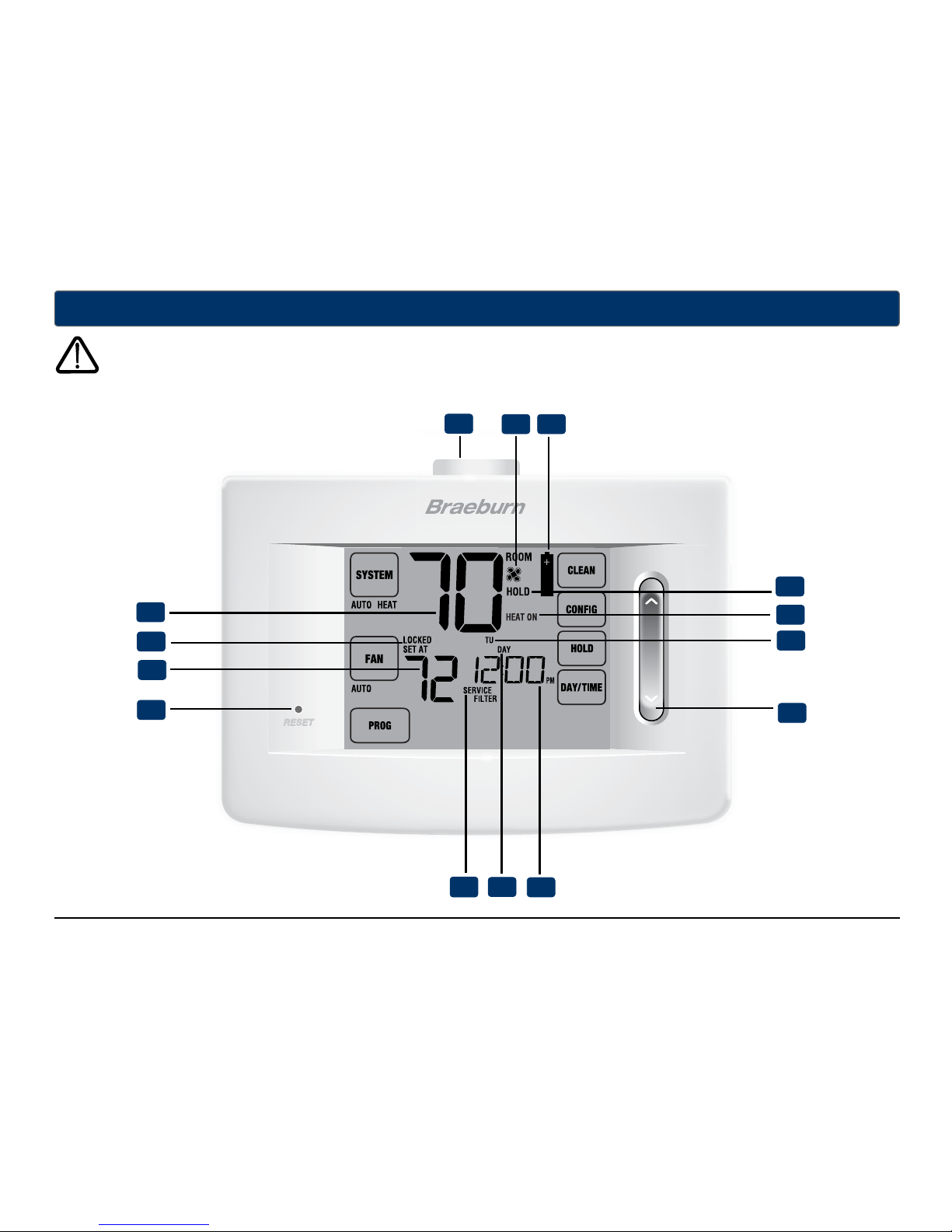

Room Temperature ......................Displays the current room temperature
Lock Mode Indicator ...................Indicates if the thermostat is locked
Set Temperature .......................... Displays the current set point temperature
Reset Button ............................... Resets current time, program and user settings
Service Indicators ...................... Displays various service/maintenance information
Program Event Indicator.............. Displays the current program event
Time of Day ................................. Displays the current time of day
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
System Status Indicator ............. Displays information about the status of the system
Day of the Week ........................... Displays the current day of the week
SpeedBar® .................................... Increases or decreases settings (time, temperature, etc.)
Quick Reference Instructions ...... Stored in slot located at top of thermostat
Fan Indicator ................................ Indicates when the system fan is running
Low Battery Indicator .................. Indicates when the batteries need to be replaced
1
2
3
4
5
6
7
8
9
10
11
Battery Compartment ..........................Located in the back of thermostat
12
13
14
Thermostat and Display
INSTRUCTIONS
User Manual 6
1
About Your Thermostat
TouchPadsTM
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
Attention
7 User Manual
Thermostat TouchPads
TM
NOTE: Thermostat TouchPads are located on the left, right and bottom portions of the display screen. They are
the “touch sensitive” segments used to adjust your thermostat. Depending on equipment installed, all touchpads
may not show.
SYSTEM..... Selects AUTO (Heat/Cool), COOL, OFF HEAT or EMER (Emergency Heat)
FAN............ Selects AUTO, ON, CIRC (Circulation) and PROG (Program) fan modes
PROG......... Selects programming mode or press for 3 seconds to select SpeedSet™ mode
HOLD......... Enters/exits the HOLD mode (Program bypass)
DAY/TIME.. Sets the current time and day of the week
BACK......... Moves back in setting modes
NEXT.......... Moves forward in setting modes
RETURN..... Returns to normal mode from program or settings modes
CONFIG...... Enters the User settings mode
CLEAN....... Enters a brief screen cleaning mode
Outdoor Temperature
If a Braeburn® outdoor temperature sensor was connected, you may touch the room temperature area of the
screen to view the outdoor temperature.
User Manual 8
2
Setting User Options
Advanced User Options
User options allow you to customize some of your thermostat’s features.
The default user options are compatible with most
applications,
therefore it is not required that you adjust them.
To access the User Options menu, touch and hold the CONFIG
TouchPad™ for approximately 1 second until the screen changes
and displays the rst User Option.
Press the SpeedBar
®
up or down to change the setting
for the
displayed User Option. After you have changed your
desired
setting, touch NEXT to advance to the next User Option. You may
also touch BACK to move backwards through the User Options.
When your changes are complete, touch RETURN to exit.
9 User Manual
Table of User Options
No. User Options Factory Setting Comments Pg.
Default Options
1 Audible Tone on BEEP on BEEP Enables an audible key press tone.
oF BEEP Disables an audible key press tone.
2 Filter Service OFF OFF Disables lter service monitor feature.
Monitor 30, 60, 90, Selects a number of days that must pass before the
120, 180, 365
thermostat will ash a Service Filter reminder
in the display screen.
3 UV Light Service OFF OFF Disables lter service monitor feature.
Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service UV reminder in the display screen.
4 Humidier Pad OFF OFF Disables lter service monitor feature.
Service Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service Humid reminder in the display screen.
5 Extended Hold Period LONG LONG Selects long (permanent) hold mode.
24HR Selects 24 hour (temporary) hold mode.
6 Temporary Override 0 ADJ 0, 1, 2,
or
3
Selects a temporary temperature adjustment limit of
Adjustment Limit ADJ 0 0 (disabled), 1˚, 2˚ or 3˚.
7 Program Override 4 TEMP 4, 3, 2 or 1 Selects a temporary program override time limit of
Time Limit TEMP 1, 2, 3 or 4 hours.
8 Thermostat Lock Code 000 0-9 Select a 3 digit lock code of 0-9 for each digit.
NOTE: Some user options may not be available, depending on how your thermostat was configured in the
Installer Settings (see Installer Manual). A detailed description of each User Option follows this table.
10
10
10
10
10
11
11
11
Detailed Explanation of User Options:
Audible Tone
User Option 1
The Audible Tone feature turns on or turns off a tone you will hear when you touch any of the TouchPads™ or
press the SpeedBar
®
. Select between on and off.
Service Monitors
(Filter, UV and Humidifier Pad)
User Options 2, 3 and 4
There are three user selectable service monitors that will display
reminders for a required air lter, UV bulb or humidier pad
replacement. The SERVICE segment ashes in the display
along with FILTER, UV or HUMID. When the service interval
has been reached, and required cleaning or replacement has
been performed, touch the RETURN TouchPad™ to reset the
timer. Select OFF or a set number of days before the reminder
will appear.
Extended Hold Period
User Option 5
The Extended Hold Period lets you select the period your thermostat will hold the temperature when the HOLD
mode is activated (See Setting the Temperature, page 23). When LONG is selected the thermostat will hold your
temperature indenitely. When 24HR is selected, the thermostat will hold your temperature for 24 hours and
then return to the current program at that time. Not available in non-programmable mode.
Service
Reminders
User Manual 10
