Bradley Express SS Series User manual

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817

bradleycorp.com

Installation

215-1500 Rev. H; ECN 12-00-011

Page 1 of 15 7/2/12

SS-2N/BIR3/STD

SS-2N/BIR3/WH

Express®Lavatory System SS-Series

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, D447,224

Other Patents Pending

SS-2N/BIR3/STD/LSD-2

SS-2N/BIR3/WH/LSD-2

Table of Contents

Pre-Installation Information .................2

Components.............................3

Supplies Required ........................4

Dimensions............................... 4–5

Rough-Ins ...................................6

Installation ...........................7–10

BIR3 Troubleshooting.....................11

Solenoid Valve Troubleshooting .............12

Navigator®Mixing Valve Troubleshooting ......13

Stop Valve Troubleshooting ................14

Cleaning and Maintenance for Terreon®. . . . . . .14

Soap Dispenser Maintenance ..............15

SS-2N/BIR3/STD, SS-2N/BIR3/WH Installation

27/2/12 Bradley • 215-1500 Rev. H; ECN 12-00-011

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any

packaging material. If any parts are missing, do not begin installation until you obtain the missing

parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off before

beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have been

plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the electrical

power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must have

a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or juvenile

height based on conﬁguration and required rim height. Overtightening fasteners can damage the

Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at bradleycorp.com.

Installation

THIS

SIDE

Packing List

•

Installation SS-2N/BIR3/STD, SS-2N/BIR3/WH

Bradley • 215-1500 Rev. H; ECN 12-00-011 7/2/12 3

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER

WASHER

(125-001DP)

TAILPIECE

(129-056)

DRAIN

ASSEMBLY

BOLT 5/16-18

160-371

SCREW 10-24

160-386

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT 5/16-18

161-036

SCUFF BASE PANEL

GRAY (185-034)

PUTTY (185-034A)

COAL (185-034B)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF FRAME S17-326

USED WITH STANDARD

HEIGHT FRAME ONLY

MAIN FRAME

S17-325

PANEL

FASTENERS

(160-450)

WASHERS

(142-002CA)

(6) PLACES

ACCESS PANEL

GRAY (186-1455)

PUTTY (186-1455A)

COAL (186-1455B)

SPRAYHEAD COVER

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES

WITH COLOR OF UNIT.

CONTACT YOUR LOCAL

BRADLEY REP. FOR

ASSISTANCE).

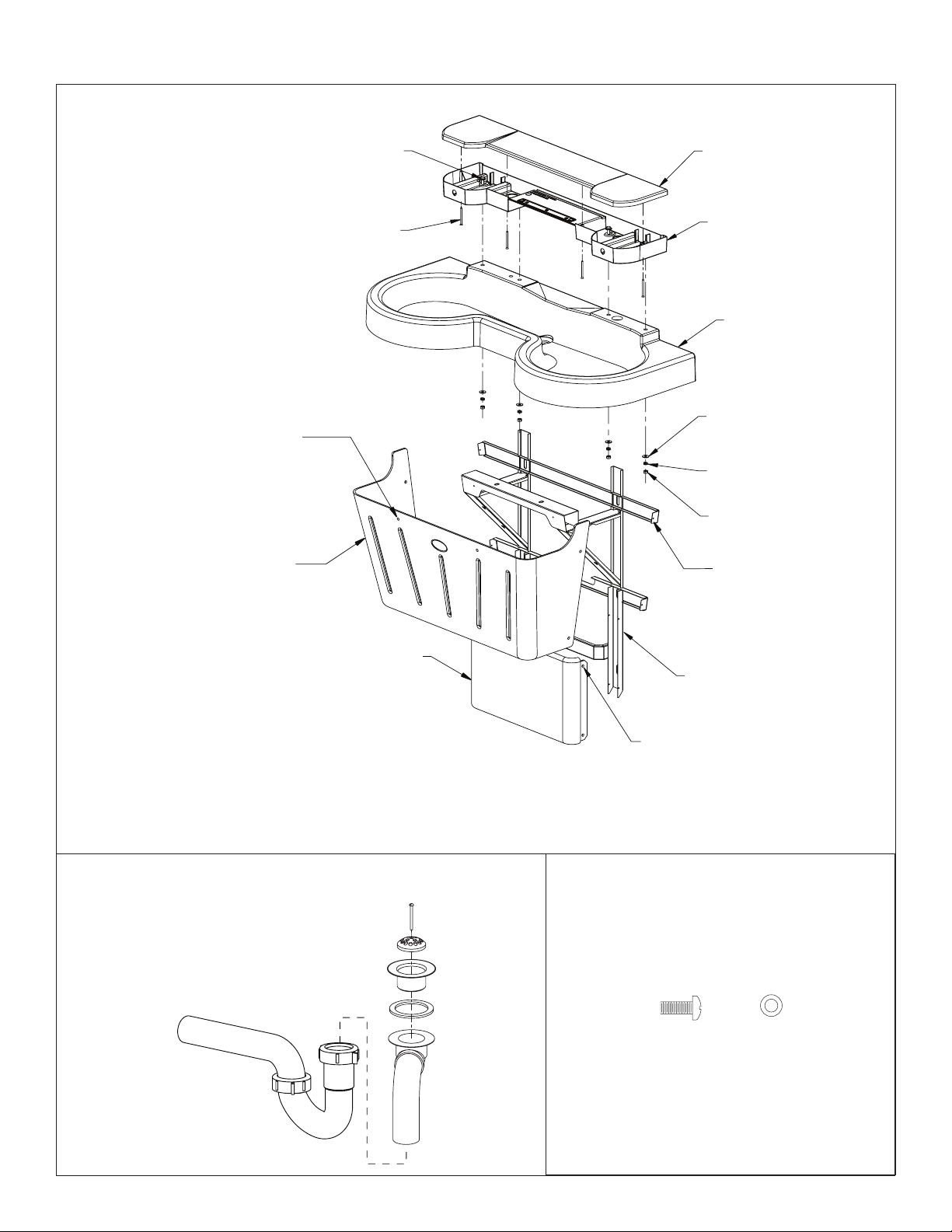

Components

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 2)

(160-389)

1/4"-20

WASHER

(qty. 2)

(142-002DB)

BOWL MOUNTING

HARDWARE

SS-2N/BIR3/STD, SS-2N/BIR3/WH Installation

47/2/12 Bradley • 215-1500 Rev. H; ECN 12-00-011

Supplies Required:

• (6)³⁄₈"wallanchors,boltsand1"min.O.D.washerstomountmainframeandbowltowall(minimumpull-outratingof1,000lbs.)

• STD.HEIGHTONLY:(2)³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• ½"nominalcoppertubingforhotandcoldsuppliesand1½"NPTdrainpiping

Dimensions - Front and Top Views

Top View

50" (1270mm)

Front View

Standard Frame

Front View

Wall-Hung Frame

5⁄8

" (219mm)

10" (254mm) Radius

8" (203mm) Radius

15"

(381mm)

15"

(381mm)

7" (178mm)

21¼" (540mm)

30" (762mm)

36" (914mm)

38¼" (972mm)

7" (178mm)

38¼" (972mm)

30" (762mm)

36" (914mm)

Installation SS-2N/BIR3/STD, SS-2N/BIR3/WH

Bradley • 215-1500 Rev. H; ECN 12-00-011 7/2/12 5

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6

through

8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K

through 5 or 6

211⁄8" (537mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

13¼"

(311mm)

11½"

(292mm)

Scuff Base on

Standard Height Only

3" (76mm)

85⁄8"

(219mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

13¼"

(311mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

36½"

(927mm)

32"

(813mm)

28"

(711mm)

11¼"

(286mm)

35½"

(902mm)

31"

(787mm)

27"

(686mm)

10¼"

(260mm)

34½"

(876mm) 30"

(762mm)

26"

(660mm)

9¼"

(235mm)

SS-2N/BIR3/STD, SS-2N/BIR3/WH Installation

67/2/12 Bradley • 215-1500 Rev. H; ECN 12-00-011

1Rough-Ins

CODE DESCRIPTION QTY.

A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4

C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 ½"nominalcoppertubingforColdSupply,stub-out2"fromwall 1

D2 ½"nominalcoppertubingforHotorTemperedSupply,stub-out2"fromwall 1

E1½"NPTDrain,stub-out2"fromwall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

³⁄₈"wallanchorswithaminimumpull-outratingof1,000lbs(suppliedbyinstaller)atlocationsmarked.

GWaterHeaterOption#1:Rough-inappropriateelectricalsupplyperlocalcode(recommendedlocationfor

240/208vor277velectricalbox[4"longx4"widex8"high]shown) 1

HWaterHeaterOption#2:Rough-inappropriateelectricalsupplyperlocalcode(recommendedlocationfor

240/208vor277velectricalbox[4"longx4"widex4"high]shown) 1

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None StandardHeight

34" None Wall-Hung

32" Subtract 2" TAS,Grades6through8or9

31" Subtract 3" JuvenileHeight

30" Subtract 4" TAS,Pre-KthroughGrades5or6

3-1/2"

(89mm)

25-3/4"

(654mm)

32"

(813mm)

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

(76mm)

15"

(381mm)

D1 D2

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

FLOOR

28-3/4"

(730mm)

Installation SS-2N/BIR3/STD, SS-2N/BIR3/WH

Bradley • 215-1500 Rev. H; ECN 12-00-011 7/2/12 7

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

2Mount Frame to Wall Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

Once you have positioned the frame such that

it is level and flat against the wall or shimmed ,

mount the frame to the wall at four places using

³⁄₈" bolts and 1” min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional ³⁄₈" bolts and washers.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

SCUFF BASE FRAME

AND DRAIN ASSEMBLY

NOT SHOWN FOR CLARITY

3Install Bowl

The sprayhead body has slotted holes for adjusting the fit-up with the bowl and wall.

The tailpiece on the waste tee has been rotated upward for shipping purposes. Turn

the tailpiece down to its proper position before installing the bowl.

Secure the bowl to the

wall anchors with ³⁄₈"

bolts and 1" min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

¼"-20 x ½" pan-head screws and

washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

SS-2N/BIR3/STD, SS-2N/BIR3/WH Installation

87/2/12 Bradley • 215-1500 Rev. H; ECN 12-00-011

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each

hose to the Navigator valve

(one on the hot side, one on

the cold side).

Connect the other swivel

end to the stop valves.

Attach the stops to the hot

and cold water wall stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

Attach the stop to the

tempered wall stub-out.

Installation SS-2N/BIR3/STD, SS-2N/BIR3/WH

Bradley • 215-1500 Rev. H; ECN 12-00-011 7/2/12 9

5Install the Drain

To Drain

Stub-Out

6Connect Electrical and Sprayhead Supplies

Insert the batteries into

the battery holders.

WARNING: The SS-2N/BIR3 Express® must be connected to the 6 VDC battery. Connection to 110 VAC can

cause personal injury and will result in damage to the electronics. Connection of leads other than shown

may cause permanent damage to the sensor.

To avoid activating the sprayhead valve, make sure to connect the sensor cable plugs to the circuit board before

inserting the batteries into the battery holder. If the cable is connected or disconnected while the batteries are

installed, the station will activate and continue running for 75 seconds.

Snap the sensor cable

plugs from the sprayhead

into the proper valve’s

circuit board.

Snap the battery cable

plugs into the female

circuit board plugs.

Loosen the compression nuts.

Push the sprayhead supply tubes firmly into

the tube connectors until they are fully seated.

Tighten the compression nuts by hand.

Red Supply Tubing

GreenSupplyTubing

SS-2N/BIR3/STD, SS-2N/BIR3/WH Installation

10 7/2/12 Bradley • 215-1500 Rev. H; ECN 12-00-011

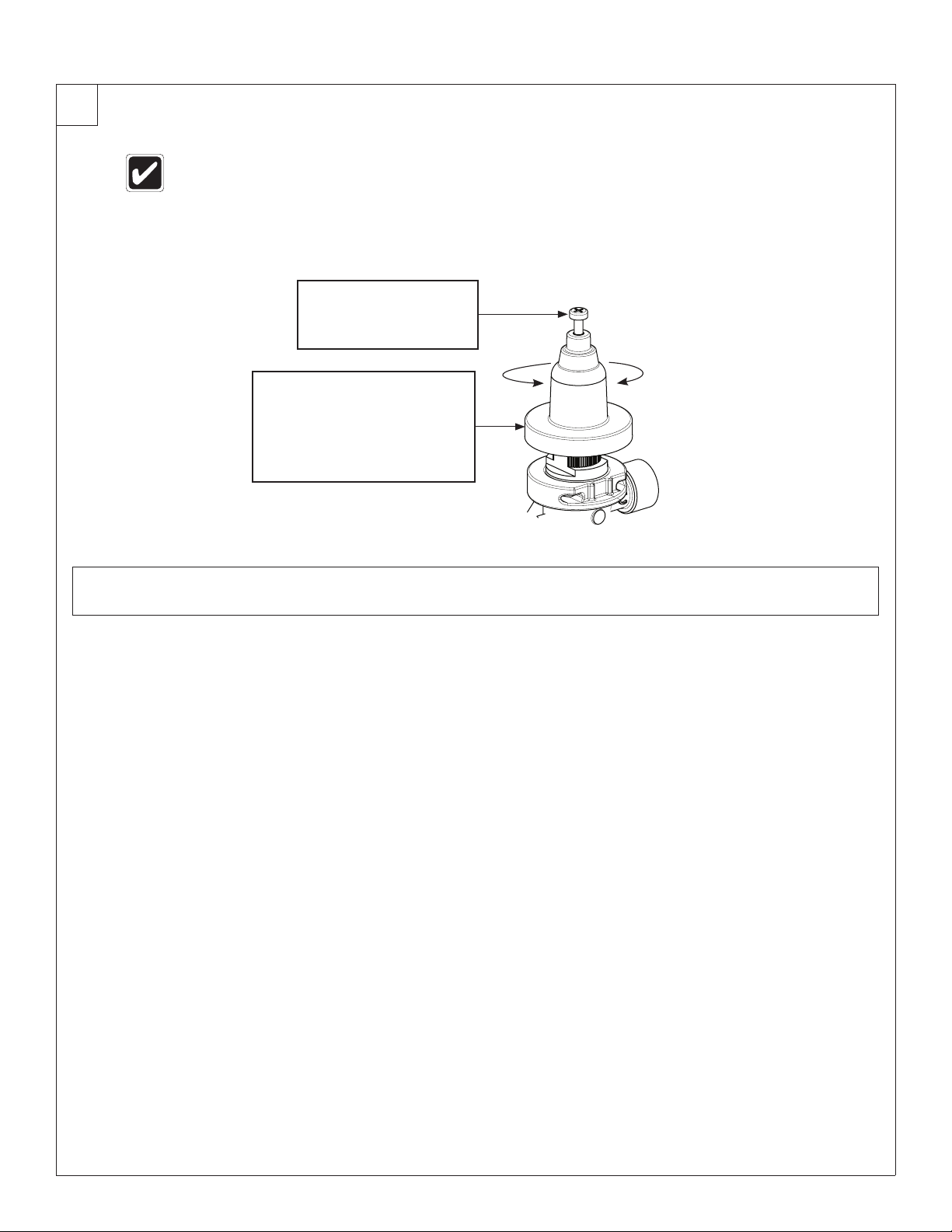

ALoosen the cap screw

about ¼" (4–6 turns)

and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until

desired water temperature

is reached. Do not turn past

stops as this may damage

the unit. Push the cover

down and tighten the screw.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

7Adjust the Temperature

Reinstall the valve bracket. Turn on the water supply and check for leaks. Pass your hand in front of each station’s sensor until

all the air is purged from the lines and water is flowing smoothly. Reinstall the access panel.

Other manuals for Express SS Series

This manual suits for next models

Table of contents

Other Bradley Bathroom Fixture manuals

Bradley

Bradley Vernatherm S59-4004 User manual

Bradley

Bradley SXWS9557FM User manual

Bradley

Bradley S19-125BF User manual

Bradley

Bradley OmniDeck with WashBar 5000 Series User manual

Bradley

Bradley Express SS-3N/IR/STD User manual

Bradley

Bradley s19314 series User manual

Bradley

Bradley S19-315FPBF User manual

Bradley

Bradley CBSHWR9000KD User manual

Bradley

Bradley SXWS9148 User manual

Bradley

Bradley TouchTime 1C User manual

Bradley

Bradley S19-130SS User manual

Bradley

Bradley SN2005/TT User manual

Bradley

Bradley Verge LVSD2 User manual

Bradley

Bradley Terreon Deep Bowl TDB3100 Series User manual

Bradley

Bradley SXWS9148FM User manual

Bradley

Bradley Express MG Series User manual

Bradley

Bradley Express SS Series User manual

Bradley

Bradley HSC79 User manual

Bradley

Bradley 5600 Series User manual

Bradley

Bradley s19314 series User manual

Bradley

Bradley 400 Series User manual

Bradley

Bradley Verge LVLD Series User manual

Bradley

Bradley LC700 User manual

Bradley

Bradley S19-110BF User manual

Popular Bathroom Fixture manuals by other brands

DURAVIT

DURAVIT C.1 C15240 0090 Instructions for mounting and use

Heatstore

Heatstore HSTRL500WTN Installation and operating instructions

Sunshower

Sunshower PURE SOLO manual

Delabie

Delabie Delabie Sporting 714700 manual

Kohler

Kohler K-13056 Homeowner's guide

ESS

ESS Container TCL-11 installation manual

Mustee

Mustee 22C installation instructions

VITRA

VITRA V-Flow manual

baliv

baliv DUK-80.30 T manual

Malmet

Malmet B105BT Operation, maintenance and installation manual

bathstore

bathstore Transition H1690MM Installation, Care & Adjustment Instructions

BELLOSTA

BELLOSTA Edward 0800/M Installation instruction

baliv

baliv DU-5160 manual

Franke

Franke PRTR0006 Installation and operating instructions

Gessi

Gessi RILIEVO 59011 manual

noken

noken VITAE 100188525-N299998810 manual

Allen + Roth

Allen + Roth 1142VA-30-201 manual

Britex

Britex HBDA installation guide
