Boston Acoustics SPZ50 User manual

Index

Introduction Page 2

Specifications Page 3

Dimensions Page 4

Included Parts and Accessories Page 6

Tweeter Installation Page 8

Axis Mount / Phase Plug Installation Page 10

SPZ50 Woofer Installation Page 12

SPZ60 Woofer Installation Page 13

Connecting Speaker Wires to the Woofer Page 16

SPZ Axis Mount Positioning Page 17

Crossover Installation Page 18

Crossover Configuration Page 19

SPZ System Wiring (Standard) Page 20

SPZ System Wiring (Bi-Amp / Bi-Wire) Page 21

Contact Information Page 22

Introduction

Thank you for purchasing the Boston Acoustics SPZ component system. Nothing better describes SPZ components than

best-in-class. With nearly 1-inch of peak-to-peak excursion, SPZ delivers more bass from a standard size speaker

opening. Further, Our off-axis, free rotating tweeter AMD™allows you to optimize the soundstage from OEM speaker

locations. Component systems that combine installation flexibility with best-in-class performance are the clear choice for

those who refuse to compromise the interior of their high performance vehicle. Others make claims. We deliver ours with

the Boston Acoustics SPZ Reference Components.

Nearly 1-inch peak-to-peak excursion from finite-element optimized rubber surround

Performs as a larger diameter woofer yet drops into OEM speaker locations.

Component and axis mount configurable

Allows utilization of OEM speaker locations without radical customization.

Free rotating axis-mount geometry acts as both a lens and tweeter baffle to allow adjustable soundstage height from a fixed mounting position

Integrates woofer and tweeter as a seamless acoustic system.

Compact neodymium magnet structures

Deliver superb sound quality output from compact Magnetic-finite-element optimized structures.

Copper-clad aluminum woofer voice coils

Provides low-mass, long Xmax, and optimized DCR while maintaining power handling.

150W RMS power handling

Enabled by RadialVent®cooling and TwinStage™heatsink.

System specific 24dB per octave crossovers with application specific filters

Minimizes driver placement issues based on OEM speaker locations.

Specifications

Model: SPZ60 SPZ50

Nominal Size: 6 1⁄2"(165mm) 5 1⁄4"(135mm)

RMS Power Handling: 150w 150w

Max Power Handling: 300w 300w

Nominal System Impedance: 3

Ω

Woofer Cutout Diameter: 5" (127mm) 4 3⁄4"(120mm)

Woofer Mounting Depth: 2 11⁄16"(68mm) 2 9⁄16"(62mm)

Surface Mount Tweeter Cup Cutout Diameter: 1 3⁄4"(45mm) 13⁄4"(45mm)

Surface Mount Tweeter Cup Mounting Depth: 3⁄4"(19mm) 3⁄4"(19mm)

Sensitivity (2.83v @ 1 Meter): 90dB 90dB

Frequency Response (±3dB in car): 40-22kHz 50-22kHz

Woofer Cone Material: Glass Fibre Composite Glass Fibre Composite

Tweeter Dome Material: Hard Anodized Aluminum Alloy Hard Anodized Aluminum Alloy

Crossover Filter: 24dB per Octave 24dB per Octave

Tweeter Attenuation: 0dB / -2dB / -4dB 0dB / -2dB / -4dB

Woofer Xmax (peak to peak): 24mm 24mm

SPZ50 Woofer

92.1mm

3.62”

61.9mm

2.54”

36mm

1.42”

119mm

4.69”

36mm

1.42”

67.4mm

2.65”

97.6mm

3.84”

134mm

5.27”

SPZ60 Woofer

Dimensions

110mm

4.33”

197mm

7.75”

56.1mm

2.21”

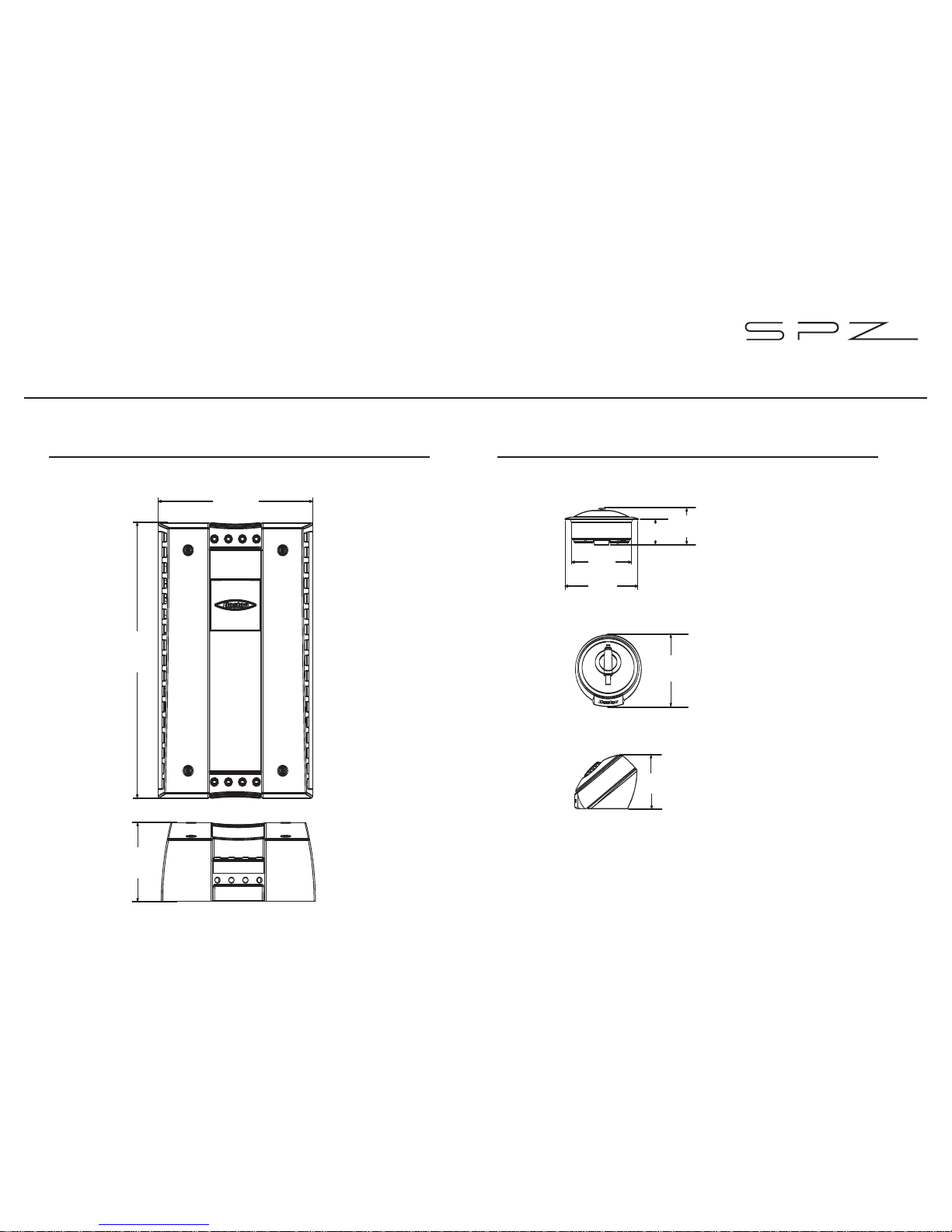

SPZ Crossover SPZ Tweeter

18mm

.71” 27mm

1.1”

43mm

1.69”

52mm

2.05”

38mm

1.5”

51mm

2”

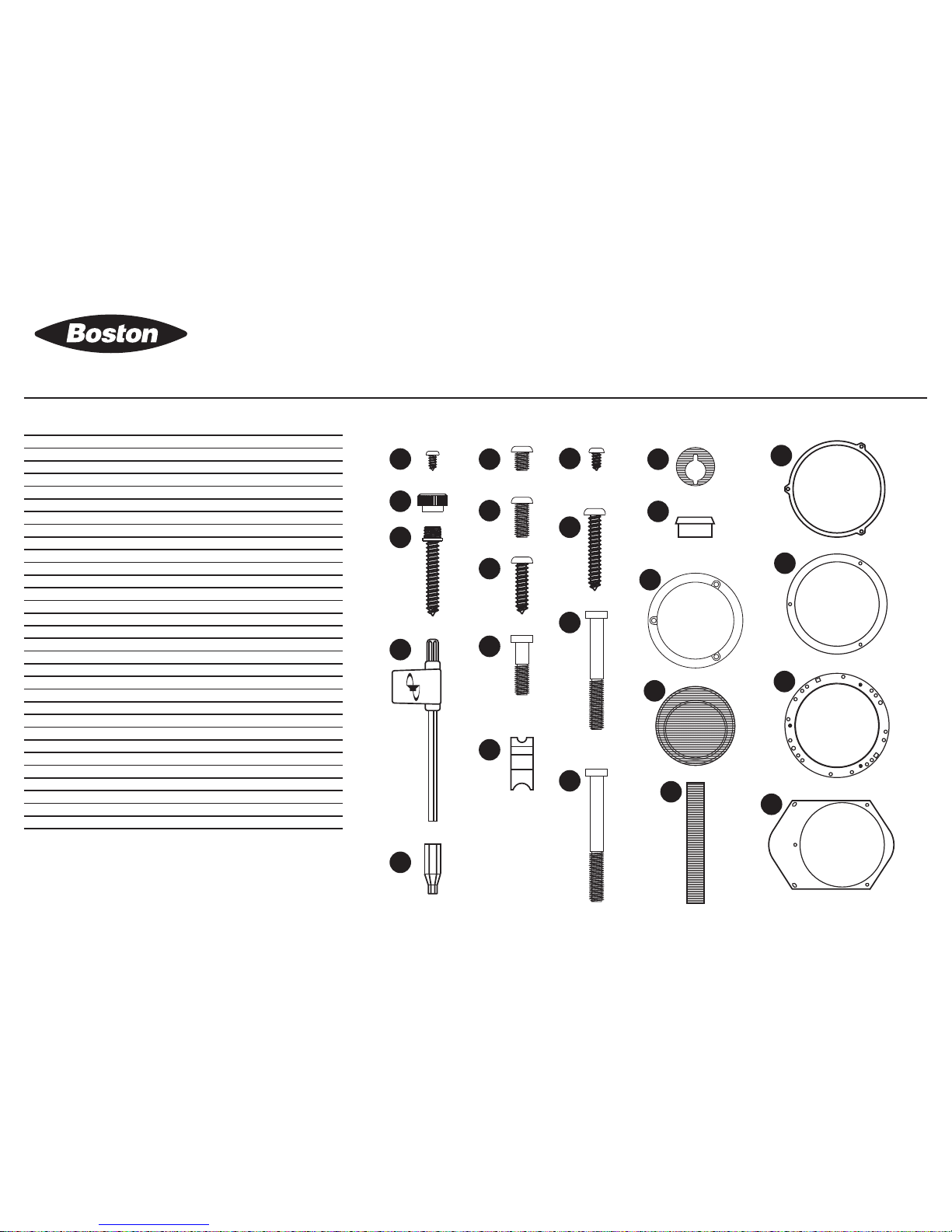

SPZ60 Included Parts and Accessories:

# Description Quantity

1 SPZ60 Woofer 2

2Type-M1 1" Alloy Dome Tweeter 2

3 SPZ60 Crossover 2

4 Tweeter Grille 2

5 Tweeter Axis-Mount 2

6 Tweeter Flush-Mount 2

7 Tweeter Angle-Mount (top) 2

8 Tweeter Angle-Mount (bottom) 2

9 Woofer Gasket 4

10 Boston Hex Tool 1

11 Woofer Grille 2

12 Woofer Grille Mounting Ring 2

13 Woofer Screw 6

14 Thumb Screw (grille) 6

15 11⁄16"Socket Button Head Screw 6

16 1⁄4"Socket Button Head Screw 6

17 Spring Clips 4

18 Terminated Tweeter Wire 2

19 3⁄8"Pan Head Screw 2

20 11⁄8"Socket Button Head Screw 16

21 1⁄2"Self-Tapping Screw 4

22 1" Self-Tapping Screw 4

23 3⁄32"Hex Bit 1

24 Crossover Screw (short) 4

25 Crossover Screw (long) 4

26 Phase Plug Cap 2

27 Axis Mount / Phase Plug Screw 2

28 5 x 7" (127 x 177mm) Adapter 2

29 6" (160mm) Adapter 2

30 6 1⁄2"(165mm) Adapter 2

31 1⁄2"(13mm) Spacer 2

16 21 4

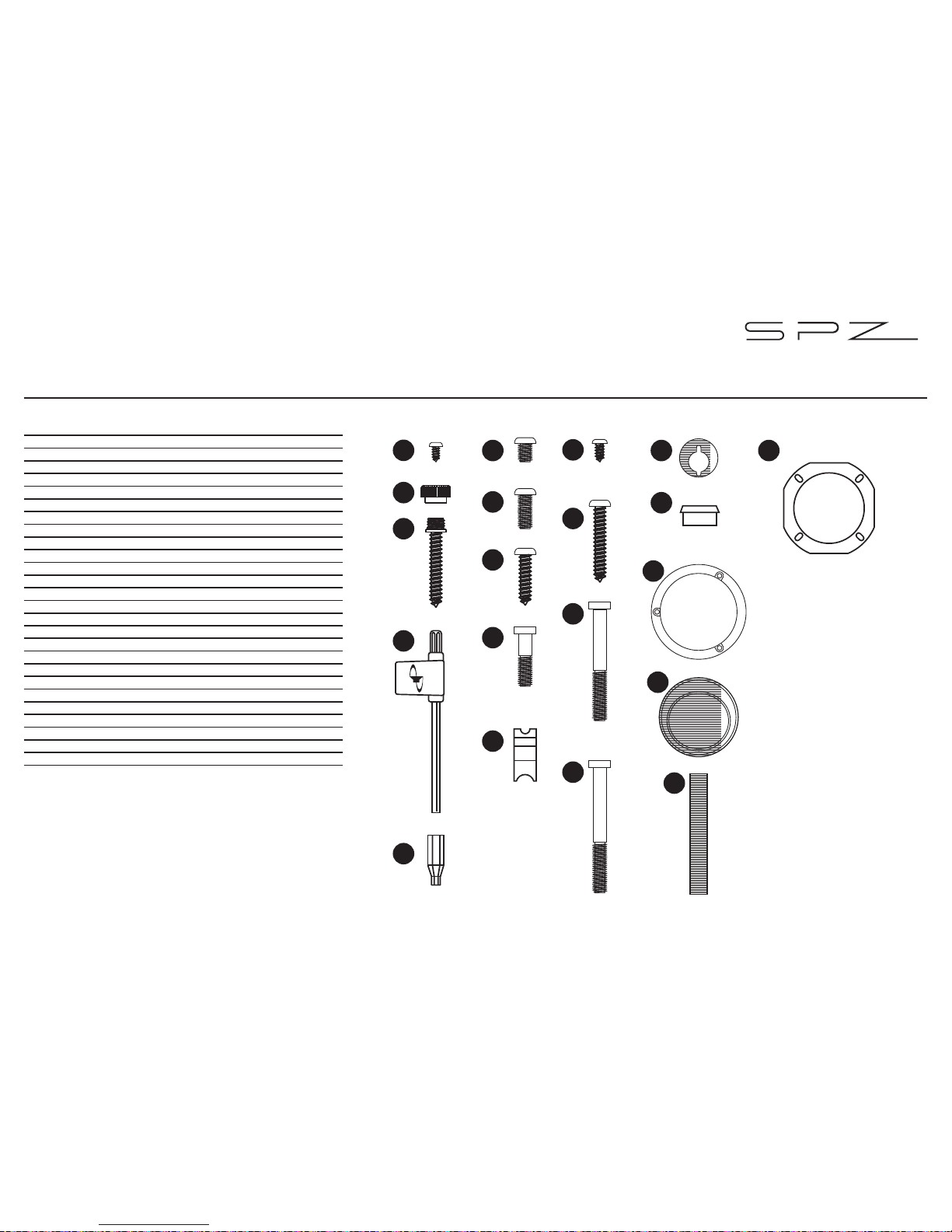

SPZ50 Included Parts and Accessories:

# Description Quantity

1 SPZ50 Woofer 2

2Type-M1 1" Alloy Dome Tweeter 2

3 SPZ50 Crossover 2

4 Tweeter Grille 2

5 Tweeter Axis-Mount 2

6 Tweeter Flush-Mount 2

7 Tweeter Angle-Mount (top) 2

8 Tweeter Angle-Mount (bottom) 2

9 Woofer Gasket 4

10 Boston Hex Tool 1

11 Woofer Grille 2

12 Woofer Grille Mounting Ring 2

13 Woofer Screw 8

14 Thumb Screw (grille) 8

17 Spring Clips 4

18 Terminated Tweeter Wire 2

19 3⁄8"Pan Head Screw 2

20 11⁄8"Socket Button Head Screw 16

21 1⁄2"Self-Tapping Screw 4

22 1" Self-Tapping Screw 4

23 3⁄32"Hex Bit 1

24 Crossover Screw (short) 4

25 Crossover Screw (long) 4

26 Phase Plug Cap 2

27 Axis Mount / Phase Plug Screw 2

32 5 1⁄4”(135mm) Adapter 2

16 21 4

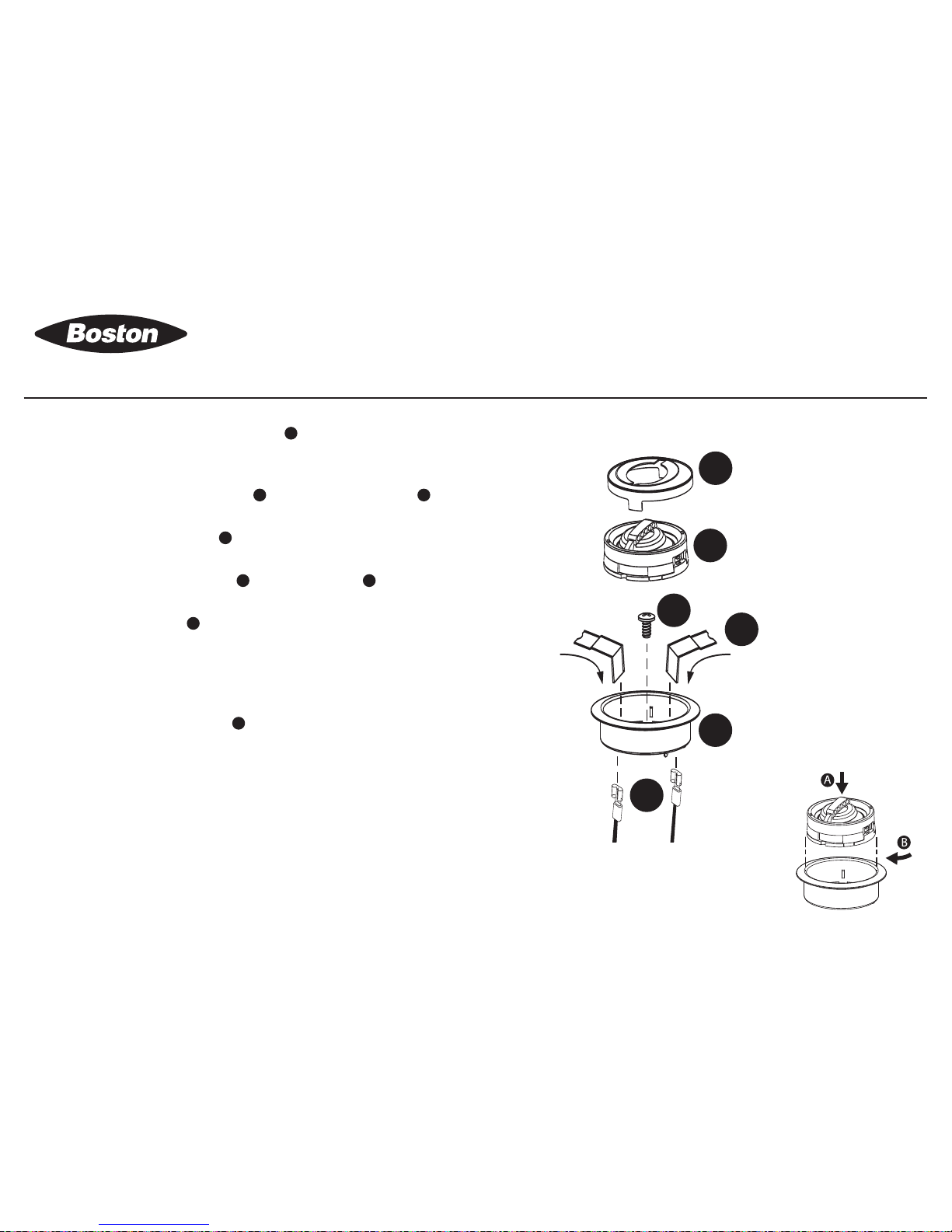

Tweeter Installation: Flush Mount

1) Drill a hole for the tweeter cup (1 3⁄4”/45mm) making

sure that there is adequate depth available (3⁄4”/19mm).

2) Connect the speaker wires to the tweeter cup .

3) Insert the tweeter cup into the mounting hole.

4) Insert the retaining clips and set screw and tighten.

5) Insert the tweeter into the cup, twist clockwise to lock

the tweeter into position.

(Caution: Do not touch the dome of the tweeter, contact with the

tweeter dome will damage the tweeter.)

6) Install the tweeter grille by pressing gently into place.

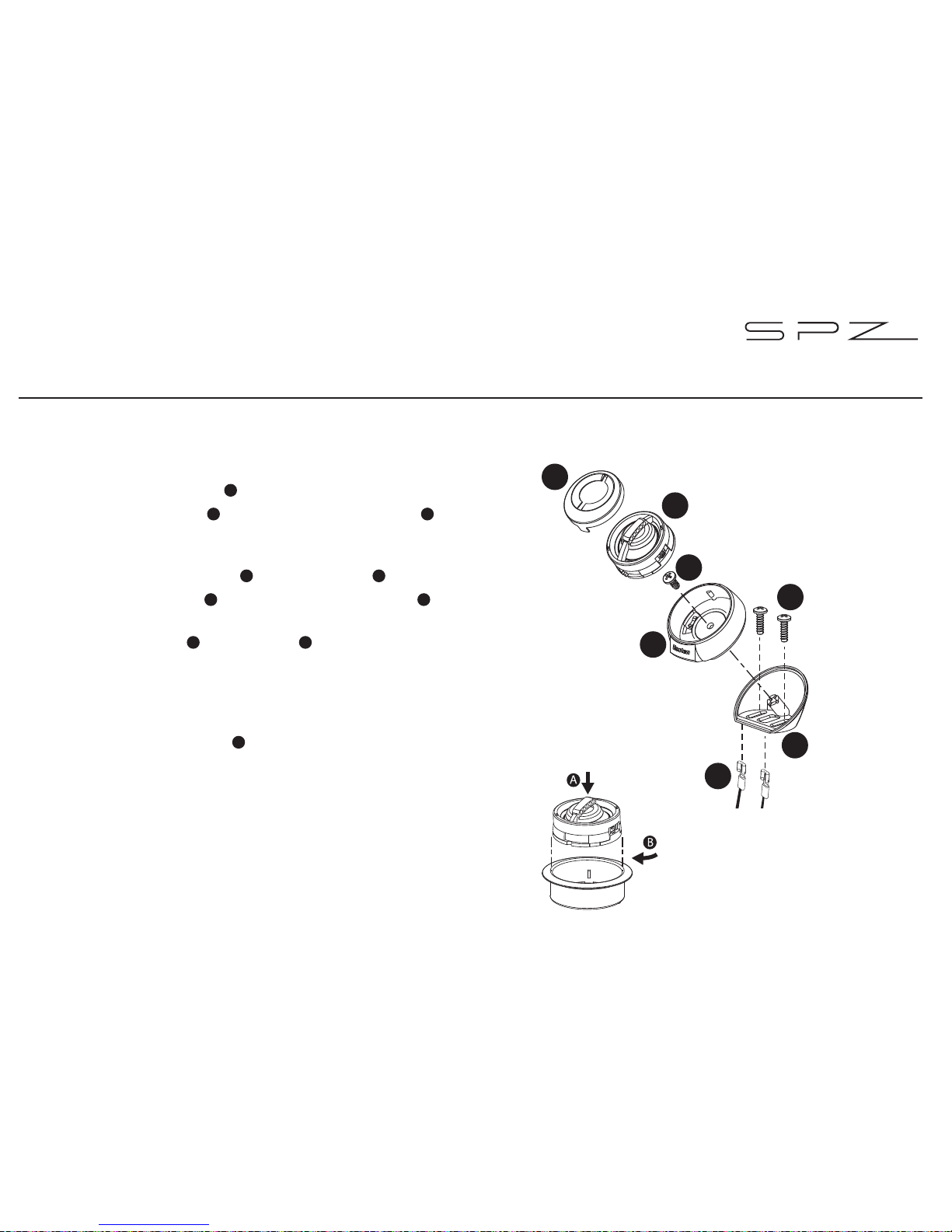

Tweeter Installation: Angle Mount

1) Drill a hole for the speaker wire and pre-drill for the

mounting screws if necessary

2) Mount the bottom cup to the mounting surface using

the provided screws routing the speaker wires

through the center hole.

3) Attach the speaker wires to the top cup and mount

it to the bottom cup using the provided screw .

4) Insert the tweeter into the cup , twist clockwise to

lock the tweeter into position.

(Caution: Do not touch the dome of the tweeter, contact with the

tweeter dome will damage the tweeter.)

5) Install the tweeter grille by pressing gently into place.
