Boston Acoustics BA635 User manual

BA635

Powered Speaker System

Description

BA635 by Boston Acoustics is a compact, self-powered speaker system that brings true high fidelity sound to

the desktop environment. imply connect BA635 to any source with a headphone jack or line-level outputs—

like a computer, portable CD player, TV, or VCR—and enjoy amazing full-range performance. It is a three-

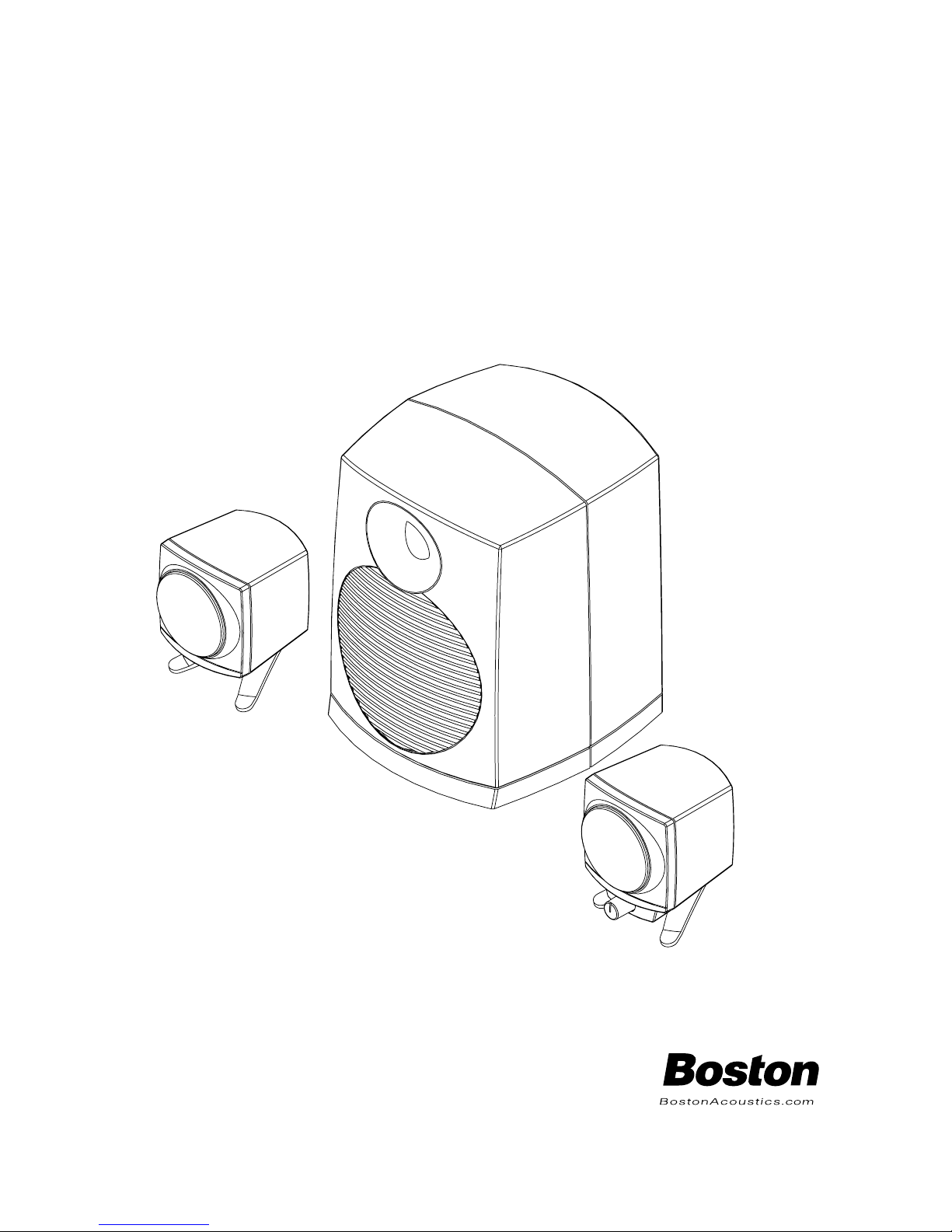

piece system comprised of two micro-sized satellites and a sleek subwoofer. Three channels of amplification

are housed in the subwoofer cabinet, one for the subwoofer and two for the satellites. To prevent video

interference or accidental disk erasure, the system features MagnaGuard

magnetic shielding.

The subwoofer uses our 4

/2-inch (115mm) bass driver in a vented enclosure. The port is flared at both ends to

eliminate audible turbulence. The subwoofer has a special signal-sensing circuit that turns the system on and

off automatically for user convenience and a ‘set-and-forget’ bass level control.

The satellites come with pedestal stands for easy placement on the desktop. The system master volume

control is conveniently mounted under the right satellite.

Specifications

FREQUENCY RESPONSE (±3dB) 55-20,000Hz

MAXIMUM SOUND PRESSURE LEVEL (0.5m) 96dB

SUBWOOFER 4

/2" (115mm) polymer treated fiber

SATELLITES 2" (50mm) polymer treated fiber

CROSSOVER FREQUENCY 200Hz

DIMENSIONS (HxWxD) ubwoofer

/4" x 6" x 6

/16" (196 x 153 x 169mm)

atellites

/8" x 2

/16" x 2

/4" (67 x 69 x 58mm)

WEIGHT ubwoofer

4 lbs (1.9kg)

atellites

0.4 lbs (0.2kg)

FINISH Computer Gray

This Package Contains:

1 ubwoofer

4 elf-adhesive rubber feet for subwoofer (part no. 37-287-0)

1 Left satellite speaker

1 Right satellite speaker with volume control and input cable

2 Pedestal stands (part no. 11-948-0)

4 elf-adhesive rubber pads for pedestal stands (part no. 20-893-0)

Transformer with power cord (part no. 26-022-0)

White plug to white jack

Red plug to red jack

Purple plug to purple jack Green plug to green jack

auto-detect

12V in

AC/DC

out to spkrs

input

subwoofer level

auto-detect

12V in

AC/DC

out to spkrs

input

subwoofer level

auto-detect

12V in

AC/DC

out to spkrs

input

subwoofer level

Limited Warranty

For one year from the date of purchase, Boston Acoustics will repair for the original owner any defect in

materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor.

Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure

transportation to an authorized Boston Acoustics service representative and to present proof of purchase in the

form of your sales slip when requesting service.

Excluded from this warranty is damage that results from abuse, misuse, accidents, shipping, or repairs or

modifications by anyone other than an authorized Boston Acoustics service representative.

This warranty is void if the serial number has been removed or defaced.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

If Service Seems Necessary:

First, contact the retailer from whom you purchased the system. If that is not possible, write to:

Boston Acoustics, Inc., 300 Jubilee Drive, Peabody, MA 01960

We will promptly advise you of what action to take. If it is necessary to return your speaker to the factory,

please ship it prepaid. After it has been repaired, we will return it freight prepaid in the U. . and Canada.

rights reserved. BA635 is a trademark and

MagnaGuard, Boston, and Boston Acoustics are

registered trademarks of Boston Acoustics, Inc.

pecifications subject to change without notice.

42-958-0

Notice of FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

300 Jubilee Drive

Peabody, MA 01960

978-538-5000
