Boss Audio Systems CD-3190R User manual

Size: 139 x 216mm

E - 1

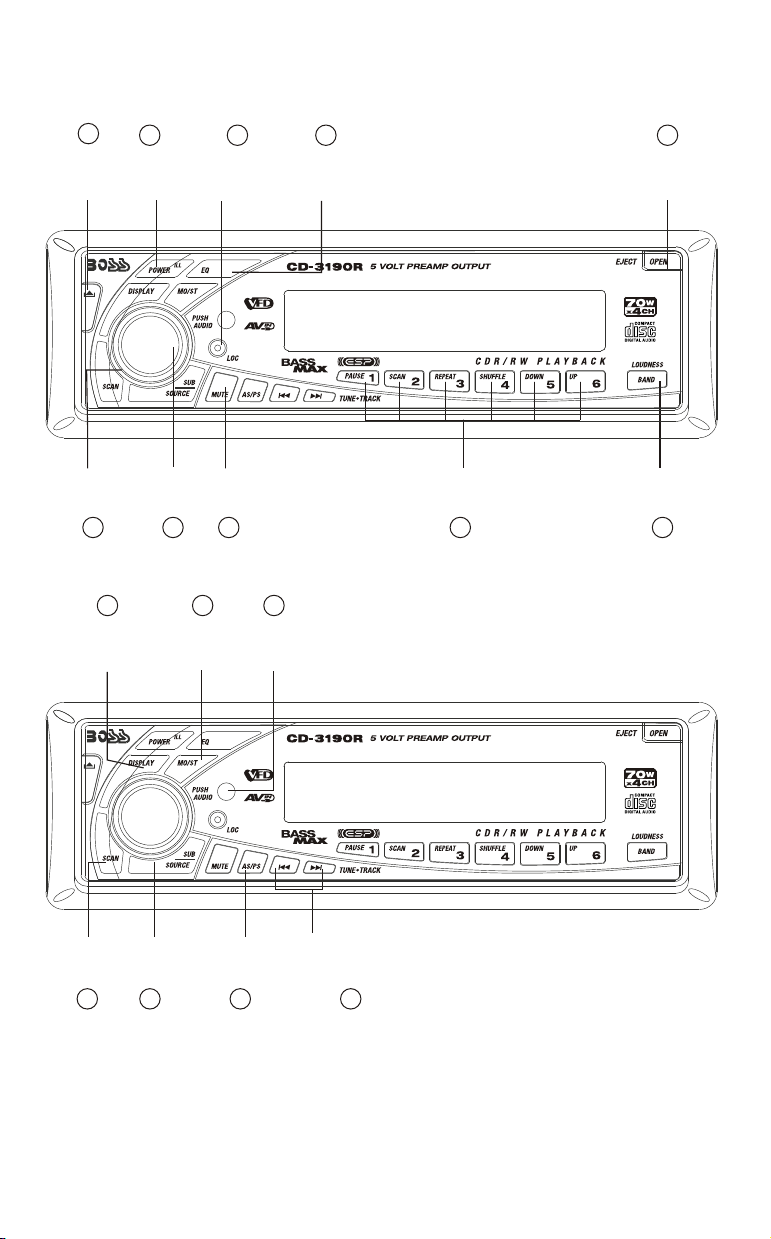

1. BUTTONS LOCATION AND FUNCTIONING

PANEL

RELEASE

BUTTON

MUTE

BUTTON

LOCAL/DX

BUTTON

(LOC)

PANEL

OPEN/EJECT

BUTTON

AUDIO

BUTTON

DISPLAY

BUTTON

PRESET MEMORY BUTTONS (M1~M6)

PRESET

EQUALIZER

BUTTON

POWER

BUTTON

(ILL)

MONO/

STEREO

BUTTON

SCAN

BUTTON

ENCODER

VOLUME

BUTTON

BAND/LOUDNESS

BUTTON

TUNING UP / DOWN

TRACK UP / DOWN

BUTTONS

REMOTE

CONTROL

RECEIVER

SOURCE

BUTTON /

SUB-WOOFER

AUTOMATICALLY

STORE / PRESET

SCAN BUTTON

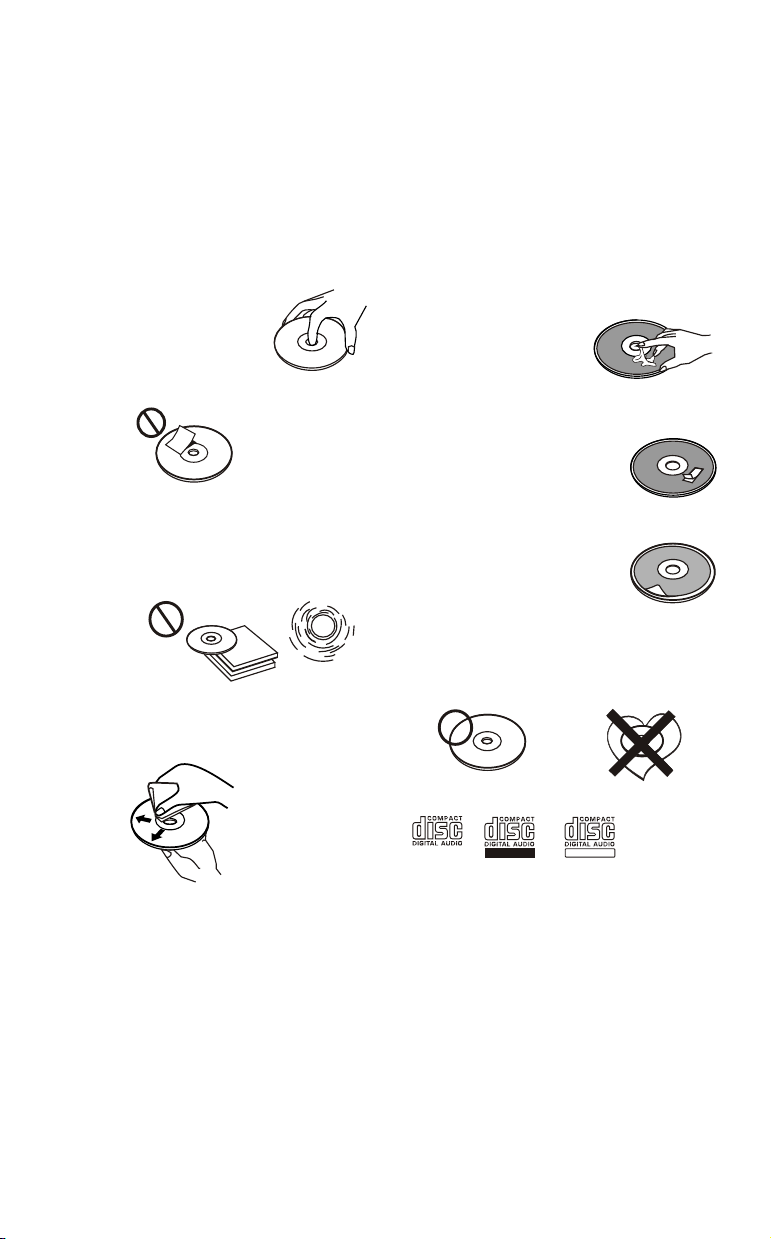

2. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1 P. 5

P. 6

P. 7

NOTES ON DISCS

There are paste residue.

Ink is sticky (P.5).

Stickers that are beginning

to peel away, leaving a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this

occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until

the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface (P.1).

If you use the discs explained below, the sticky

residue can cause the CD to stop spinning and

may cause malfunction or ruin your discs.

Do not use second-hand or rental CDs that have a

sticky residue on the surface (for example, from

peeled-off stickers or from ink, or glue leaking

from under the stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the centre out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use rental CDs with old labels that are

beginning to peel off.

Do not use your CDs with labels or stickers

attached.

**************

*******

****

*******

******* *******

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for this

unit and do not use any special shape CDs.

Use of special shape CDs may cause the unit

to malfunction.(P.8).

Be sure to use CDs with disc mark

Only for this unit.

RECORDABLE

REWRITABLE

P. 8

CD-Rs and CD-RWs which have not undergone

finalization processing cannot be played. (For

more information on finalization processing,

refer to the manual for your CD-R/CD-RW

writing software or CD-R/CD-RW recorder.)

Additionally, depending on the recording status,

it may prove impossible to play certain CDs

record on CD-R or CD-RW.

E - 2

3. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up

properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts

can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

If installation angle exceeds 30°from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from heater, or where it would be subject to dust dirt or excessive vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

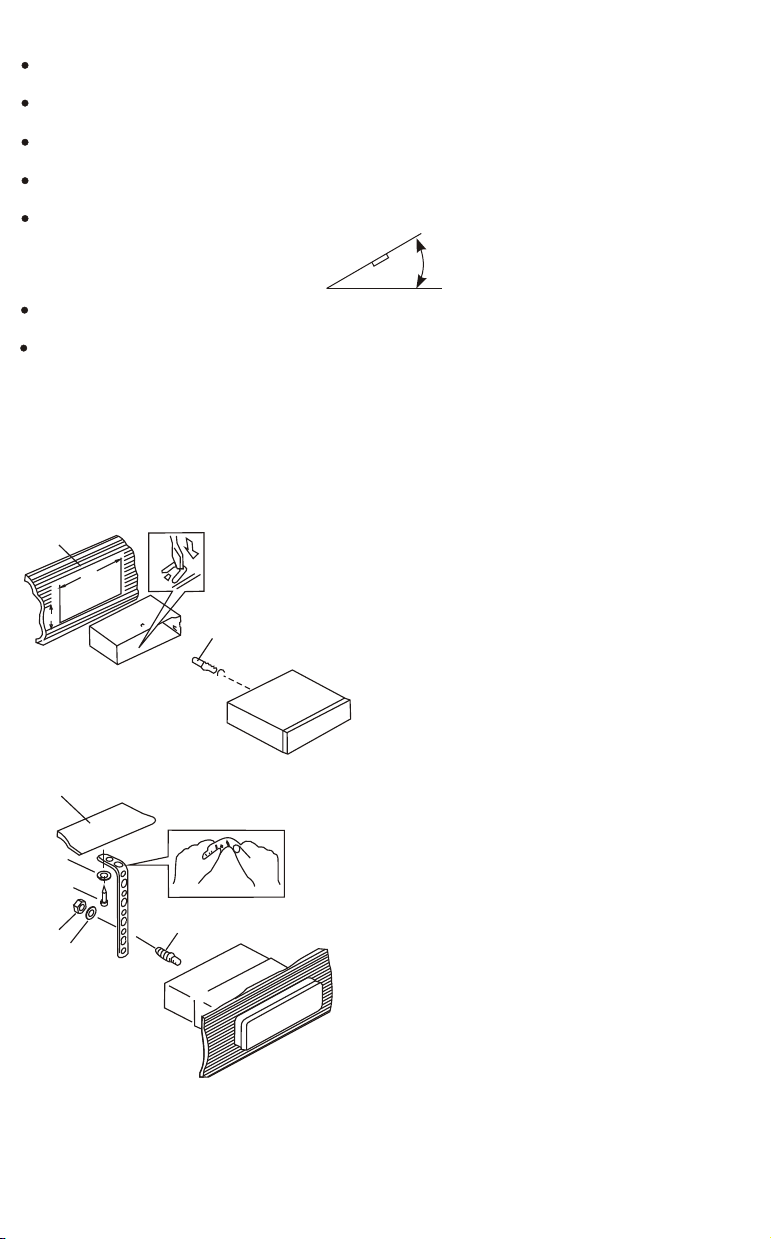

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab according

to the thickness of the dashboard material and

bend them inwards to secure the holder in

place.

3. Screw

30°

61. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5x25mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure the

back of the unit in place. The strap can be bent

by hand to the desired angle.

7. Plain washer

182

E - 3

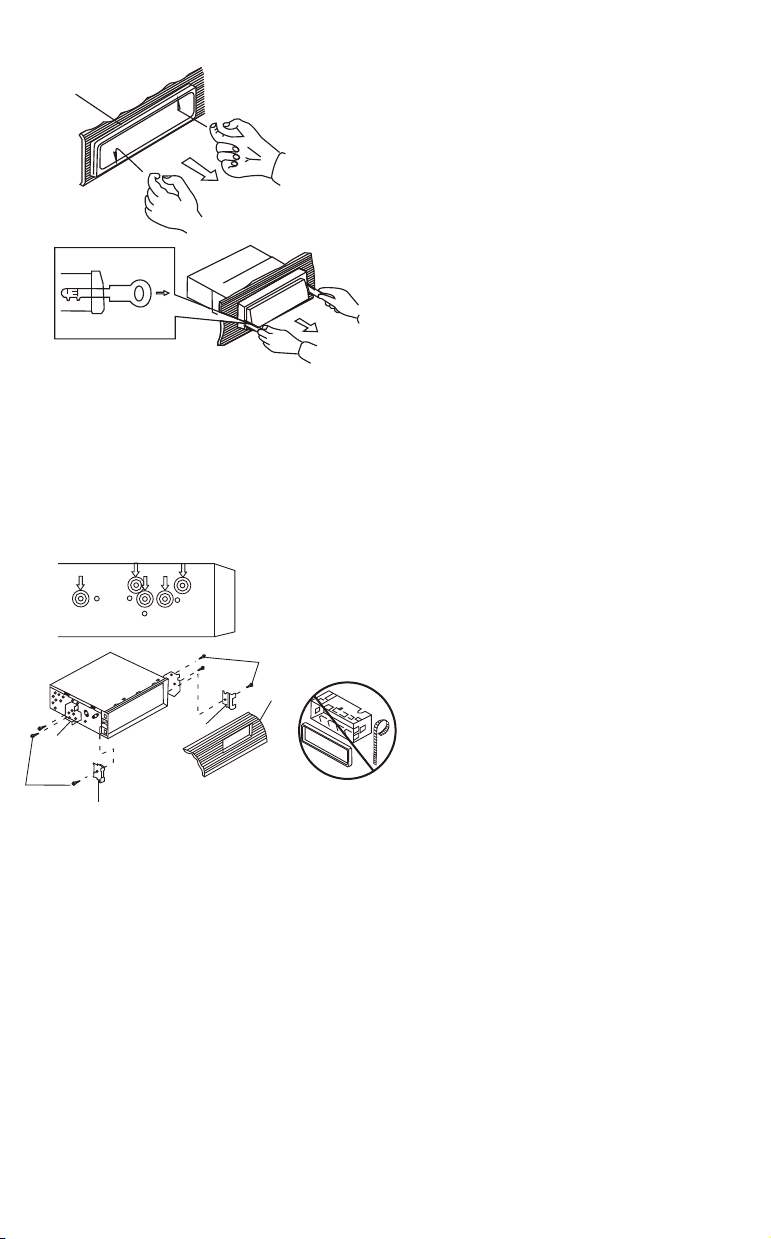

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method

B installation.

a. Frame

b. Insert fingers into the groove in the front

of frame and pull out to remove the

frame. (When re-attaching the frame,

point the side with a groove down wards

and attach it.)

c. Insert the levers supplied with the unit

into the grooves at both sides of the unit

as shown in figure until they click. Pulling

the levers makes it possible to remove

the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

E - 4

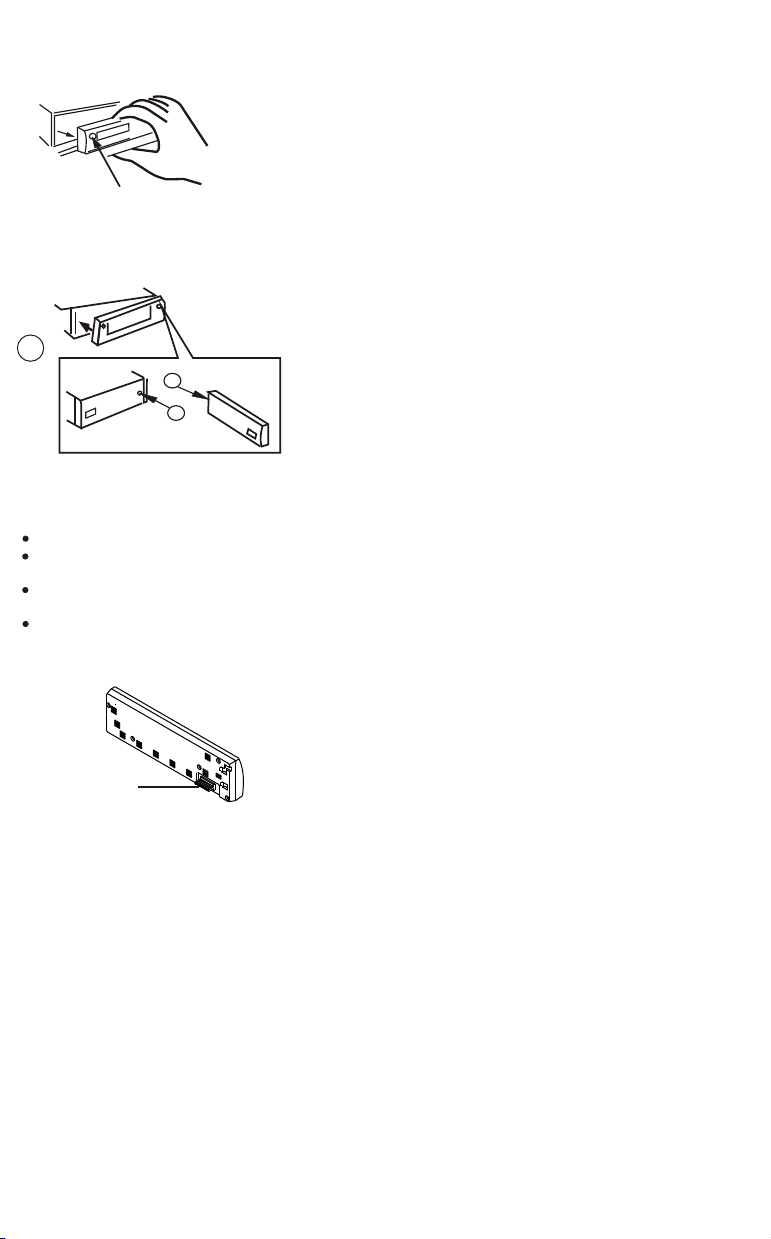

4. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on the

D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop

it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent

damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

Socket

E - 5

E - 6

FUNCTION/LABEL

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

LEFT REAR SPEAKER (-)

LEFT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

RIGHT REAR PRE-AMP LINE OUT

REAR PRE-AMP LINE OUT COMMON

1 GREY/BLACK

4 VIOLET/BLACK

7 GREEN/BLACK

6 GREEN

9 BLACK

3 VIOLET

8 RED

10 RED

2 GREY

IGNITION(ACC)

WIRE COLOR FUNCTION/LABEL

LEFT REAR PRE-AMP LINE OUT

FRONT PRE-AMP LINE OUT COMMON

RIGHT FRONT PRE-AMP LINE OUT

LEFT FRONT PRE-AMP LINE OUT

CHASSIS GROUND

POWER ANTENNA

LEFT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (+)

BATTERY(+)

RED

WHITE/BLACK

BLACK

YELLOW

WHITE

BLUE

BLACK

WHITE

WIRE COLOR

Memory/Battery

Connect to battery or 12 volt power sourse that is always live.

The radio will not work if this wire is not connected

Accessory/Ignition Connect to existing radio wire or radio fuse.

Ground Connect to ground terminal or

Pclean unpainted metal part of chassis

AMP

RED

BLUE

BLACK

YELLOW

GREY RF+

GREY-BLACK RF-

VIOLET RR+

VIOLET-BLACK RR-

GREEN-BLACK LR

WHITE-BLACK LF-

GREEN LR+

WHITE LF+

LEFT REAR

LEFT FRONT

RIGHT REAR

RIGHT FRONT

20-PIN AUDIO/POWER HARNESS

Pin View

653 41 2

141311 12 15 16

7 98 10

201817 19

Figure 1

HARNESS

AUDIO/POWER

20-PIN

(OPTION)

(See Figure 1)

CHANGER

8 PIN CD

DIN SOCKET

L-CH

GREY

BLACK

FRONT LINE OUT

RED

WHITE

RED

REAR LINE OUT WHITE

L-CH

R-CH

R-CH L-CH

R-CH

RCA-TO-RCA CABLES

(not supplied)

RCA-TO-RCA CABLES

(not supplied)

FUSE

SUB WOOFER

BLUE

AUX IN

WHITE

RED

YELLOW

WHITE

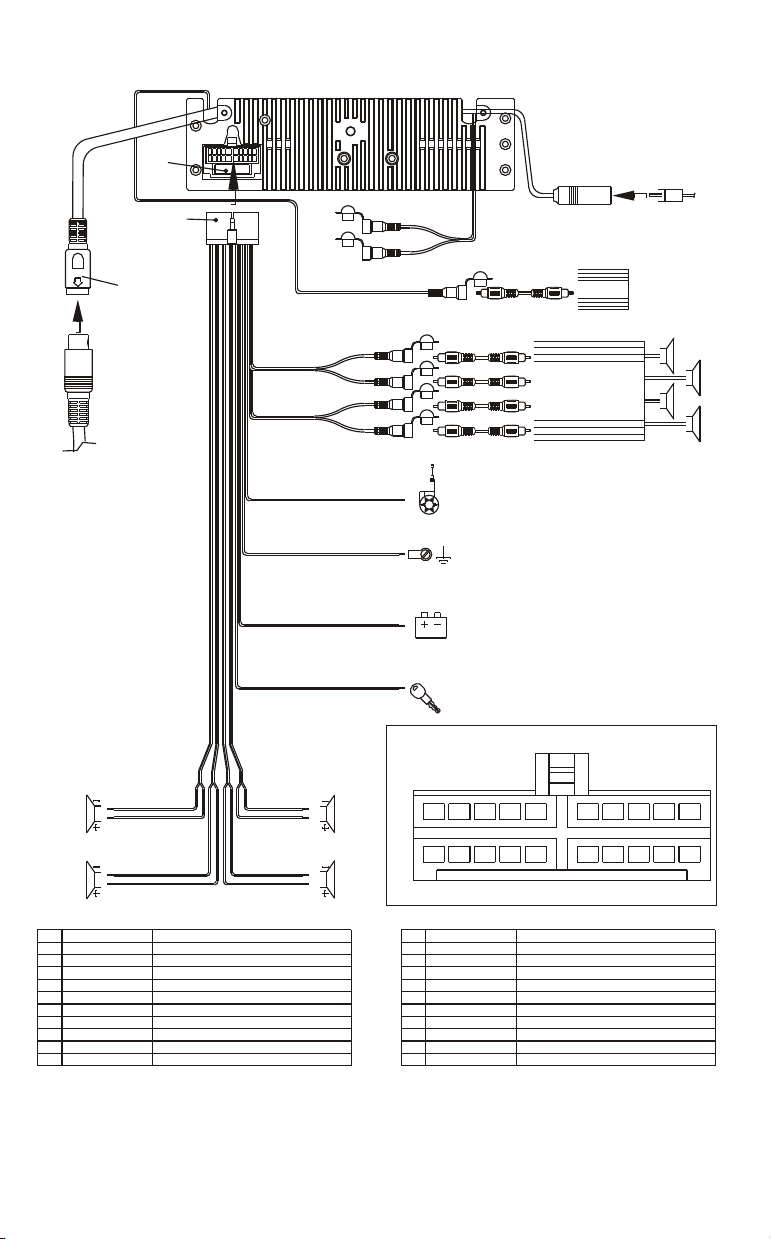

5. WIRING DIAGRAM (20 PIN HARNESS PLUG)

ANTENNA

JACK ANTENNA

SUB

WOOFER

Power Antenna Connect to powerantenna or amplifier, If

not used, tape bare endof wire.

E - 7

6.PANEL OPEN/CLOSE OPERATION

(MOTORIZED SLIDE DOWN VERSION)

This unit is equipped with the most advanced full logic motorized slide down system. You can enjoy

this advance technology with just a single press of the “OPEN” button Please read the following

instructions carefully before operating the unit.

OPEN / CLOSE THE PANEL:

Press the Open button to open a closed panel, or to close an opened panel.

LOADING A CD

When the panel is in the slide down position, the disc slot becomes accessible.

Insert a CD through the disc slot, the CD will be automatically loaded and the panel will also close

automatically & playback will begin.

If no CD is inserted, press Open button again to close the panel.

EJECTING A CD

Press and hold Open button for more than 3 seconds to slide down the panel, if a CD is loaded, it will

be ejected automatically. No further key press is needed.

If the ejected CD is not being removed, after 10 seconds it will be reloaded automatically. And then

press the Open button again to slide up(close) the panel.

Warning : If the ejected disc remains in the slot, the Open button will not function, so closing the

panel by using Open button is prevented unless the disc is removed or reloaded.

CAUTION:

A) Please always use the “OPEN” button to slide up/ down the front panel. Please never try to

slide up or down the front panel manually, this will cause serious & permanent damage to the

slide down mechanism, and this will void the warranty.

B) Please do not try to detach / remove the front panel ( by pressing the detach button ) or attach the

front panel when the panel is in the slide down position. This may cause serious & permanent

damage to the unit & panel. Only attach or detach the front panel when the panel is in the slide up

position.

E - 8

16) SOURCE BUTTON (SOURCE)

Press this button to select Radio , CDP or CD changer modes.

The available selections depends on version:

Radio CD Player

Radio > CDP > CD changer > AUX in

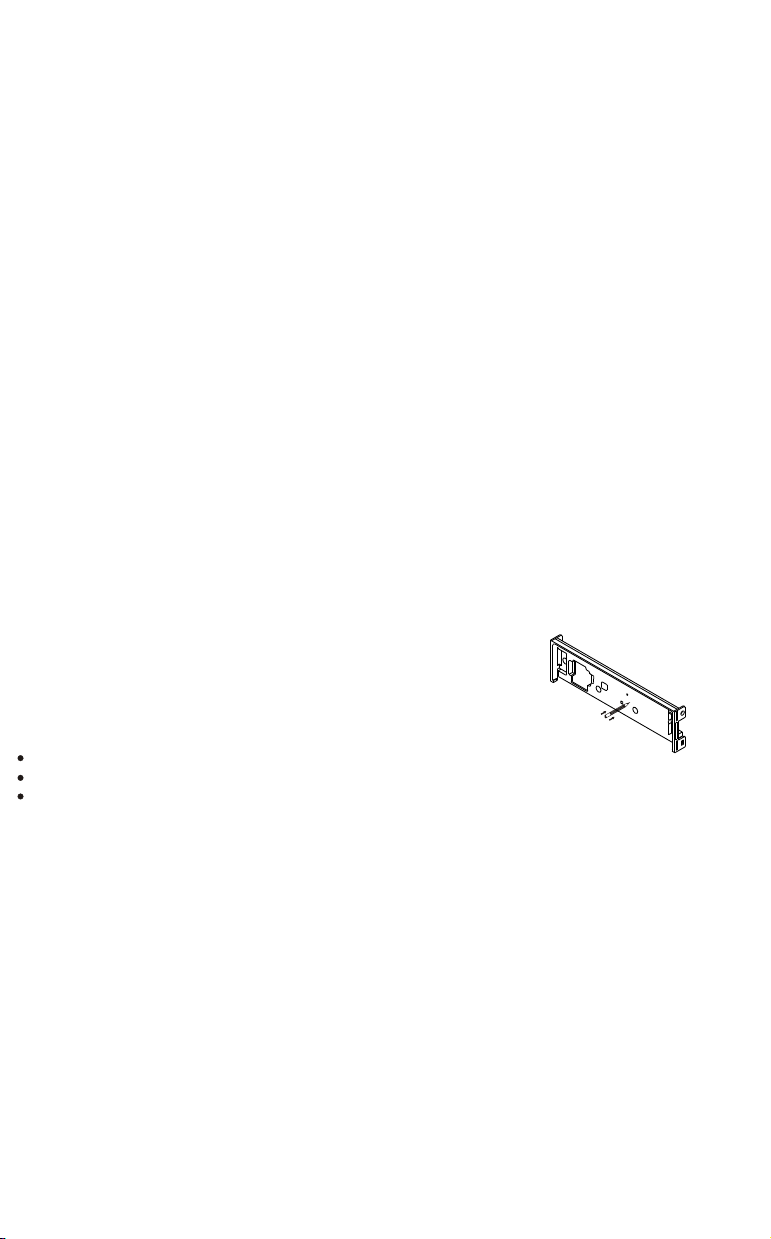

The RESET button is located on the main unit (as shown on the diagram). To press it vertically with a ballpoint pen

or metal object will activate it. The reset button is to be activated for the following reasons:

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

RESET BUTTON

Note: If the unit cannot function normally,after reseting, please use a cotton swab soaked in isopropyl

alcohol to clean the socket on the back of the control panel.

RESET

Sub-woofer On/Off

Press SOURCE button for more than 3 seconds to activate or turn off the Sub-woofer output.

Press this button to remove the control panel.

7. BASIC OPERATIONS

1) PANEL RELEASE BUTTON (REL)

12)POWER ON/OFF BUTTON

6) DISPLAY BUTTON (DISP)

Aux Input

Connect the external signal to the auxiliary line in jack located at the rear of the unit , then press

Source button to select Aux mode. Press Source Button again to cancel Aux Mode and return to

previous mode.

Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display

mode.

Clock Adjustment

Under clock display mode, press DISP button until the LCD flashes, press Tuning Up Button to adjust hour

and Tuning Down Button to adjust minute.

Press this button long to turn on or off the power.

In VFD button short press this button to toggle dimmer function. This will change the brightness of

VFD and there are three levels of brightness can be selected.

E - 9

8. AUDIO OPERATIONS

5) AUDIO BUTTON

Press this button to select desired audio function.

While the selected function is displayed, press volume UP/DN buttons to adjust the level within 5

seconds, otherwise the unit will return to volume adjustment mode.

2) MUTE BUTTON (MUTE)

Press this button to mute the sound. Press it again to resume listening.

17) PRESET EQUALIZER BUTTON (EQ)

Press this button to toggle the following EQ settings:

At DSP OFF mode, EQ will be controlled by Bass/Treble setting.

13) BAND/LOUDNESS BUTTON (BAND/LOUD)

Press the Band/Loudness Button for couple of seconds to switch the loudness on or off. When Loudness is

on, display will show 'Loud On' for a few seconds.

ORDER OF FUNCTION:

VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD)

FLAT->CLASSICS->POP M->ROCK M->DSP OFF

10)ENCODER VOLUME BUTTON

To increase the volume, rotate the volume control clockwise. To decrease the volume, rotate the

volume control counter clockwise. When volume is adjusted, the volume level will be shown on

the display panel as a number ranging from 0 (lowest) to 46 (highest).

Table of contents

Other Boss Audio Systems Car Receiver manuals

Boss Audio Systems

Boss Audio Systems 870DBI User manual

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD User manual

Boss Audio Systems

Boss Audio Systems 620UA User manual

Boss Audio Systems

Boss Audio Systems BV9370NV User manual

Boss Audio Systems

Boss Audio Systems MP3-3O6OR User manual

Boss Audio Systems

Boss Audio Systems BV9386NV User manual

Boss Audio Systems

Boss Audio Systems 720CA User manual

Boss Audio Systems

Boss Audio Systems 615UA User manual

Boss Audio Systems

Boss Audio Systems 611UAB User manual

Boss Audio Systems

Boss Audio Systems 510CA User manual

Boss Audio Systems

Boss Audio Systems DB8974B User manual

Boss Audio Systems

Boss Audio Systems BV7348B User manual

Boss Audio Systems

Boss Audio Systems 765DBI User manual

Boss Audio Systems

Boss Audio Systems AVA-2695R User manual

Boss Audio Systems

Boss Audio Systems BV9973 User manual

Boss Audio Systems

Boss Audio Systems 637UA User manual

Boss Audio Systems

Boss Audio Systems 758DBI User manual

Boss Audio Systems

Boss Audio Systems 3160 User manual

Boss Audio Systems

Boss Audio Systems 639UA User manual

Boss Audio Systems

Boss Audio Systems MP3-4100R User manual

Boss Audio Systems

Boss Audio Systems BV7280 User manual

Boss Audio Systems

Boss Audio Systems BV9968BI User manual

Boss Audio Systems

Boss Audio Systems BV8950 User manual

Boss Audio Systems

Boss Audio Systems MR400UAB User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
