User’s Manual

BV9370NV

GPS

2

2. Installation and Hardware Setup

2.1 Software Installation

To run the software legally, the user has to get a license key by registration process.

The license key is encrypted by the combination of the device ID, which could be your

SD card ID, and a map code. Also, please note that the license key is per map region.

Each map region has its own map code, and thus you should have different license key

for each map region. E.g. the map codes for BeNeLux, Germany and Taiwan could be

BeNeLux@2011H2, Germany@2011H2 and Taiwan@2011H2, respectively.

If the software you have is not equipped with legal map licenses, the security warning

pages will pop up to remind you of finishing the process to have legal licenses at the

beginning of running Polnav.

2.1.1 Map code

As explained above, the license key is encrypted by the combination of the device ID

and the map code. To know your map code, enter Main Menu, choose Info ->Map.

As shown above, each entry has an icon, indicating if the corresponding map is legal or

not, a map code and the date code. As an example, the first two illustrates the region

Australia has a map code Australia@2009H2 and the region Austria/Switzerland has a

map code AustriaSwitzerland @2011H2.

3

2.1.2 Registration

The software may not run with full functionalities and successfully if the map data is not

with legal license.

The license key is calculated based on map code and device ID. If you have not a legal

license of map data, you will be warned by the message “Unregistered map(s) found!”

at the moment you run the software as below. Press OK to check the illegal map data

you use, where a forbidden icon are shown below.

To get a license key, you need to send the Device ID and the map code to the original

distributor to request a legal license key to that map data once you have paid for it.

It would be strongly recommended to register your personal information to the server of

the original distributor once you have the license key in case you need to retrieve the

map data due to the SD card corrupted.

After having the license key for that map region, simply save the *.key file under

\Polnav\Map folder finish the activation process.

4

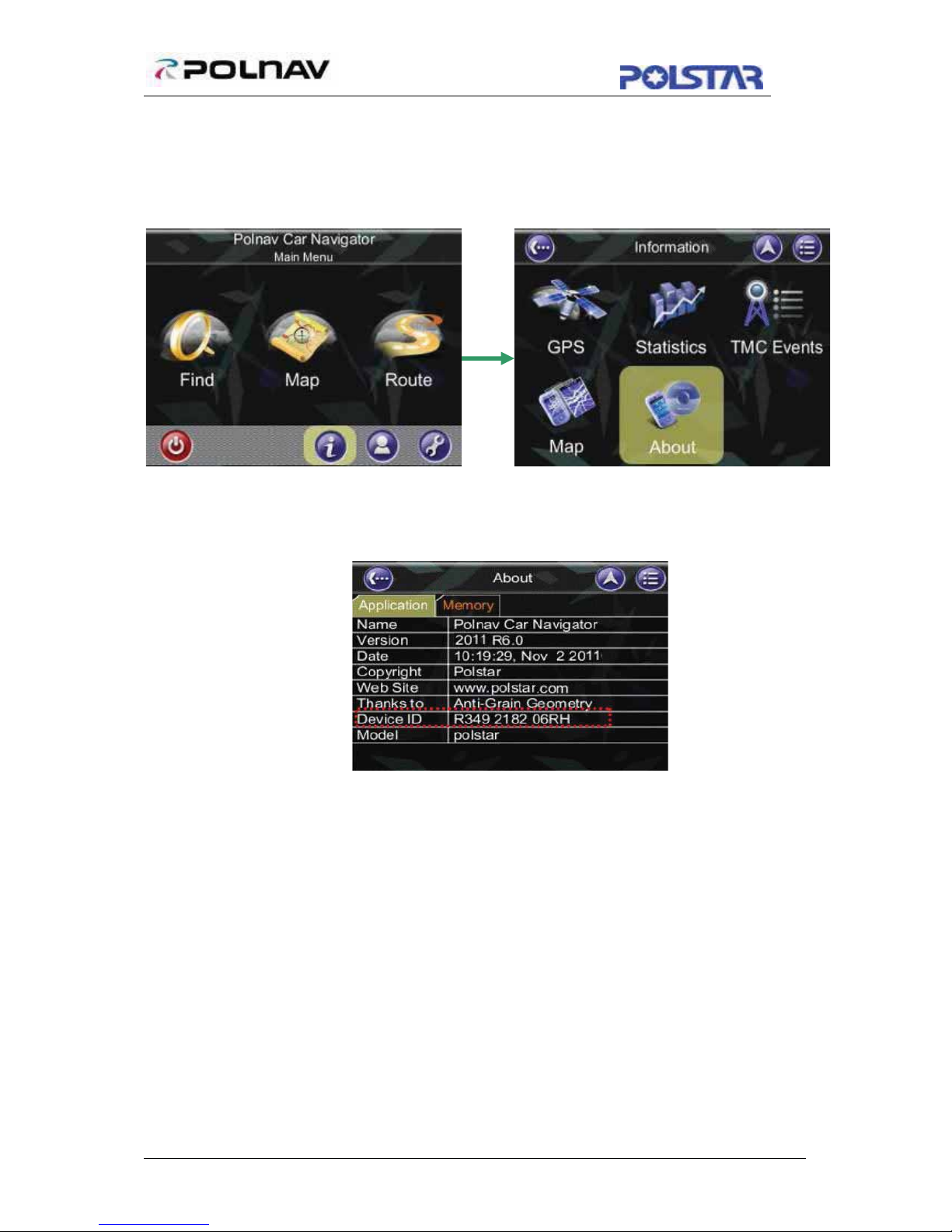

2.1.3 Device ID

To know your Device ID, entering Main Menu ->Info ->About

5

2.2 Hardware Configuration (PC/PDA Only)

After installing Polnav on your PC/PDA, please ensure your GPS hardware has been

correctly setup. For instructions on GPS hardware setup, please refer to your GPS

hardware manual. You will only need to do this once. Once the GPS hardware has been

setup, please take note of the Port Settings for your GPS. You will need this to

configure the settings in Polnav.

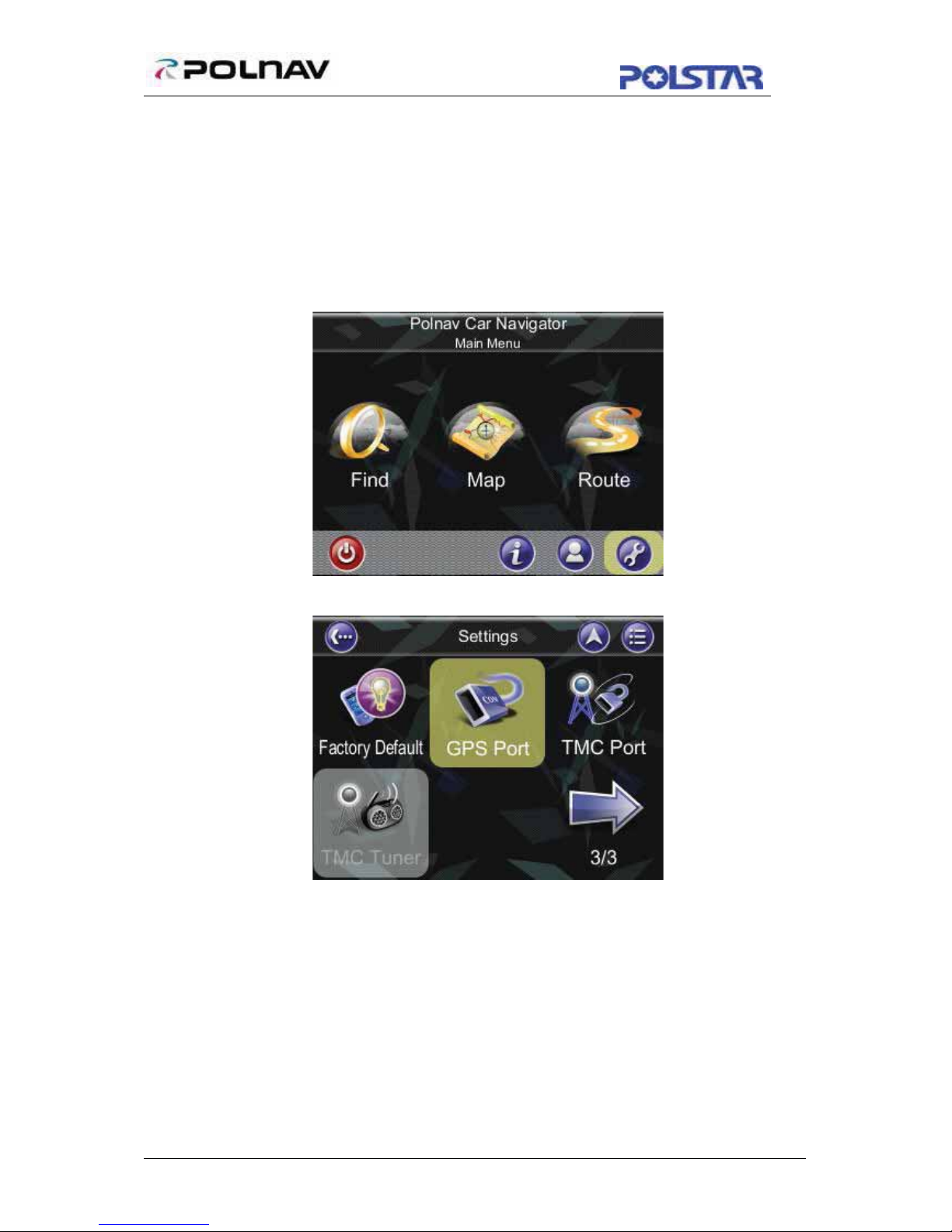

Press the Settings in the Main Menu and then press GPS Port. Now change the COM

Port and Baud Rate to the given values.

6

3. Getting Started With GPS Navigation and Polnav

This tutorial will get you started on using Polnav for navigation. Before you start, you

should ensure that the software has been installed and the necessary hardware

configured. Instructions for installation and configuration can be found in the Hardware

Configuration Section of this manual.

Step 1

Start Polnav and wait for your GPS receiver to obtain a position fix.

Press the center area on the touch screen to obtain the Main Menu, and press the Find

Button in the Menu.

If you do not have a GPS fix, or want to simulate a route, select a starting location

first using this tutorial up to Step 5, then select a destination using this tutorial a

second time.

Step 2

Press the Address Button in the Find Menu, Press the Region Name Tab to Select /

switch the country.

7

Step 3

Enter City/Postcode on the onscreen keyboard.

8

Step 4

Then enter the Street info and House Number info.

9

Location Menu

then press the Go To Button in the Location Menu to begin navigation. Polnav will

calculate a route to the destination from your current location.

10

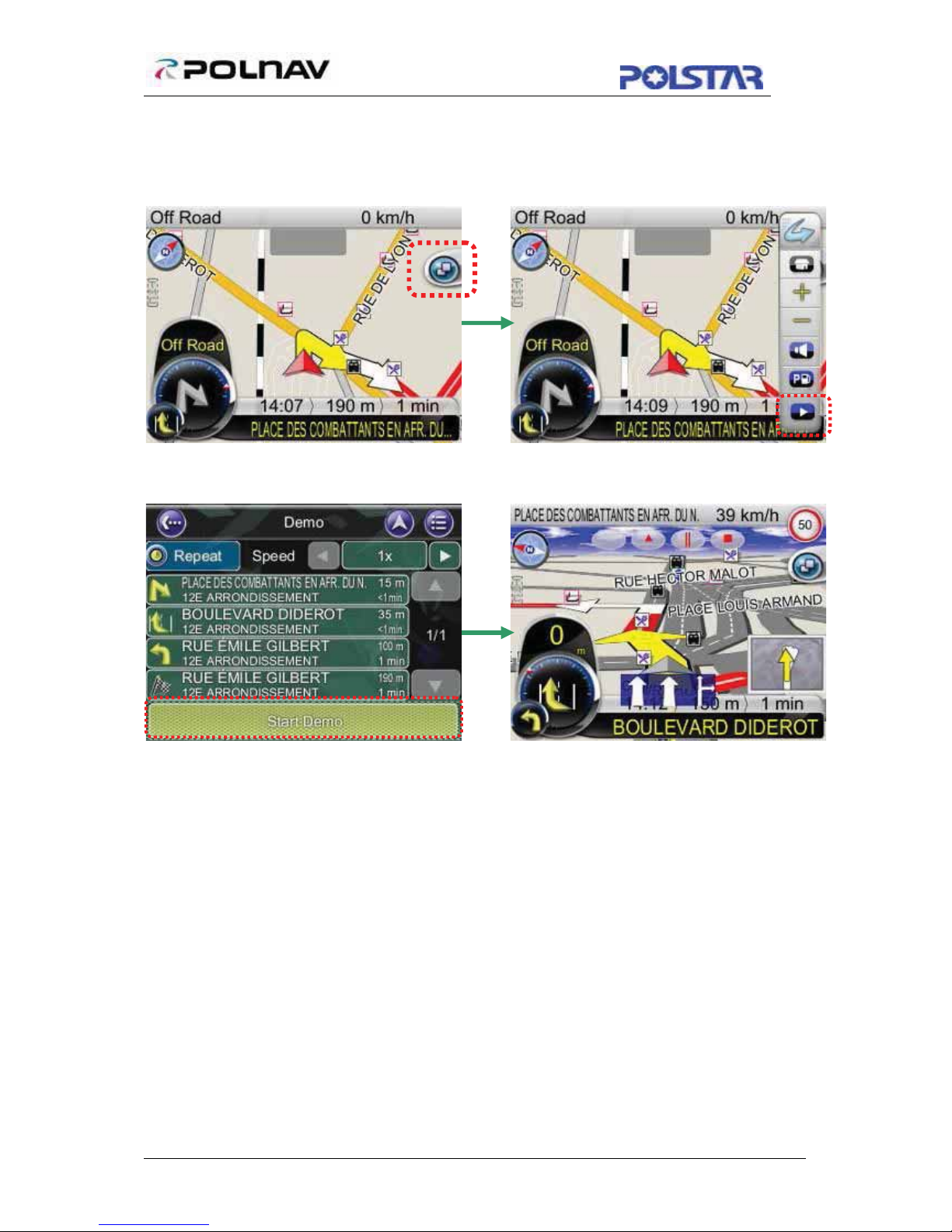

After calculating the route, you could also see the simulation of the route by clicking on

the sub menu icon of the map on the top right side.
