Instruction Manual and Installation Instruction

Washer-Dryer

WVD28360SG, WVD28365SG

Your new washer-dryer

You have chosen a Bosch washer dryer.

Please take a few minutes to read and become familiar

with the advantages of your washer dryer.

To meet the high quality demands required by Bosch,

every washer dryer that leaves our factory is carefully

checked to ensure that it functions correctly and is in

perfect condition.

For more information on our products, accessories,

replacement parts and services, see our website

www.bosch-home.comor contact our after-sales service

centres.

If the operating and installation instructions describe

different models, any differences will be pointed out at the

relevant points in the text.

Read these operating and installation instructions before

switching on the washer dryer.

Contents

Operation instructions

General safety information ......................................................... 4

Environmental protection/economy tips................................... 6

Your new washer-dryer ................................................................ 7

Before washing for the first time ................................................ 9

Preparing and sorting the laundry ...........................................10

Detergents and Care Products.................................................12

Programmes.................................................................................14

Washing and drying options .................................................16

Washing and drying ..................................................................18

Cleaning and care ......................................................................20

What to do if... ............................................................................22

After-sales service ......................................................................25

Installation instructions

Installation instructions ..............................................................26

Appendix

Table of programmes.................................................................30

Consumption rates......................................................................31

General safety information

Intended use

– For private domestic use only.

– The washer dryer is suitable for machine washable textiles and hand

washable wool and for drying certain types of textiles according to care

instructions.

– The appliance is suitable for operation with cold mains water and

commercially available detergents and care products which are

suitable for use in a washer dryer.

– Always follow the manufacturer's instructions when dosing

all detergents, cleaning aids, cleaning products and cleaning agents.

– The washer dryer may be operated by children from 8 years of age, by

persons who have limited physical, sensory or mental abilities and by

persons who have inadequate experience or knowledge, provided

they are supervised or have been instructed by a responsible

person.Children must not perform any cleaning or maintenance work

without supervision.

– Keep children under the age of 3 years away from the washer dryer.

– Keep pets away from the washer dryer.

– Install and operate the washer dryer in a room which has an outflow.

This washer-dryer complies with the relevant safety regulations.

Electrical safety Warning

Danger of death!

Danger of death if live parts are touched.

– When disconnecting the mains plug, always pull the plug

itself and not the cable, otherwise the cable could be

damaged.

– Never touch or hold the mains plug with wet hands.

Risk of injury

Warning

Risk of injury!

– If the washer dryer is lifted using projecting parts (e.g. the

washer dryer door), these components may break off and

cause injuries.

– Do not lift the washer dryer by its projecting parts.

– If you climb onto the washer dryer, the worktop may break and

cause injuries.

– Do not climb onto the washer dryer.

– If you lean/support yourself on the open door, the washer

dryer may overturn and cause injuries.

– Do not lean on the open washer dryer door.

– If you reach into the rotating drum, you may injure your hands.

– Do not grip the rotating drum. Wait until the drum stops

rotating.

Warning

Risk of scalding!

– When washing at high temperatures, you may be scalded

if you touch the hot washing water (e.g. if draining hot

washing water into a washbasin).

– Do not touch the hot washing water.

– If a drying programme was interrupted, the washer dryer

and laundry may be very hot. Select Intensive Dry Ùor

Low Heat Dry ^and select 15 min drying time to cool

down the washing and then remove.

Safety for children Warning

Danger of death!

If children play with the washer dryer, they may get into life-

threatening situations or injure themselves.

– Do not leave children unattended near the washer dryer.

– Do not let children play with the washer dryer.

Warning

Danger of death!

Children may lock themselves in appliances, putting their

lives at risk.

For appliances that have reached the end of their service

life:

– Disconnect the mains plug.

– Cut through the mains cable and remove it, along with plug.

– Destroy the lock on the washer dryer door.

Warning

Risk of choking!

Children may become wrapped in packaging/film or packing

parts if allowed to play with them, or they may pull them over

their heads and suffocate.

Keep packaging, film and packaging parts out of the reach

of children.

Warning

Risk of poisoning!

Detergents and care products may be poisonous if

consumed.

Keep detergents and care products out of the reach of

children.

Warning

Eye / skin irritation!

Detergents and care products may cause irritation if they

come into contact with the eyes or skin.

Keep detergents and care products out of the reach of

children.

Warning

Risk of injury!

When you wash/dry at high temperatures, the glass in the

washer dryer door gets hot.

Do not let children touch the hot washer dryer door.

Environmental protection/economy

tips

– Separate out the various waste materials of the packaging and take

them to the nearest collection point.

– Always fill the appliance with a maximum amount of laundry for the

relevant programme.

– Wash normally soiled laundry without a prewash.

– Instead of Cottons i(Cottons/Coloureds) 90 °C, select the Cottons

Eco 0y60 °C programme –> page14.

This gives comparable results, but uses less energy.

– Measure the detergent according to the manufacturer's instructions

and in line with the local water hardness.

– If the laundry is subsequently dried in a tumble drier, select the spin

speed according to the tumble drier manufacturer's instructions.

WEEE

)

This appliance is labelled in accordance with European Directive 2012/

19/EU concerning used electrical and electronic appliances (waste

electrical and electronic equipment - WEEE). The guideline determines

the framework for the return and recycling of used appliances as

applicable throughout the EU.

Your new washer-dryer

Description of the

washer dryer

The washer-dryer can be used

in 3 ways –> page18:

– washing only

– drying only

– successive washing and drying.

The successive wash-dry programme shifts automatically from the wash

cycle to the dry cycle without further intervention.

Drying is achieved using the condensation principle. The condensate that

is produced during drying runs via the drain hose and into the drainage

reservoir.

Caution: the water supply hose and water drain hose must be correctly

connected during washing and drying –> page29. The tap must be open.

A safety device prevents the door from being opened during operation.

Before opening

Make sure that there is no water in the drum and that the drum is not

moving.

Emergency release

In the event of a power cut, the door can be released mechanically

–> page24.

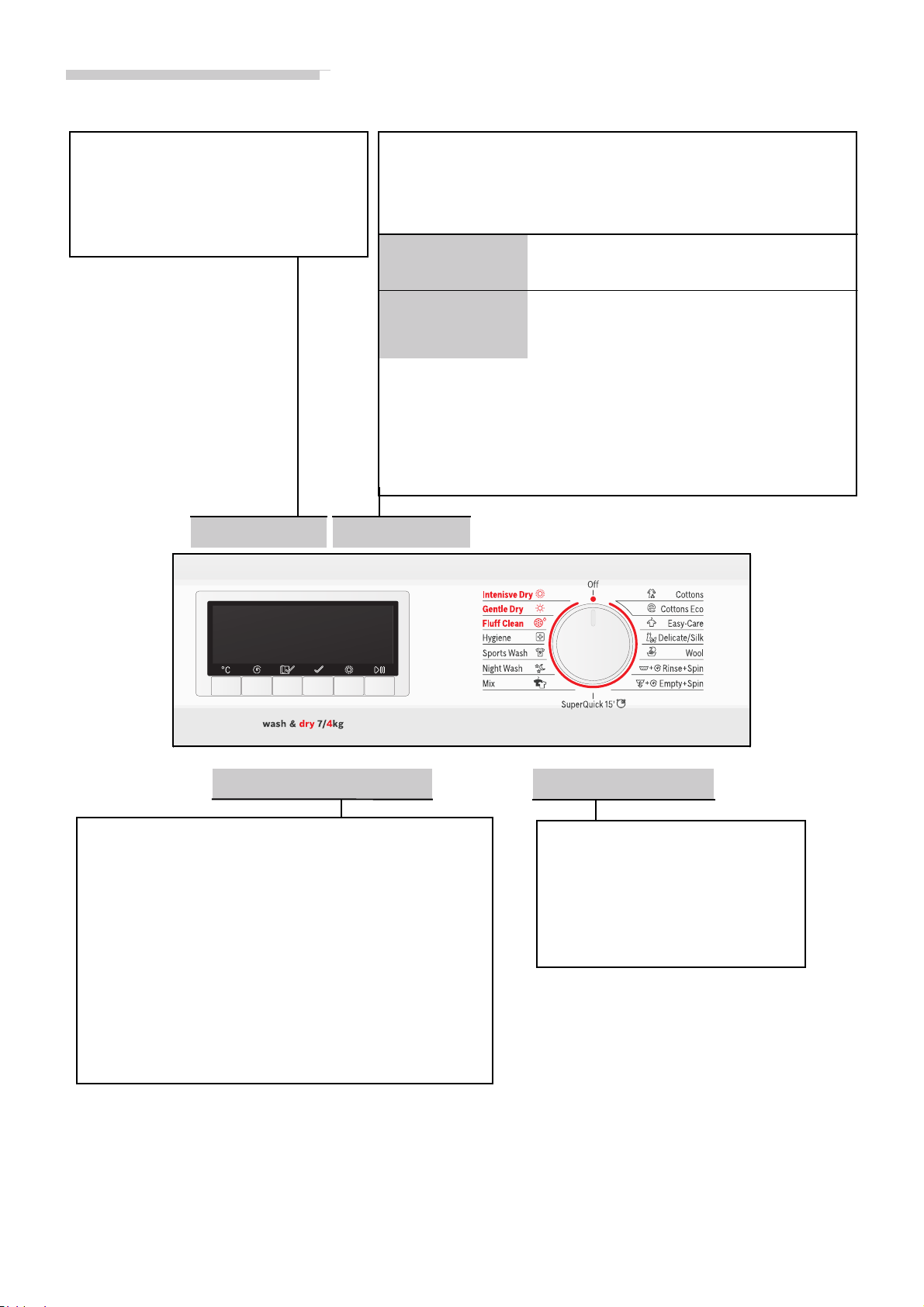

Door

Control panel

Indicator lamp

Indicate the settings that have been

selected for:

– Temperature: Ž - 90 °C.

– Spin speed: $ - 1400 rpm.

– Options.

Display panel

Shows the settings that have been selected (e.g. spin speed,

drying time), the progress of the current programme and the

programme status.

Programme progress

T NO 0 5

Pre-wash, Main wash, Rinse, Final spin,

Drying.

Auxiliary displays

0 A D

ãâ ä

Remaining time, Programme start,

Childproof lock, Fluff-removal cycle, Flexi

time, recommended load

Indicator lamp Display panel

Washing and drying options –> page16

–Temperature °C: individual adjustment of the washing

temperature.

–Spin speed 0:individual adjustment of the spin

speed.

–Option button: sets washing options.

–Set button: activation/deactivation of the selected

washing options.

–Drying 5:sets the drying options

Start/Pause A:

Starts and stops the washing programme –> page17.

Buttons

Programme selector –> page14

For switching the washer-dryer on

and off and for selecting the

programme. Can be turned in both

directions. Do not adjust the

programme selector while washing/

drying is in progress.

Programme selector

Before washing for the first time

The washer-dryer was tested before leaving the factory.

To remove any water that may be left over from the test, you should not

load any laundry the first time that you run a wash programme.

Make sure that the transport safety bolts on the rear of the washer-

dryer have been removed –> page27.

Do not load any laundry.

Close the door.

Turn on the tap.

Pull out the detergent drawer.

Add ½ a measuring cup of detergent to compartment II –> page12.

Do not use detergents for wool or delicates (these cause foam to be

created).

Close the detergent drawer.

Turn the programme selector to the 60°C programme.

Press the A (Start/Pause) button.

At the end of the programme, turn the programme selector to Off.

Open the door.

Leave the door open to allow the inside of the washer-dryer to dry out.

Preparing and sorting the laundry

Sorting laundry for

washing

– Wash white laundry separately from coloureds.

– Unhemmed or torn items should not be washed in the machine, as they

may fray.

– The laundry may be damaged if you do not observe the fabric care

symbols.

Only wash laundry with the following care labels:

Do not wash laundry with the care symbol in the washer-dryer

Sorting laundry for

drying

Only dry laundry that is labelled "suitable for tumble-drying" or which

has the following care symbols:

Do not wash the following fabrics in the washer-dryer:

– Do not machine dry laundry with the b care symbol.

– Airtight fabrics (e.g. rubber-coated fabrics).

– Delicate materials (silk, curtains made from synthetic fabrics) -

they may crease.

– Dripping-wet laundry - high energy consumption

– Wool or fabrics containing wool.

Preparing laundry for

washing

Loose foreign bodies (e.g. coins, paper-clips, needles, nails) may damage

the laundry and components of the washer-dryer (e.g. the drum).

Empty the pockets of all items.

Brush any sand out of pockets and collars.

Pretreat any stains.

Close zips, do up cover buttons.

Remove curtain fittings or place curtains in a laundry bag.

Wash the following in a laundry bag/pillowcase:

– Delicates, e.g. tights, curtains,

– Small items, e.g. socks or handkerchieves,

– Underwired bras (the underwiring may come loose during the

washing process and cause damage).

Turn trousers, knitwear and jersey fabrics, e.g. hosiery, T-shirts or

sweatshirts, inside out.

Sorting laundry according

to the information on the

care labels

Care label Type of laundry

<; Cottons 90 °C.

:98 Coloureds 60 °C, 40 °C, 30 °C.

BA> Easy-care 60 °C, 40 °C, 30 °C.

:FAE> Hand- and machine-washable silk, 40 °C, 30 °C,

cold.

Sorting laundry according

to the information on the

care labels Care label Type of laundry

aDry at normal temperature

`Dry at low temperature (delicate drying)

This manual suits for next models

Table of contents

Other Bosch Washer Dryer manuals

Bosch

Bosch WVH28360GB User manual

Bosch

Bosch WVH28540EP User manual

Bosch

Bosch WDU8H541SN Specification sheet

Bosch

Bosch WVH28422GB Specification sheet

Bosch

Bosch XQG100-WDU286H1AW User manual

Bosch

Bosch WVH28421GB User manual

Bosch

Bosch WVG30441 Specification sheet

Bosch

Bosch WVH28420GB Installation and operating instructions

Bosch

Bosch WNA254U1AU Specification sheet

Bosch

Bosch WVH28470EP Specification sheet

Bosch

Bosch WNA254U0SG Specification sheet

Bosch

Bosch WVG30460IR Specification sheet

Bosch

Bosch WVG30461GB Specification sheet

Bosch

Bosch WVH28424GB Specification sheet

Bosch

Bosch WDU8H549GB User manual

Bosch

Bosch WNA14400AU User manual

Bosch

Bosch WNA254XSKE User manual

Bosch

Bosch Nexxt Premium WFMC6400UC User manual

Bosch

Bosch LOGIXX Specification sheet

Bosch

Bosch WVG GB Series Specification sheet

Bosch

Bosch WKD28350GB Installation Instructions, Instructions for Use, Programme... Setup guide

Bosch

Bosch WNA13401ES User manual

Bosch

Bosch WVT1260SA Maxx 5 Product guide

Bosch

Bosch WVT 1260 Product guide

Popular Washer Dryer manuals by other brands

Whirlpool

Whirlpool WFC8090GX Use and care guide and installation instructions

Whirlpool

Whirlpool LTE5243DQ6 User instructions

montpellier

montpellier MWD7512S Installation and operating instructions

LG FHD0905 T Series owner's manual

Midea

Midea MF200D85B owner's manual

Maytag

Maytag MGT3800XW installation instructions

Siemens

Siemens WD15G440TR Instruction manual and installation instructions

Equator

Equator Clothes Processor EZ1500 owner's manual

Splendide

Splendide WDC7100XCP Specifications

John Lewis

John Lewis JLWD 1408 instruction manual

Ariston

Ariston A1200WD Instruction booklet

Whirlpool

Whirlpool YLTE5243DQ5 installation instructions

Whirlpool

Whirlpool WFCR 75230 Health & safety, use & care and installation guide

ATT

ATT Hammer Jet v1 operating manual

AEG

AEG LAVAMAT 63742 VI Instruction booklet

Electrolux

Electrolux EWW8024P5WB user manual

GE GTD42EASJWH owner's manual

LG F2721HVRB owner's manual
