Bosch VIP XD User manual

VIP XD – Network video server

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide

EN | 2

These instructions "Quick Installation Guide" refer to the unit VIP XD, both in basic and in audio

version. The title shows the basic version of the VIP XD. In the drawings the VIP XD in audio ver-

sion is displayed standing for both versions.

Attention

You should always make yourself familiar with the required safety measures in the cor-

responding chapter of the user's manual (see CD-ROM supplied). You will find more

important details on the installation and on the operation of the unit in the manual.

These instructions "Quick Installation Guide" only show the basic installation of a

VIP XD, but they are no substitute for the complete user's manual.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide EN | 3

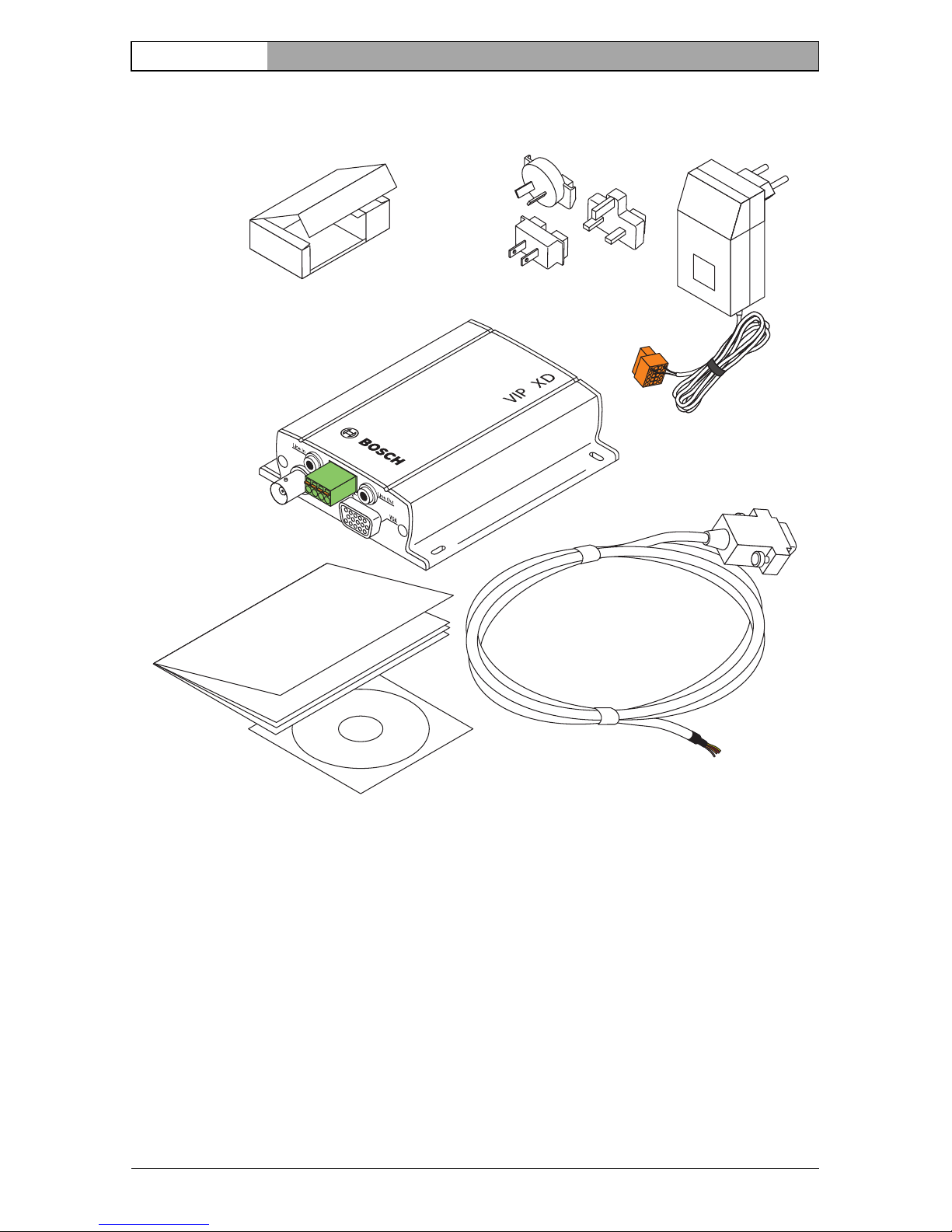

Contents of Delivery

• VIP XD Network Video Server, basic version or audio version

• Power outlet with four primary adapters

• Configuration cable

•CD-ROM

• Quick Installation Guide

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide

EN | 4

1. Unpack the Box

• Please check the delivery for completeness and integrity.

• Have your unit checked by Bosch Security Systems if you detect any damages!

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide EN | 5

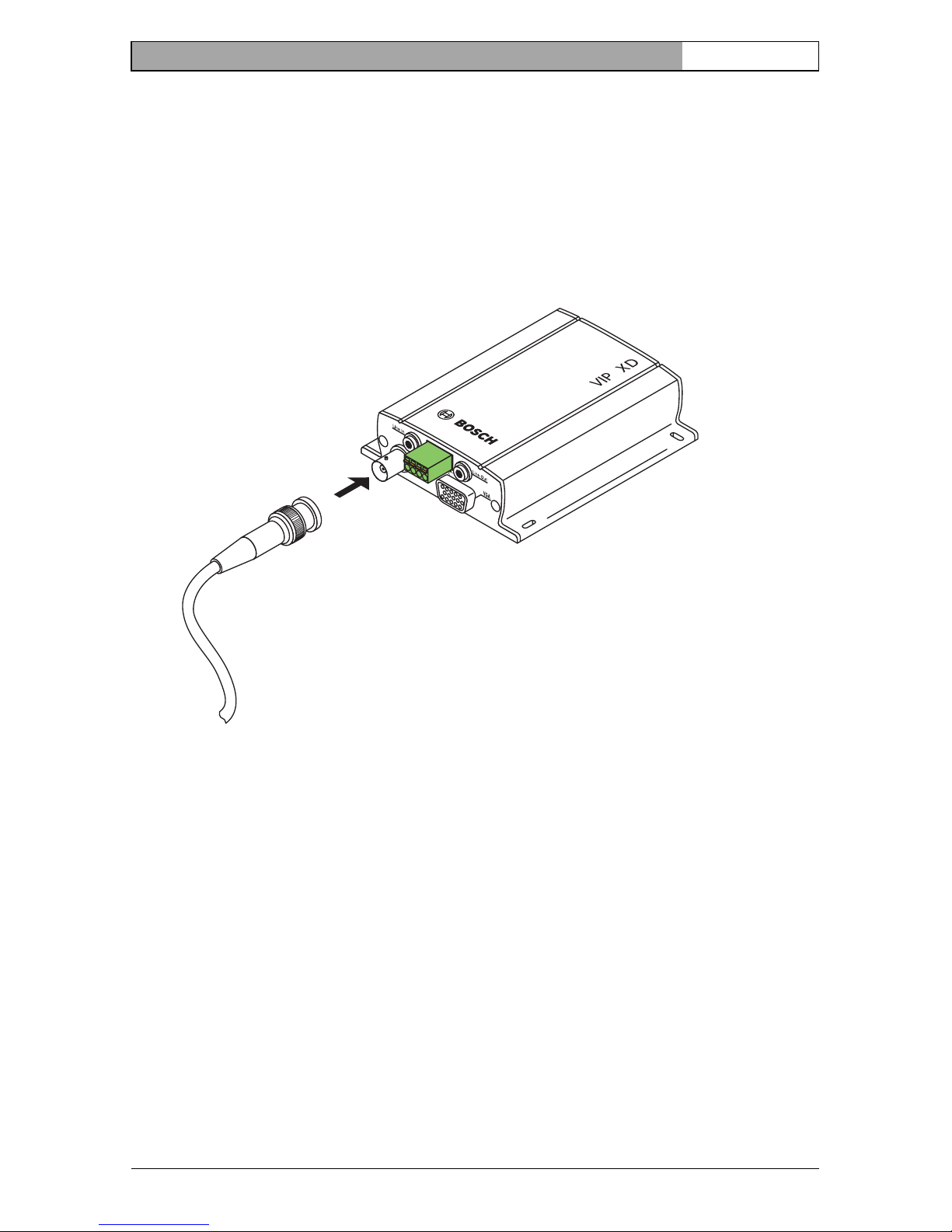

2. Connect the Monitor

• Connect an analog monitor with the Video Out socket or a VGA monitor with the VGA socket.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide

EN | 6

3. Connect the Audio Components (Audio Versions Only)

• Use the jack sockets for audio line connections.

• Connect the microphone and the speaker connection to the corresponding terminals.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide EN | 7

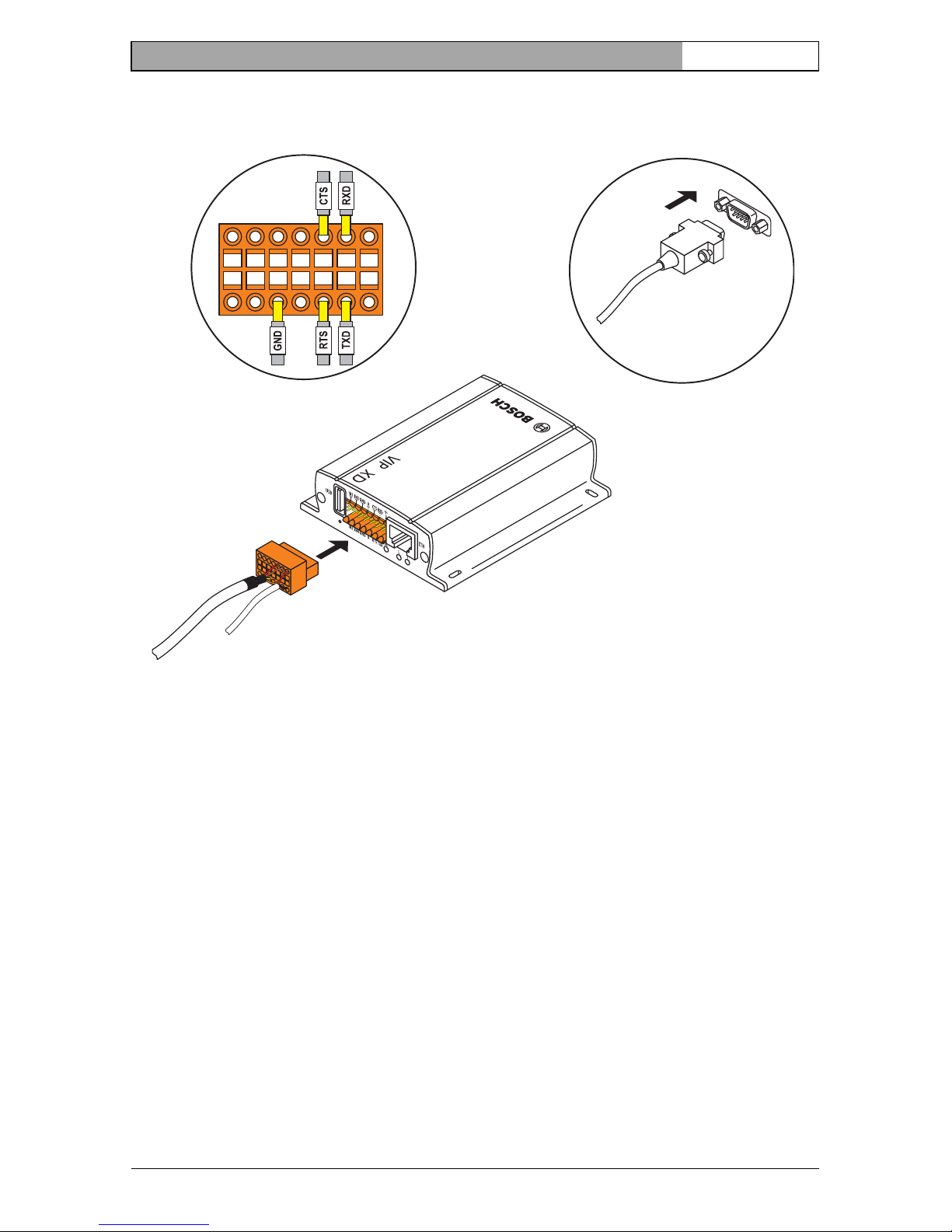

4. Connect the Serial Connector

• If you need a serial connection to the unit connect the free leads of the configuration cable to the

spring clamp connector that is already connected to the power outlet.

• Connect the spring clamp connector to the orange socket of the unit.

• Connect the configuration cable with a serial interface of the computer.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide

EN | 8

5. Connect the Alarm Switches and the Relay Connections

• Connect the alarm switches to the corresponding terminals.

• Connect the relay connections to the corresponding terminals.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide EN | 9

6. Connect to the Network

• Connect the unit to the network via th ETH socket.

• Make sure that the power outlet is provided with the correct primary adapter and plug the power

outlet into a suitable mains outlet.

Bosch Security Systems | 2006-05 | V2.0

VIP XD | Quick Installation Guide

EN | 10

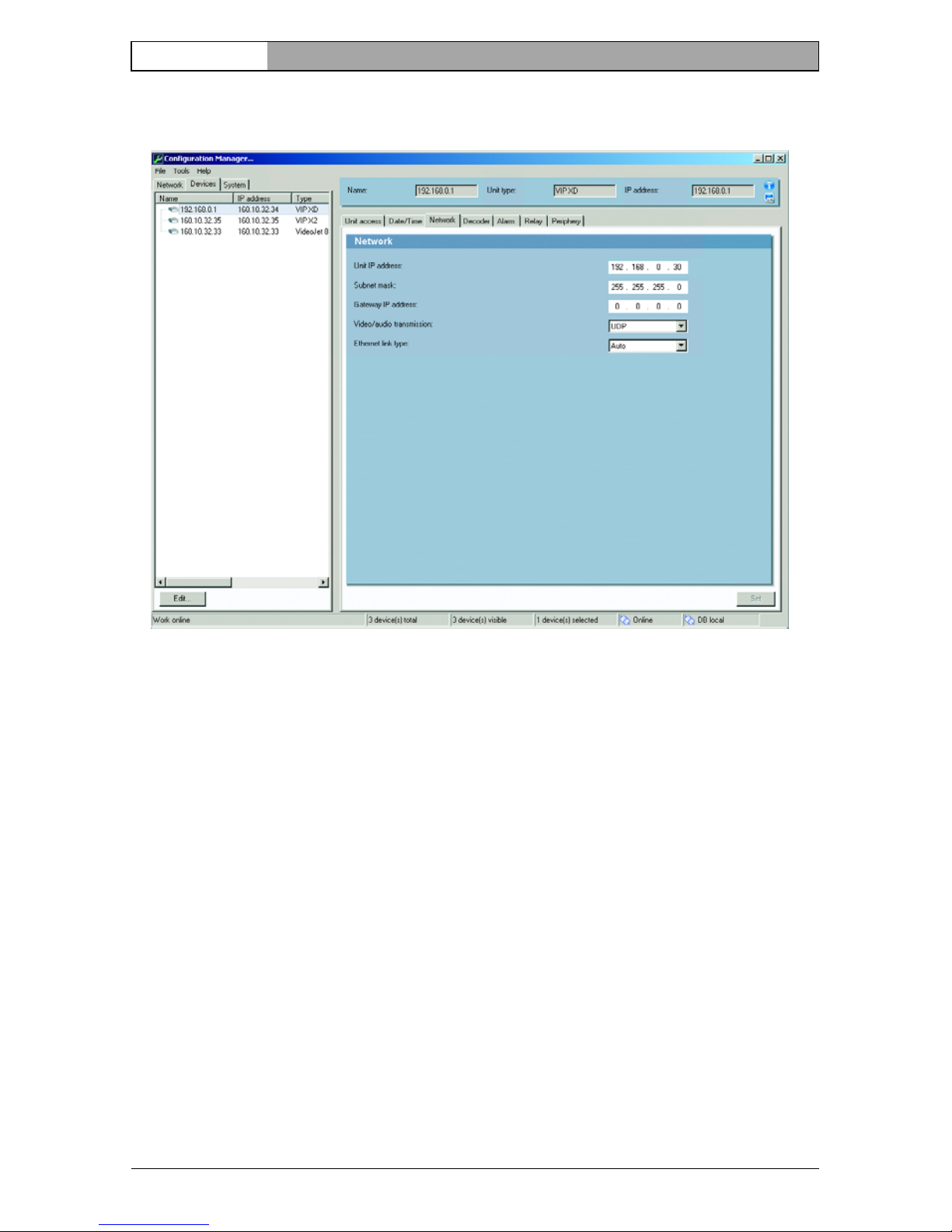

7. Configure the IP Address

• Install the program Configuration Manager from the CD-ROM provided. To do so start the

Setup.exe file in the …\Configuration Manager folder on the CD-ROM.

• Start the Configuration Manager when installation is completed. The network is scanned for

compatible devices automatically.

• When a VIP XD is listed, click the entry and click the tab Network, located in the right frame.

• Enter the desired IP address (e.g. 192.168.0.30) in the Unit IP address field and click the but-

ton Set at the bottom on the right. The new IP address is valid after a reboot of the unit.
