Bosch VideoJet X10/X20/X40 User manual

VideoJet X10/X20/X40

EN |2 Quick Installation Guide | VideoJet X10/X20/X40

Bosch Security Systems | 2006-12 | V2.5

These instructions "Quick Installation Guide" refer to the units VideoJet X10, VideoJet X20 and

VideoJet X40. The title shows a VideoJet X40. In the drawings the VideoJet X40 is displayed stan-

ding for all versions.

Attention

You should always make yourself familiar with the required safety measures in the cor-

responding chapter of the user's manual (see CD-ROM supplied). You will find more

important details on the installation and on the operation of the unit in the manual.

These instructions "Quick Installation Guide" only show the basic installation of a

VideoJet X10, VideoJet X20 or VideoJet X40, but they are no substitute for the com-

plete user's manual.

VideoJet X10/X20/X40 | Quick Installation Guide EN | 3

Bosch Security Systems | 2006-12 | V2.5

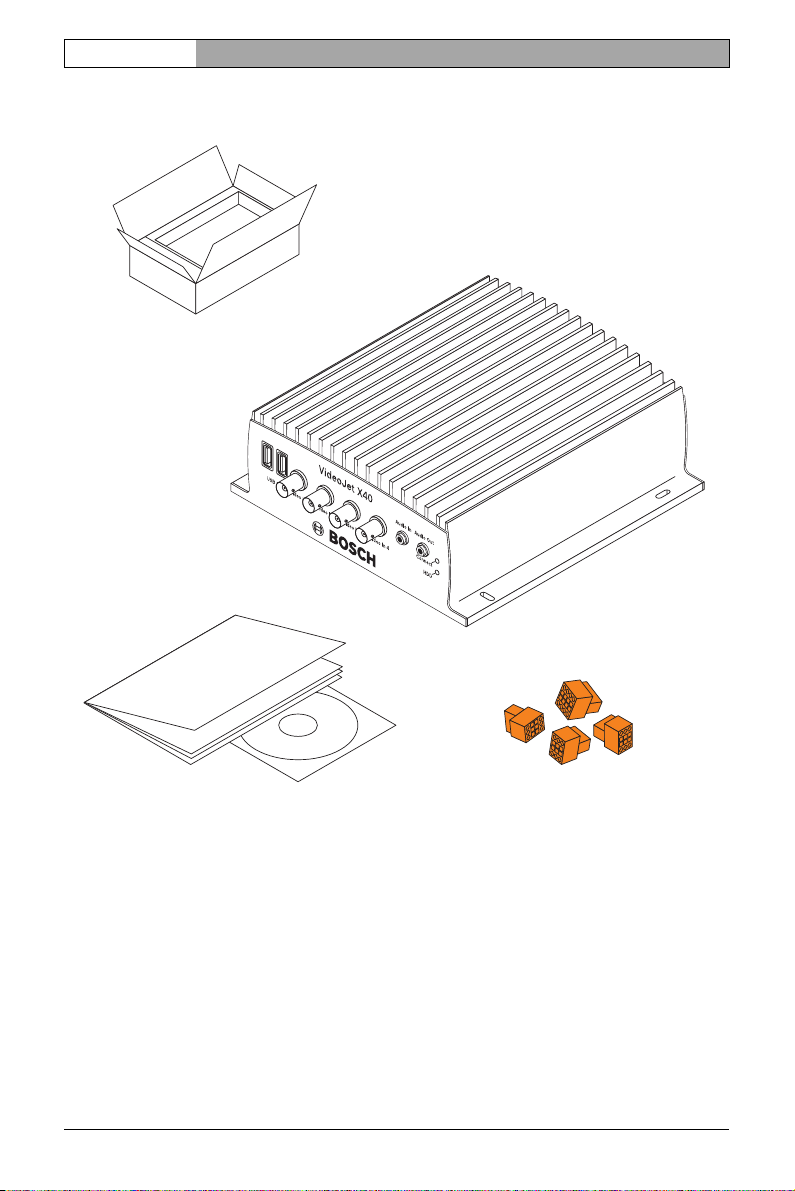

Contents of Delivery

• VideoJet X10, VideoJet X20 or VideoJet X40 Network Video Server

• Drilling template

•4springclamps

•ProductCD

• Quick Installation Guide

EN |4 Quick Installation Guide | VideoJet X10/X20/X40

Bosch Security Systems | 2006-12 | V2.5

1. Unpack the Box

• Please check the delivery for completeness and integrity.

• Have your unit checked by Bosch Security Systems if you detect any damages!

VideoJet X10/X20/X40 | Quick Installation Guide EN | 5

Bosch Security Systems | 2006-12 | V2.5

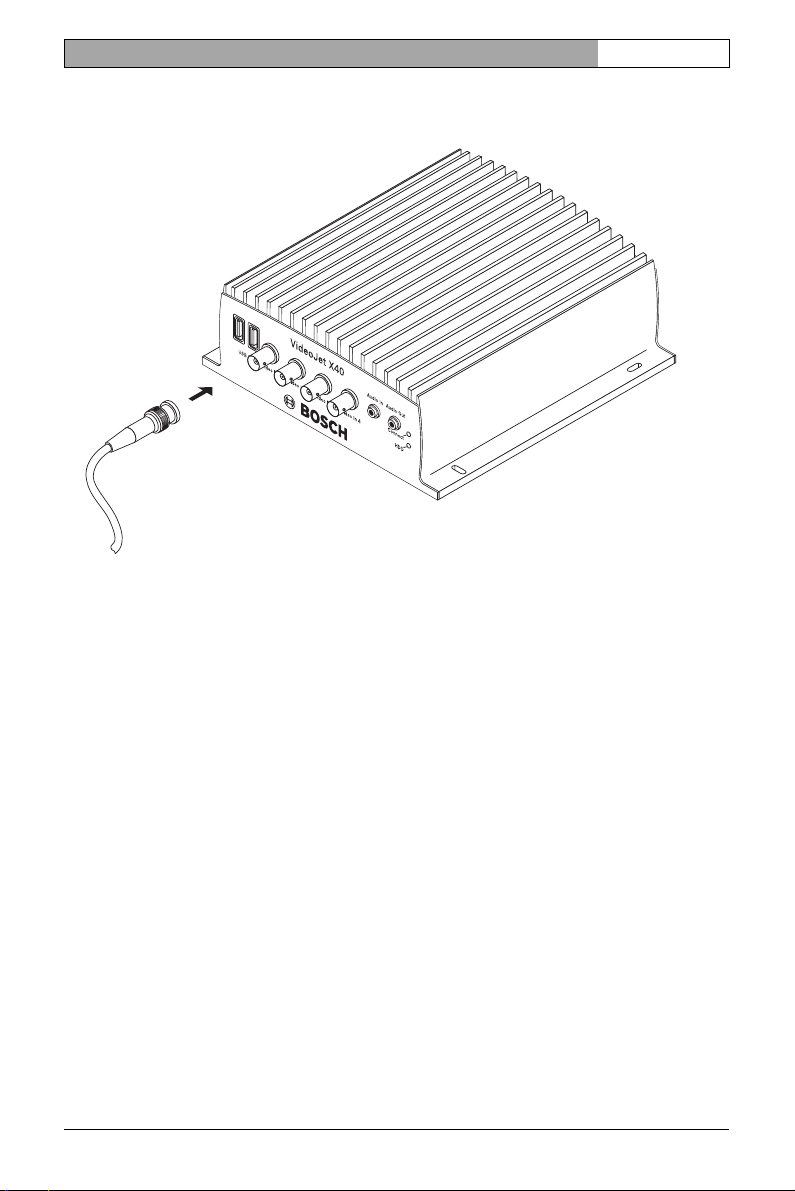

2. Connect the Camera(s)

•VideoJet X10: Connect the camera with the Video In socket.

•VideoJet X20: Connect one camera to each, the Video In 1 socket and the Video In 2 socket.

•VideoJet X40: Connect one camera to each, the Video In 1 socket to the Video In 4 socket.

EN |6 Quick Installation Guide | VideoJet X10/X20/X40

Bosch Security Systems | 2006-12 | V2.5

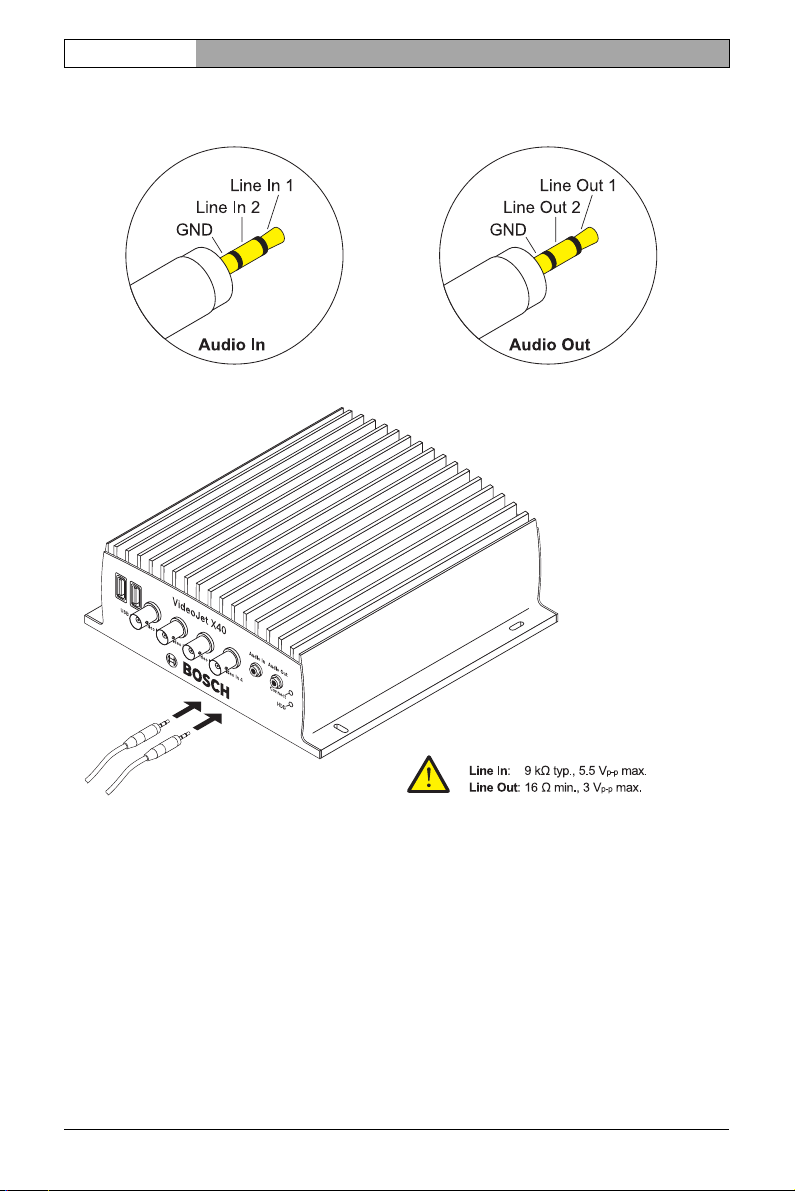

3. Connect the Audio Components

•UsetheAudio In and Audio Out jack sockets for audio line connections.

VideoJet X10/X20/X40 | Quick Installation Guide EN | 7

Bosch Security Systems | 2006-12 | V2.5

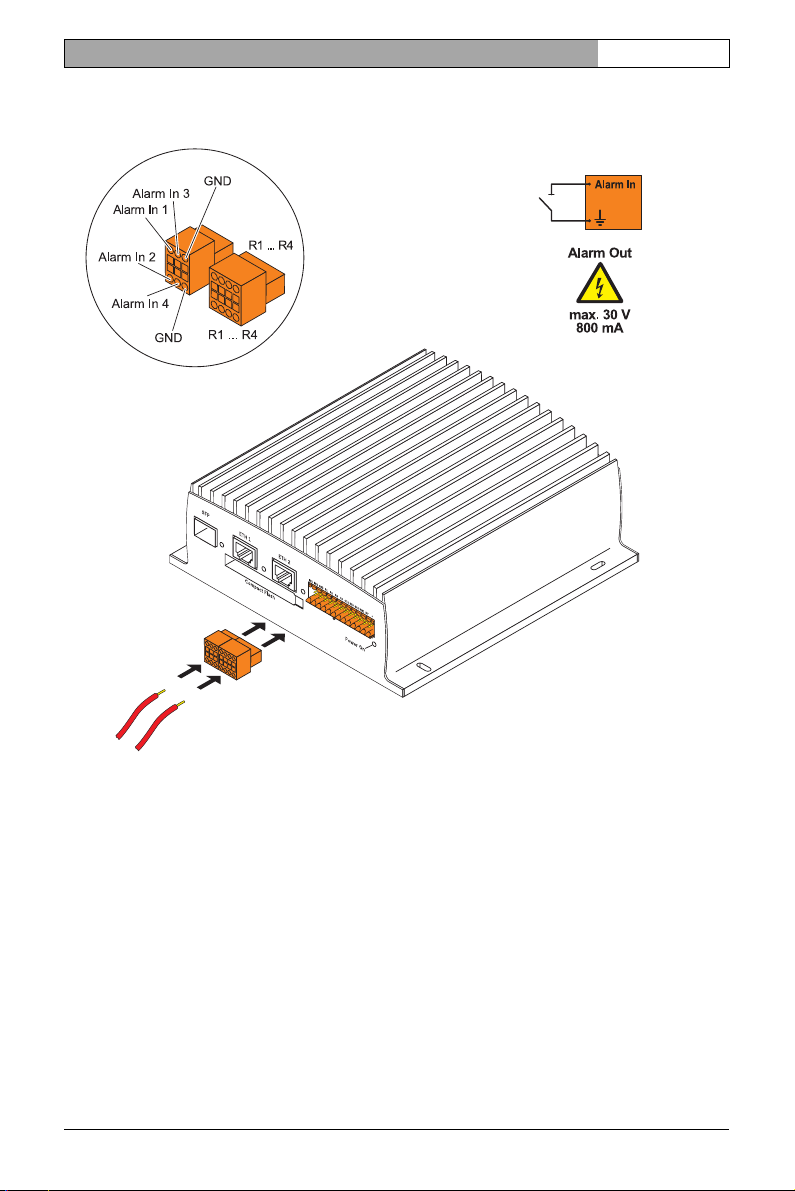

4. Connect the Alarm Switches and Relay Connections

• Connect the alarm switches to the corresponding terminals.

• Connect the relay connections to the corresponding terminals.

EN |8 Quick Installation Guide | VideoJet X10/X20/X40

Bosch Security Systems | 2006-12 | V2.5

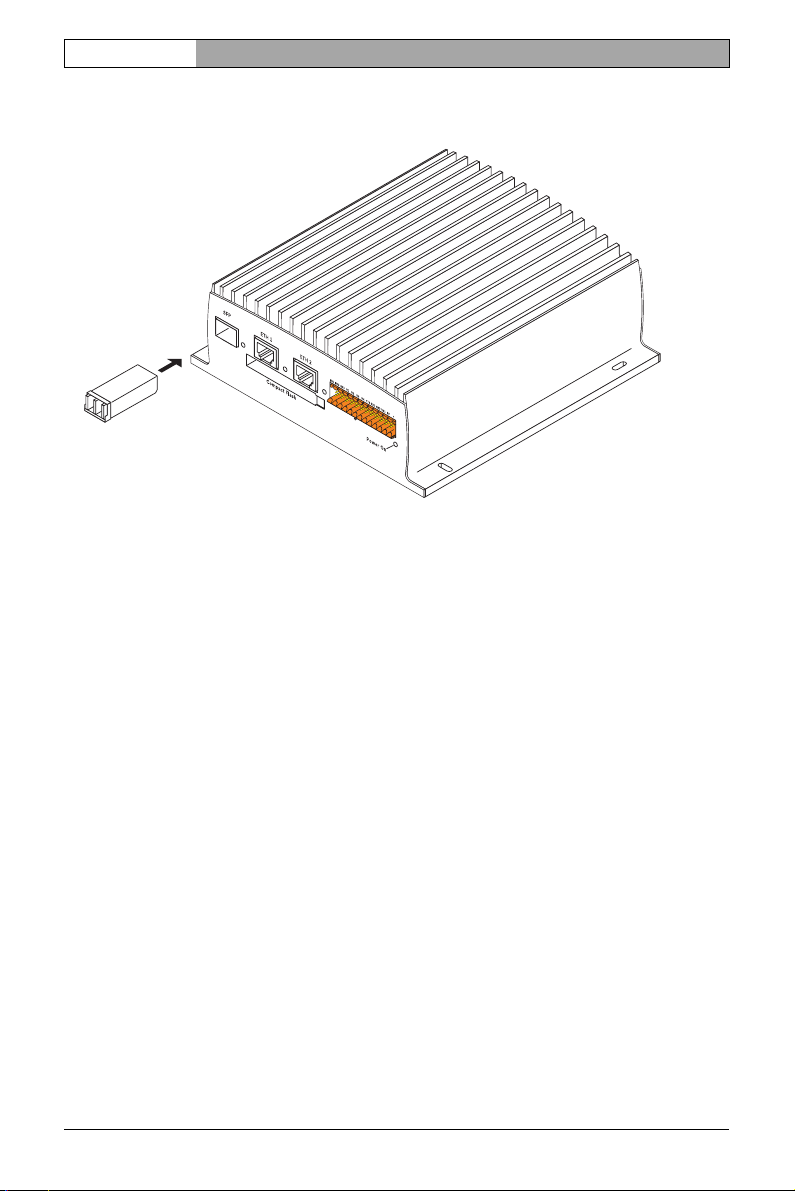

5. Insert the SFP Module

• If necessary, insert an SFP module into the SFP socket.

VideoJet X10/X20/X40 | Quick Installation Guide EN | 9

Bosch Security Systems | 2006-12 | V2.5

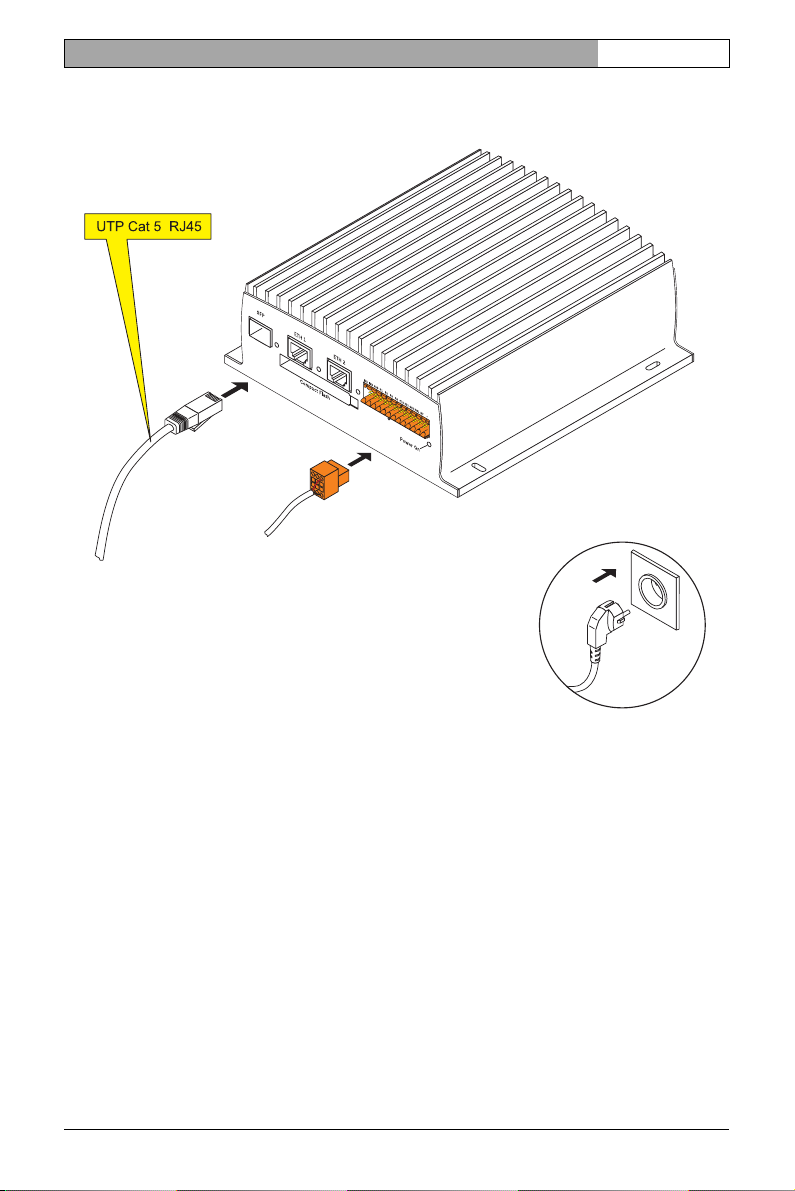

6. Connect to the Network and Power Supply

• Connect the unit to the network via the ETH 1 socket.

• If necessary, set up a redundant network connection or connect an iSCSI RAID system using the

ETH 2 socket.

• Connect the power supply lines to the +and –terminals.

• Connect the power supply unit to the power outlet.

Note: Power supply units are not included in delivery. You can order power supply units in diffe-

rent variations at Bosch Security Systems.

EN |10 Quick Installation Guide | VideoJet X10/X20/X40

Bosch Security Systems | 2006-12 | V2.5

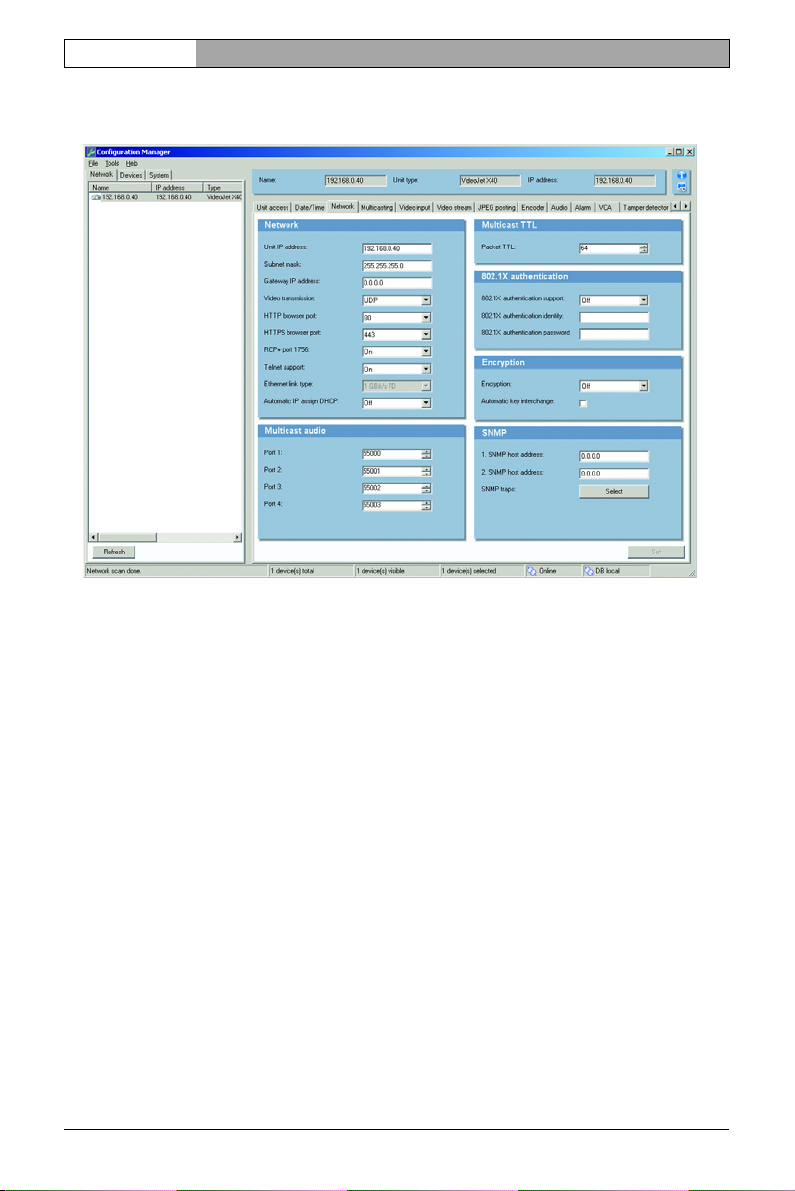

7. Configure the IP Address

• Install the program Configuration Manager from the CD-ROM provided. If the CD-ROM

does not start automatically doubleclick the index.htm file.

• Start the Configuration Manager when installation is completed. The network is scanned for

compatible devices automatically.

• When a VideoJet X is listed, click the entry and click the tab Network, located in the right frame.

• Enter the desired IP address (e.g. 192.168.0.40) in the Unit IP address field and click the but-

ton Set at the bottom on the right. The new IP address is valid after a reboot of the unit.
