Bosch MED17.5.2 User manual

info@chiptuningshop.co.uk

Manual for using MED17.5.2 Bosch ECU probe with AVD – Page 1.

1. Description: This probe can be used for programming VAG MED17.5. Bosch ECU`s. It fits in most BDM

positioning frames and is fitted with LED`s for accurate alignment on the ECU. The “Boot” resistors and the

ignition feed can be switched. With this adapter, there is no need to solder at all.

Adapter Overview

A = Serial port connection B = Power Switch ON/OFF

C = Power Jack D = DIP Switches for BOOT Resistors ON/OFF

E = Ignition selection switch:

ON/OFF/K-Line

Since the AVDI requires a permanent connection via a 510 Ohm resistor between the K-Line and 1 V, This switch

has no function in the AVDI version of this probe.

SET TO “K-Line” POS T ON AT ALL T MES

F = Connect to flash tool. G = Connect to serial port on probe (A)

Manual for using MED17.5.2 Bosch ECU probe with AVD – Page 2.

2. Handling and Adjustment: MPORTANT - Make sure that the power switch (B) is in the “OFF” position.

The power switch must remain OFF so that the pins are not live, until the probe is correctly aligned and in

contact with the corresponding pins on the ECU. Failure to follow these instructions could result in damage

to the ECU!

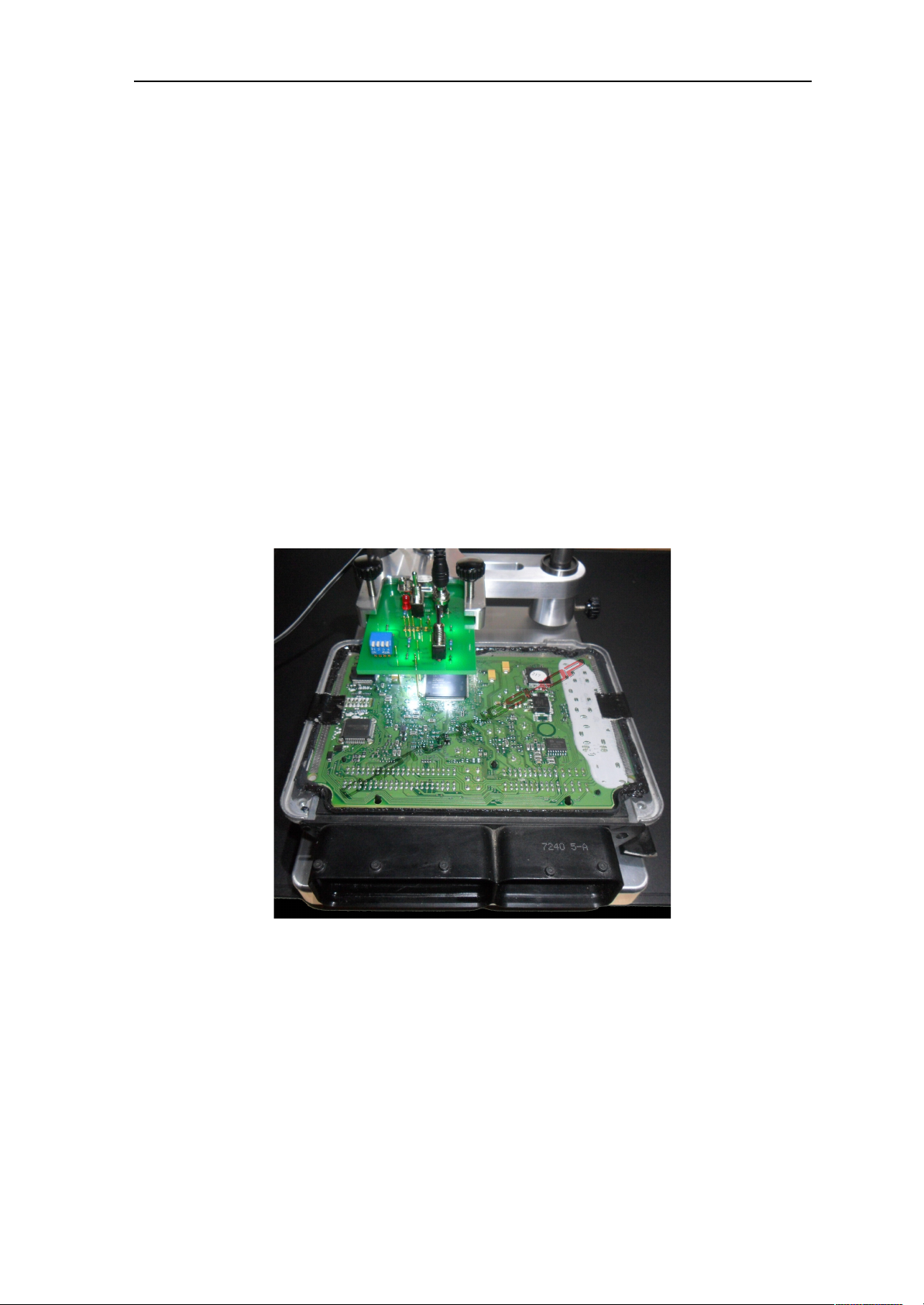

Place the probe into the BDM frame retaining bracket and tighten the screws. Attach the adapter cable (G) to

the serial port (A) on the probe and plug the other end (F) into the OBD cable of your flash tool. Connect the

power supply to the probe jack (C), the LED's will now turn on to aid alignment, however the probe does not

power the ECU until the power switch (B) is turned on.

Adjust the ECU on the frame and move the retainer carefully towards the ECU. Ensure that all the pins are in

their designated position.

A diagram showing the location of the connections can be found on page 3.

t is very important, that the retainer is free from backlash and moves smoothly!

3. Reading password: (This step is only necessary for TP8+). Lift up the Boot DIP switches (D) as shown in

the adapter overview on page 1 and set the Ignition switch (E) to the “ON” position, you can now read the

password.

4. Programming the ECU: Push the DIP switches (D) down and set the “Ignition” switch (E) to the “K-Line”

position, then you can proceed with programming over boot mode.

5. Disconnecting: To safely disconnect the probe from the ECU, you must first remove TURN OFF THE

POWER Switch (B). Once the power supply is disconnected it is safe to lift the frame and probe away from

the ECU.

Manual for using MED17.5.2 Bosch ECU probe with AVD – Page 3.

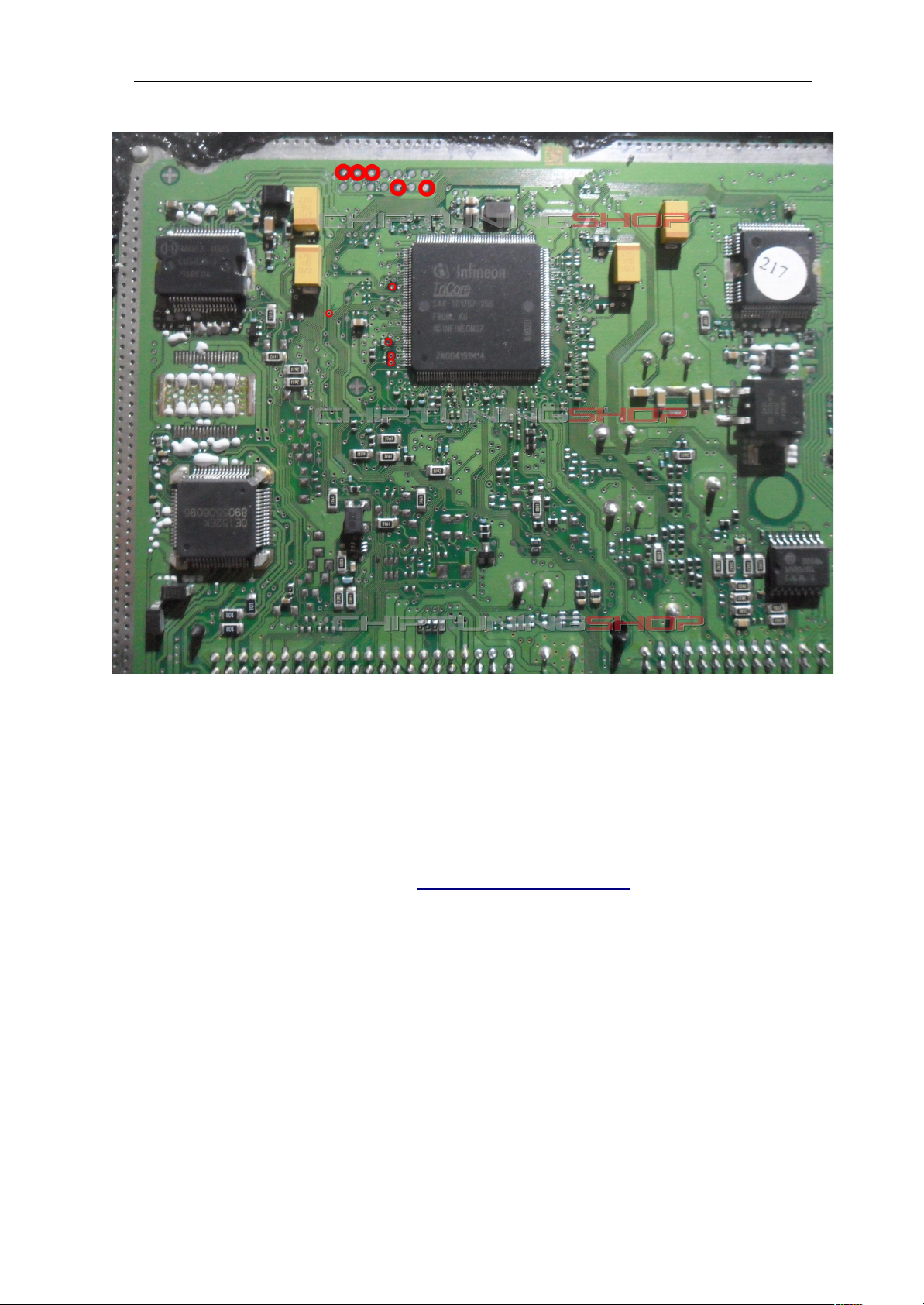

The pads marked in red have to make contact with the probe.

Technical alterations reserved!

This product should be operated by competent personnel only. Chiptuningshop Ltd do not accept any responsibility

for damages, direct or consequential caused by improper handling.
