Bodyworx E890 User manual

Elliptical -

Owner’s Manual

Model No: E890

Retain this owner’s manual for future reference

Read and follow all instructions in this owner’s manual

Version A

Dear Customers,

We want to thank you for having chosen an Elliptical Trainer and

wish you a lot of fun and success during training.

Please note and follow the enclosed safety and assembly

instructions carefully.

If you have questions please do not hesitate to contact us.

Table of Content as below:

1.) Safety Instruction

2.) Exploded Drawing

3.) Parts List

4.) Assembly Instruction

5.) Computer Instruction

SAFETY INSTRUCTION

Before you start training on your home Elliptical Trainer, please

read the instructions carefully. Be sure to keep the instructions for

information, in case of repair and for spare part delivery.

This elliptical trainer is made for home use only and tested up to

a maximum body weight of 125 kg.

Follow the steps of the assembly instructions carefully.

For assembly use only suitable tools and asks for assistance with

assembly if necessary.

Check before the first training and every 1-2 months that all

connecting elements are tight fitting and are in the correct

condition. Replace defective components immediately and/ or

keep the equipment out of use until repair. For repairs, use only

original parts.

In case of repair, please ask your dealer for advice.

Avoid the use of aggressive detergents when cleaning the home

exerciser.

Ensure that training starts only after correct assembly and

inspection of the item.

For all adjustable parts be aware of the maximum positions to

which they can be adjusted/tightened to.

The home exerciser is designed for adults. Please ensure that

children use it only under the supervision of an adult.

Ensure that those present are aware of possible hazards, e.g.

movable parts during training.

Consult your physician before staring with any exercise program.

He or she can advise on the kind of training and which impact is

suitable.

Please follow the advice for correct training as detailed in training

instructions.

The safety level of this equipment can be maintained only if it is

check regularly for all assembly procedure mentioned in the

assembly instruction sheet.

Please check regularly for the tightening knobs to notice any

irregular wear.

WARNING！

！！

！

INCORRECT/EXCESSIVE TRAINING CAN CAUSE HEALTH

INJURIES.

EXPLODED DRAWING

111

110

112

PART LIST

Part# Description Quantity

1 Computer 1

2 Screw for computer 4

3 Upper computer cable 1

4L Plastic cover L 1

4R Plastic cover R 1

5 Screw M5x12mm 7

6 Self-tapping screw M4x15mm 5

7 Upper handlebar foam 2

8L Upper handlebar L 1

8R Upper handlebar R 1

Allen bolt

M8x20mm 12

10 Spring washerΦ8 14

11 Curved washerΦ8x19x1.5T 8

Anti

-loose Allen bolt M8x20mm 2

13 Screw cap 2

14 Bushing Φ19x38 6

15 Lower handlebar 2

16L Plastic cover L 1

16R Plastic cover R 1

17 T shape knob 1

18 Tube spacer Φ8x13x35 1

19 Bottle holder 1

20 Screw M5x20 2

21 Bottle 1

22 Plastic cover 1

23L Plastic cover for the foot support bar (L) 2

23R Plastic cover for the foot support bar (R) 2

24 Nylon nut M10 3

25 Flat washer Φ10x19x2T 2

26 Tube spacer 2

27 BushingΦ32x14 4

Allen bolt M10

x78 2

29 Carriage bolt M6 x50 4

30L Footplate (L) 1

Part# Description Quantity

30R Footplate (R) 1

31 Crank end cap 2

Anti

-loose Allen bolt M8x20 2

33 Flat washer Φ8x21x2T 2

34 C shape washerΦ43.5 2

35 Bearing 2203RS 2

36 Knob M6 4

37 Flat washer Φ6x16x2T 4

38 Spring washerΦ6 6

39L Foot support bar (L) 1

39R Foot support bar (R) 1

40 Tension cable 1

41 Belt adjustment set 2 sets

42 Nut M10 x1.25 (CP) 2

43 End cap for the round cover 2

44 Self-tapping screw M4.5 x25 6

45L Chain cover (L) 1

45R Chain cover (R) 1

46 Plastic rod 2

47 Nut M10 x1.25 (BK) 2

48 Round cover 2

49 Crank 2

50 Flat washerΦ5x16x1T 8

51 Self-tapping screw M4 x15 8

52 C shape washer Φ18 1

53 Waved washerΦ20.5x25x0.5T 1

54 Flat washer Φ20x25x1T 1

55 Bearing 6004RS 2

56 Sensor 1

57L Rear end cap (L) 1

57R Rear end cap (R) 1

58 Rear stabilizer 1

59 DC cable 1

60 Flat-head inner hexagon screw M8 x20 2

61 Flat washer Φ20x25x2T 1

62 Belt wheel 1

Part# Description Quantity

63 Pedal axle Φ20 1

Allen bolt M8

x12 4

65 Belt 1

66 Hexagon screw M6 x12 1

67 Flat washerΦ6x13x1T 1

68 Idler wheel 1

69 Waved washer Φ10x15x0.3T 2

Axle for idler wheel

71 Flat washer Φ10x19x1.5T 2

72 Hexagon screw M6 x16 2

73 Main frame 1

74 Motor 1

75 Screw for motor M5 x15 3

76 End cap for foot support bar 2

77L Front end cap (L) 1

77R Front end cap (R) 1

78 Front stabilizer 1

Allen bolt M8

x57 2

80 Drilling screw M5 x15 14

81 Flat washerΦ8x19x1.5T 4

82 Lower computer cable 1

83 Screw M5 x15 4

84 Connecting tube 2

85 Bushing Φ25x100 2

86 Quick release pin M16 2

Axle

88 Handlebar post 1

89 Flat washer Φ19.5x38x0.5T 2

90 Hand pulse cable 1

91 Screw for hand pulse pads 2

92 Hand pulse pads 2

93 End cap for fixed handlebar 2

94 Fixed handlebar 1

95 Foam for fixed handlebar 2

96 End cap for upper handlebar 2

97 Spring 1

Part# Description Quantity

98 Screw M4x15 2

99 Lever support 1

100 Magnet holder 1

101

Axle for magnet holder

102 Waved washerΦ12.5x18x0.3T 1

103 C shape washer Φ11 2

104 Nut M10x1.25x4T 2

105 C shape washer Φ9 1

106 Bearing 6300RS 1

107 Flywheel 1

108

Axle for Flywheel

109 Bearing 6000RS 1

110

Allen key wrench

111 Combination wrench 1

112

Adaptor

SSEMBLY INSTRUCTION

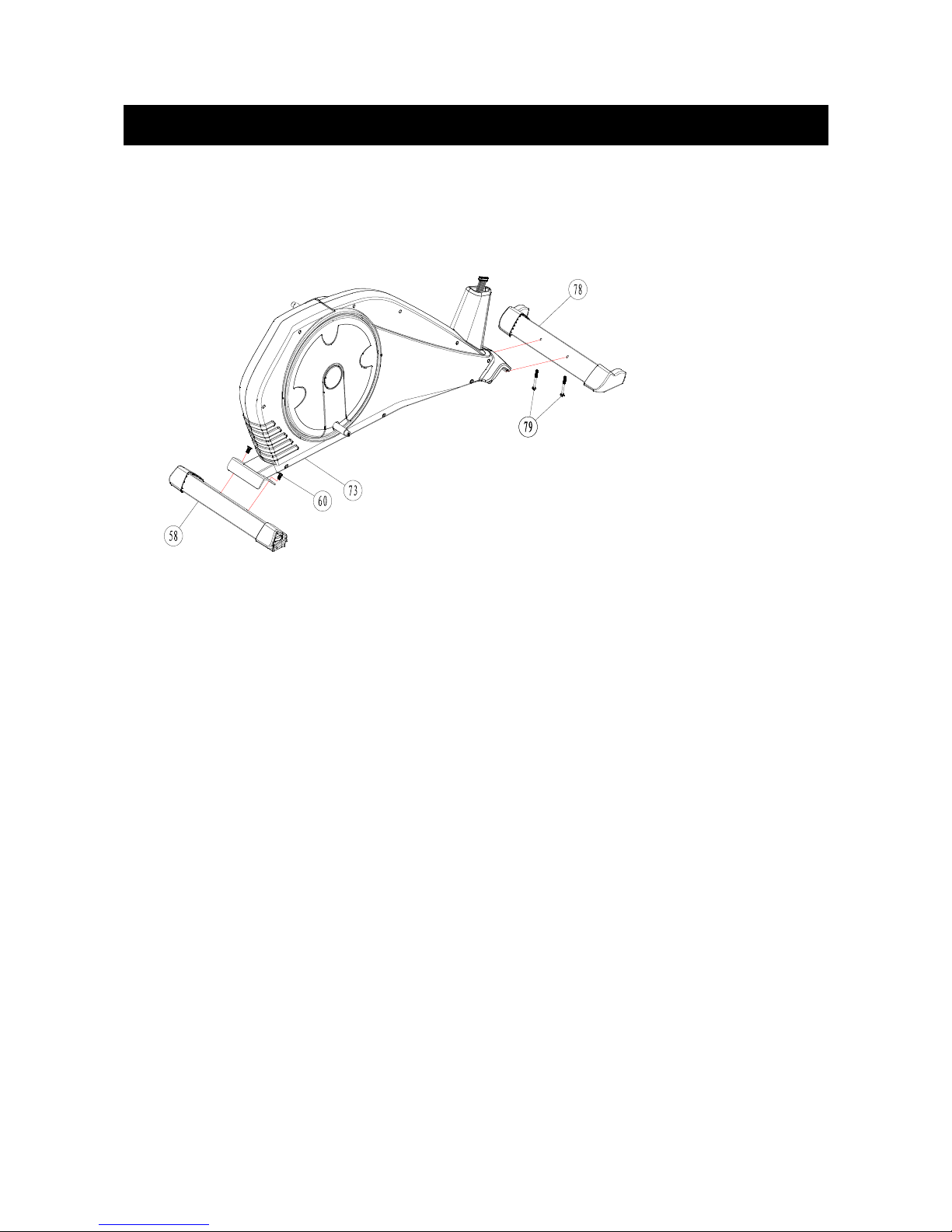

STEP 1

I. Fasten the Front stabilizer (78) with 2 x M8 x 57 Allen bolts (79).

II. Fasten the Rear stabilizer (58) with 2 x M8 x20 Flat-head inner hexagon screws (60).
