Body Solid K8439 Quick reference guide
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 1 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DCLP.1
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 2 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.1
DCLP.1-042007
HARDWARW ILLUSTRATION
(A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.8
(A2)HEX BOLT 1/2"X1-3/4"L PARTIAL QTY.4
(A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.2
(A4)HEX BOLT 1/2"X2-1/2"L PARTIAL QTY.2
(A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 3 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.2
DCLP.1-042007
HARDWARW ILLUSTRATION
(A6)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2
(A7)HEX BOLT 3/8"X2"L PARTIAL QTY.4
(A8)HEX BOLT 5/16"X1"L PARTIAL QTY.4
(A9)HEX BOLT 5/16X3-1/4"L PARTIAL QTY.2
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 4 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.3
DCLP.1-042007
HARDWARW ILLUSTRATION
(B1)NYLON LOCK NUT1/2" QTY.20
(B2)NYLON LOCK NUT 3/8" QTY.4

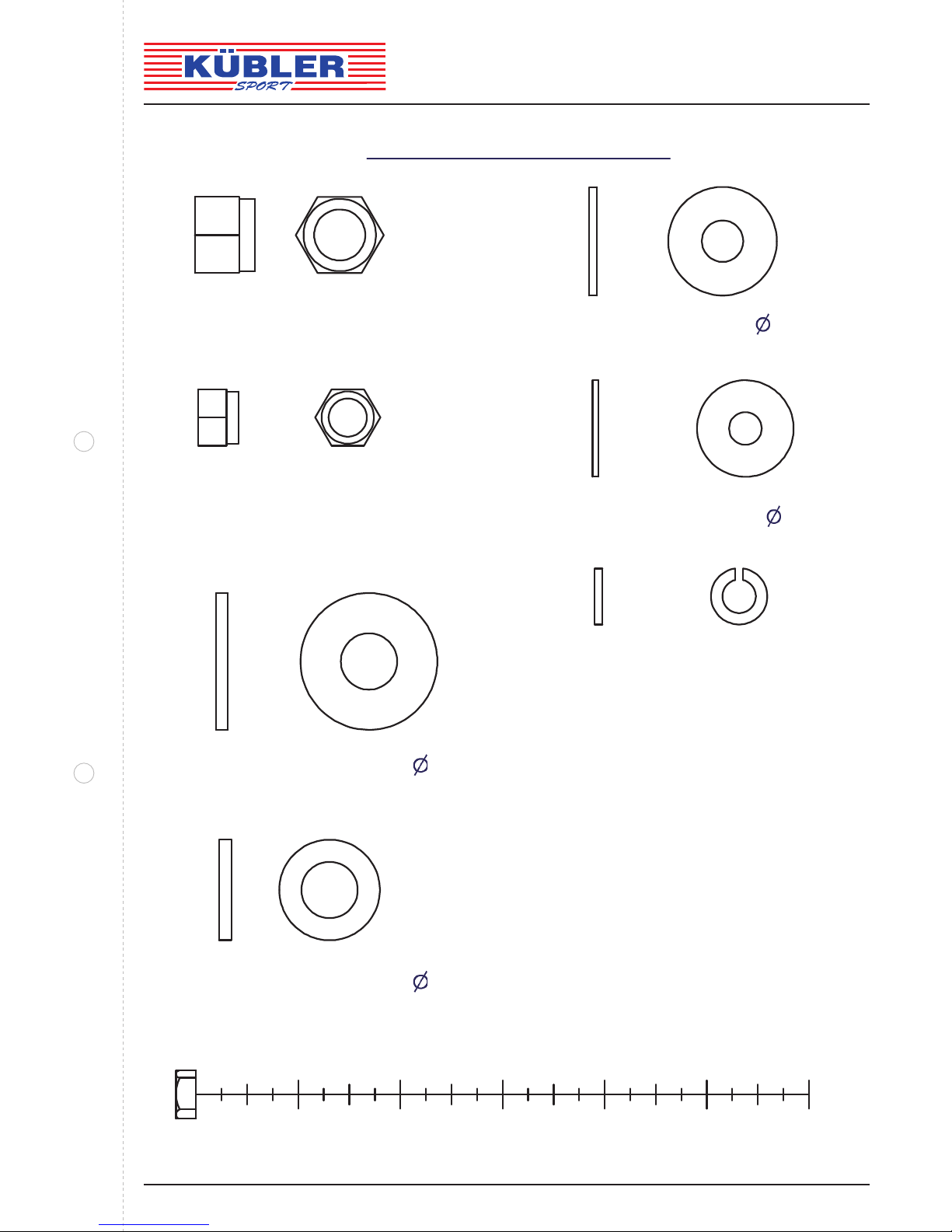

(C1)1/2"(I.D.)FLAT WASHER 34 QTY.24
(C2)1/2"(I.D.)FLAT WASHER 25 QTY.16
(C3)3/8"(I.D.)FLAT WASHER 27 QTY.8
(C4)5/16"(I.D.)FLAT WASHER 24 QTY.6
(C5)SPRING WASHER 5/16" QTY.6
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 5 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.4
DCLP.1-062007
HARDWARW ILLUSTRATION
(AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1
(AA6)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24
(AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.4
(AA7)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4
(AA5)ROUND INNER HEAD 3/8"X3-1/2"L PARTIAL QTY.1
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 6 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.5
DCLP.1-062007
HARDWARW ILLUSTRATION
(AA8)10LB PIN(8250-071) QTY.1
(CC2)1/2"(I.D.)FLAT WASHER 34 QTY.6
(BB2)NYLON LOCK NUT1/2" QTY.4
(CC6)SPRING WASHER 3/8" QTY.1
(CC3)M6(I.D.)FLAT WASHER 13 QTY.24
(BB3)NYLON LOCK NUT3/8" QTY.1
(CC1)3/8"(I.D.)FLAT WASHER 19 QTY.2
(AA9)ELASTIC BOLT QTY.1
(CC7)1/2"(I.D.)FLAT WASHER 25 QTY.2
2
1 3 4 5 6
(AA11)ROUND INNER HEX SCREW
M10X30L PARTIAL QTY.1
(AA12)FIRM SHEATH(8890-046) QTY.1
(BB4)NYLON LOCK NUT M10 QTY.1
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 7 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
2
DCLP.1-042007
HARDWARW ILLUSTRATION
(D1) 8 SPRING SNAP LINK(8810-001)
(D2) 50X50X1.8t END CAP(9211-087)
(D3)50X100 NYLON BUSHING(9211-107)
(D4)58X116X2.5tX65H FOOT CAP(9211-109)
(D5)58X116X2.5t END CAP(9211-112)
(D6)40X80X2t END CAP(9211-113)
(D7)116X58X29 RUBBER PAD(9310-057)
(D8) 4" 1/2"PULLEY(9213-010B)
(D9) 3/4" SHAFT COLLAR(9211-046)
(D10) 4"RUBBER DOUNT(9310-017)
(D11)TOP PLATE(8400-006)
(D13)95X250 RUBBER PAD(9310-060)
(D14)2895 STEEL CABLE(FDCLPA)
(D15)3705 STEEL CABLE(FDCLPB)
(D16)DLP FOR DGYM STEEL CABLE(FDCLPC)
(D17)WEIGHT SELECTOR BAR(8210-042B)
-------------------------------------------[1PCS]
------------------------------------------[2PCS]
----------------------------------------[2PCS]
------------------------------------[1PCS]
----------------------------------------------[1PCS]
---------------------------------------------- [1PCS]
----------------------------------------- [1PCS]
------------------------------------------------- [9PCS]
------------------------------------------- [2PCS]
-----------------------------------------------[2PCS]
--------------------------------------------------------- [1PCS]
-------------------------------------------- [2PCS]
---------------------------------------------- [1PCS]
----------------------------------------------- [1PCS]
-------------------------------- [1PCS]
------------------------------------ [1PCS]
D1 D2
D3 D4
D5 D6
D7 D8 D9 D11D10
D17
D13 D14 D15
2895 3705
D4
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 8 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
3
DCLP.1-042007
PARTS ILLUSTRATION
A [1PCS] B [1PCS]
D [1PCS] E[1PCS] F [1PCS]
G [1PCS] I [1PCS]
C [1PCS]
K [1PCS]
9111-055
L [1PCS)
9122-040
H [1PCS]
J [1PCS]
M [2PCS)
8510-005
N [1PCS)
6640-001
O [1PCS)
9440-160
Direction
Direction
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 9 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
4
DCLP.1-042007
PARTS ILLUSTRATION
AA[1PCS]
6610-003
AB[1PCS]
8380-051
AC[1PCS]
8380-049
AD[1PCS]
8380-050
AE[2PCS]
260159 ( 3/4"X1932L)
AF[1PCS]
9211-111
AG[2PCS]
8313-144
AH[11PCS]
8321-040
AI[1PCS]
8321-040
AJ[2PCS]
8321-040
63 50.5
50.5 40 63
4063
40 50.5
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 10 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
5
DCLP.1-042007
Above shows STEP 1
assembled and completed
H
D4
A6
C1
A6
I
B1
C1
M10X25L HEX BOLT X2
M10 Washer X2
X4
X4
C1
B1
C1
B1
C1
J
A1X4
X4
C1
D7
FLAT ALLEN HEAD M12X20L X2
A
D14
